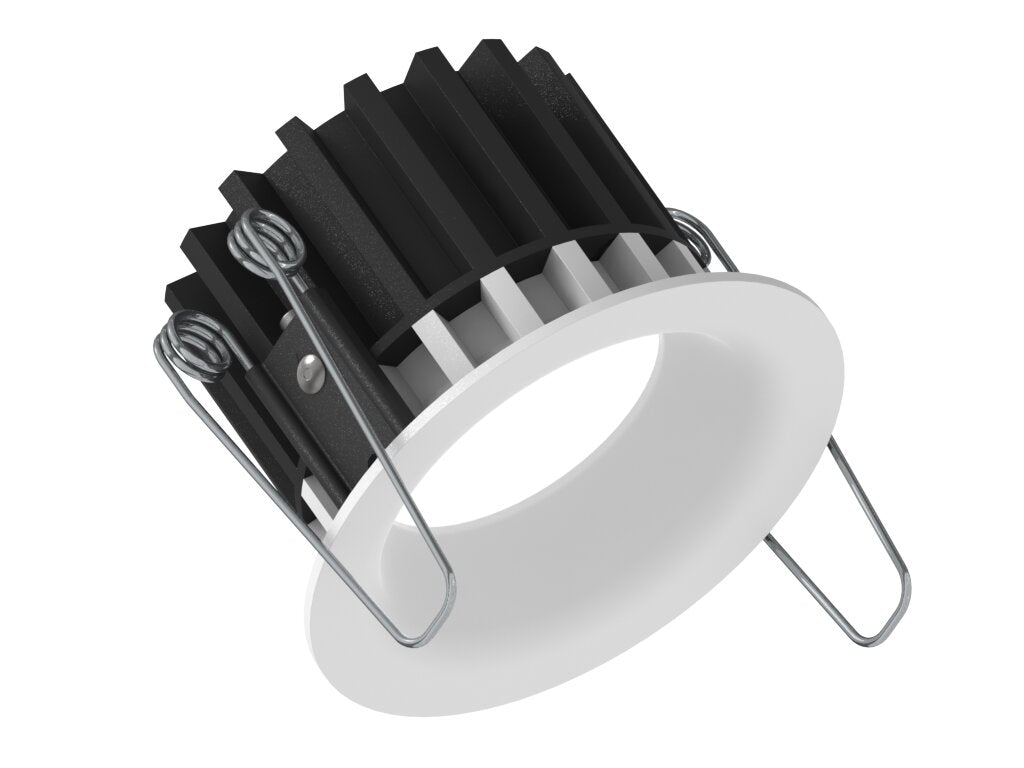

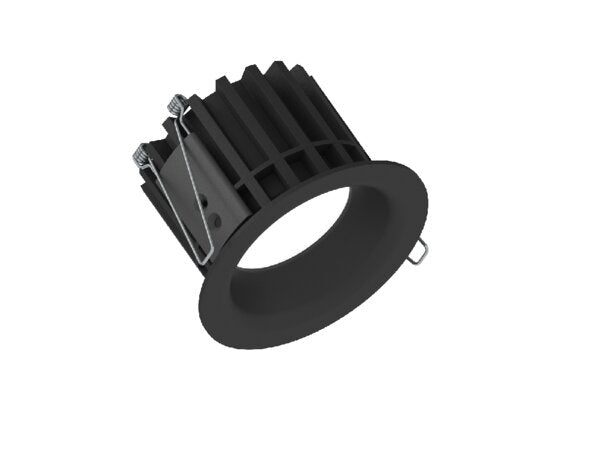

Archilight linea 75 Downlight 16W
Log in to see priceOverview
Downlight
Specifications
Variants
| SKU | Finish Colour |
|---|---|
| 917803BL6902 | Black |
| 917803MW6902 | White |
Specifications
- Input
- 230VAC
- Power rating
- 16 W
- Beam angle
- 40°
- Brightness
- 1250 lm
- Efficacy
- ≥78 lm/W
- Colour render index(CRI)
- ≥82
- Colour temperature
- 3000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~45°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight linea 75 Downlight 16W?
The Archilight linea 75 is a recessed LED downlight designed for interior lighting applications. It is part of a Holland-made luminaire range focused on efficient use of space and consistent lighting performance.
What are the main performance specifications of this downlight family?
This family is rated at 16W and delivers 1250 lumens in the listed variants. It has a CRI of 83, a 70,000-hour lifetime, and a 7-year warranty.
What light color and beam angle does the linea 75 Downlight 16W offer?
The variants shown for this parent model use a 3000K color temperature and a 60 degree beam angle. That makes the family suitable where a warm white output and broad downlight distribution are preferred.
Is the Archilight linea 75 Downlight 16W dimmable?
Yes, this product family is listed as dimmable optional. It also includes a driver, so buyers can evaluate compatible dimming requirements at the project level.
What finish options are available in this product family?
Based on the listed child variants, this parent model is available in black and white finishes. The core light output and key electrical specifications remain the same across those finish options.
Can this downlight be used in damp or splash-prone interior areas?
The product is rated IP44 only when installed in a closed ceiling, and only the front side may be exposed to water splashes. It is intended for interior use where that level of protection is appropriate.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Linea Series Models
1 other model| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight linea 68 Downlight 4.5W | 4.5W | 82 | Optional | 68 Millimeter | View |
