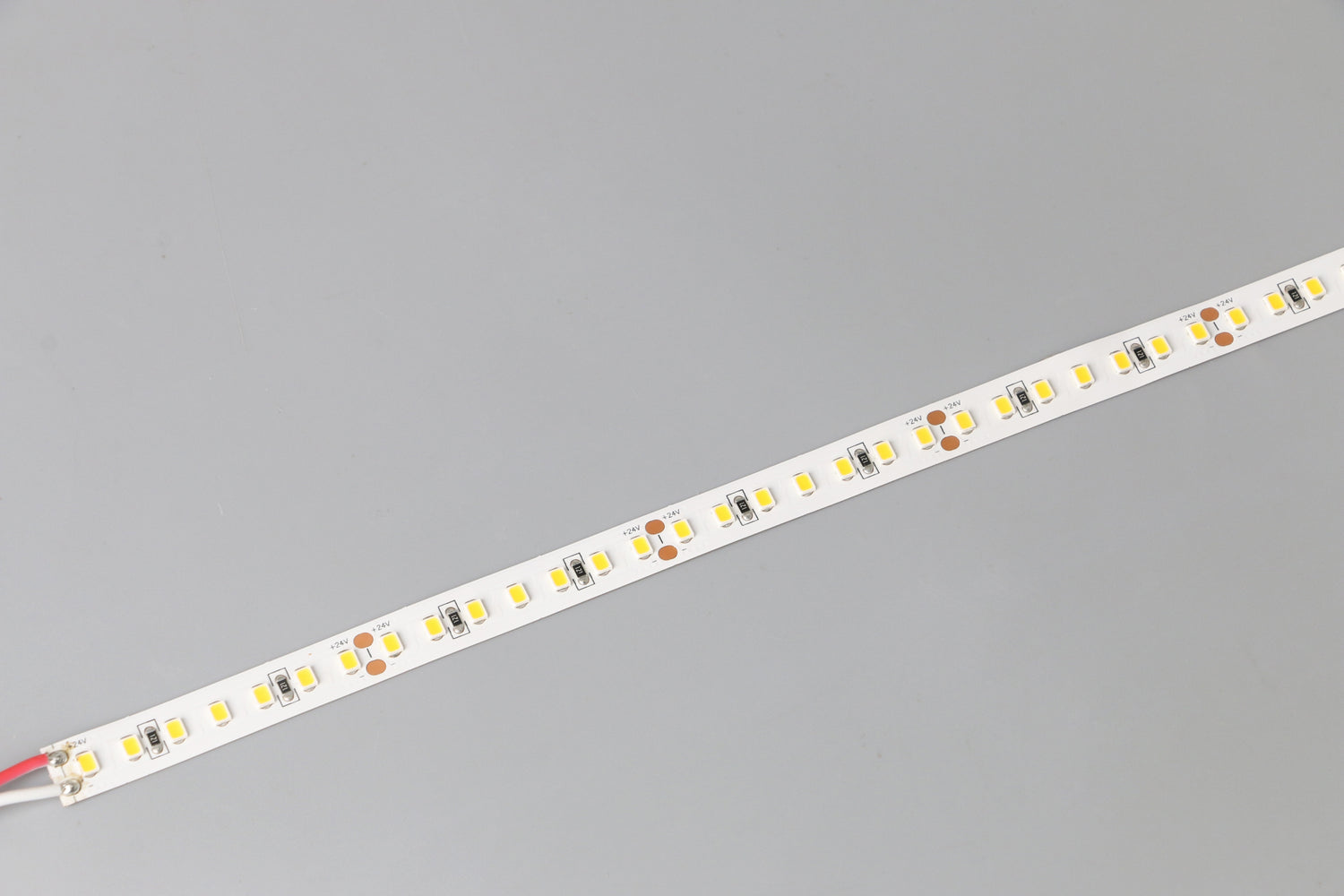

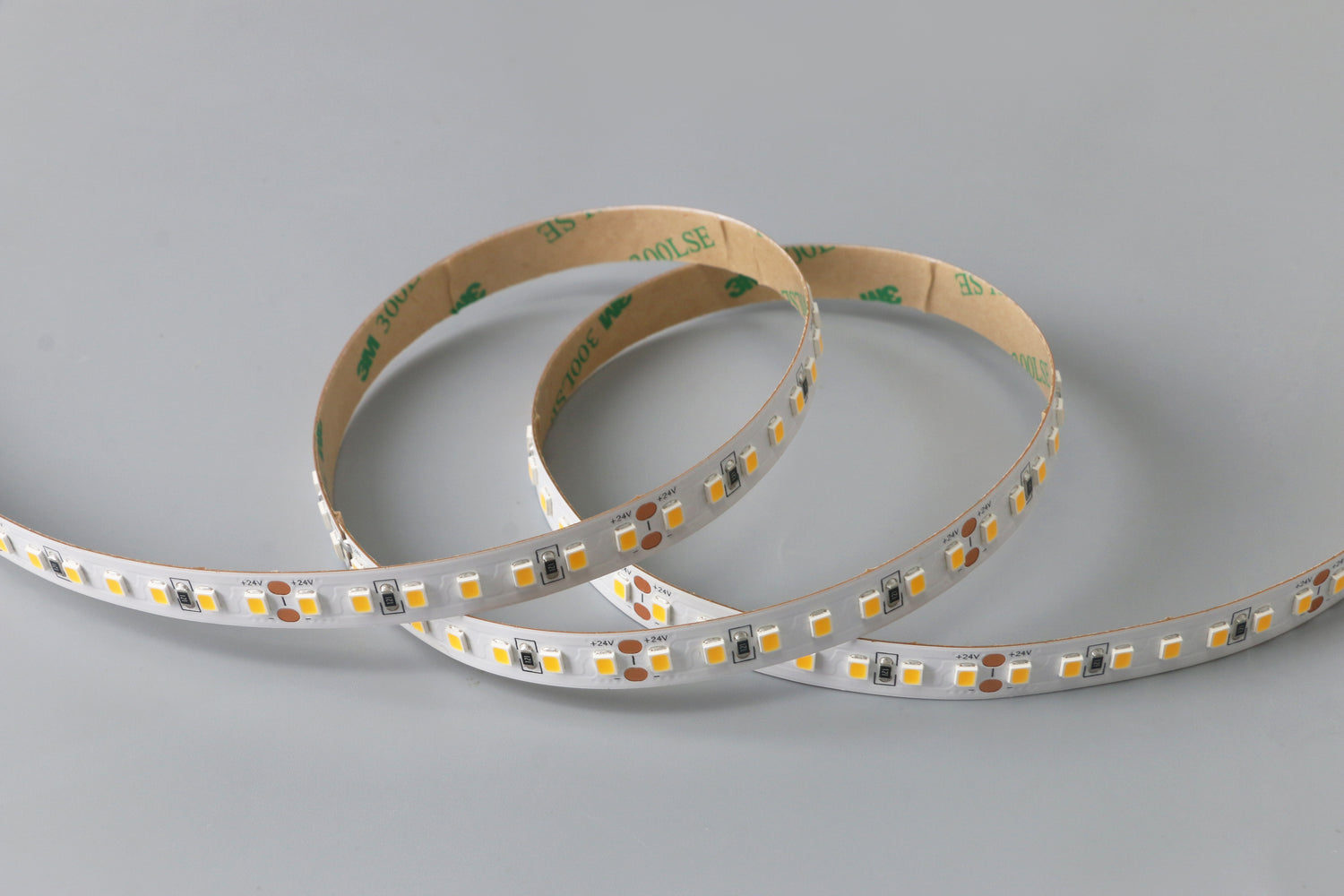

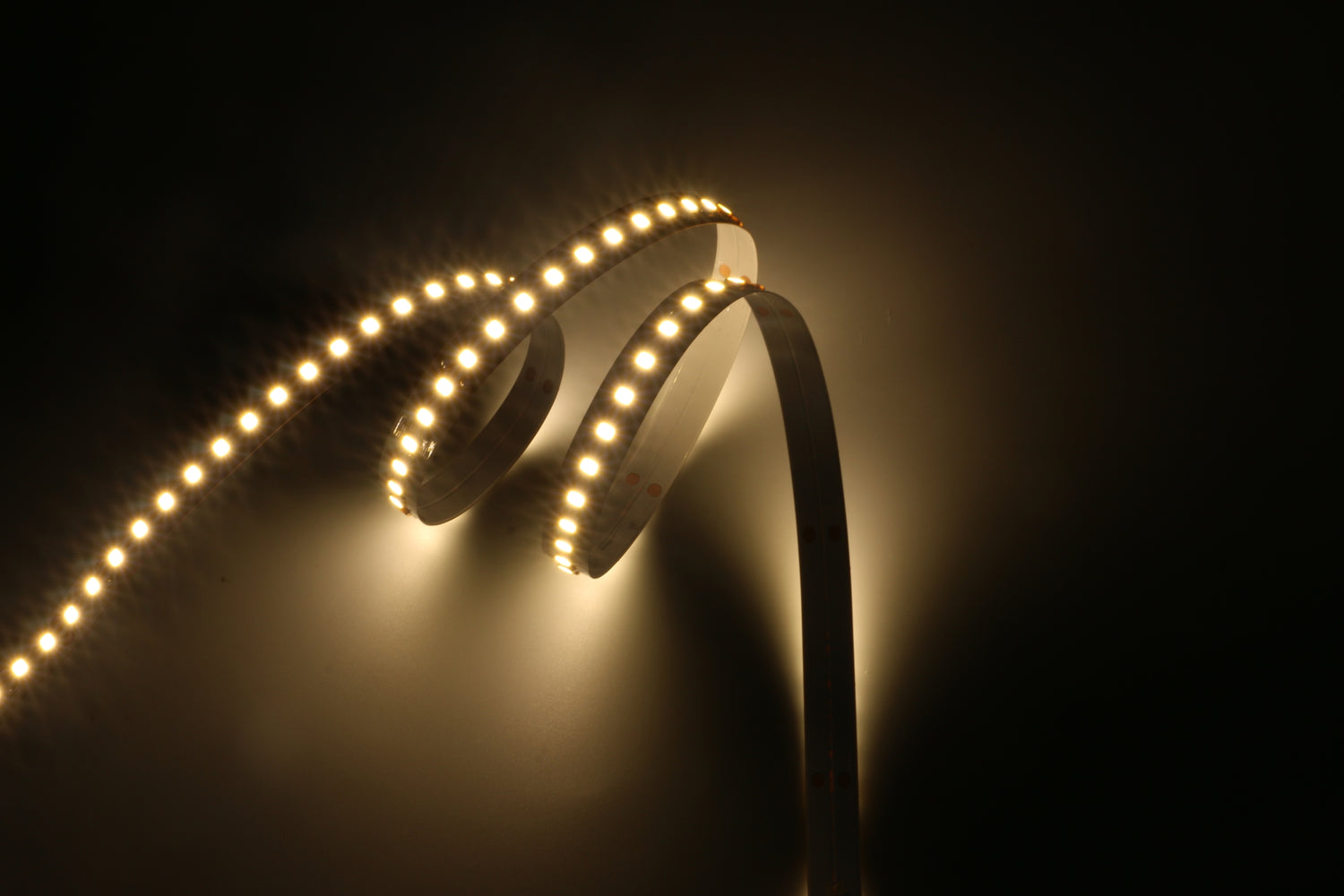

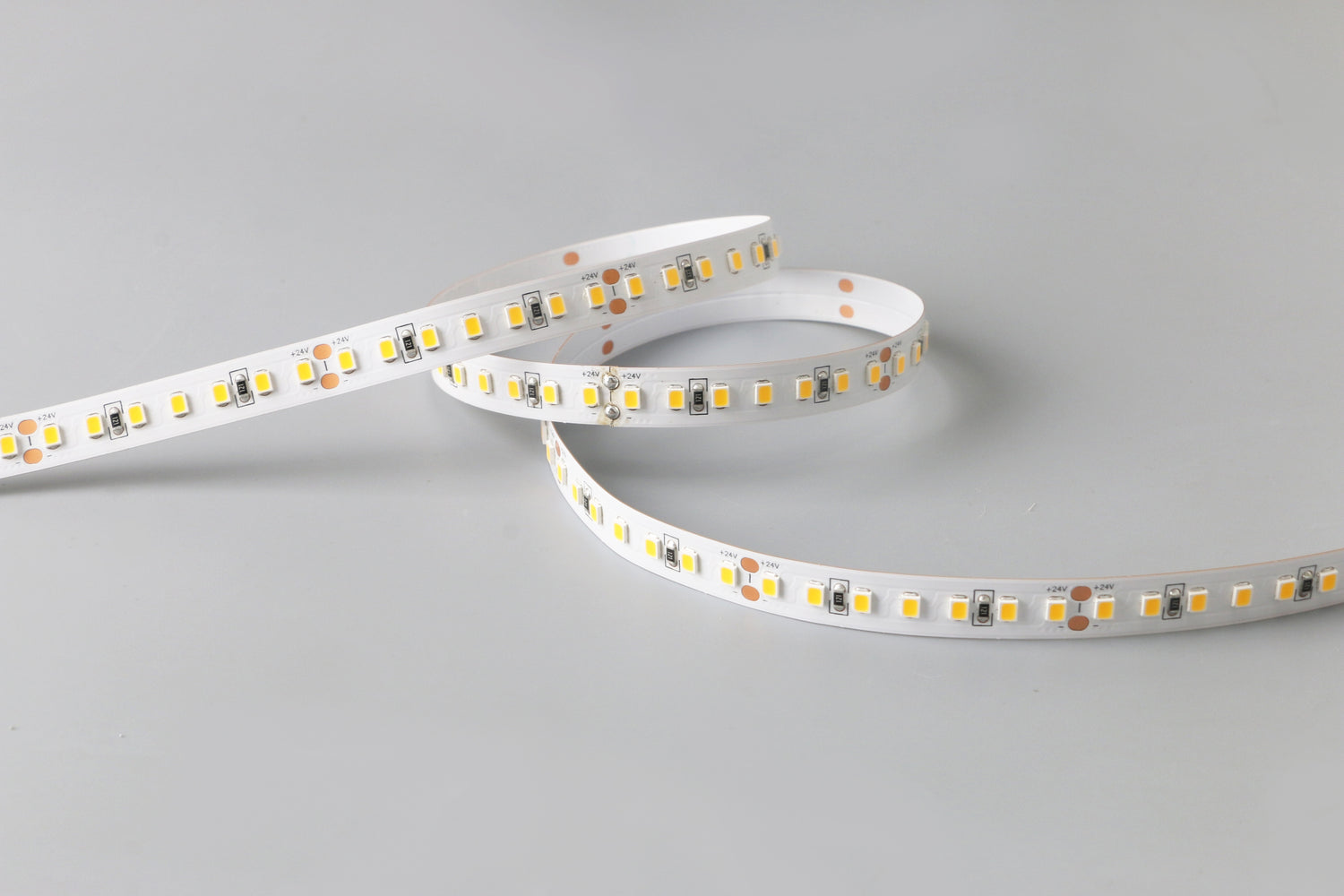

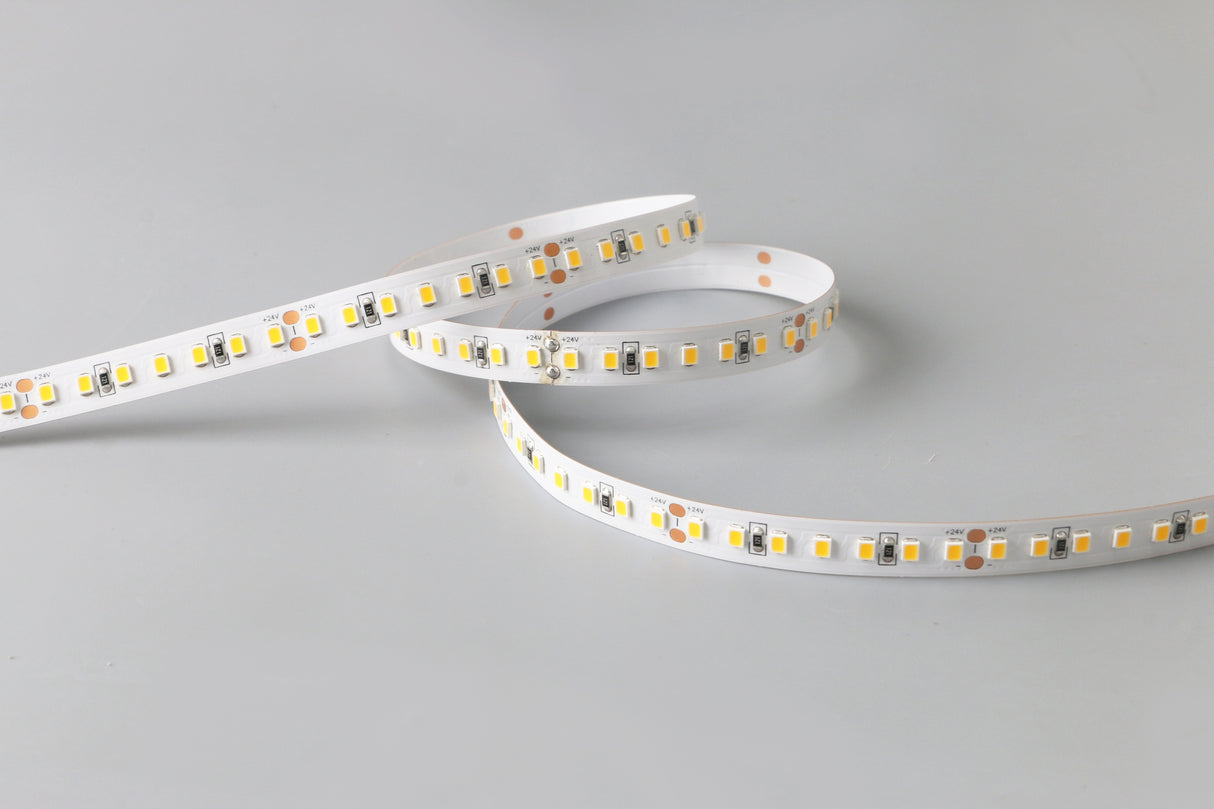

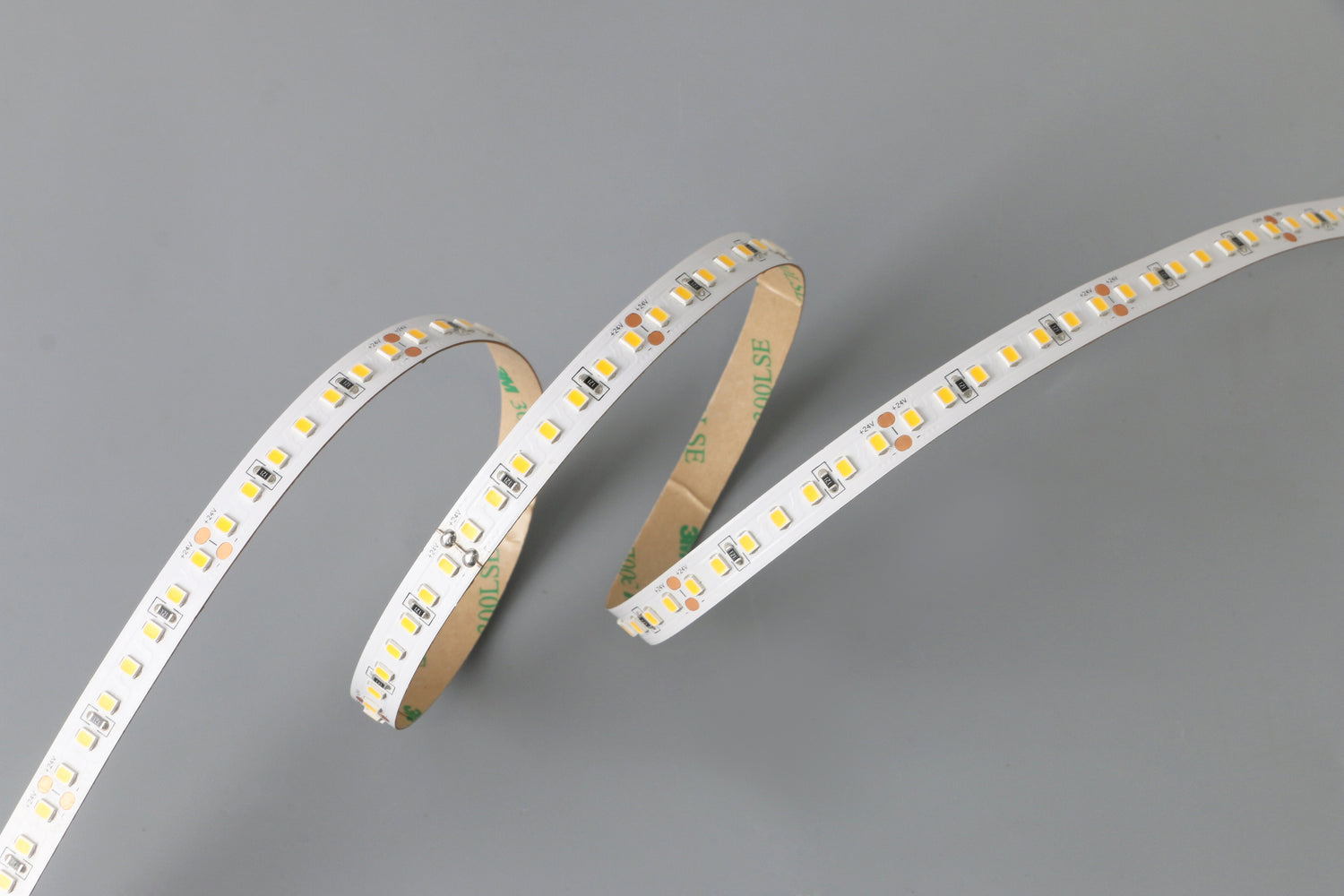

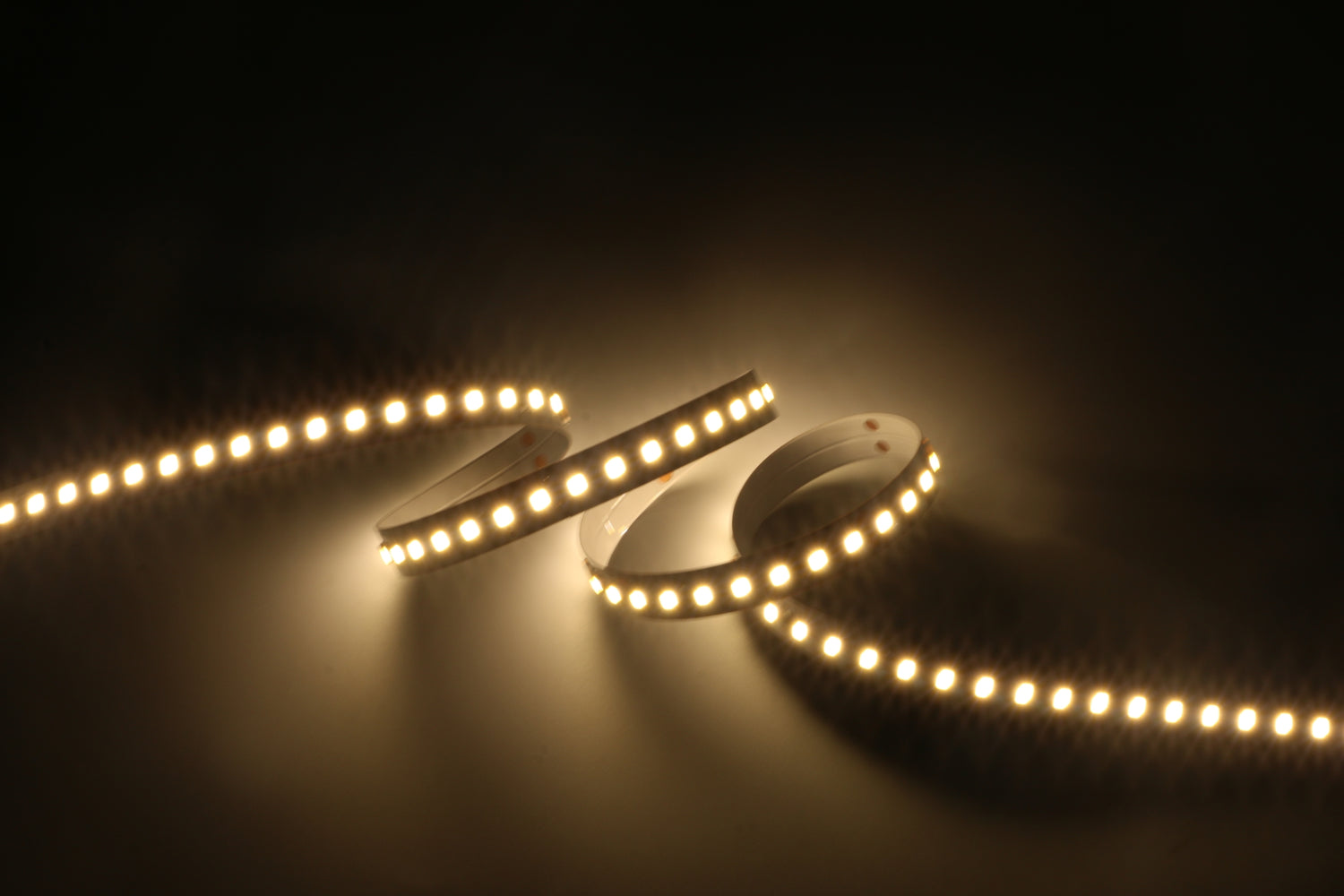

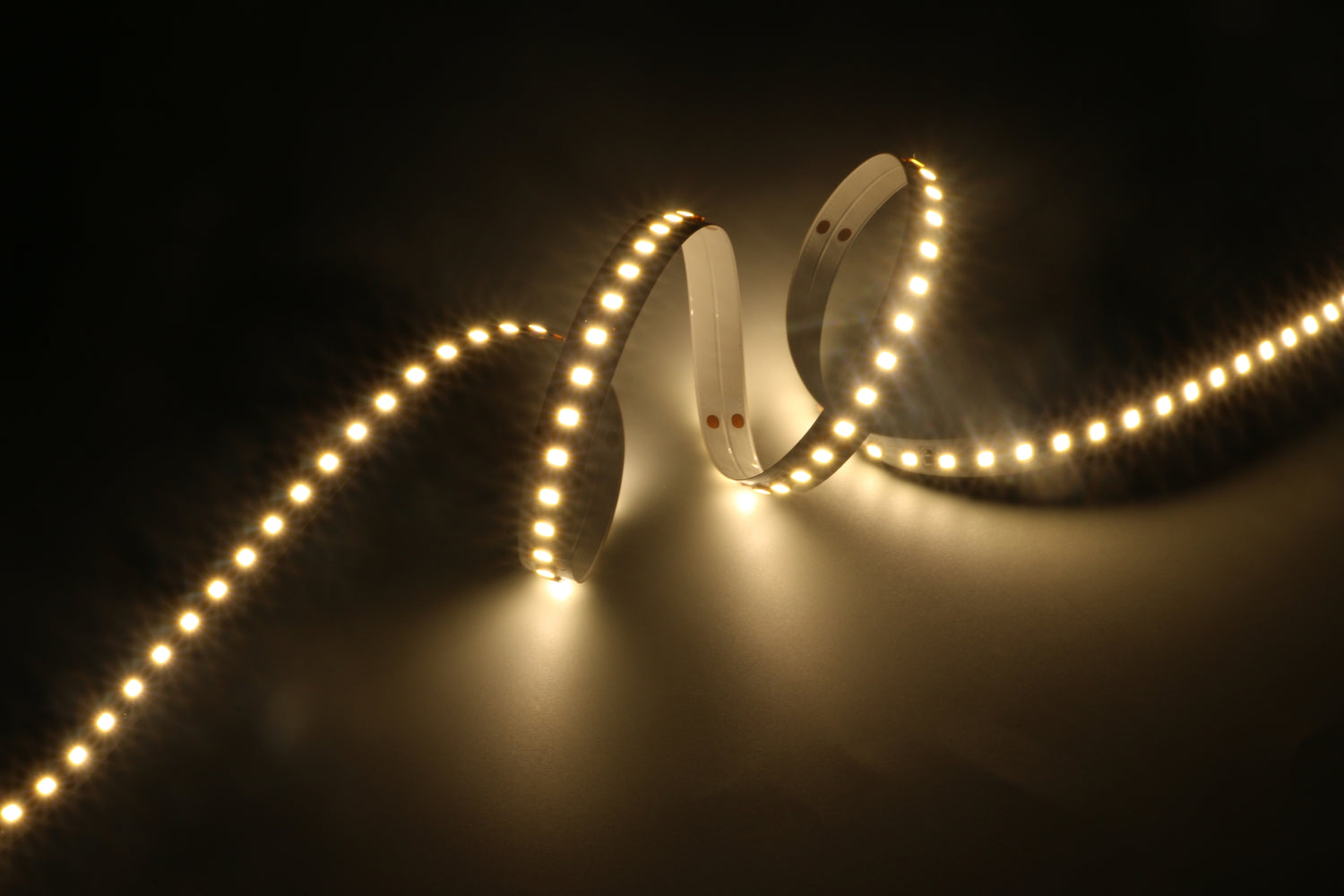

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

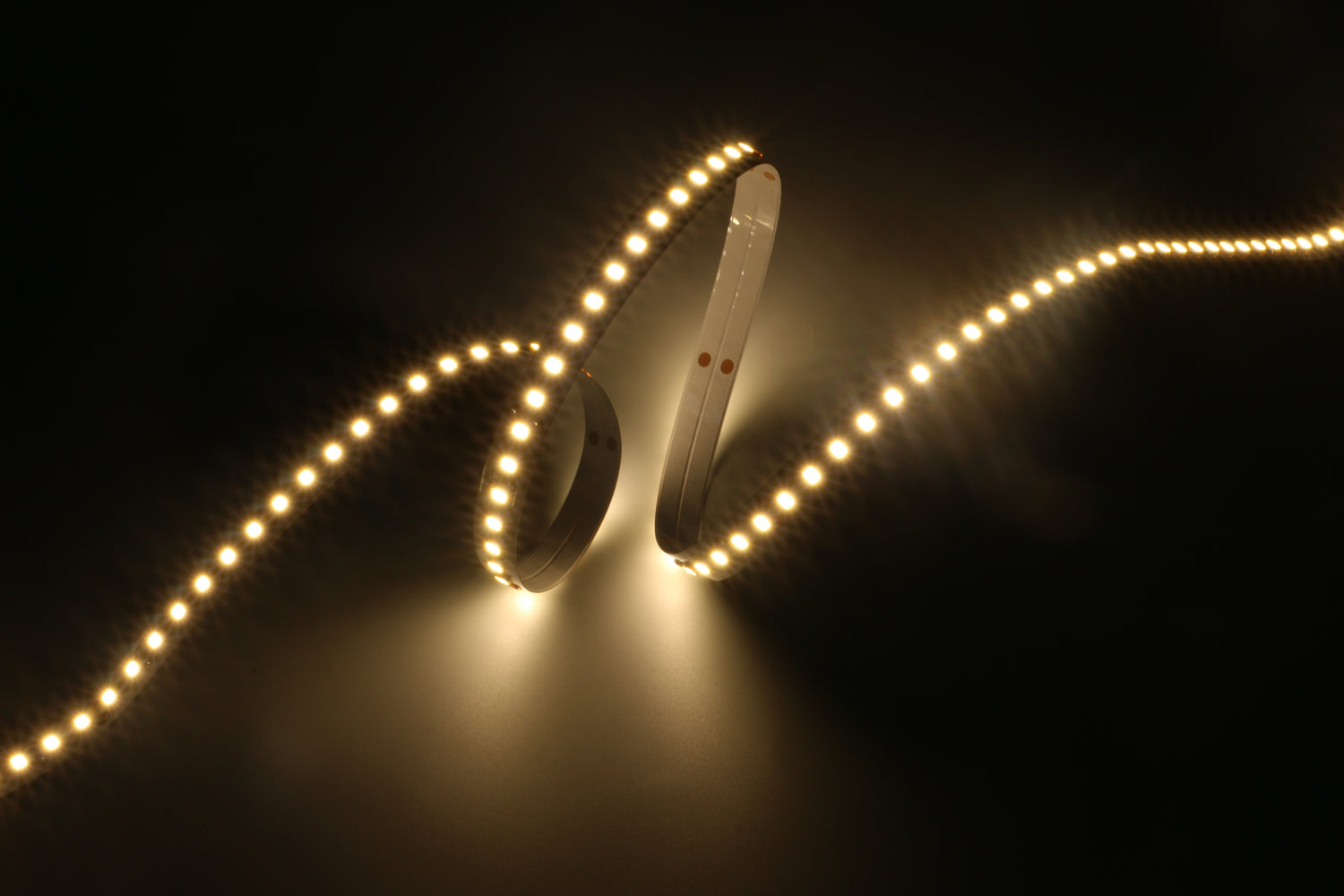

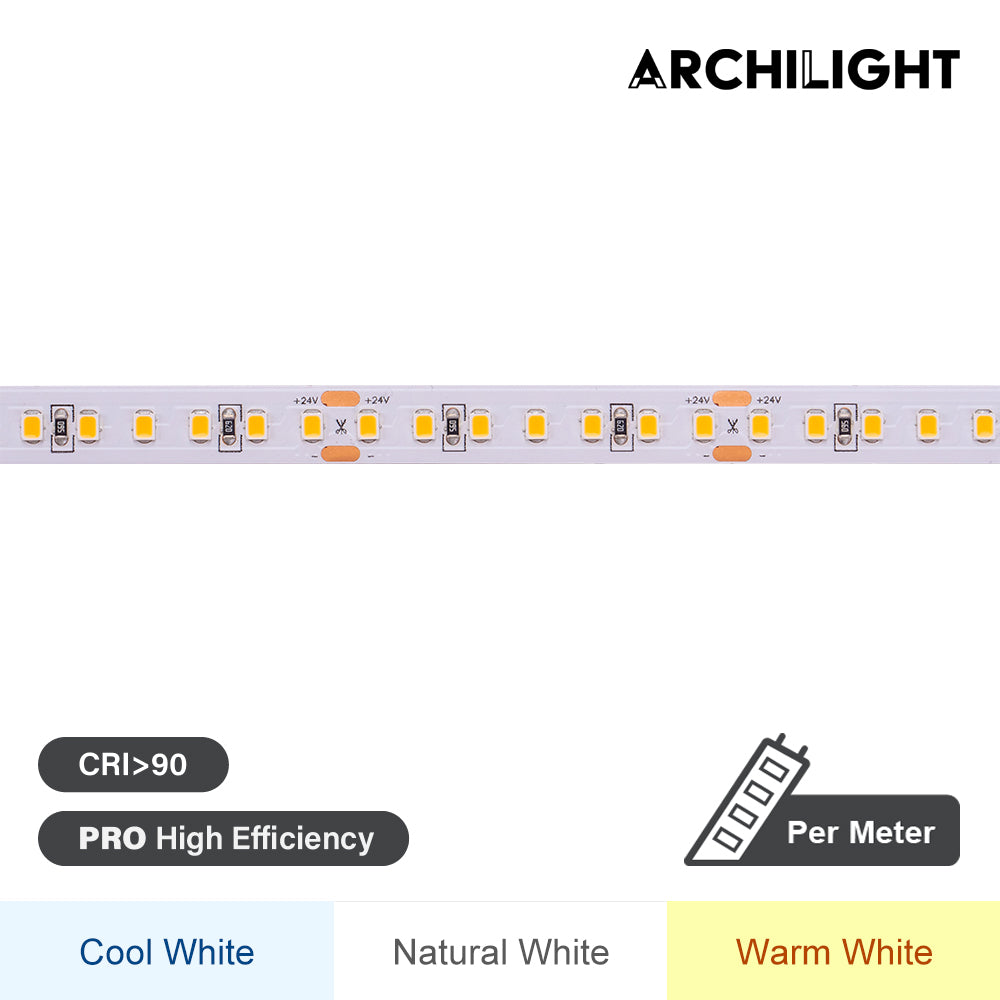

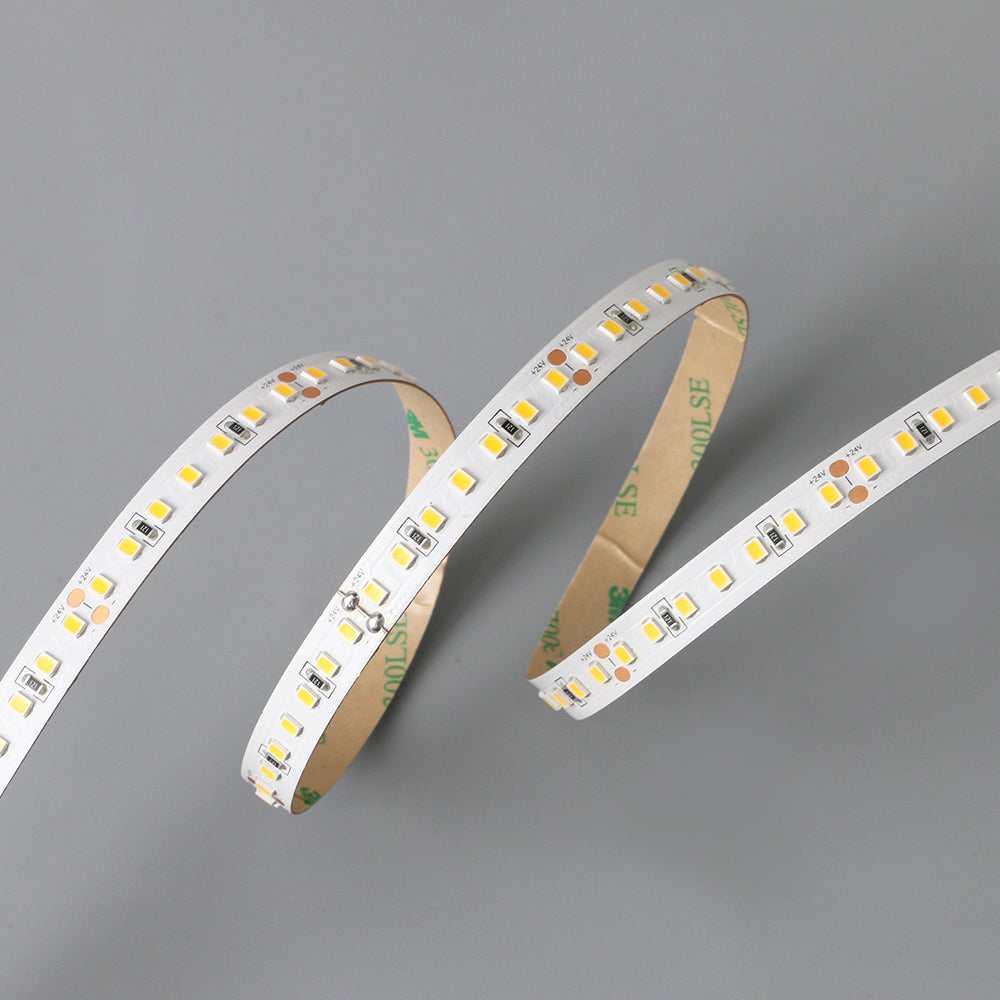

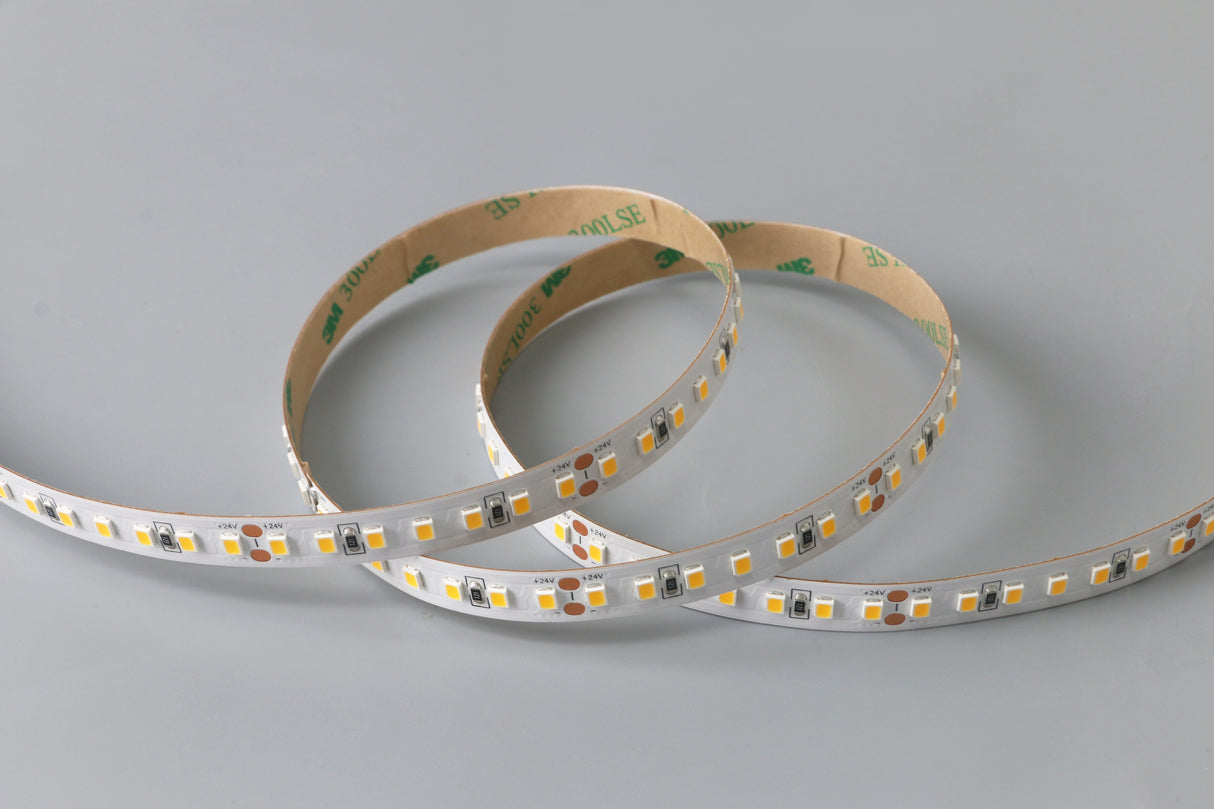

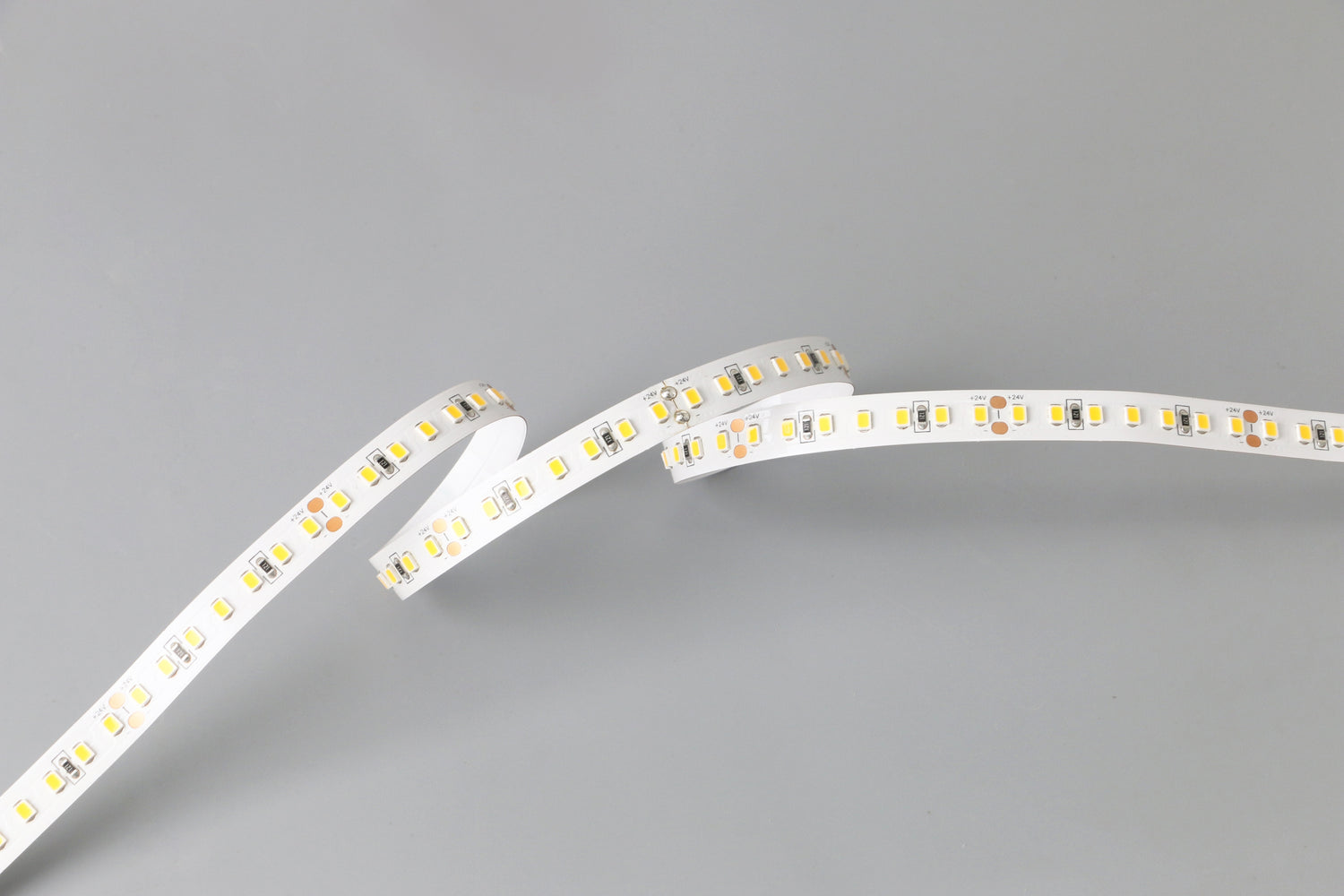

LED Strip Pro High-efficiency Plus

140LEDs/m, 15W/m, 24V, IP20, CRI>90, cuttable length 50mm

SKU:

2835-1402400GLE-CW

Length

100 Centimeter

LED Colour

Cool White 6000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the Archilight Pro Plus Series LED Strip Light, an exceptional choice for high-efficiency lighting solutions in both residential and commercial environments. This cutting-edge product combines superior materials and innovative design to deliver outstanding performance and reliability.

Key Features:

High-Efficacy Lighting: Utilizing top-quality components such as Epistar/San’an chips and Intermatix phosphor powder, this LED strip light achieves a remarkable light efficiency of 113 lm/W. It provides bright and consistent illumination with a minimal energy footprint.
Versatile Applications: Ideal for a variety of settings, including showcases, cabinets, billboards, signage, hotels, gardens, and more. Its design is perfect for both direct and indirect lighting, enhancing the ambiance of any space.
Robust Construction: Built with Heraeus 99.99% pure golden wire and durable materials like pure copper and fresh plastic stands, this LED strip is designed to withstand the test of time.
Customizable Options: The strip is available in multiple color temperatures ranging from 3000K to 6000K, allowing you to tailor the lighting to your specific needs. It also supports dimming via PWM with compatible drivers, offering precise control over brightness.
Easy Installation and Maintenance: Equipped with a 3M adhesive backing for straightforward mounting, and available with optional accessories like clips and screws for secure installation.
Technical Specifications:
- Available in standard lengths of 5 meters rolls, with a lifespan of over 50,000 hours.
- Operates on 24VDC with 15W/m power consumption.
- Cuttable length 50mm
- CRI > 90

Specifications

Brand

Archilight
Series

Pro High Efficiency Series
Power Rating

15 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Width

1 cm
Height

0.1 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Archilight LED Strip Pro High-efficiency family?

This LED strip family runs on 24V DC and uses 15W per metre. It is supplied as a 5 metre roll, has 140 LEDs per metre, offers CRI over 90, and can be cut every 50 mm. The strip is 10 mm wide and rated IP20.

What is the difference between the available colour temperature options in this product family?

This parent family includes 3000K, 4000K, and 6000K variants. The 3000K option is a warmer light output, while 4000K and 6000K provide progressively cooler light. Based on the child variant data, the 4000K and 6000K versions are rated at 1700 lm, while the 3000K version is rated at 1615 lm.

Is this LED strip suitable for indoor or outdoor use?

This strip is rated IP20, so it is intended for indoor use in dry environments. It is better suited to applications such as cabinets, showcases, signage, hotels, and other interior lighting projects. It is not described here as a weatherproof or outdoor-rated strip.

Does this LED strip include a driver, and can it be dimmed?

A driver is not included with this product family. The strip is listed as dimmable with optional dimming control, and the product description states it supports PWM dimming when paired with a compatible driver. That means dimming capability depends on the power setup selected for the project.

What types of projects is this LED strip best suited for?

This family is designed for high-efficiency linear lighting in residential and commercial settings. The product description specifically highlights showcases, cabinets, billboards, signage, hotels, and garden-related lighting applications, along with both direct and indirect lighting uses. Its high CRI and multiple colour temperature options also make it suitable where visual quality matters.

What does the package size and unit pricing mean for this product?

The product is supplied as a 5 metre, 16.4 foot package. The listing states that the displayed unit price is shown per metre, even though the supplied pack length is the full 5 metre roll. This helps buyers compare strip cost on a per-metre basis while ordering the standard roll length.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip Pro High-Efficiency	10.8W	70LEDs/m	100mm	Indoor	View
