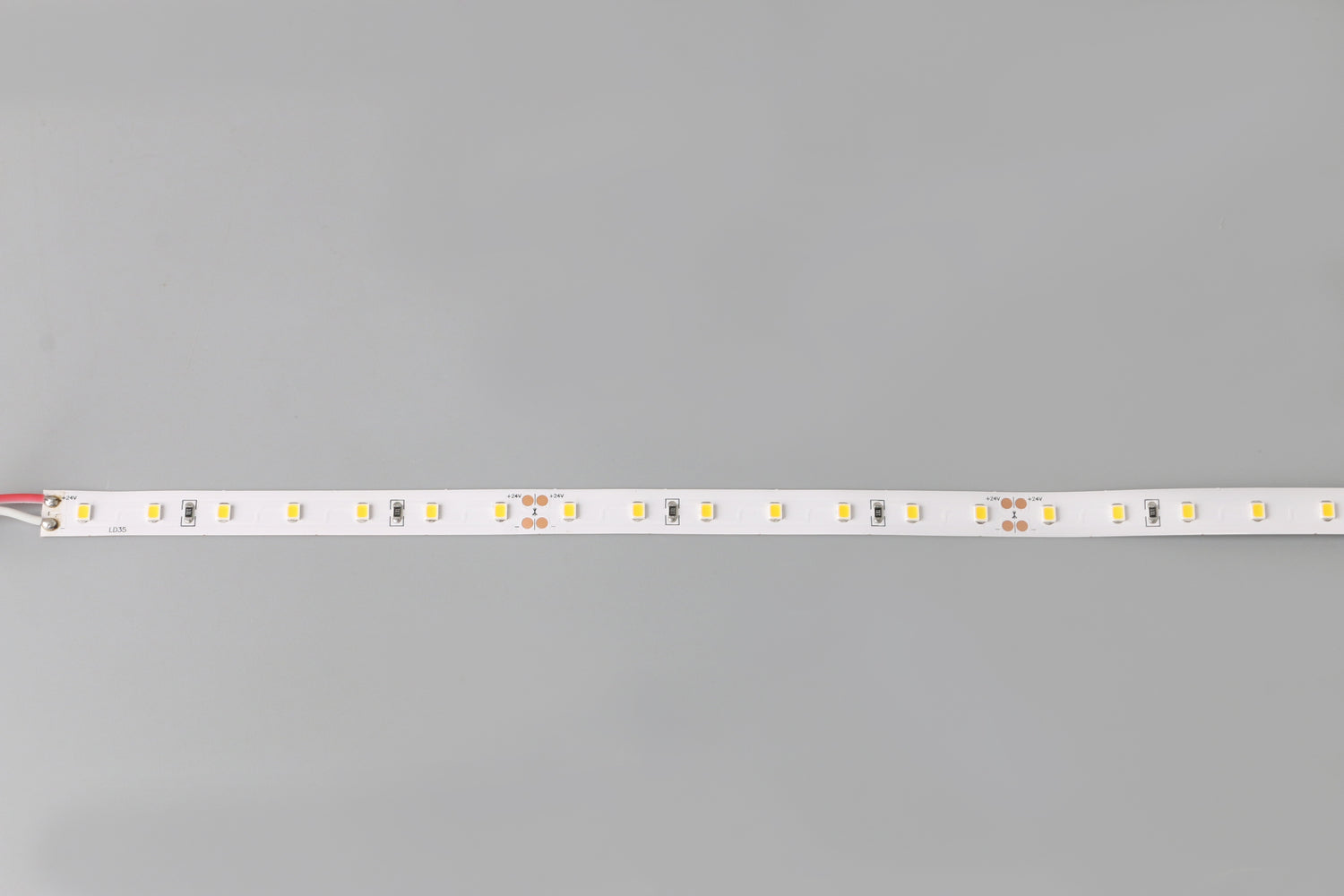

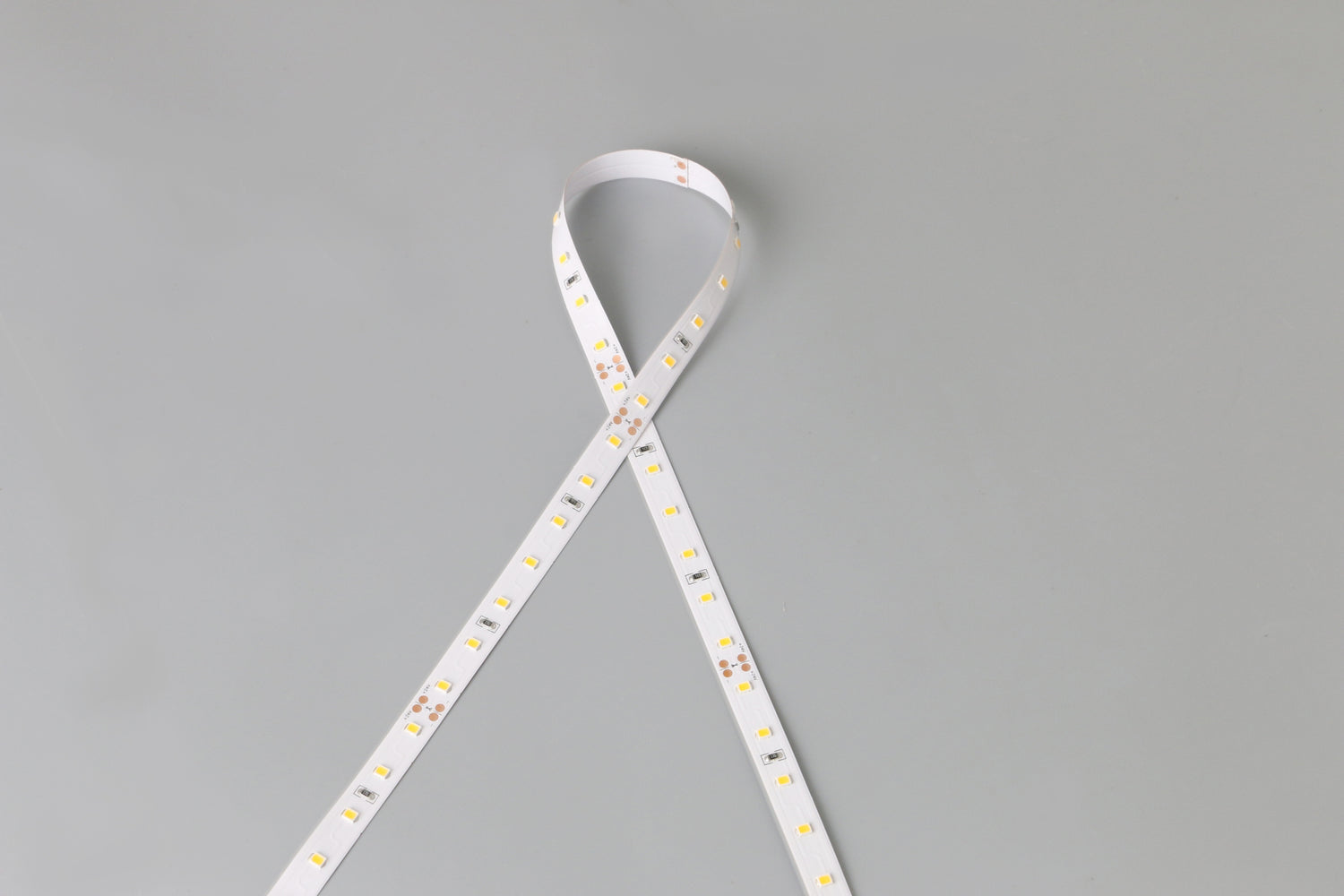

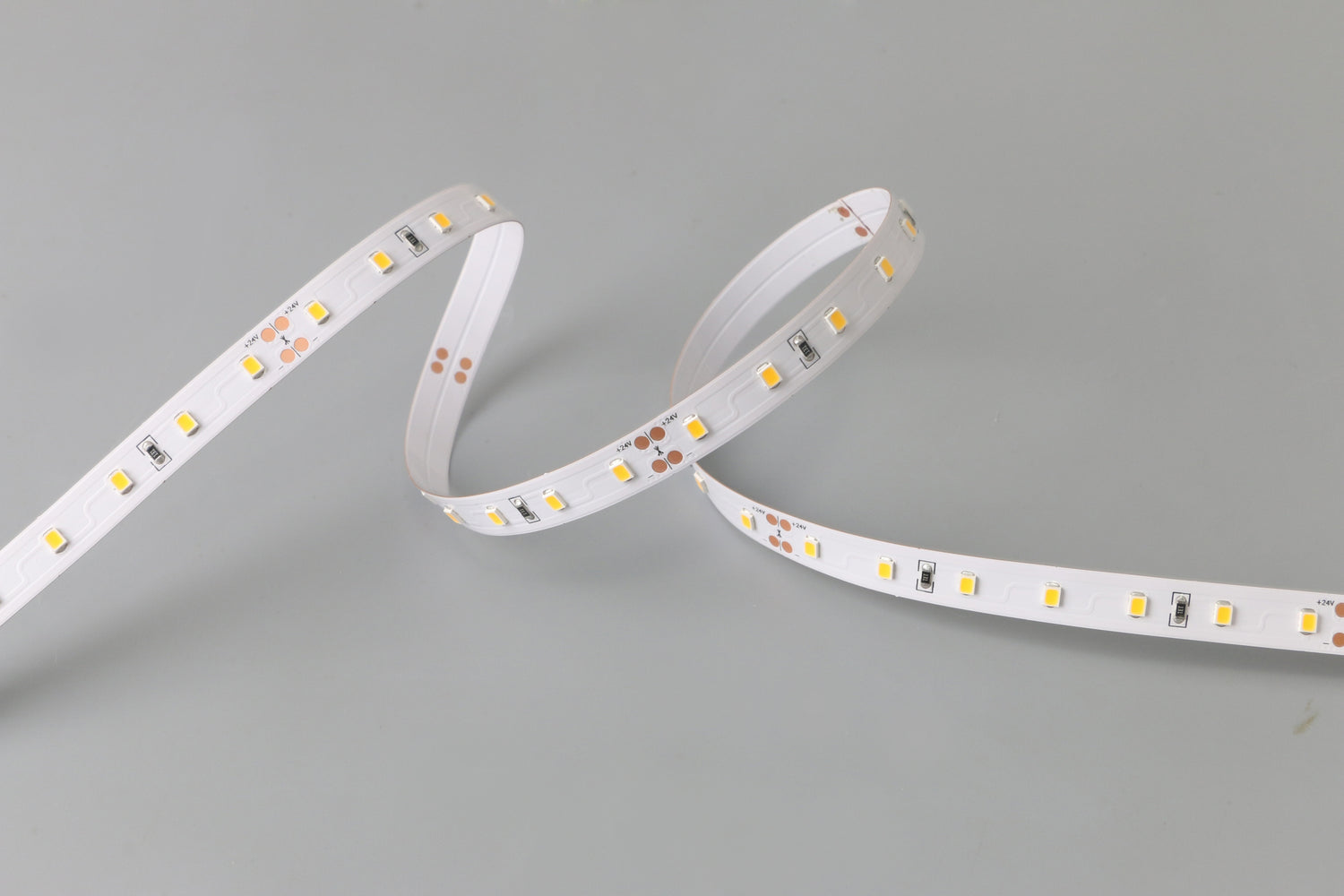

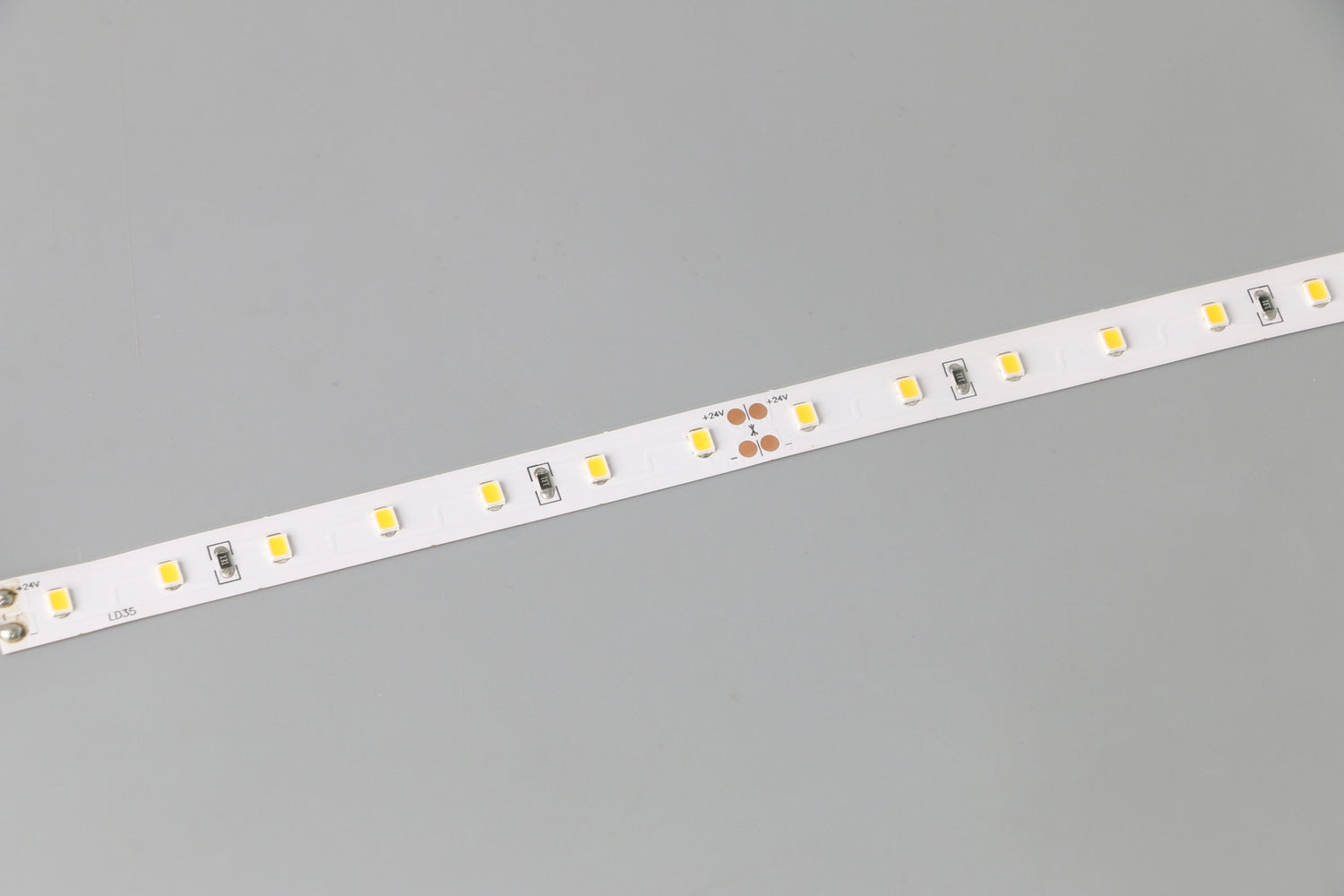

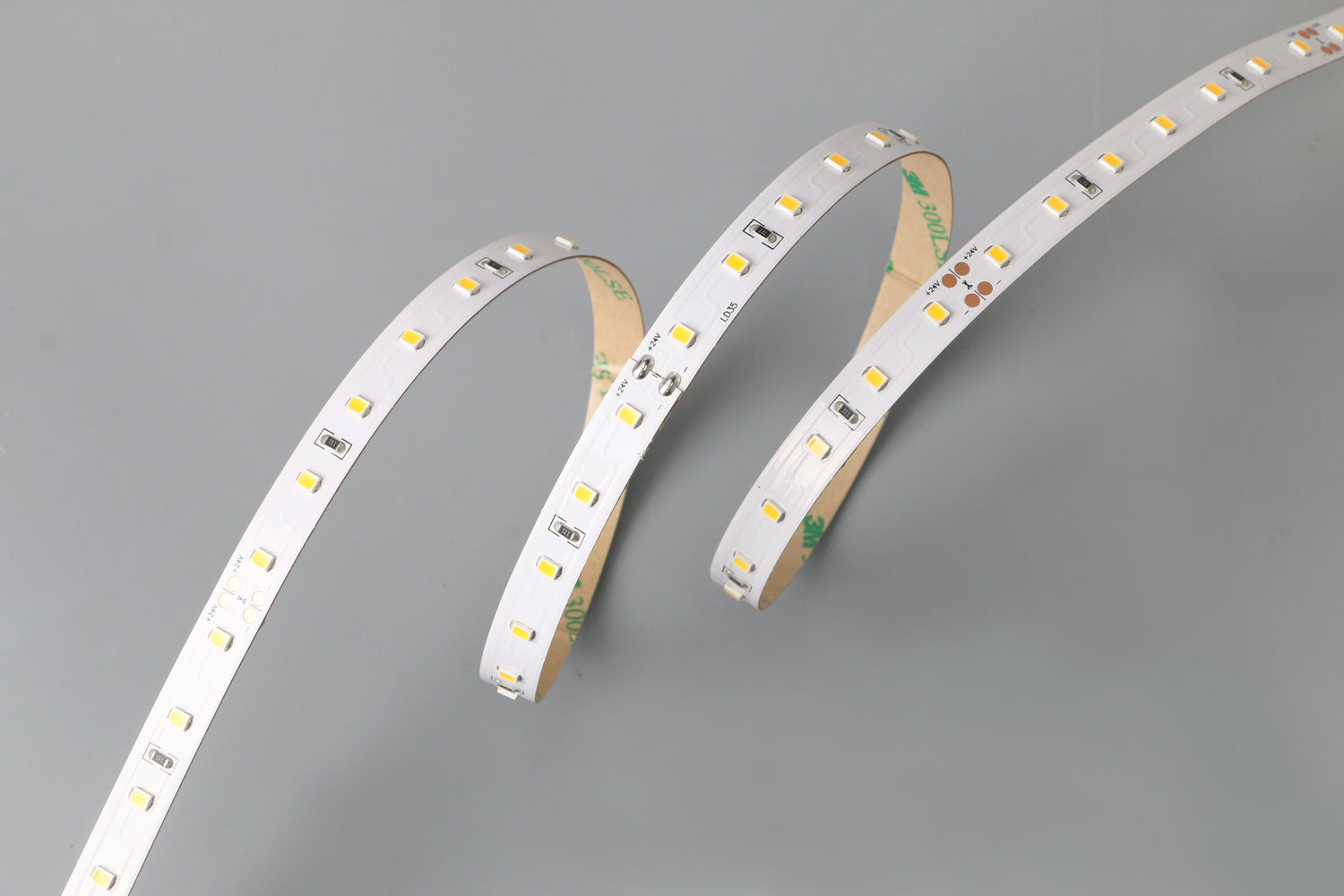

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

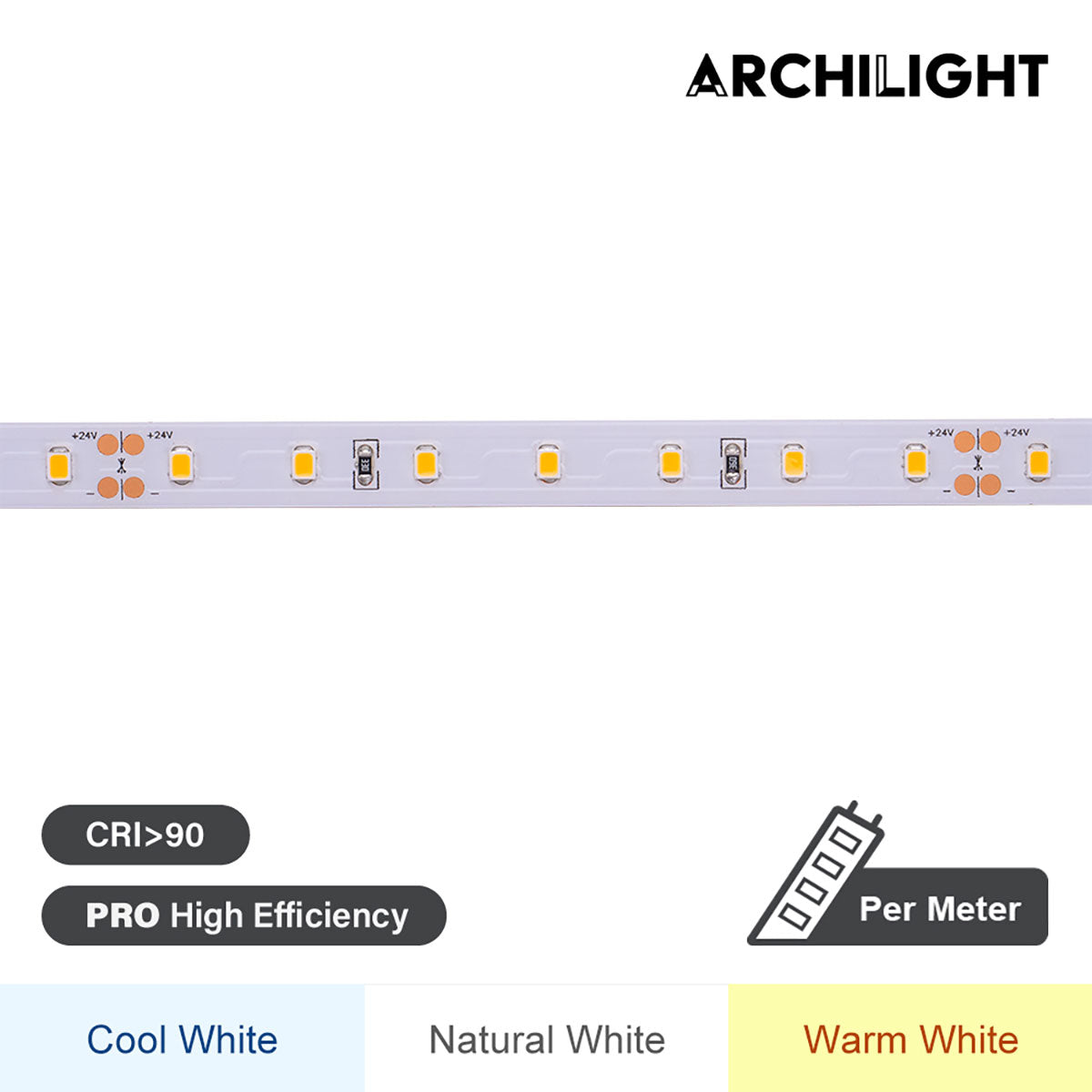

LED Strip Pro High-Efficiency

70LEDs/m, 10.8W/m, 24V, CRI>90, cuttable length 100mm

SKU:

2835-0702400GLE-CW

Length

100 Centimeter

LED Colour

Cool White 6000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the Archilight Pro Series LED Strip Light, an exceptional choice for high-efficiency lighting solutions in both residential and commercial environments. This cutting-edge product combines superior materials and innovative design to deliver outstanding performance and reliability.

Key Features:

High-Efficacy Lighting: Utilizing top-quality components such as Epistar/San’an chips and Intermatix phosphor powder, this LED strip light achieves a remarkable light efficiency of 113 lm/W. It provides bright and consistent illumination with a minimal energy footprint.
Versatile Applications: Ideal for a variety of settings, including showcases, cabinets, billboards, signage, hotels, gardens, and more. Its design is perfect for both direct and indirect lighting, enhancing the ambiance of any space.
Robust Construction: Built with Heraeus 99.99% pure golden wire and durable materials like pure copper and fresh plastic stands, this LED strip is designed to withstand the test of time.
Customizable Options: The strip is available in multiple color temperatures ranging from 3000K to 6000K, allowing you to tailor the lighting to your specific needs. It also supports dimming via PWM with compatible drivers, offering precise control over brightness.

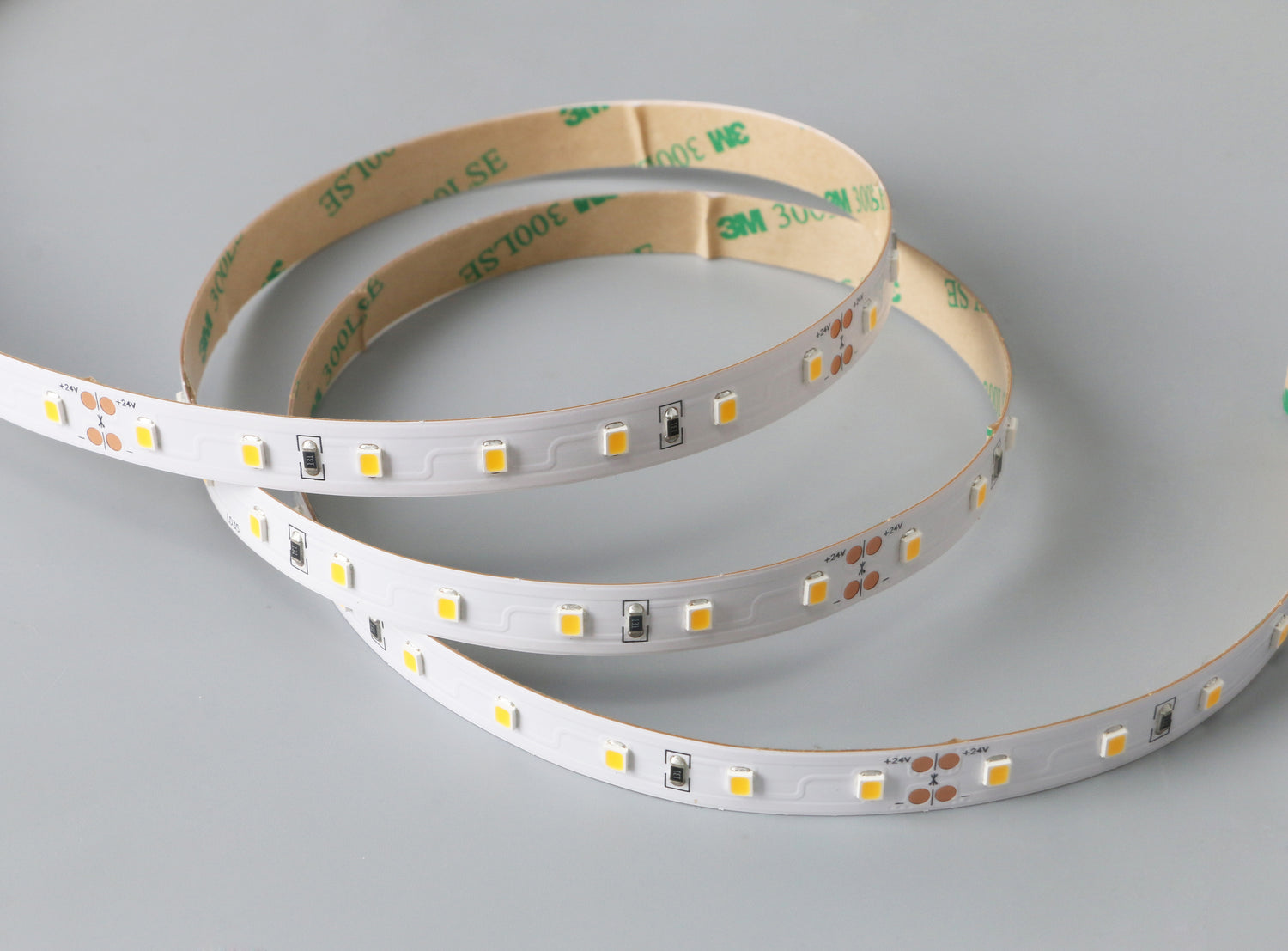

Easy Installation and Maintenance: Equipped with a 3M adhesive backing for straightforward mounting, and available with optional accessories like clips and screws for secure installation.
Technical Specifications:
- Available in standard lengths of 5 meters rolls, with a lifespan of over 50,000 hours.
- Operates on 24VDC with 10.8W/m power consumption.
- Cuttable length 100mm
- CRI > 90

Specifications

Brand

Archilight
Series

Pro High Efficiency Series
Power Rating

10.8 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Width

1 cm
Height

0.2 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Archilight LED Strip Pro High-efficiency 70LEDs 10.8W 24V strip?

This LED strip operates at 24VDC and uses 10.8W per metre. It is 10mm wide, 2mm high, has an IP20 rating, and offers CRI 90+ for high color quality. The standard package is a 5 metre (16.4 ft) roll, and the stated unit price is shown per metre.

What color temperature options are available in this product family?

This parent family includes 3000K warm white, 4000K neutral white, and 6000K cool white variants. The 4000K and 6000K versions are listed at 1220 lumens, while the 3000K version is listed at 1159 lumens. This gives buyers a choice between warmer and cooler light while keeping the same 10.8W power rating.

Is a driver included with this LED strip?

No, the driver is not included with this product family. The strip is designed for 24V power input, so a suitable 24V driver must be selected separately. This makes it easier to match the driver to the needs of the project.

Is this LED strip dimmable?

Yes, this product family supports dimming as an optional feature. The product description states that dimming is available via PWM when used with compatible drivers. That means dimming capability depends on the supporting control gear selected for the project.

Where is this LED strip best suited for use?

This strip is intended for interior lighting applications where a high-efficiency linear light source is needed. The description lists uses such as showcases, cabinets, billboards, signage, hotels, and other residential or commercial environments. Its high CRI and flexible format make it suitable for both direct and indirect lighting effects.

Is this LED strip suitable for wet or outdoor locations?

This product is rated IP20, which means it is intended for dry indoor environments rather than exposed wet areas. The supplied information supports use in interior applications and does not indicate waterproof protection. For projects involving moisture, a different protection rating would typically be required.

How durable is this LED strip for long-term commercial use?

The product description states a lifespan of over 50,000 hours and includes a 5-year warranty period. It also highlights construction details such as pure copper, fresh plastic stands, and Heraeus 99.99% pure golden wire. These details position it as a higher-grade option for long-term residential and commercial lighting projects.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip Pro High-efficiency Plus	15W	140LEDs/m	50mm	Indoor	View
