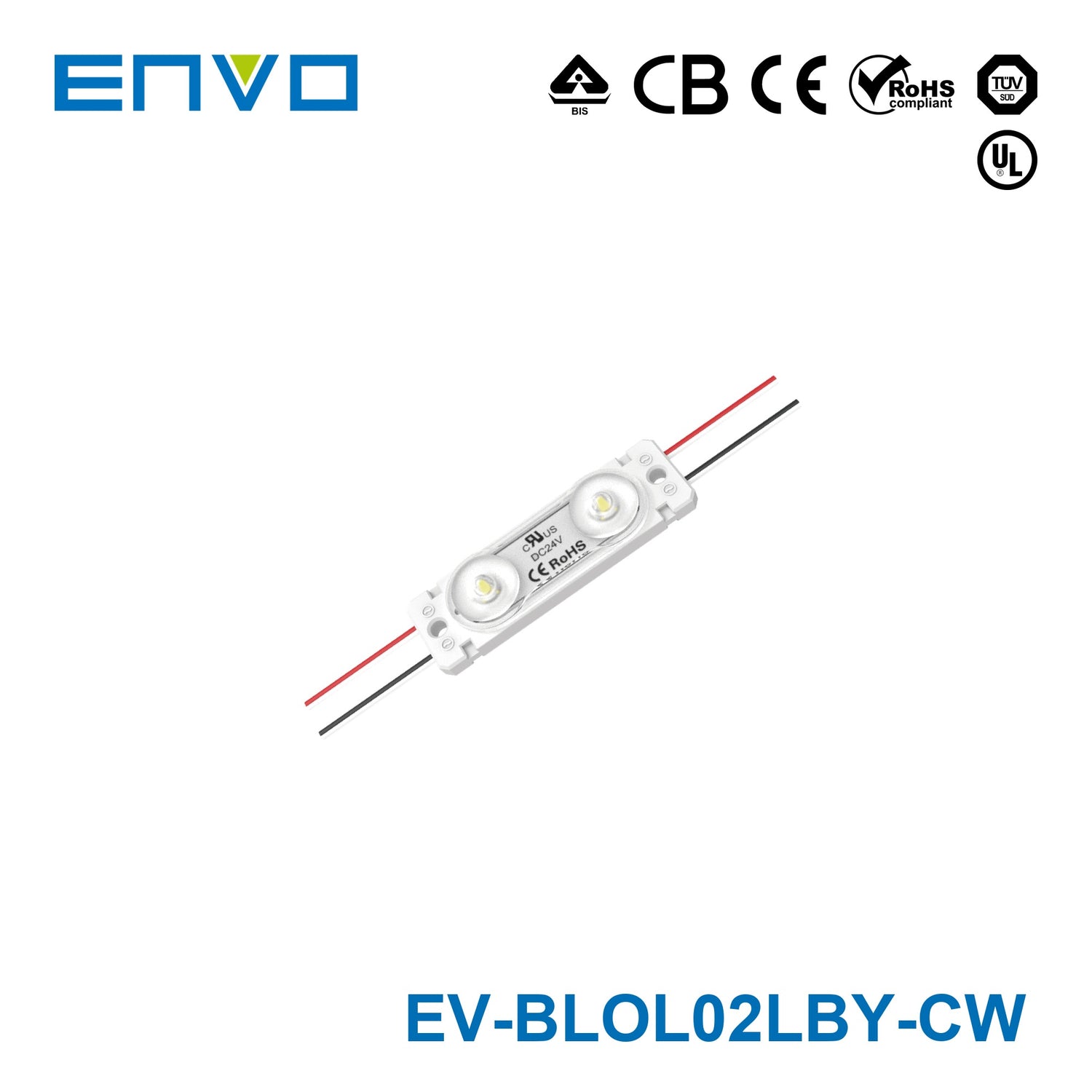

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO OptiLume LED Module Backlit - Double LED

24V0.66WIP66

SKU EV-BLOL02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-BLOL02LBY-CW

EV-BLOL02LBY-CW Double LED Backorder

EV-BLOL04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLOL02LBY is an ENVO LED module (24VDC, 0.66W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 24VDC
✓ Power: 0.66W
✓ Rated current: 0.03A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO OptiLume LED Module Backlit - Double LED designed for?

This LED module is designed for illuminated letters and backlit light boxes. It is intended for commercial and public signage environments such as airports, metros, banks, buildings, and shopping malls, especially where even light coverage is needed in 6-20 cm sign depths.

What are the main performance specs of this LED module family?

Across the family, each module uses a double-LED design with a 170 degree beam angle, CRI 80, and a power rating of 0.66 W. The listed service life is 50,000 hours, and the product is rated as dimmable with a 5 year warranty.

What is the difference between the available variants in this parent product family?

The main variant difference is color temperature. The family includes 3000K warm white, 4000K neutral white, and 6500K cool white options, and the child variants shown all list 100 lumens, 0.66 W power draw, 170 degree beam angle, CRI 80, 50,000 hour life, and dimmable operation.

What type of lighting effect does the 170 degree beam angle provide?

A 170 degree beam angle is intended to spread light broadly across the sign cavity. That wide optic helps create more even illumination in backlit letters and light boxes, which is useful for reducing visible hot spots in signage applications.

Is this LED module compatible with 24V signage systems?

Yes. The parent product data identifies this module as a 24V power input model, which aligns with 24V signage system use. It is positioned within 24V signage and backlit signage categories, making it suitable for those applications when the rest of the system is matched accordingly.

Is this LED module suitable for long-term commercial use?

It is built for commercial signage use, with a listed 50,000 hour lifetime and 5 year warranty. The product description also states that production includes 100% testing and that the module carries certifications including CE, ROHS, UL, TUV, BIS, CB, and LM-80.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO OptiLume LED Module Backlit - Quad LED	1.32W	—	—	Dimmable	View
