Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

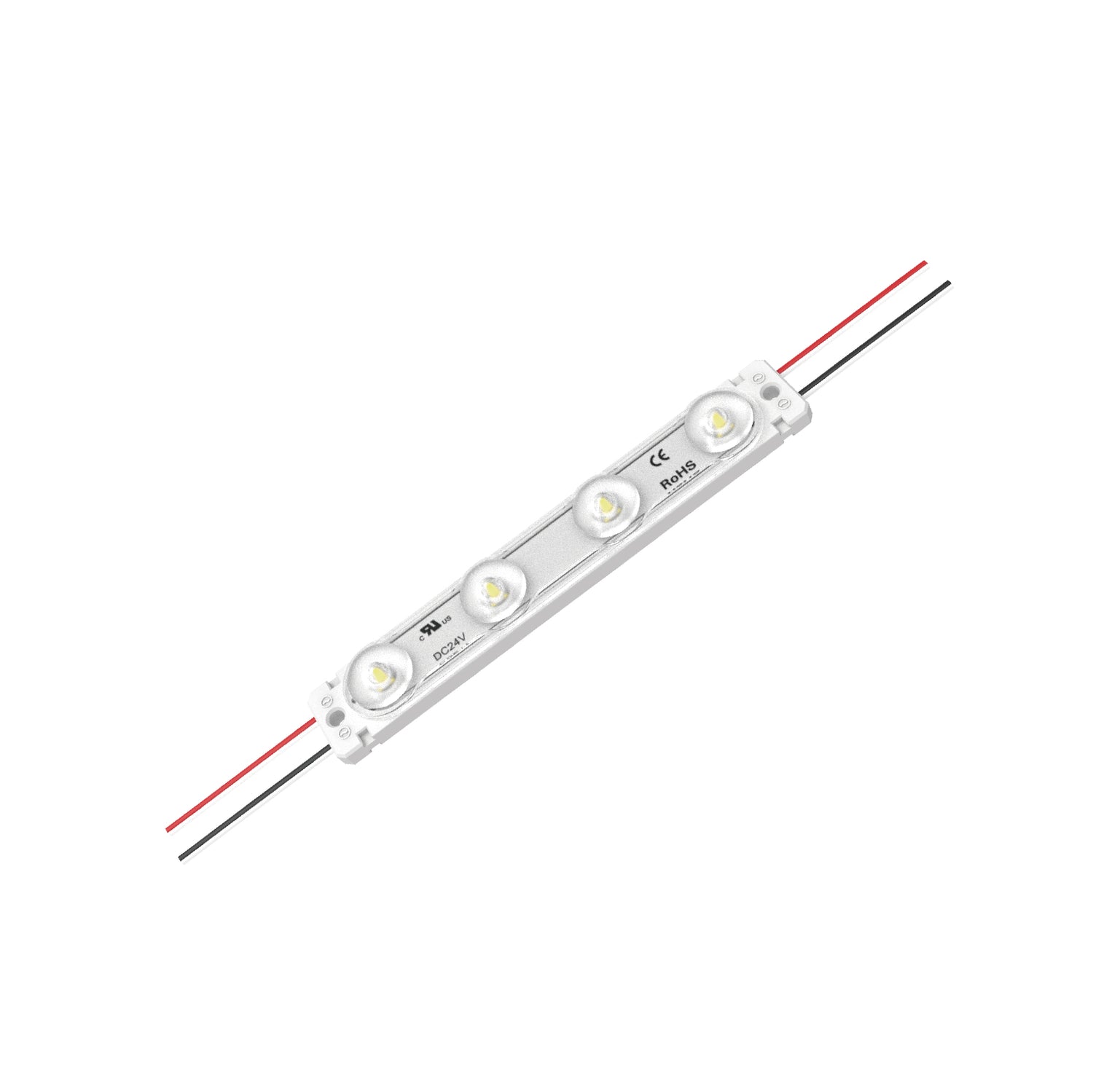

ENVO OptiLume LED Module Backlit - Quad LED

24V 1.32W IP66

SKU:

EV-BLOL04LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate with Precision and Efficiency

The OptiLume LED Module by ENVO is the ultimate solution for illuminating letters and light boxes, designed specifically for environments like airports, metros, banks, buildings, and shopping malls. This advanced module combines superior technology and flexible functionality to ensure your displays are both efficient and eye-catching.

Key Features:

High Output 2835 LEDs: Equipped with high-powered 2835 LEDs, the OptiLume LED Module delivers exceptional brightness and performance, with a light efficacy exceeding 150LM/W.
Versatile Voltage Options: Offers constant voltage operation with optional constant current (CC) settings, and features a no-polarity limit input for both CC and CV, ensuring seamless integration into various lighting setups.
Dimmable Functionality: Easily adjust lighting intensity to suit your specific application needs, providing customizable solutions for different environments.
Wide Beam Optics: The integrated transparent 170° optic lens provides broad and even light distribution, ensuring comprehensive illumination for your signage.
Flexible Installation: Available in configurations of 50 or 20 pieces per string, allowing for adaptable installation across projects of various sizes.
Certified Quality: Backed by CE, ROHS, UL, TUV, BIS, CB, and LM-80 certifications, ensuring adherence to high standards of quality and safety.

Application:

The OptiLume LED Module is ideal for illuminated letters and light boxes with depths ranging from 6-20 cm, designed to deliver vibrant lighting in a variety of commercial and public settings.

Transform your signage with the OptiLume LED Module by ENVO, where innovation and reliability combine to provide outstanding lighting solutions tailored to your needs.

Specifications

Brand

Envo
Series

OptiLume
Power Rating

1.32 Watt
Rated Current

0.06 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

10.8 cm
Width

1.06 cm
Height

1.06 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO OptiLume LED Module Backlit - Quad LED designed for?

This LED module is designed for illuminating letters and light boxes in commercial and public settings. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even backlit signage is needed.

What sign depth is this LED module suitable for?

The OptiLume Quad LED module is suitable for illuminated letters and light boxes with depths from 6 cm to 20 cm. That makes it a practical option for a wide range of backlit signage formats.

What color temperature options are available in this product family?

This parent product family is available in three color temperature options: 3000K, 4000K, and 6500K. These options let buyers choose a warmer, neutral, or cooler light appearance while keeping the same core module format and performance.

Are the different variants equal in brightness and power?

Yes. Based on the variant data provided, each version delivers 200 lumens and uses 1.32 W of power. The main difference across the family is color temperature rather than output or wattage.

What are the main performance specifications of this LED module?

This module has a 170-degree beam angle, CRI 80, dimmable control, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, supporting long-term commercial signage use.

Is this LED module compatible with 24V signage systems?

Yes. The parent model is identified as a 24V power input product, and the category data also places it within 24V signage module groups. Buyers looking for 24V backlit signage modules can use this family as a relevant option.

What makes this module suitable for even backlighting?

The module uses wide 170-degree optics to spread light broadly across the sign face. This helps support more uniform illumination in letters and light boxes where consistent visual coverage is important.

Model	Power	Brightness	CCT	Dimming
ENVO OptiLume LED Module Backlit - Double LED	0.66W	—	—	Dimmable	View
