Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

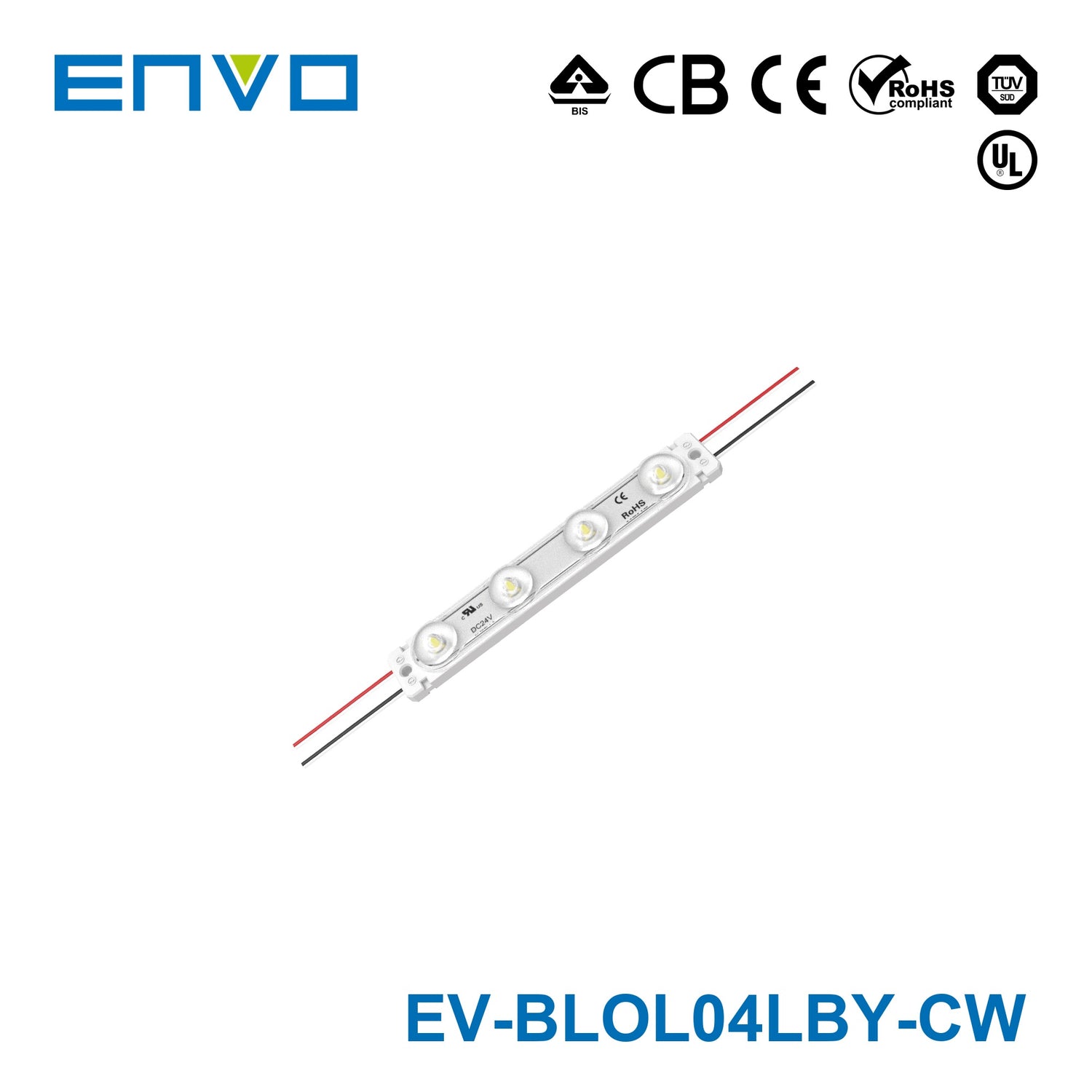

ENVO OptiLume LED Module Backlit - Quad LED

24V1.32WIP66

SKU EV-BLOL04LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-BLOL04LBY-CW

EV-BLOL02LBY-CW Double LED Backorder

EV-BLOL04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLOL04LBY is an ENVO LED module (24VDC, 1.32W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 24VDC
✓ Power: 1.32W
✓ Rated current: 0.06A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO OptiLume LED Module Backlit - Quad LED designed for?

This LED module is designed for illuminating letters and light boxes in commercial and public settings. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even backlit signage is needed.

What sign depth is this LED module suitable for?

The OptiLume Quad LED module is suitable for illuminated letters and light boxes with depths from 6 cm to 20 cm. That makes it a practical option for a wide range of backlit signage formats.

What color temperature options are available in this product family?

This parent product family is available in three color temperature options: 3000K, 4000K, and 6500K. These options let buyers choose a warmer, neutral, or cooler light appearance while keeping the same core module format and performance.

Are the different variants equal in brightness and power?

Yes. Based on the variant data provided, each version delivers 200 lumens and uses 1.32 W of power. The main difference across the family is color temperature rather than output or wattage.

What are the main performance specifications of this LED module?

This module has a 170-degree beam angle, CRI 80, dimmable control, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, supporting long-term commercial signage use.

Is this LED module compatible with 24V signage systems?

Yes. The parent model is identified as a 24V power input product, and the category data also places it within 24V signage module groups. Buyers looking for 24V backlit signage modules can use this family as a relevant option.

What makes this module suitable for even backlighting?

The module uses wide 170-degree optics to spread light broadly across the sign face. This helps support more uniform illumination in letters and light boxes where consistent visual coverage is important.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO OptiLume LED Module Backlit - Double LED	0.66W	—	—	Dimmable	View
