ENVO Ceiling Mounted Microwave+Daylight Sensor, 12/24/36V input, DALI2

Ceiling Mount DALI-2 Multi-Sensor

SKU SR-DA9030A-MW

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

The ceiling mount multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can work with D4i LED drivers or luminaires, the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for high bay applications which need large detection area and sensor based automation. The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it can also be powered by an external power supply when using with non-D4i DALI drivers.

Features

Specifications

SR-DA9030A-MWSpecifications from the official datasheetDownload datasheet PDF

Electrical Information

Power Supply: 12/24/36 VDC (D4i Certified)
Typical DALI Current Draw: 2mA
Control: DALI
Marking Terminals: V+, GND (DALI-), DA+
Status Indicators: Red (DALI status), Red (motion detection)

Sensing

Motion Detection (62386 - 303): Microwave sensor
Microwave High Frequency: 5.8 GHz ±75 MHz ISM band
Detection Sensitivity: 0-15 Configurable, 0 is the highest sensitivity
Light Sensor (62386 - 304): Event: 0-1000 Lux (10bit), resolution: 10lux
Mounting Height: Up to 49ft (15m), recommended height: 13-26ft (4-8m)
Detection Angle: 150° (wall), 360° (ceiling)
Function: Configurable

Environment

Operating Temperature Range: 32℉ to 104℉ / 0℃ to 40℃ (indoor use only)
Operating Humidity: 0-95% (non condensing)
Safety Certification: cULus Listed, CE

Physical Information

Cutting Hole: 70-73mm
Material / Color: ABS / White
Wire Gauge: 24-18 AWG (0.2-0.75 mm2)
Strip Length: 0.28-0.35 in. / 7-9 mm

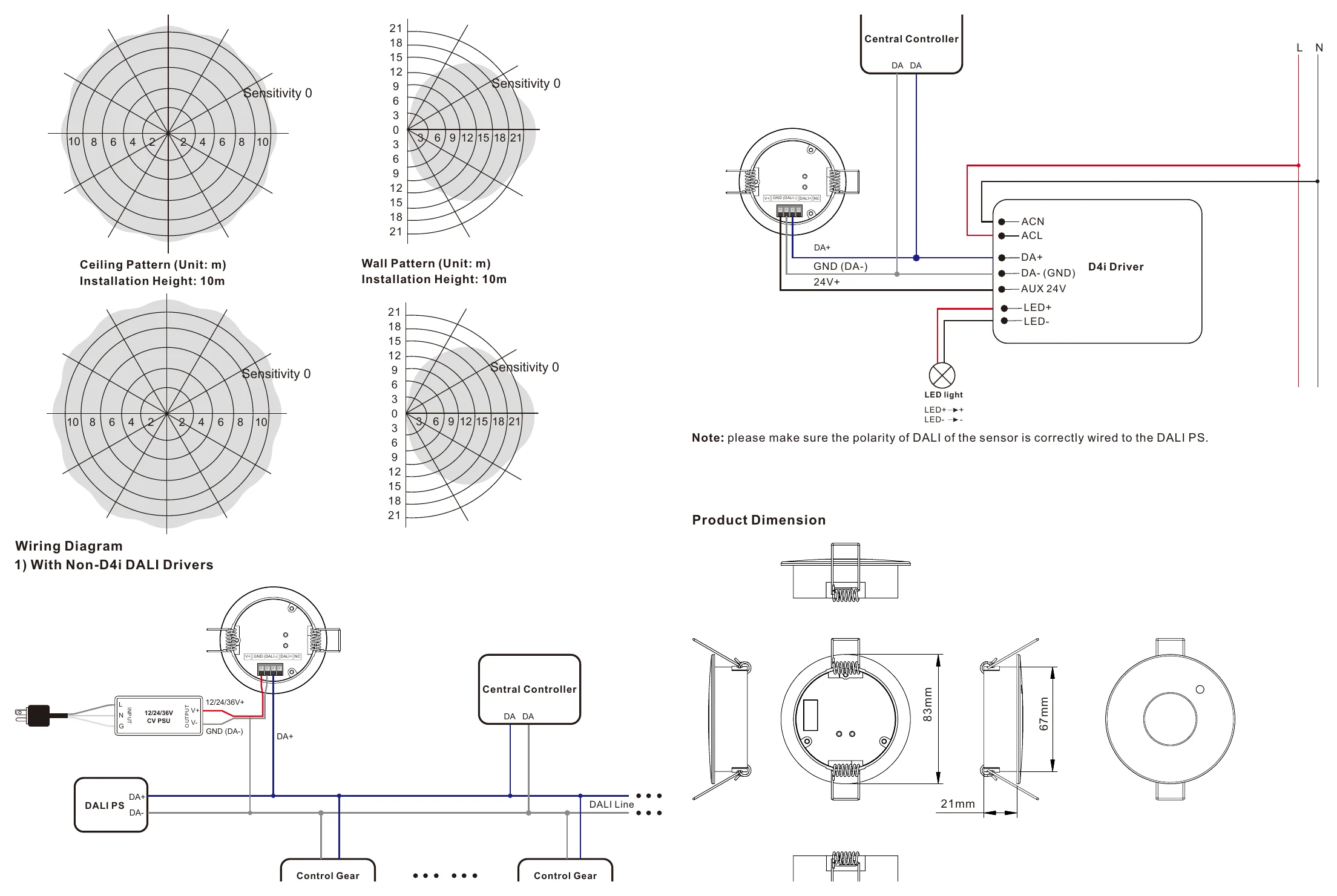

Technical drawings

Typical applications

Downloads

Datasheet1

SR-DA9030A-MW datasheetSR_DA9030A_MW_Spec_sheet.pdf PDF Download

FAQ

What type of sensor is the SR-DA9030A-MW?

The SR-DA9030A-MW is a ceiling mounted microwave and daylight sensor. This model is designed for smart lighting control applications and is identified as a DALI2 sensor unit.

Where is this DALI2 sensor typically used?

This model is suited to commercial and professional lighting projects that need occupancy-related sensing together with daylight response. Its ceiling mounted format makes it relevant for indoor spaces where automated lighting control is part of the design.

What input voltage does the SR-DA9030A-MW support?

The SR-DA9030A-MW supports 12V, 24V, and 36V input. That range gives specifiers flexibility when matching the sensor to compatible low-voltage lighting control systems.

Is this sensor compatible with DALI2 systems?

Yes. This model is specified as a DALI2 sensor, so it is intended for use in DALI2-based lighting control environments.

What operating temperature range is listed for this sensor?

The stated operating temperature range for the SR-DA9030A-MW is 0°C to 40°C (32°F to 104°F). That makes it suitable for indoor environments that stay within that temperature window.

What are the finish, weight, and warranty for this model?

This sensor is listed in a white finish and is made of ABS material. The stated warranty period for the SR-DA9030A-MW is 3 years.
