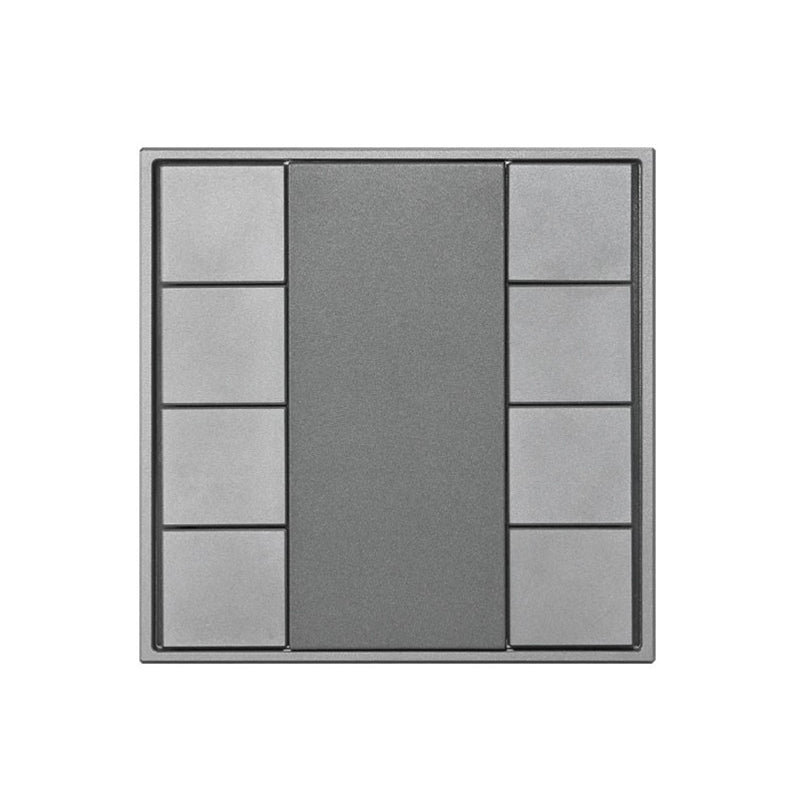

ENVO DALI2 Wall Panel, 8 Buttons, Slim Silver
Log in to see priceOverview
Features
- DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 16 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI bus powered, no extra power supply required
- Easy configuration via DALI-2 compliant central controller USB interface
- Compatible with universal 55mm frames
Specifications
DALI Interface
- Input Type
- DALI
- Marking
- DA
- Input Voltage Range
- 12VDC - 22.5VDC (according IEC62368-101)
- Typ. Current Consumption DALI (at 16.5V)
- 2mA
- Max. Current Consumption DALI (Inrush Current at 22.5V)
- 10mA
- Number of Addresses for DALI Control Devices
- 8
- Number of Feedback LED
- 16
General Data
- Dimensions (L x W x H)
- 80x80x26.6 mm

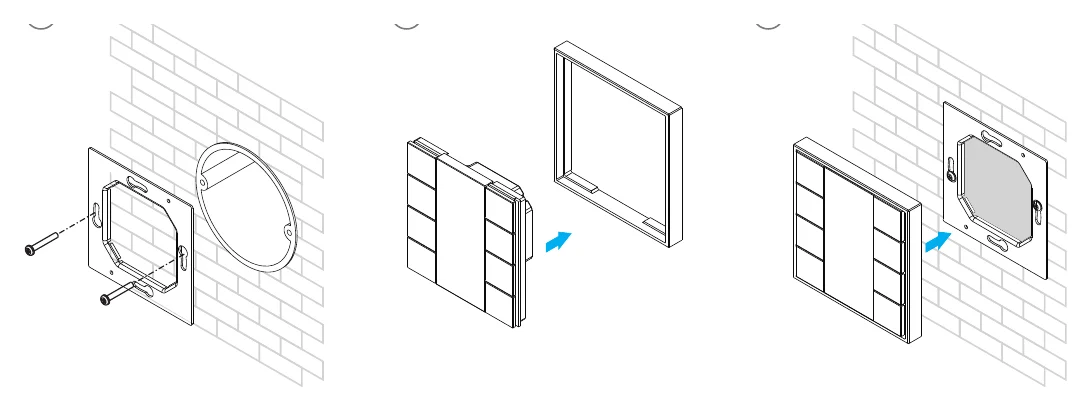

- Mounting
- Wall Mounting or on Conduit Box
- Max. casing temperature Tc
- 75°C
- Expected Life Time @Tc
- 50,000H
- Protection Class
- II in Intended Use
- Protection Degree Housing
- IP20
- Protection Degree Terminals
- IP20
- Function
- Configurable
- Start-up Time
- <150ms
Terminals
- Connector Type
- Push-In
- Wire Size Solid Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Fine Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Using Wire End Ferrule
- 0.25 - 1.0 mm2
- Stripping Length
- 9 - 10 mm / 0.35 - 0.39 inch
- Release Connector
- Push Button
Environment Conditions
- Storing Temperature
- -20°C~+50°C
- Working Ambient Temperature
- -20°C~+50°C
- Relative Humidity
- 8%- 80%
Standards
- DALI
- IEC62386-101:2014 IEC62386-103:2014 IEC62386-301 IEC62386-332
- EMC
- EN 61547 EN 50015 / IEC CISPR15
- Safety
- EN 61347-2-11 EN 61347-1
Certifications & ratings
- Certification marks
- CE, RoHS, DALI-2
Technical drawings
Downloads
Datasheet1
FAQ
What is the Sunricher DALI2 Wall Panel, Slim Silver designed for?
This model is a DALI2 wall panel intended for smart LED control in commercial or professional lighting environments. Its category placement indicates it is used as a wall-mounted control interface for DALI2-based lighting control systems.
What finish and color does this model have?
This version comes in a slim silver finish. That makes it a fit for projects where a low-profile wall control with a metallic look is preferred.
What operating temperatures is this wall panel rated for?
This model is rated for environments from -20°C to +50°C. That range makes it suitable for many indoor commercial and controlled-building applications within those temperature limits.
How much power does this wall panel draw?
The typical current consumption is 2mA at 16.5V, with a maximum inrush current of 10mA at 22.5V. This indicates very low current draw, which is typical for a wall-mounted control interface rather than a power-handling device.
What is the warranty period for this model?
The expected life time for SR-2422NK8-DA2 is 50,000 hours at a maximum casing temperature of 75°C. That gives buyers a clear published lifetime term for project planning and support expectations.
