ENVO IP67 Microwave+Daylight Sensor, 12/24/36V input, DALI2, Zhaga Socket

IP65 DALI-2 Multi-Sensor with ZHAGA Interface Socket

SKU SR-DA9033A-MW

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

The IP65 multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can be easily integrated into D4i LED drivers or luminaires seamlessly, and with standard zhaga interface socket, the sensor can easily fit into various luminaires with no tools required. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is IP65 rating, which enables it to be used for outdoor luminaires. The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it can also be powered by an external power supply when using with non-D4i DALI drivers. The multi-sensor is a DALI-2 certified device as defined in the IEC 62386 (2014) standard and can be integrated into DALI-2 systems of other vendors. It is easily configurable through a DALI-2 compliant central control unit. The DALI-2 multi-sensor supports 2 instances standardized according to DALI: motion detector instance (303) for motion detection and light sensor instance (304) for light measurement. The multi-sensor is designed to be used in conjunction with a DALI-2 compliant central control unit. Each instance can be configured individually.

Features

DALI-2 & D4i certified
Microwave motion detection
Motion sensor instance type 3 (303)
Illuminance measurement
Light sensor instance type 4 (304)
Autonomous sensor-based control
Seamlessly working with D4i drivers
Zhaga book 18 socket
Plug & Play
IP65 rating, can be used for outdoor luminaires
Easily fit into various luminaires with standard zhaga interface socket
Cost-effective solution for energy savings
Energy code compliance
Compatible with universal DALI-2 compliant central control unit that supports sensor input devices

Specifications

SR-DA9033A-MWSpecifications from the official datasheetDownload datasheet PDF

Physical Information

Dimensions: Sensor head: D50mm*H35mm, Receptacle: D30mm
Mounting: M 20X1.5 thread
Thread length: 18.5 mm
Receptacle: D30mm
Gasket Dimensions: D36.5mm
Wires: AWM1015, 20AWG, 6"(120 mm)

Electrical Information

Power Supply: 12/24/36 VDC (D4i Certified)
Typical DALI Current Draw: 2mA
Control: DALI
Marking Terminals: V+, GND (DALI-), DA+
Status Indicators: Red (DALI status), Red (motion detection)

Sensing

Motion Detection (62386 - 303): Microwave sensor
Microwave High Frequency: 5.8 GHz ±75 MHz ISM band
Detection Sensitivity: 0-15 Configurable, 0 is the highest sensitivity
Light Sensor (62386 - 304): Event: 0-1000 Lux (10bit), resolution: 10lux
Mounting Height: Up to 49ft (15m), recommended height: 13-26ft (4-8m)
Detection Angle: 150° (wall), 360° (ceiling)
Function: Configurable

Environment

Operating Temperature Range: -40℉ to 104℉ / -40℃ to 70℃
Operating Humidity: 0-95% (non condensing)
Safety Certification: cULus Listed, CE

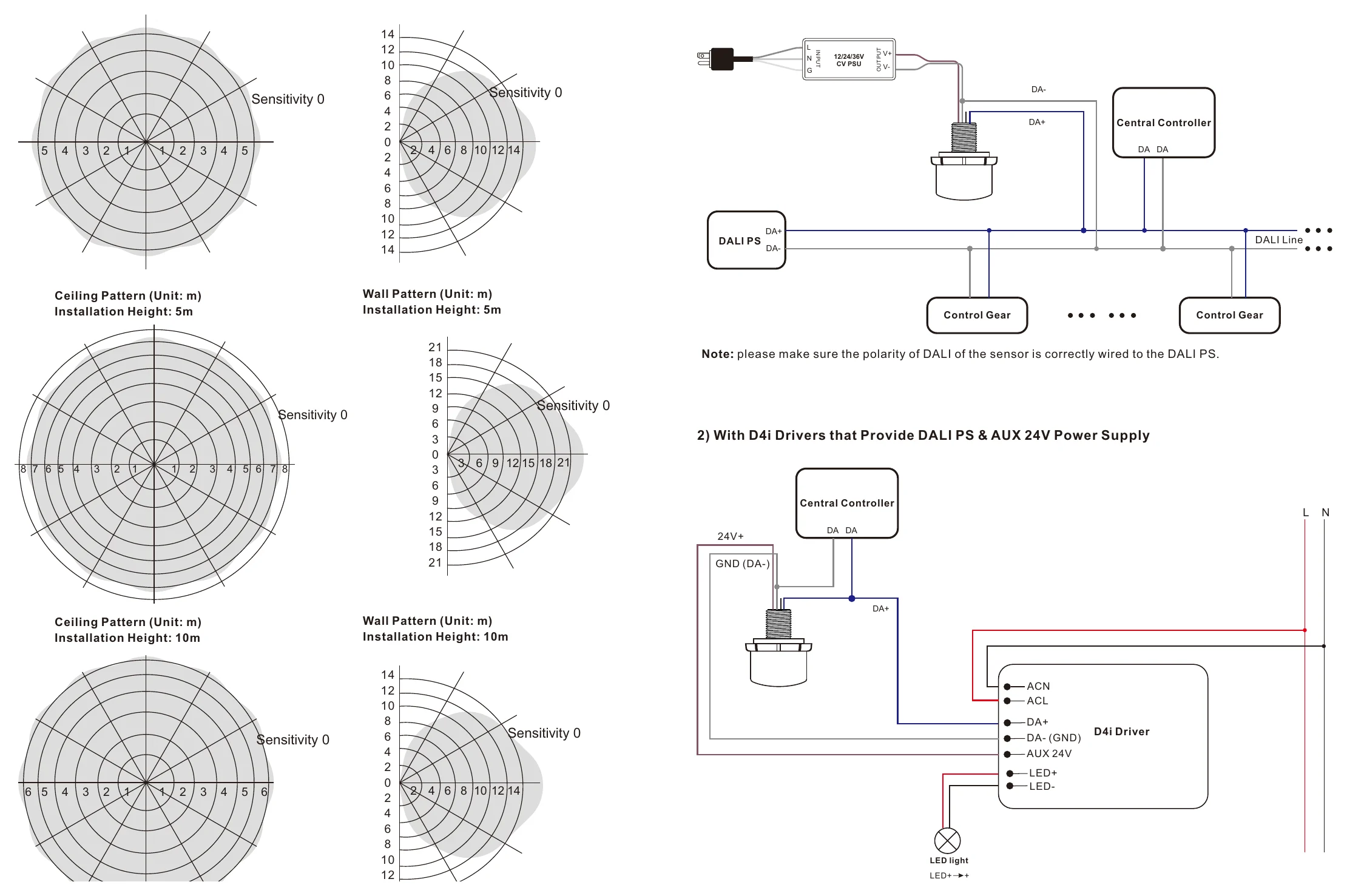

Technical drawings

Typical applications

Warehouses
Factories
Street and Area Lighting
Outdoor Luminaires - Wall Packs - Parking Lots - Walkways
Photo Controls
Central Management System

Downloads

Datasheet1

SR-DA9033A-MW datasheetSR_DA9033A_MW_Spec_sheet.pdf PDF Download

FAQ

What kind of sensor is the Sunricher SR-DA9033A-MW?

The SR-DA9033A-MW is a combined microwave and daylight sensor designed for smart lighting control applications. This model is part of the sensor category and includes DALI2 support with a Zhaga socket form factor.

What input voltages does this sensor support?

This sensor supports 12V, 24V, and 36V input. That makes it a flexible option for low-voltage lighting control environments that use one of those listed input levels.

Is this sensor compatible with DALI2 systems?

Yes, this model is specified as a DALI2 sensor. Buyers looking for a sensor intended for DALI2-based lighting control systems should consider this model where DALI2 compatibility is required.

Does this model use a Zhaga socket format?

Yes, the SR-DA9033A-MW is identified as a Zhaga socket model. That makes it relevant for projects that standardize around Zhaga-based sensor form factors.

Is the SR-DA9033A-MW suitable for demanding environments?

This sensor has an IP65 rating and an operating temperature range of -40 degrees C to 70 degrees C. Those specifications make it suitable for environments where protection against dust and water ingress, along with stable performance across that temperature range, is important.

What are the key physical and finish details of this sensor?

The sensor head has dimensions of D50mm*H35mm and the receptacle is D30mm. It features an M 20X1.5 thread for mounting with a thread length of 18.5 mm.

What type of projects is this sensor best suited for?

This model is best suited for professional lighting control applications that need both microwave motion sensing and daylight sensing in one device. Its DALI2 support, Zhaga socket format, and IP65 rating make it relevant for commercial or industrial smart lighting projects where those features matter.

What warranty is provided for this model?

The SR-DA9033A-MW is a DALI-2 and D4i certified device featuring microwave motion detection and illuminance measurement. It supports mounting heights up to 49ft (15m) and operates in temperatures from -40℃ to 70℃.
