Mean Well IQB150W8-12 DC-DC Converter - 150W - 9~75V in 12V out 12.5A

quarter-brick package8:1 ultra-wide inputfully encapsulatedremote ON/OFF and sensetrimmable outputno minimum load

SKU IQB150W8-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IQB150W8-12 is the 12V output model of this series: rated power 150W, typical efficiency 89%.

IQB150W8 series is 150W isolated and regulated module type DC-DC converter with quarter brick package. It features intermationaI standard pins, a high efficiency up to 89%,wide working temperature range -40~+ 90℃ , continuous-mode short circuit, overload, over voltage , input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, 5V/12V/15V/24V/48V for single output , which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

Quarter-brick(2.28" x 1.45" x 0.5") with industrial standard
pin-out
8:1(9~75Vdc) ultra-wide input range
Wide operating temperature range -40 ~ +90℃
No minimum load required
Full encapsulated
Protections: Short circuit (Continuous) / Overload / Over temperature / Over voltage / Input under voltage lockout
1.6KVac or 2.2kvdc I/O isolation
Remote ON/OFF control and remote sense
Trimming output (±10%)
3 years warranty

Specifications

IQB150W8-12Specifications from the official datasheet (2026-06-23 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 12V,24V,36V,48V,72V (9~ 75V)
INPUT CURRENT NO LOAD: 50mA
INPUT CURRENT FULL LOAD: 3.51A
VOLTAGE RANGE: 9 ~ 75Vdc
SURGE VOLTAGE (0.1s max.): 80Vdc
FILTER: Pi type
PROTECTION: 15A/250Vac time delay fuse
SETUP TIME: 100ms max. (100% Load at Nominal Vin)

OUTPUT

OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 12.5A
EFFICIENCY (Typ.): 89%
CAPACITOR LOAD (MAX.): 5000μF
VOLTAGE ACCURACY: ±1.0%
RATED POWER: 150W
RIPPLE & NOISE^Note.2: 5V=120mVp-p, 12V/15V=150mVp-p,24V=240mVp-p,48V=480mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 5V:250KHZ ;12V/15V:300KHz ;48V:200KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (48V for -10%/+15%)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 200% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 170% rated output voltage Protection type : keep voltage
OVER TEMPERATURE: +110℃ thermal shutdown, recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT(Typ.) Start-up voltage: 9V
UNDER VOLTAGE LOCKOUT(Typ.) Shutdown voltage: 7V

FUNCTION

REMOTE CONTROL: Power ON: R.C ~ -Vin > 3 ~ 12Vdc or open circuit Power OFF: R.C ~ -Vin < 1.2Vdc or short

ENVIRONMENT

COOLING: Natural convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +90℃ max.
WORKING HUMIDITY: 5% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./260℃ max.
VIBRATION: MTL-STD-202G
OPERATING ALTITUDE: 2000 meters

SAFETY &EMC ( Note.6)

SAFETY STANDARDS: LVD IEC62368-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.6KVac or 2.25KVdc I/P -Case:1KVac or 1.41KVdc O/P-Case:1KVac or 1.41KVdc
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH non-condensing
ISOLATION CAPACITANCE (Typ.): 3500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A with external components
Radiated BS EN/EN55032 Class A with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact, Air 8KV
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V/m
EFT/Bursts(Note.5) BS EN/EN61000-4-4 Level 3, On power input port,±2KV external input capacitor required
Surge(Note.5) BS EN/EN61000-4-5 Level 3, On power input port,±2KV external input capacitor required
Conducted BS EN/EN61000-4-6 Level 3, 10V/m(r.m.s.)
Magnetic Field BS EN/EN61000-4-8 Level 3, 10A/m

OTHERS

MTBF: >1500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 57.9*36.8*12.7mm (2.28*1.45*0.5 inch)
CASE MATERIAL: Aluminum base plate with plastic case
Potting material: Silcon

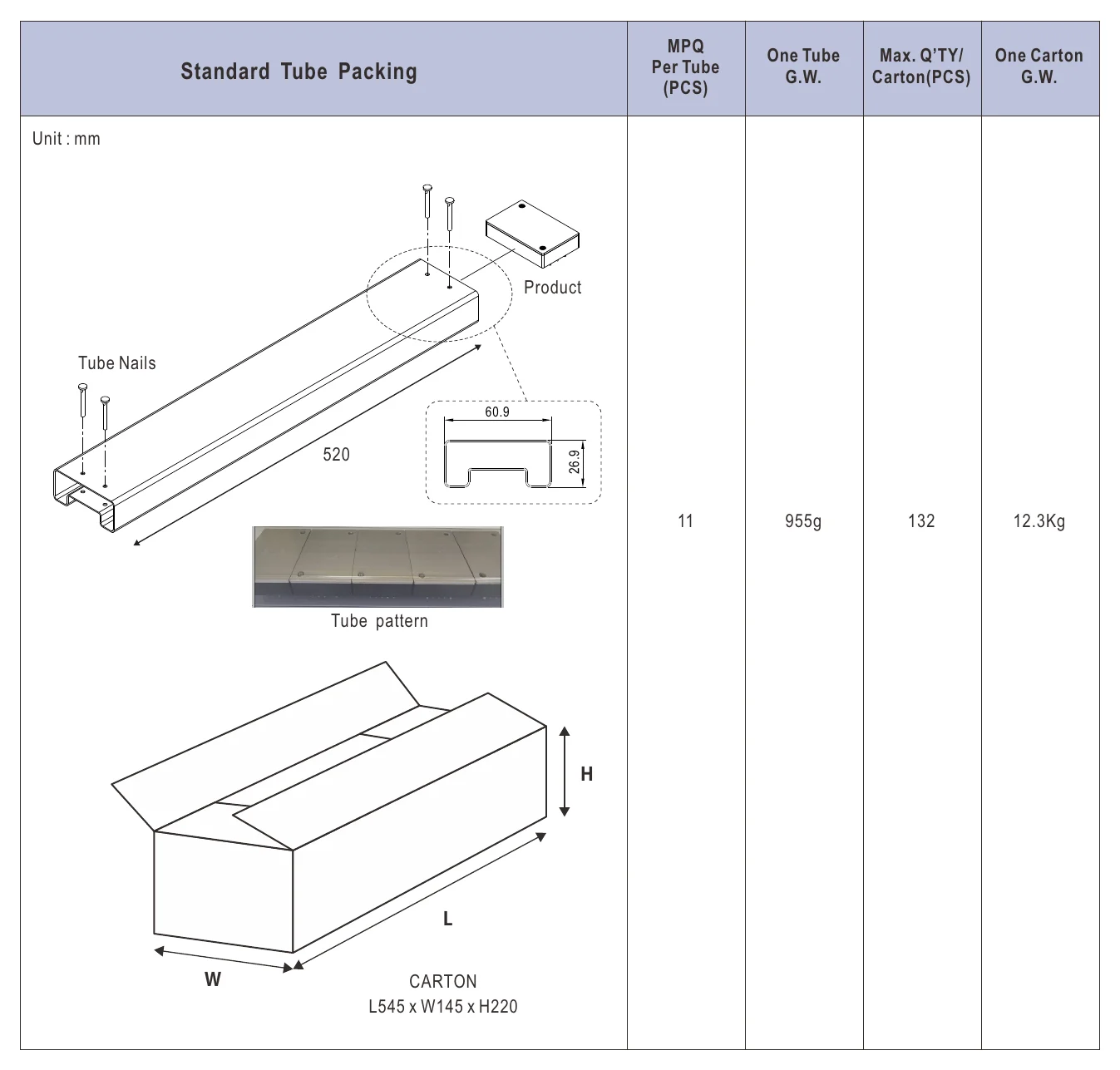

PACKING: 75g ; 11pcs/per tube, 132pcs/12 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.External input capacitor required 1000μF.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

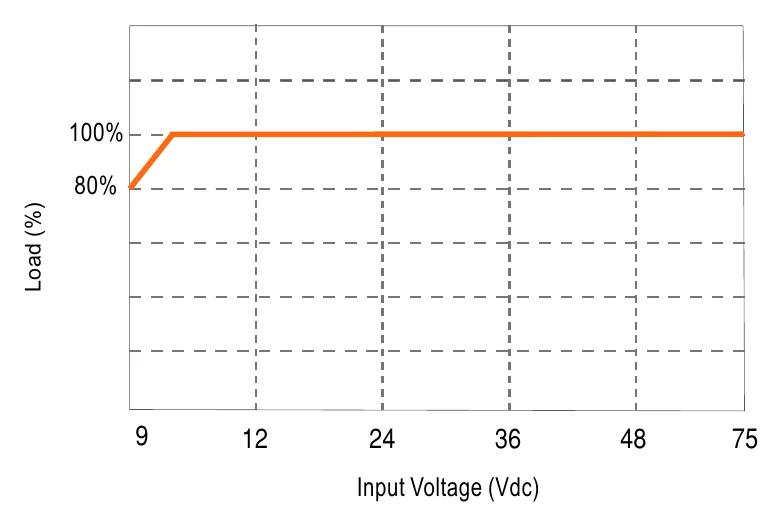

IQB150W8-12 Output derating VS input voltage — Output derating VS input voltage

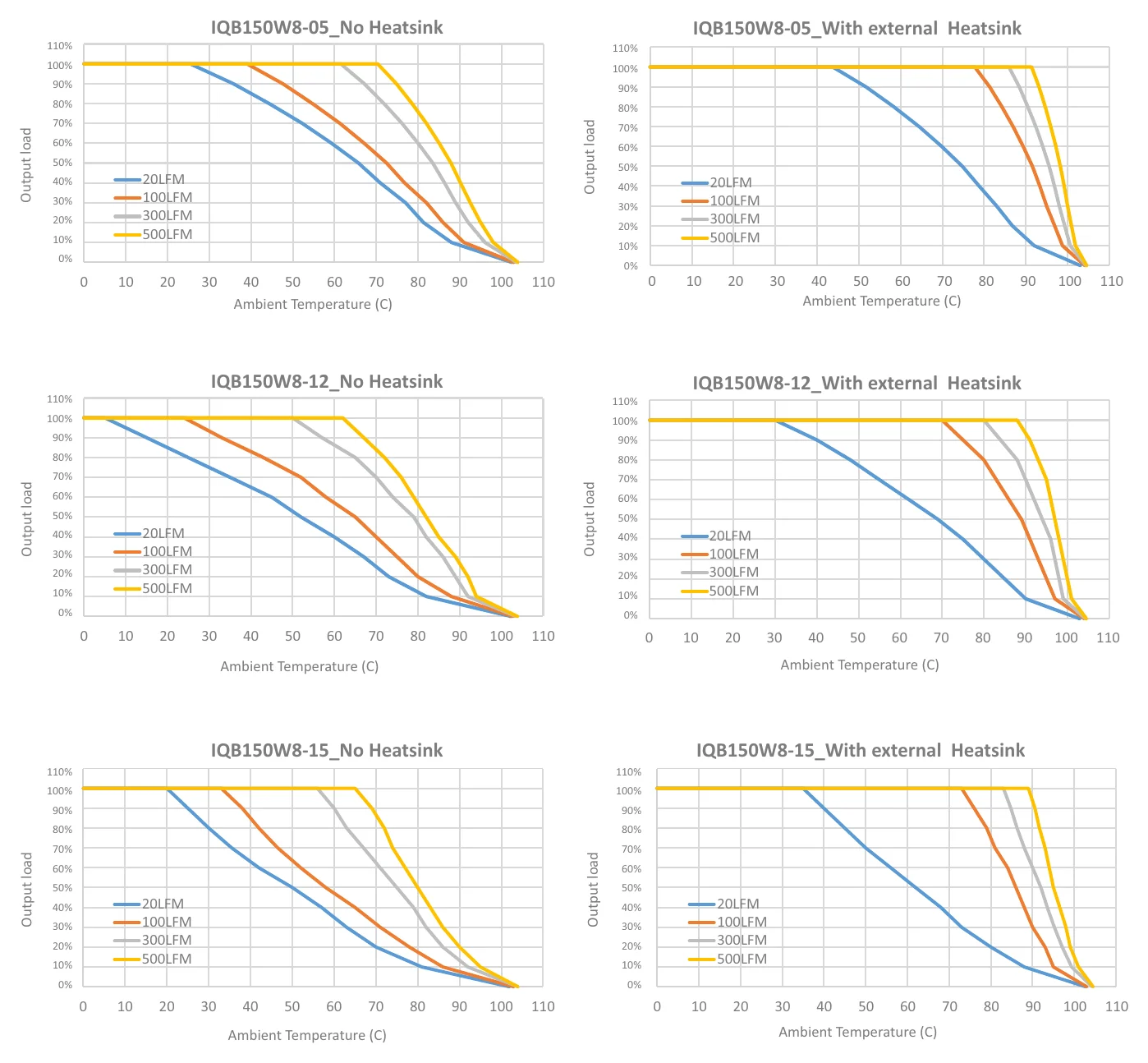

IQB150W8-12 Derating Curve — Derating Curve

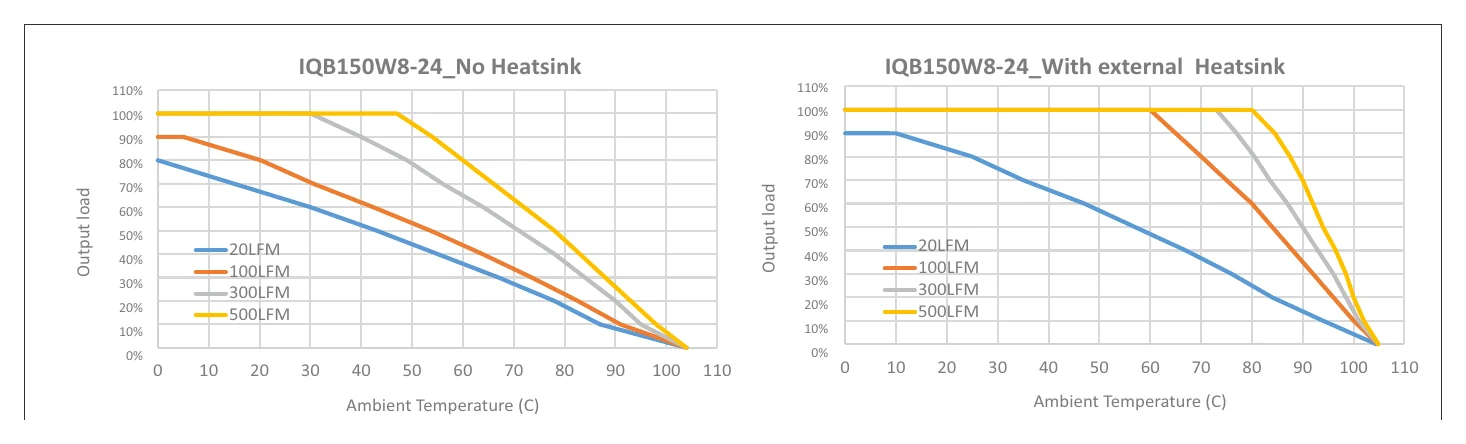

IQB150W8-12 IQB150W8-24_No Heatsink — IQB150W8-24_No Heatsink

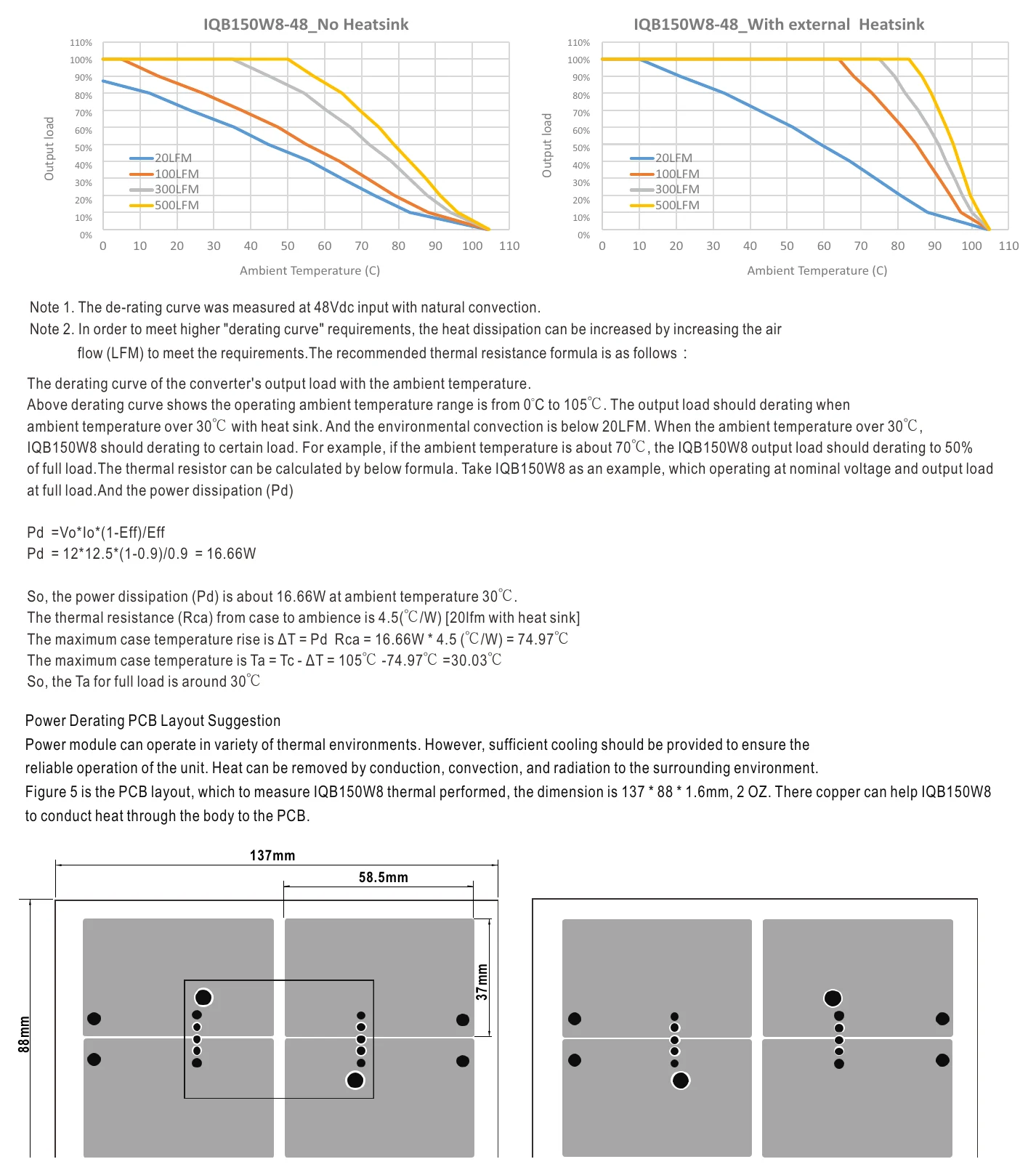

IQB150W8-12 IQB150W8-48_No Heatsink — IQB150W8-48_No Heatsink

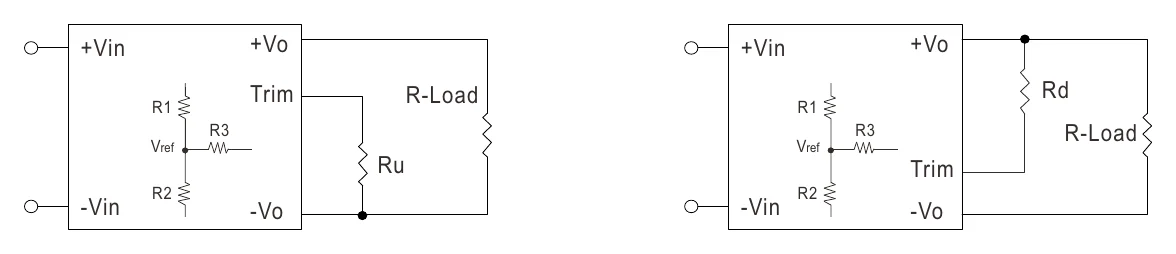

IQB150W8-12 Illustration (page 6) — Illustration (page 6)

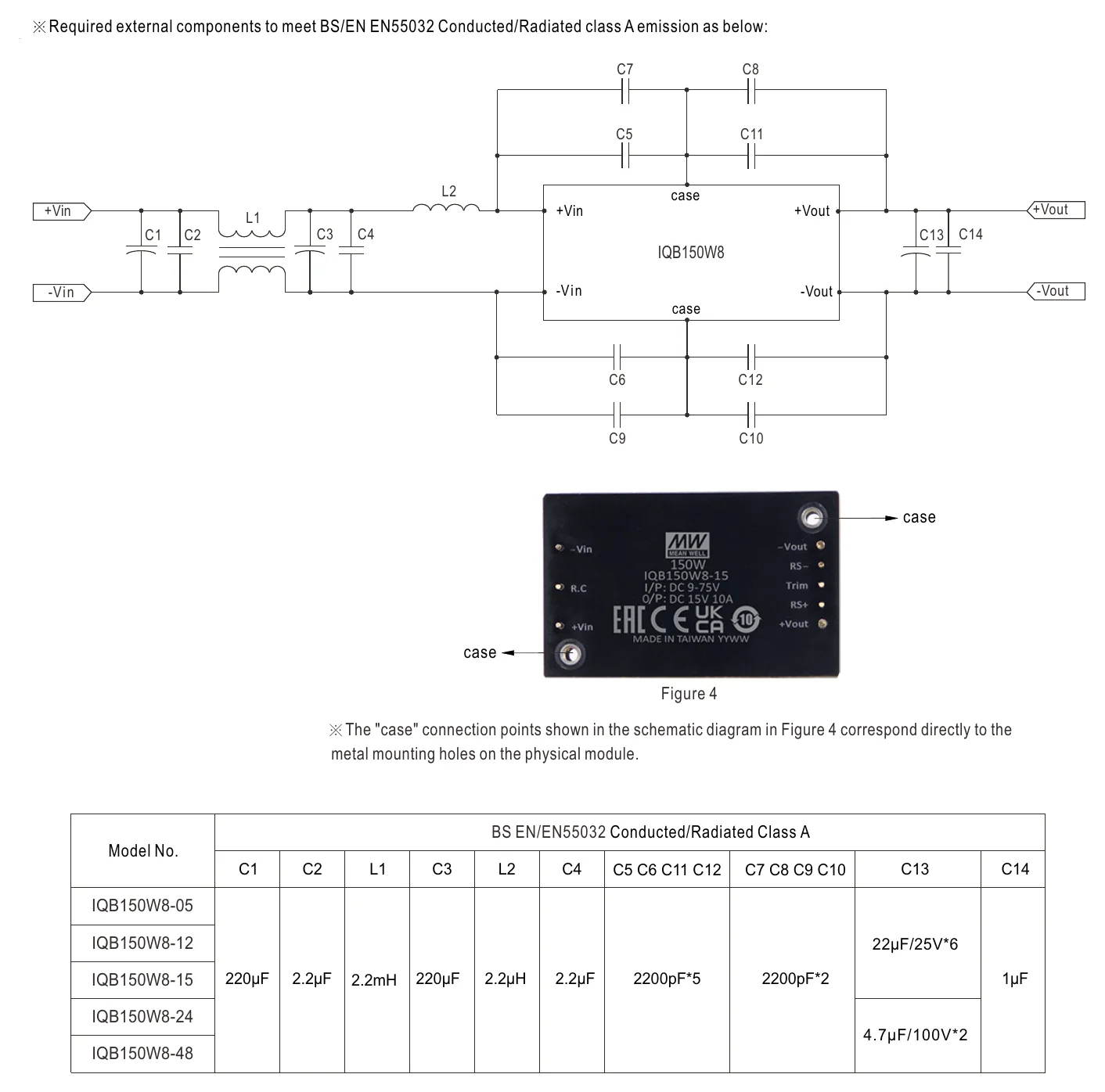

IQB150W8-12 EMC Suggestion Circuit — EMC Suggestion Circuit

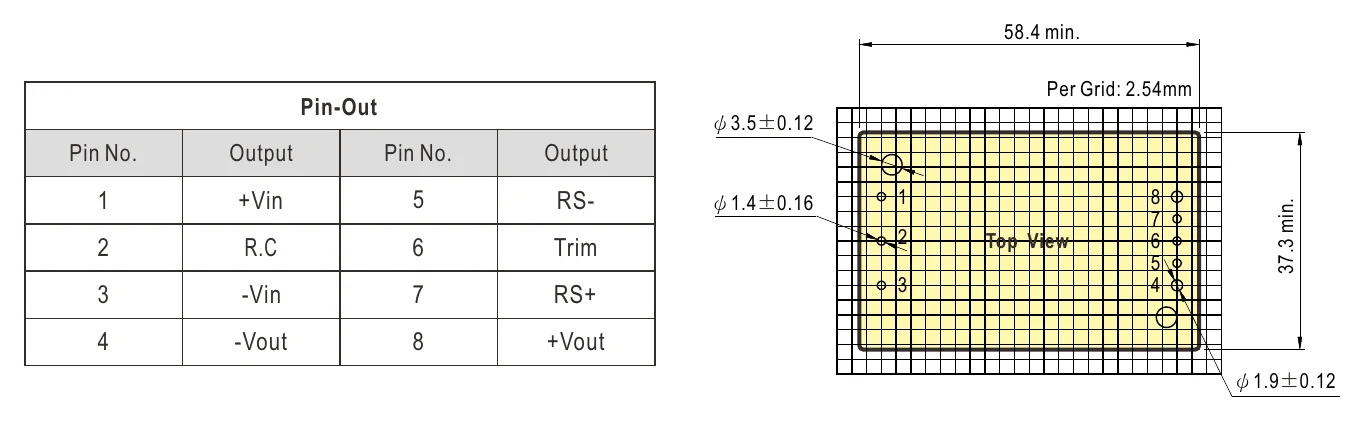

IQB150W8-12 Pin Assignment — Pin Assignment

Typical applications

Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Downloads

Datasheet1

IQB150W8-12 datasheetIQB150W8_spec_sheet.pdf · 2026-06-23 edition PDF Download
