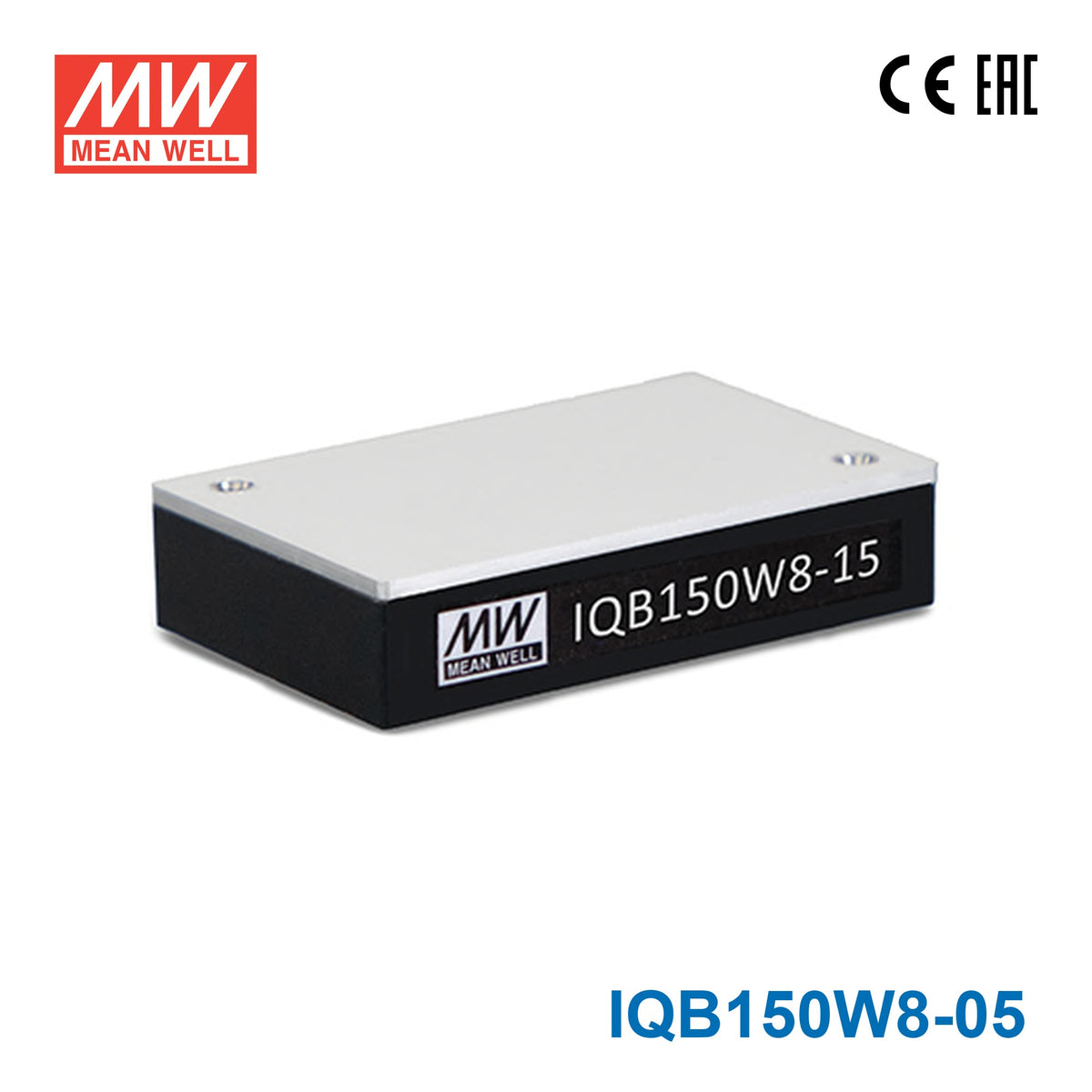

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well IQB150W8-05 DC-DC Converter - 100W - 9~75V in 5V out 20A
Notify me when it's back in stock
Mean Well IQB150W8-05 DC-DC Converter - 100W - 9~75V in 5V out 20A
Log in to see priceThe Mean Well IQB150W8-05 is a 100W isolated DC-DC converter in an industry-standard quarter-brick package (2.28 × 1.45 × 0.5 inch), delivering a regulated 5V DC output at up to 20A. Its 8:1 ultra-wide 9~75Vdc input covers nominal 12V, 24V, 36V, 48V and 72V systems from a single part number.
Fully encapsulated on an aluminium base plate, the IQB150W8-05 runs from -40°C to +90°C on natural convection with no minimum load, and offers 1.6kVac (2.2kVdc) I/O isolation, remote ON/OFF control, remote sense and ±10% output trim. Short circuit, overload, over voltage, over temperature and input under-voltage protection are all built in — suited to telecom and datacom systems, wireless networks, industrial control, instruments and analysers, including high-vibration and dusty environments.
Key Features
- ✓Regulated output: 5V DC at up to 20A (100W max)
- ✓8:1 ultra-wide input range: 9~75Vdc (nominal 12/24/36/48/72V)
- ✓Quarter-brick package with industry-standard pin-out: 57.9 × 36.8 × 12.7 mm
- ✓High efficiency up to 87%
- ✓No minimum load required; natural convection cooling
- ✓1.6kVac (2.2kVdc) I/O isolation, fully encapsulated
- ✓Remote ON/OFF control, remote sense and ±10% output trim
- ✓Protections: short circuit (continuous), overload, over voltage, over temperature, input under-voltage lockout
- ✓Certifications: CE, EAC (IEC 62368-1, EAC TP TC 020)
- ✓Wide operating temperature: -40°C to +90°C
- ✓3-year Mean Well warranty
-
BrandMean Well
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Length5.79 cm
-
Width3.68 cm
-
Height1.27 cm
-
Weight0.08 kg
