Mean Well SCW08W8-15 DC-DC Converter - 8W 9~75V DC in 15V out 533mA

8:1(9~75VDC) ultra-wide input rangeno minimum load required3KVdc I/O isolation

SKU SCW08W8-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SCW08W8-15 is the 15V output model of this series: rated power 8W, typical efficiency 85%.

SCW08W8 and DCW08W8 series are 8W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+90℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V/5V/9V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
8:1(9~75Vdc) ultra-wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 86%
Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
Remote ON/OFF control (Optional)
3KVdc I/O isolation
3 years warranty

Specifications

SCW08W8-15Specifications from the official datasheet (2025-07-17 edition)Download datasheet PDF

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 12V, 24V,36V,48V,72V (9 ~ 75V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 388mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 533mA
EFFICIENCY (TYP.): 85%
CAPACITOR LOAD (MAX.)^{* For each output}: 220μF

INPUT

VOLTAGE RANGE: 9~75Vdc
SURGE VOLTAGE (100ms max.): 100Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. 3A Slow-Blow Type

OUTPUT

VOLTAGE ACCURACY: ±2%
RATED POWER: 8W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±1% for 3.3Vo, ±0.5% for others
CROSS DEGUIATION: ±5% @ 25%~100% Load only for dual output
SWITCHING FREQUENCY (Typ.): 300KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 200 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by TVS diode
UNDER VOLTAGE LOCKOUT (Typ.) Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT (Typ.) Shutdown voltage: 8Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVdc
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 N/A
Radiated BS EN/EN55032 Class A without additional components Class B with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	N/A
Radiated	BS EN/EN55032	Class A without additional components Class B with additional components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF (Typ.): >860Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)

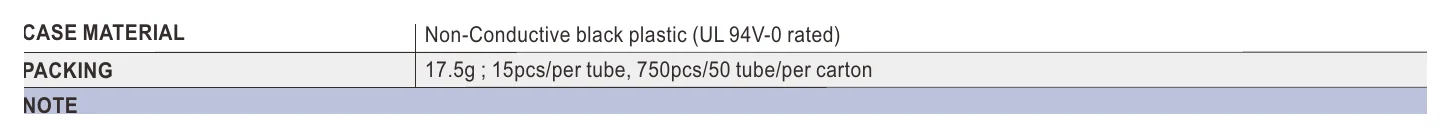

CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

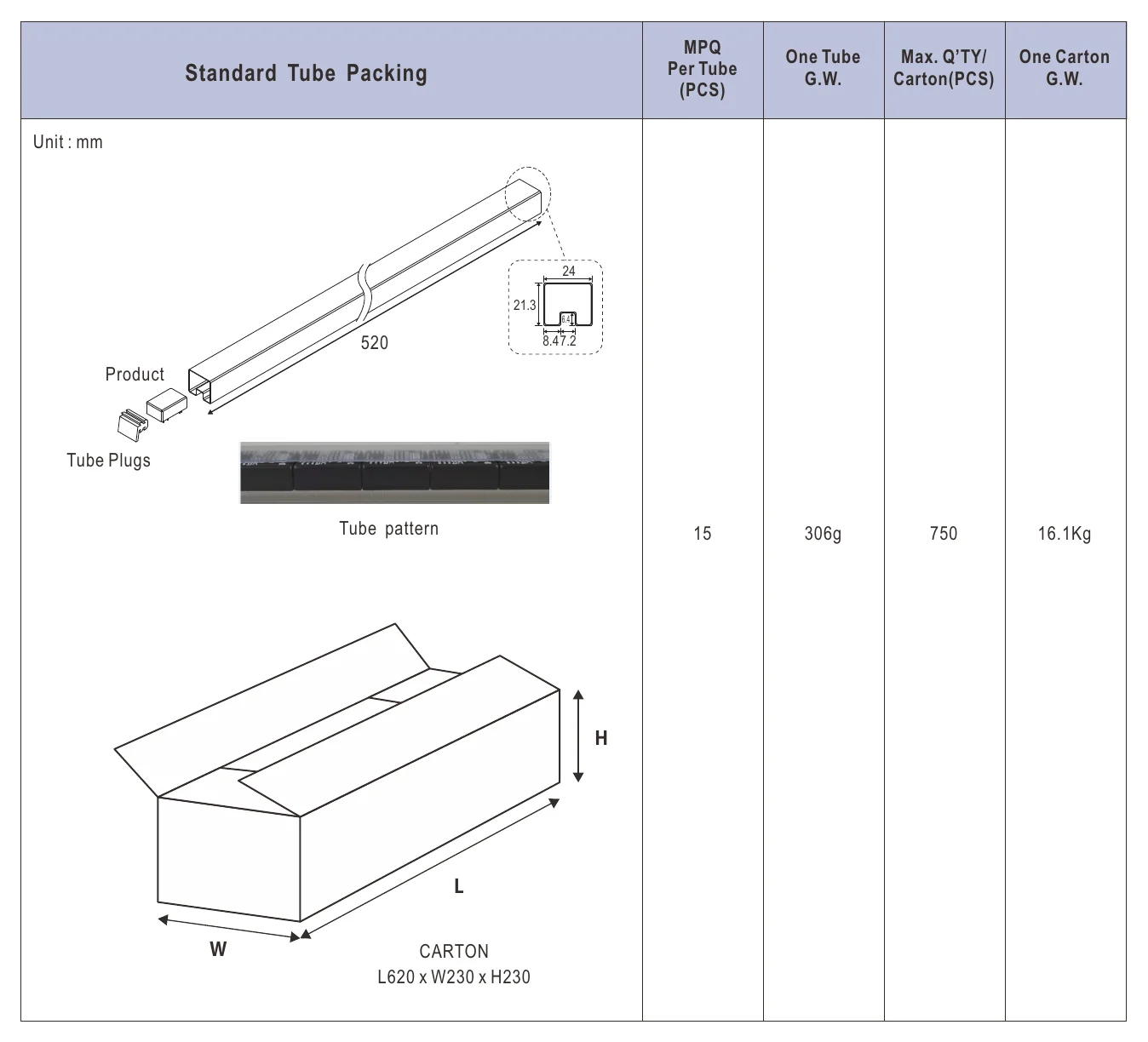

PACKING: 17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SCW08W8-15 DIMENSION (L*W*H) 31.8*20.3*12.2mm — DIMENSION (L*W*H) 31.8*20.3*12.2mm

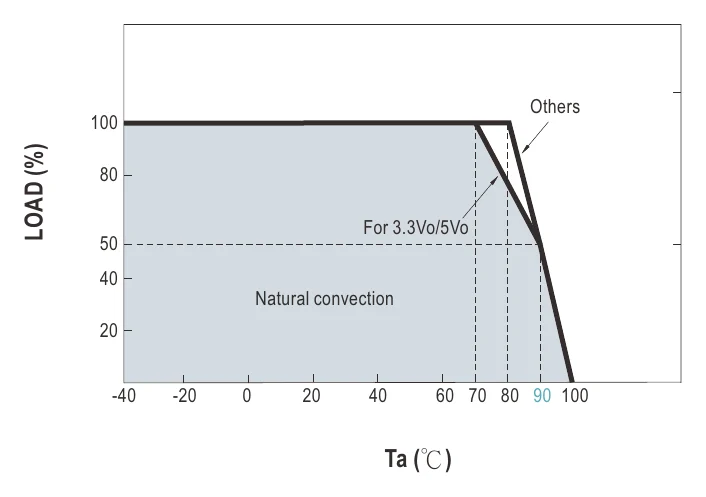

SCW08W8-15 Derating Curve — Derating Curve

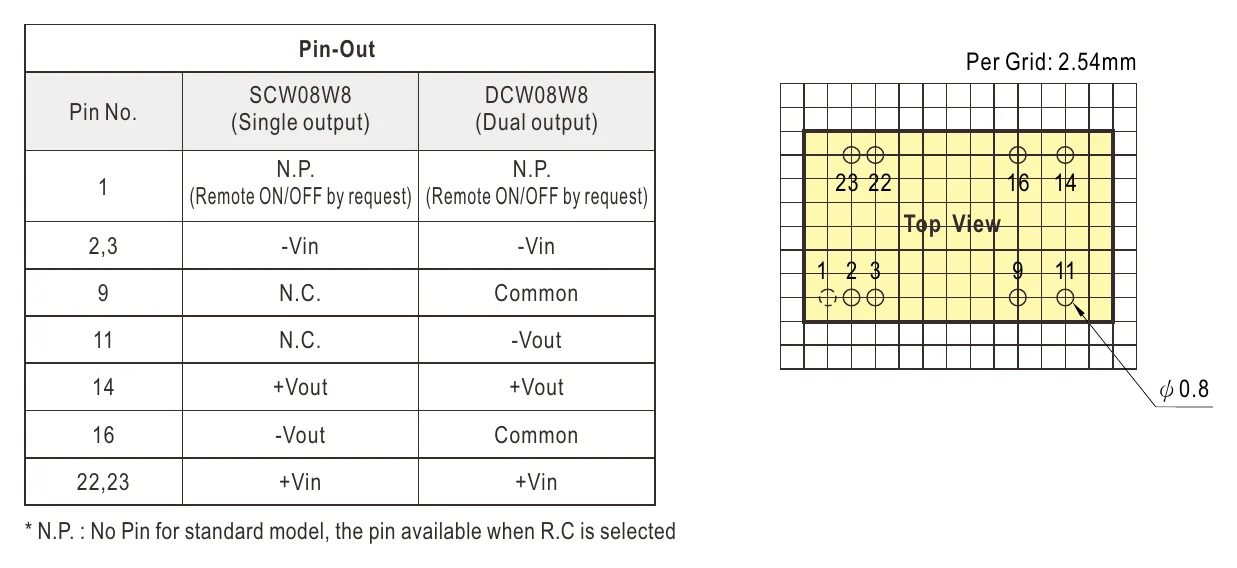

SCW08W8-15 Pin Assignment — Pin Assignment

Typical applications

Downloads

Datasheet1

SCW08W8-15 datasheetSCW08W8_DCW08W8_Spec_Sheet.pdf · 2025-07-17 edition PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What applications is the Mean Well SCW08W8-15 designed for?

The SCW08W8-15 is an 8W DC-DC converter module intended for equipment that needs a regulated 15V DC output from a very wide DC input range. Its 9-75V DC input range makes it relevant for industrial, embedded, and mobile power environments where input voltage can vary significantly.

What input voltage range does the SCW08W8-15 support?

This model supports an ultra-wide 9-75V DC input range. Mean Well also identifies that range as covering nominal 12V, 24V, 36V, 48V, and 72V DC systems.

What output does the SCW08W8-15 provide?

The SCW08W8-15 provides a 15V DC output and is rated for 8W of output power. That makes it a fit for applications specifically requiring a 15V rail from a high-variation DC source.

How does the SCW08W8-15 compare with narrower-input DC-DC converters?

A key differentiator of the SCW08W8-15 is its 8:1 input range of 9-75V DC, which is much broader than many standard-input converter modules. For buyers working across multiple nominal DC systems, that wider range can reduce the need to source different converter variants.

Is the SCW08W8-15 suitable for harsh temperature environments?

Yes, this model is specified for operation from -40°C to +90°C. That wide operating range makes it more suitable for demanding environments than converters limited to standard indoor temperature conditions.

What protection and isolation features are included in the SCW08W8-15?

The SCW08W8-15 includes short circuit protection with continuous mode, overload protection, over-voltage protection, and UVLO. It also provides 3KV DC input-to-output isolation, which is an important specification for applications that require electrical separation between input and output sides.
