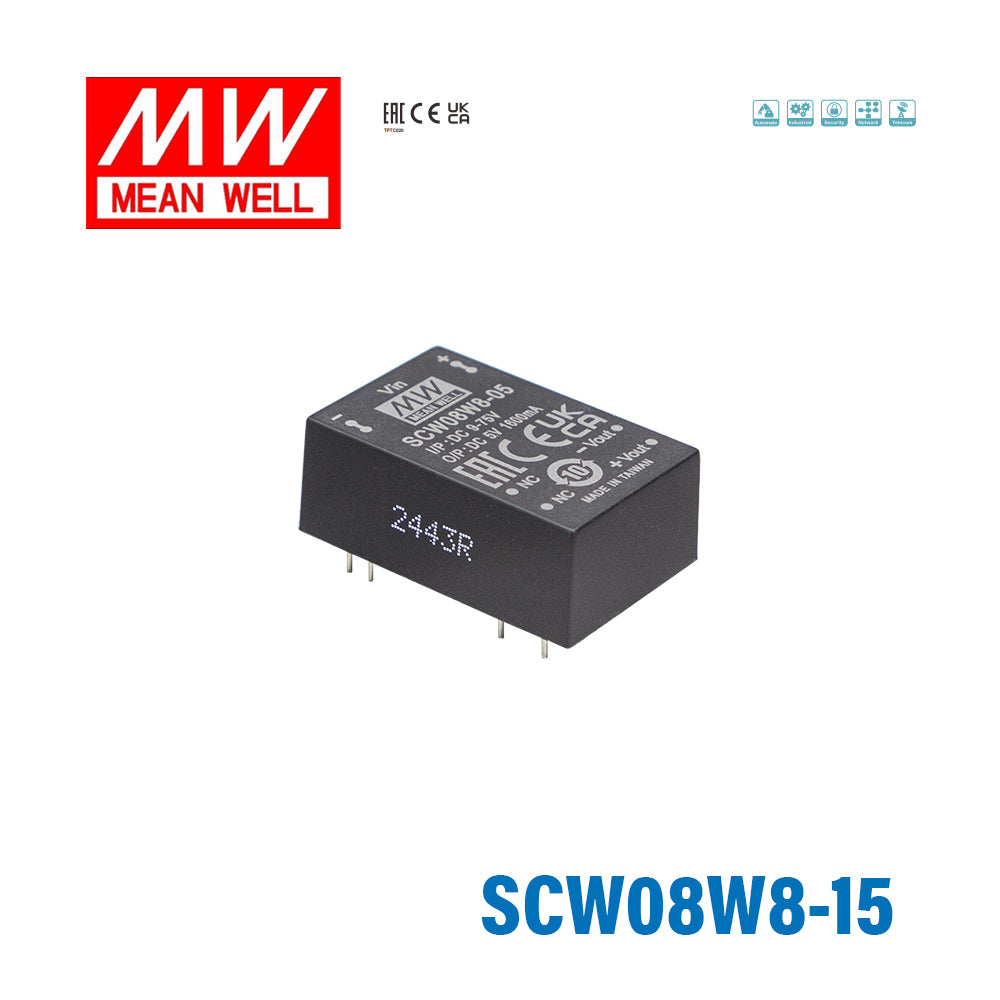

Mean Well SCW08W8-15 DC-DC Converter - 8W 9~75V DC in 15V out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +90℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 86%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well SCW08W8-15 designed for?
The SCW08W8-15 is an 8W DC-DC converter module intended for equipment that needs a regulated 15V DC output from a very wide DC input range. Its 9-75V DC input range makes it relevant for industrial, embedded, and mobile power environments where input voltage can vary significantly.
What input voltage range does the SCW08W8-15 support?
This model supports an ultra-wide 9-75V DC input range. Mean Well also identifies that range as covering nominal 12V, 24V, 36V, 48V, and 72V DC systems.
What output does the SCW08W8-15 provide?
The SCW08W8-15 provides a 15V DC output and is rated for 8W of output power. That makes it a fit for applications specifically requiring a 15V rail from a high-variation DC source.
How does the SCW08W8-15 compare with narrower-input DC-DC converters?
A key differentiator of the SCW08W8-15 is its 8:1 input range of 9-75V DC, which is much broader than many standard-input converter modules. For buyers working across multiple nominal DC systems, that wider range can reduce the need to source different converter variants.
Is the SCW08W8-15 suitable for harsh temperature environments?
Yes, this model is specified for operation from -40°C to +90°C. That wide operating range makes it more suitable for demanding environments than converters limited to standard indoor temperature conditions.
What protection and isolation features are included in the SCW08W8-15?
The SCW08W8-15 includes short circuit protection with continuous mode, overload protection, over-voltage protection, and UVLO. It also provides 3KV DC input-to-output isolation, which is an important specification for applications that require electrical separation between input and output sides.
