Mean Well SPUN02L-05 DC-DC Converter - 2W - 4.5~5.5V in 5V out

SKU SPUN02L-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SPUN02L-05 is the 5V output model of this series: rated power 2W, typical efficiency 81%.

SPUN02 and DPUN02 series are 2W isolated and unregulated module type DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+105℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/ 24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with industry standard pinout
Operating temperature range -40 ~ +105℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protection: Short circuit(continuous)/Over load
3KVDC I/O isolation
Low cost
3 years warranty

Specifications

SPUN02L-05Specifications from the official datasheet (2024-03-11 edition)

INPUT

INPUT VOLTAGE (RANGE): 5V (4.5 ~ 5.5V)
INPUT CURRENT NO LOAD: 40mA
INPUT CURRENT FULL LOAD: 488mA
VOLTAGE RANGE: 4.5 ~ 5.5Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 1A Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 0 ~ 400mA
EFFICIENCY (TYP.): 81%
CAPACITOR LOAD (MAX.)^{* For each output}: 220μF
VOLTAGE ACCURACY: ±3.0% max.
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p(150mV for SPUN02L-05/12)
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: 10%
SWITCHING FREQUENCY (Typ.): 60KHz

PROTECTION

SHORT CIRCUIT: Protection type: Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +105℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 18pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Burest	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3Mhrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

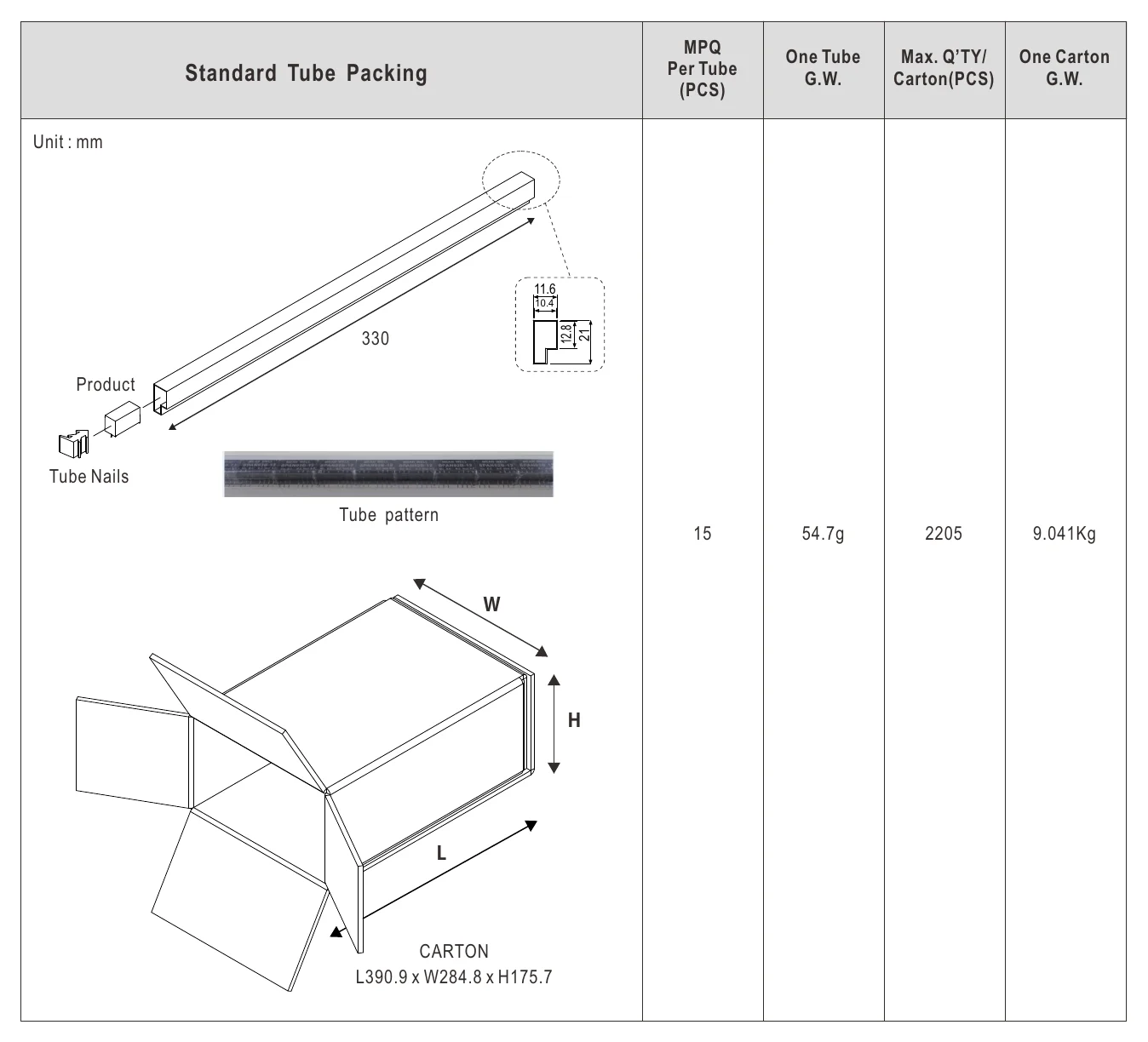

PACKING: 2.7g ; 15pcs/per tube, 2205pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

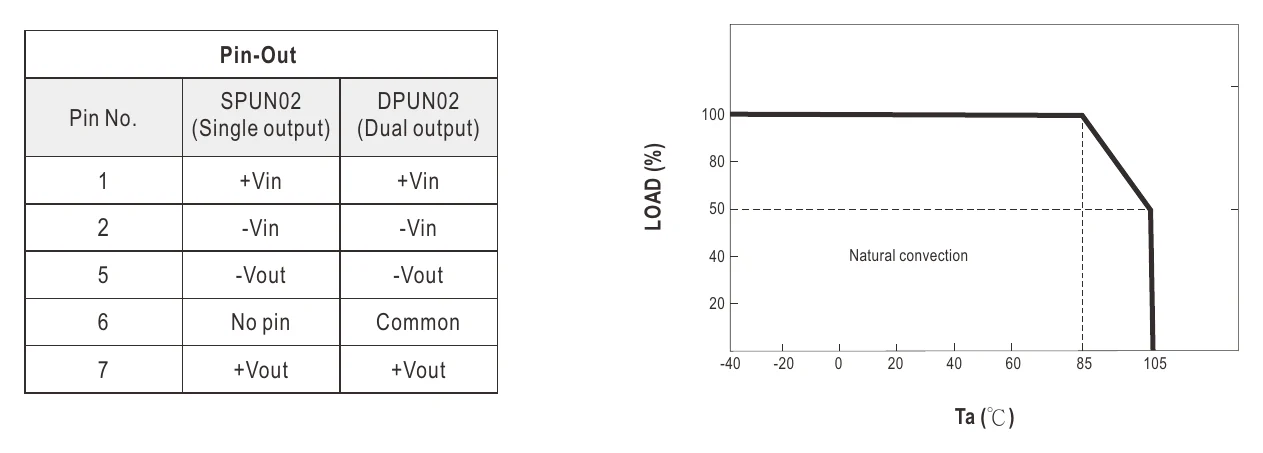

SPUN02L-05 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPUN02-DPUN02-EMC)(EN) PDF Download

Certificate (SPUN02-DPUN02-CE-dec)(EN) PDF Download

Certificate (SPUN-DPUN02-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPUN02L-05 for 5V logic, sensor, or microcontroller rails in industrial or embedded equipment?

Yes. This model provides a fixed 5V output (0~400mA) and is rated for 2W, so it fits low-power logic, sensing, and controller functions that need a 5V rail. Note that it is an unregulated converter with 10% load regulation. The specified input range is 4.5~5.5V.

Is the SPUN02L-05 suitable for compact automation modules where board space is limited?

It is designed for compact layouts, with dimensions of 19.6 x 7.2 x 10.2 mm (L x W x H) and a weight of 0.0027 kg. That makes it practical for small automation or embedded boards that need a fixed 5V output. The output capacity is limited to 2W.

Can this converter be used in electronics that must operate across a very wide temperature range?

The specified operating temperature is -40°C to +105°C, with load derating at high ambient per the derating curve. That is a broad range for low-power embedded, automation, and control electronics. The application still needs to match its 4.5~5.5V input and 5V, 2W output rating.

Is the SPUN02L-05 okay for outdoor or exposed environments?

The product data lists an operating range of -40°C to +105°C (refer to the derating curve), but no IP rating is provided. Without a stated IP rating, the page does not define protection against water or dust. Based on the listed specs, temperature capability is clear while ingress protection is not.

What is the difference between the SPUN02L-05 and the other SPUN02L options?

The listed SPUN02L siblings are all 2W models. The SPUN02L-05 is 5V, 0~400mA; the SPUN02L-12 is 12V, 0~167mA; and the SPUN02L-15 is 15V, 0~134mA. The provided data for this model also shows 19.6 x 7.2 x 10.2 mm dimensions, -40°C to +105°C operation (with derating), EAC TP TC 020/2011 safety approval, and a 3-year warranty.
