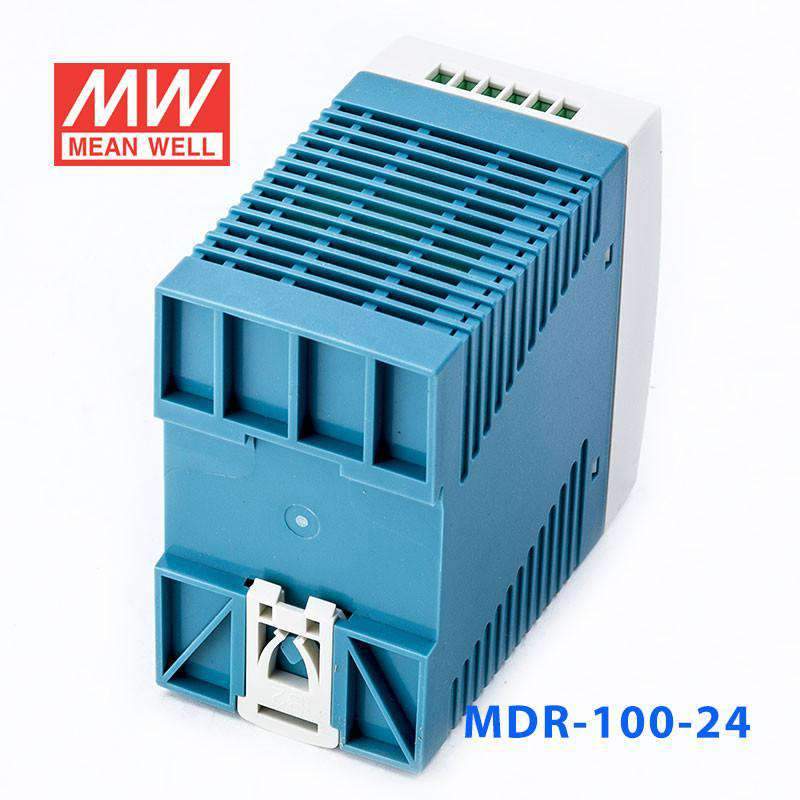

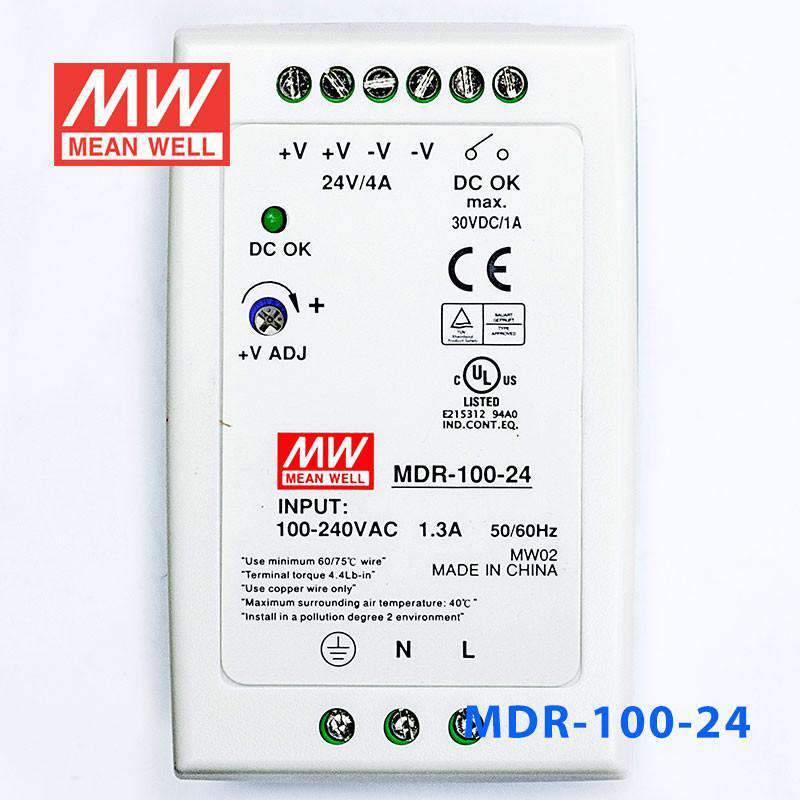

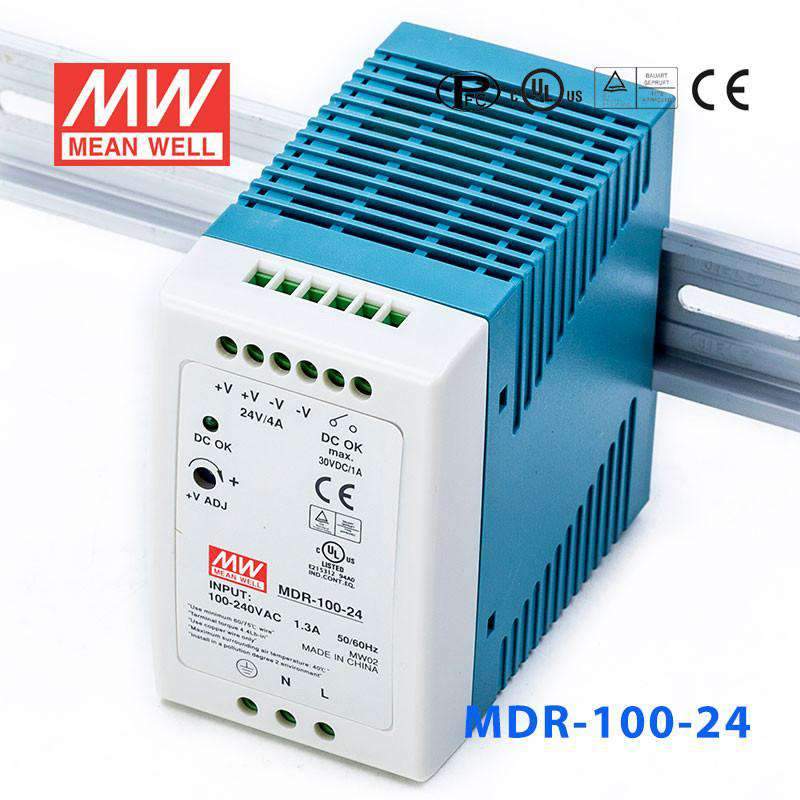

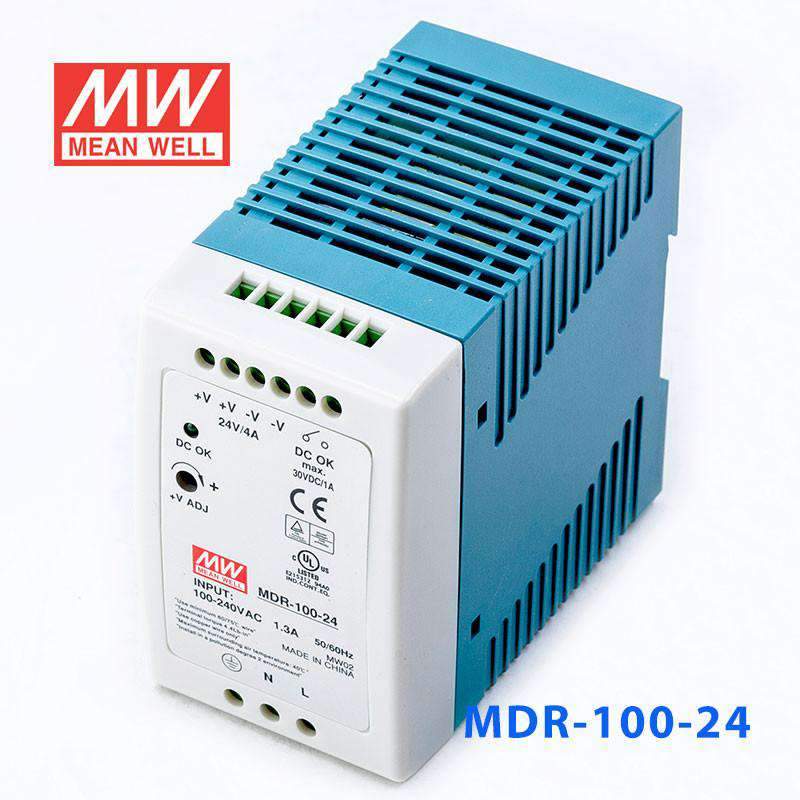

Mean Well MDR-100-24 Single Output Industrial Power Supply 100W 24V 4A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-100-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

MDR-100-24
In stock
|

Overview

MDR-100-24 is the 24V output model of this series: rated current 4A, rated power 96W, typical efficiency 86%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • ZCS/ZVS technology to reduce power dissipation
  • Cooling by free air convection

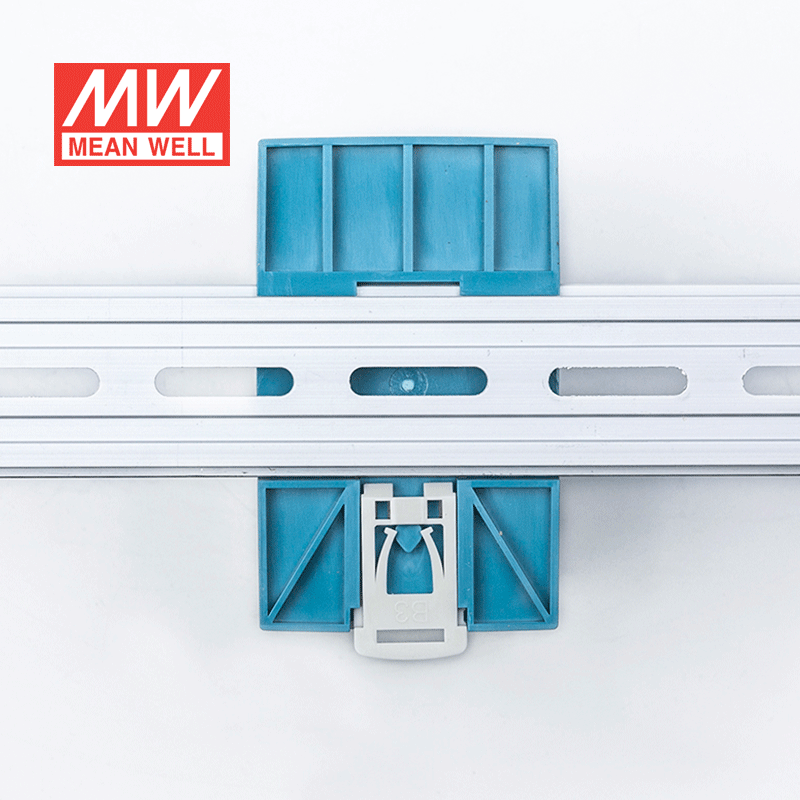

  • Can be installed on DIN rail TS-35/7.5 or 15
  • DC OK relay contact
  • No load power consumption<1W
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-100-24Specifications from the official datasheet (2025-12-12 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
4A
CURRENT RANGE
0 ~ 4A
RATED POWER
96W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
24 ~ 30V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.5
3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
31.2 ~ 36V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery or re-power on to recover

FUNCTION

DC OK SIGNAL
Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 60950.1,BIS IS13252(Part1):2010/IEC 609501:2005 (except for 48) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2217.8K hrs min. Telcordia SR-332 (Bellcore) ; 346.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
55*90*100mm (W*H*D)
PACKING
0.42Kg; 30pcs/13.6Kg/0.82CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. Deating maybe needed under low input voltages, please check the derating curve for more detail.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

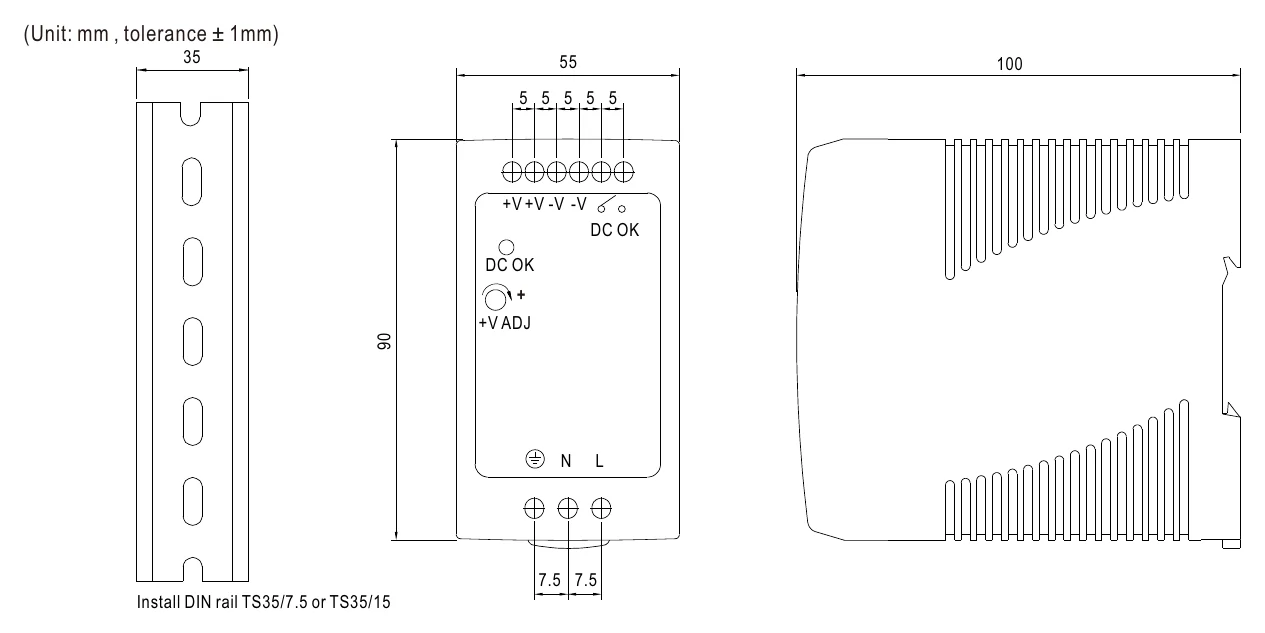

MDR-100-24 Mechanical Specification
Mechanical Specification

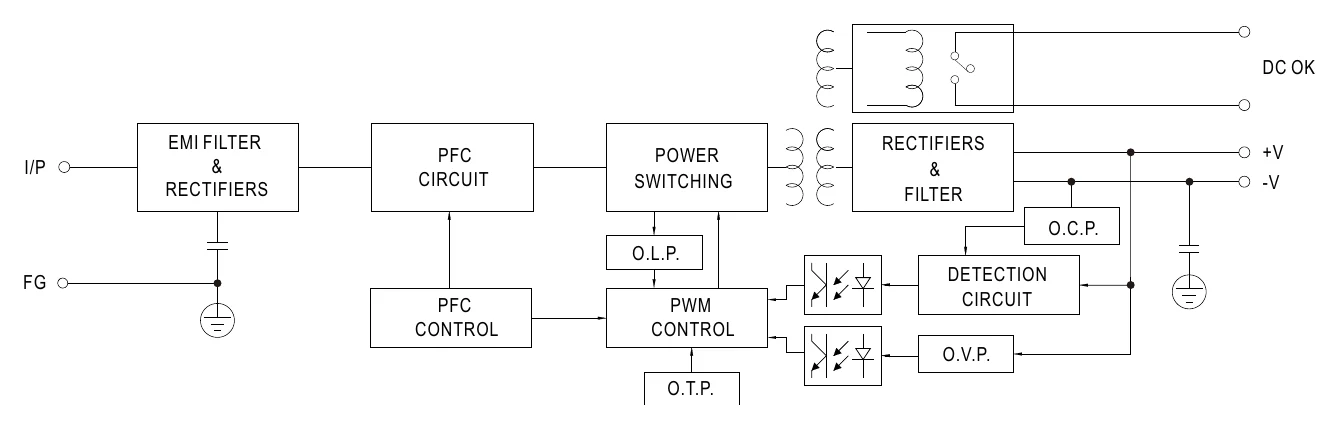

MDR-100-24 Block Diagram
Block Diagram

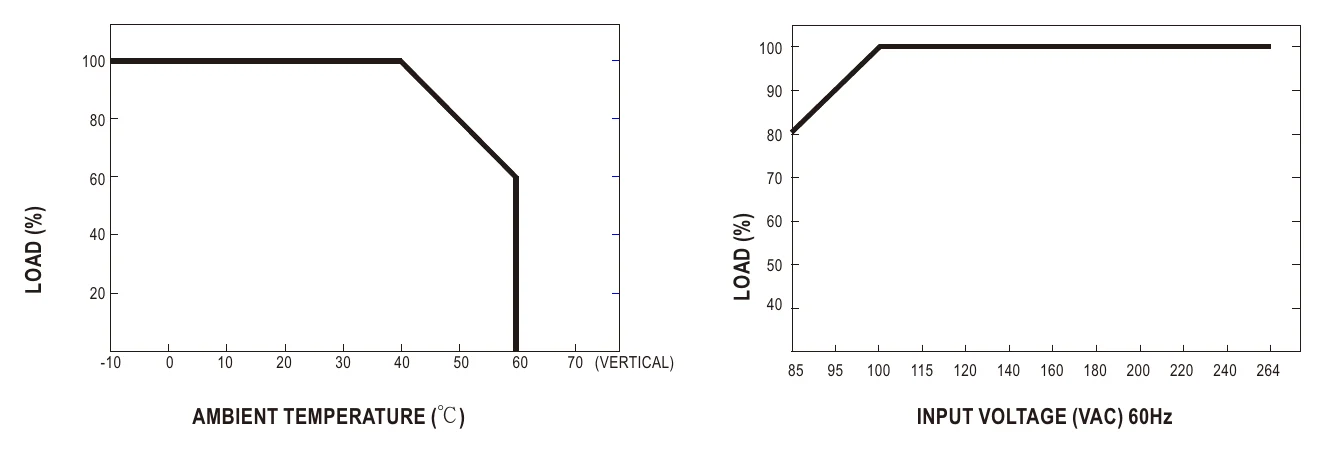

MDR-100-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-100-24 for a 24V PLC panel or industrial automation cabinet?

Yes, this model is suited to 24V DC control systems, PLC panels, and industrial automation cabinets when the load stays within 96W and 4A. Its DIN rail format makes it appropriate for enclosure-based power distribution.

Is the MDR-100-24 a good choice for building management systems that need a larger 24V DIN rail supply?

Yes, it fits building management and panel-mounted control systems that require 24V DC up to 4A. With 96W output and an output adjustable from 24V to 30V, it is the 24V model of the MDR-100 series.

Will the MDR-100-24 work in a control cabinet where DIN rail space still needs to be managed carefully?

Yes, it is a DIN rail power supply built for cabinet use, mounting on TS35/7.5 or TS35/15 rails. It measures 55 mm wide, 90 mm high and 100 mm deep, so it offers 96W output within 55 mm of rail width.

Can the MDR-100-24 support higher-demand 24V industrial loads better than smaller MDR models?

Yes, it provides 96W at 24V and up to 4A, with constant current limiting overload protection at 105 ~ 150% of rated power that recovers automatically. Ratings of smaller MDR models are not covered by this datasheet, so compare them using their own spec sheets.

What are the main differences between the MDR-100-24 and other MDR series models?

Within the MDR-100 series, the MDR-100-24 provides 96W at 24V and 4A with 86% typical efficiency. In the same frame, the MDR-100-12 is 90W at 12V and 7.5A (83%), while the MDR-100-48 is 96W at 48V and 2A (87%); all share the 55 x 90 x 100 mm housing and 85 ~ 264VAC input.

Can the MDR-100-24 be used in outdoor or washdown conditions?

The provided specs list an operating temperature range of -10°C to +60°C for environmental suitability. Because no IP rating is listed in the provided data, this model is better suited to use inside a control cabinet or enclosure than in a directly exposed environment.
