Description
Description
Features
Universal AC input / Full range |

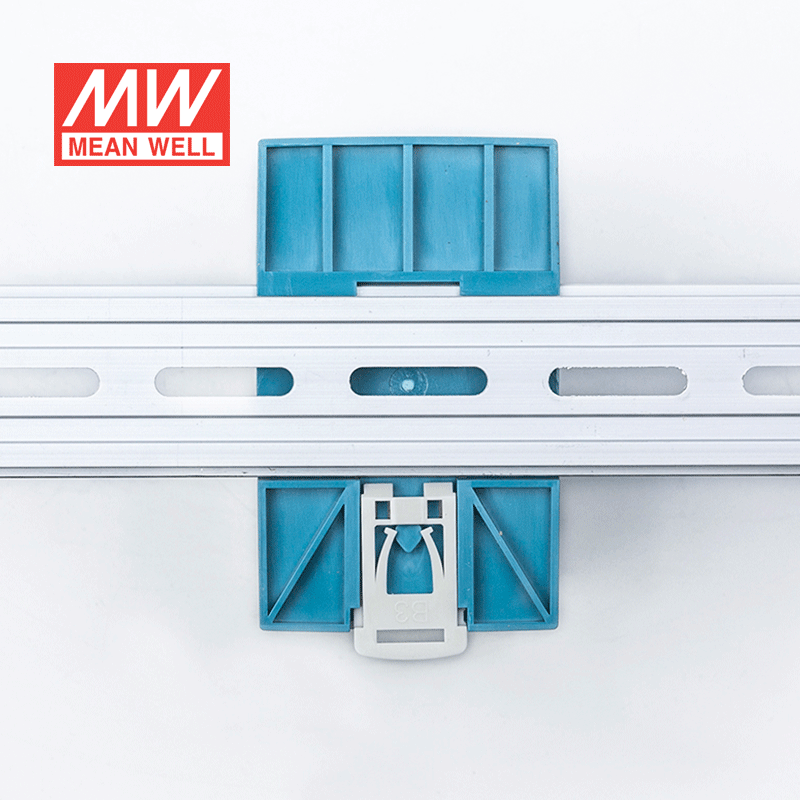

Installed on DIN rail TS35 / 7.5 or 15 |
Protections: Short circuit / Overload / Over voltage |
No load power consumption <1W |
LED indicator for power on |
DC OK relay contact |
Cooling by free air convection |
100% full load burn-in test |
Built-in active PFC and over temp. protection |
3 years warranty |
General Specification
AC input voltage range | 85~264VAC; 120~370VDC |
AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
DC adjustment range | 0~+20% rated output voltage |
Overload protection | 105%~150% constant current limiting, auto-recovery |
Over voltage protection | 125%~150% rated output voltage |
Setup, rise, hold up time | 3000ms, 50ms, 50ms |
Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
Working temperature | -10~+60°C |
DC OK signal | Relay contact |
Safety standards | UL508, TUV EN60950-1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level |
Connection | IP: 3 poles, O/P: 6 poles screw DIN terminal |
Dimension (LxWxH) | 55x90x100 |
Packing | 30pcs / 13.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length10 cm
-
Width9 cm
-
Height5.5 cm
-
Weight0.42 kg
