Mean Well

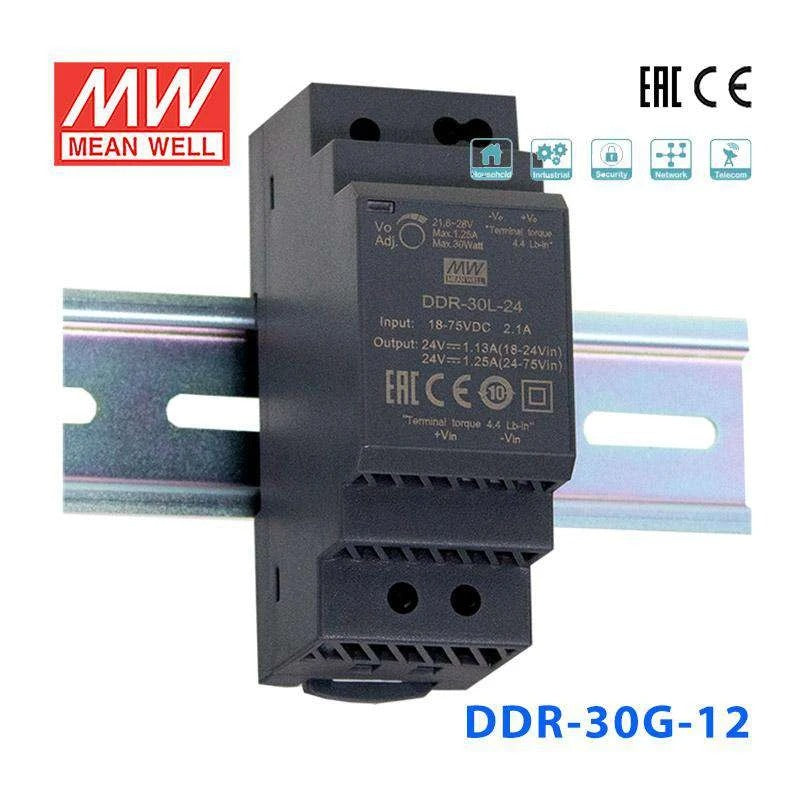

Mean Well DDR-30G-12 DC-DC Converter - 30W - 9~36V in 12V out 2.5A

2:1 or 4:1 wide input rangefanless design4KVdc I/O isolationultra slim dimensions
SKU:
DDR-30G-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 13 in this family

DDR-30G-12
|

The DDR-30G is a 30W DIN Rail type DC-DC converter with a 35mm (2SU) profile, designed for industrial control cabinets and distributed power systems. A 4:1 wide input voltage range of 9~36Vdc supports a broad range of DC supply sources, while reinforced 4KVdc I/O isolation ensures noise-free power conversion. Cooled entirely by free air convection with no minimum load requirement, it operates reliably from -40~+85°C.

Key Features

  • ✓ Compact 35mm (2SU) width — DIN rail TS-35/7.5 or 15 compatible
  • ✓ 4:1 wide input voltage range: 9~36Vdc
  • ✓ DC output voltage adjustable ±10%
  • ✓ 4KVdc reinforced I/O isolation
  • ✓ Cooling by free air convection — no minimum load required
  • ✓ Wide operating temperature: -40°C ~ +85°C
  • ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
  • ✓ Safety approvals: UL 62368-1, IEC 62368-1, AS/NZS 62368.1
  • ✓ 3 years warranty

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8441770213675, "variants" :[{ "context":"default", "variant_id": 45707148067115, "sku":"DDR-30G-12", "inventory_qty" : 10, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
Mean Well DDR-30G-12 DC-DC Converter - 30W - 9~36V in 12V out 2.5A
Mean Well

Mean Well DDR-30G-12 DC-DC Converter - 30W - 9~36V in 12V out 2.5A

Log in to see price

The DDR-30G is a 30W DIN Rail type DC-DC converter with a 35mm (2SU) profile, designed for industrial control cabinets and distributed power systems. A 4:1 wide input voltage range of 9~36Vdc supports a broad range of DC supply sources, while reinforced 4KVdc I/O isolation ensures noise-free power conversion. Cooled entirely by free air convection with no minimum load requirement, it operates reliably from -40~+85°C.

Key Features

Model

  • 100W - 12V out - 9~18V in
  • 120W - 12V out - 16.8~33.6V in
  • 120W - 12V out - 33.6~67.2V in
  • 120W - 12V out - 67.2~154V in
  • 15W - 12V out - 9~36V in
  • 15W - 12V out - 18~75V in
  • 30W - 12V out - 9~36V in
  • 30W - 12V out - 18~75V in
  • 400.8W - 12V out - 16.8~33.6V in
  • 400.8W - 12V out - 33.6~67.2V in
  • 400.8W - 12V out - 67.2~154V in
  • 60W - 12V out - 9~36V in
  • 60W - 12V out - 18~75V in
