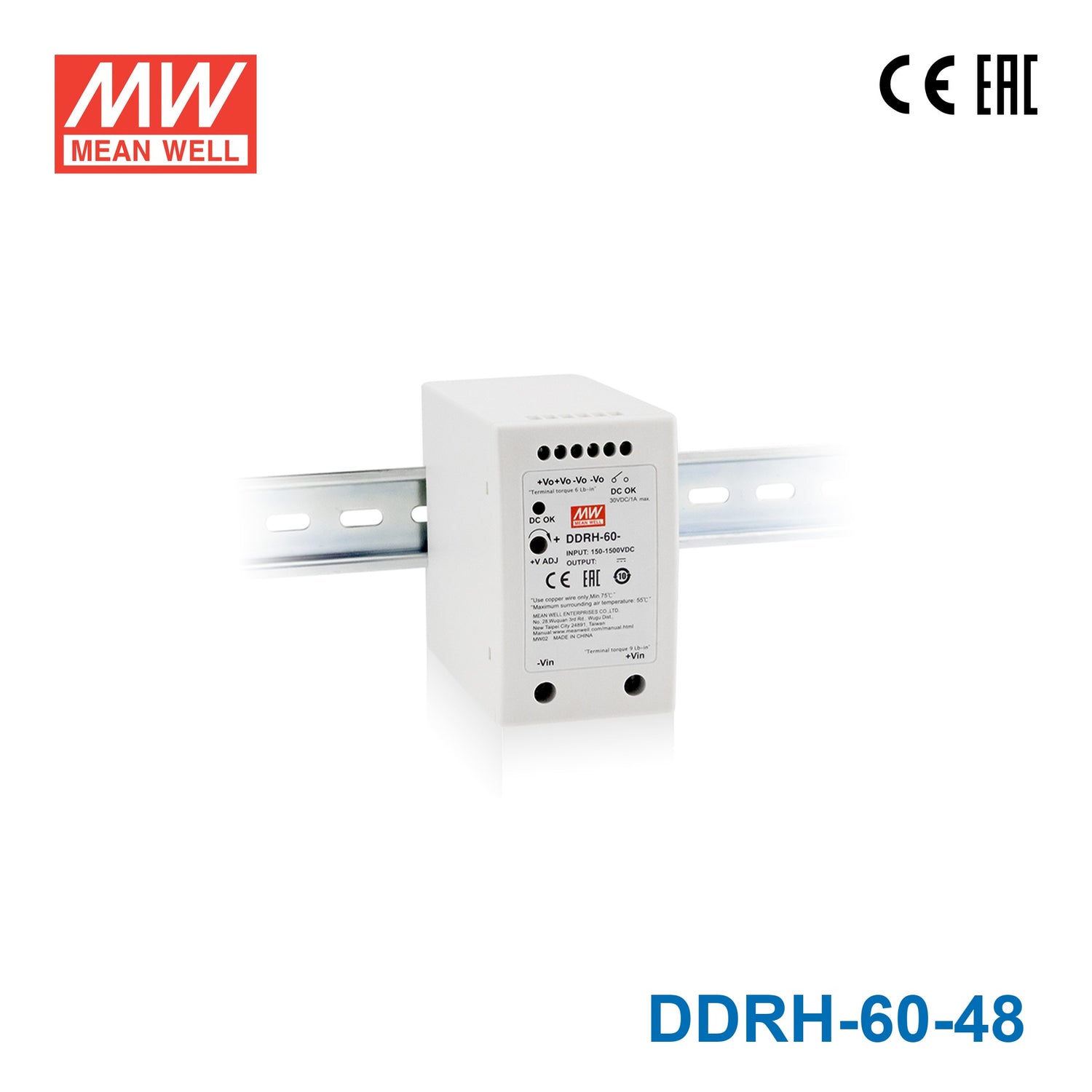

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDRH-60-48 Ultra Wide Input DC-DC Converter, 60W 48V 1.25A

150~1500VDC 10:1 ultra-wide input range57mm slim widthDC output voltage adjustable(+20%)

SKU:

DDRH-60-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The DDRH-60 is a 60W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range covers solar, battery string, and DC bus supply sources from diverse voltage levels. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and a DC OK relay output, the DDRH-60 delivers stable, monitored power across a -30~+80℃ operating range.

Key Features

✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
✓ DC output voltage adjustable ±10%
✓ 4KVac reinforced I/O isolation
✓ Cooling by free air convection — fanless design, no minimum load required
✓ Wide operating temperature: -30°C ~ +80°C
✓ DC OK relay contact output — signals supply status
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can the DDRH-60-48 supply 48V to PoE network switches in industrial Ethernet infrastructure powered from a high-voltage DC bus?

Yes. The DDRH-60-48 outputs 48V at 1.25A (60W) and accepts 150–1500VDC input, making it suitable for powering 48V PoE switches or injectors in industrial Ethernet networks where the source bus is a high-voltage DC system.

Is the DDRH-60-48 suitable for powering 48V DC fans, drives, or cooling systems in process control enclosures?

At 60W and 1.25A on a 48V rail, the DDRH-60-48 can supply 48V cooling fans and small variable-frequency drives used in process control enclosures that receive power from a high-voltage DC distribution bus.

Can the DDRH-60-48 be deployed in traction or rail environments with varying DC link voltages?

The 150–1500VDC input range covers standard rail traction voltages such as 600V and 750V DC. Combined with the –30°C to +80°C temperature rating, the DDRH-60-48 is appropriate for auxiliary power applications in rolling stock.

Does the adjustable output on the DDRH-60-48 allow fine-tuning for battery float charging at 48V?

The output voltage is adjustable up to +20% above the nominal 48V, allowing it to be set to approximately 57.6V, which can be used to float-charge 48V lead-acid battery banks within the 1.25A current limit.

Is the DDRH-60-48 appropriate for installation in outdoor roadside or utility cabinets?

The unit operates from –30°C to +80°C with a fanless 57mm slim-width design suited to compact outdoor enclosures. No IP rating is stated for the unit, so the external enclosure must provide rated environmental protection.

How does the DDRH-60-48 compare to the DDRH-60-12 and DDRH-60-24 in the same series?

All three share the 150–1500VDC input, 57mm slim-width form factor, fanless design, and +20% adjustable output. The DDRH-60-48 provides 48V at 1.25A (60W), versus 24V at 2.5A for the DDRH-60-24 and 12V at 5A for the DDRH-60-12.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V 10A	50W	5V	10A	Indoor	View
Mean Well DDRH-60-24 Ultra Wide Input DC-DC Converter, 60W 24V 2.5A	60W	24V	2.5A	Indoor	View
Mean Well DDRH-60-12 Ultra Wide Input DC-DC Converter, 60W 12V 5A	60W	12V	5A	Indoor	View
