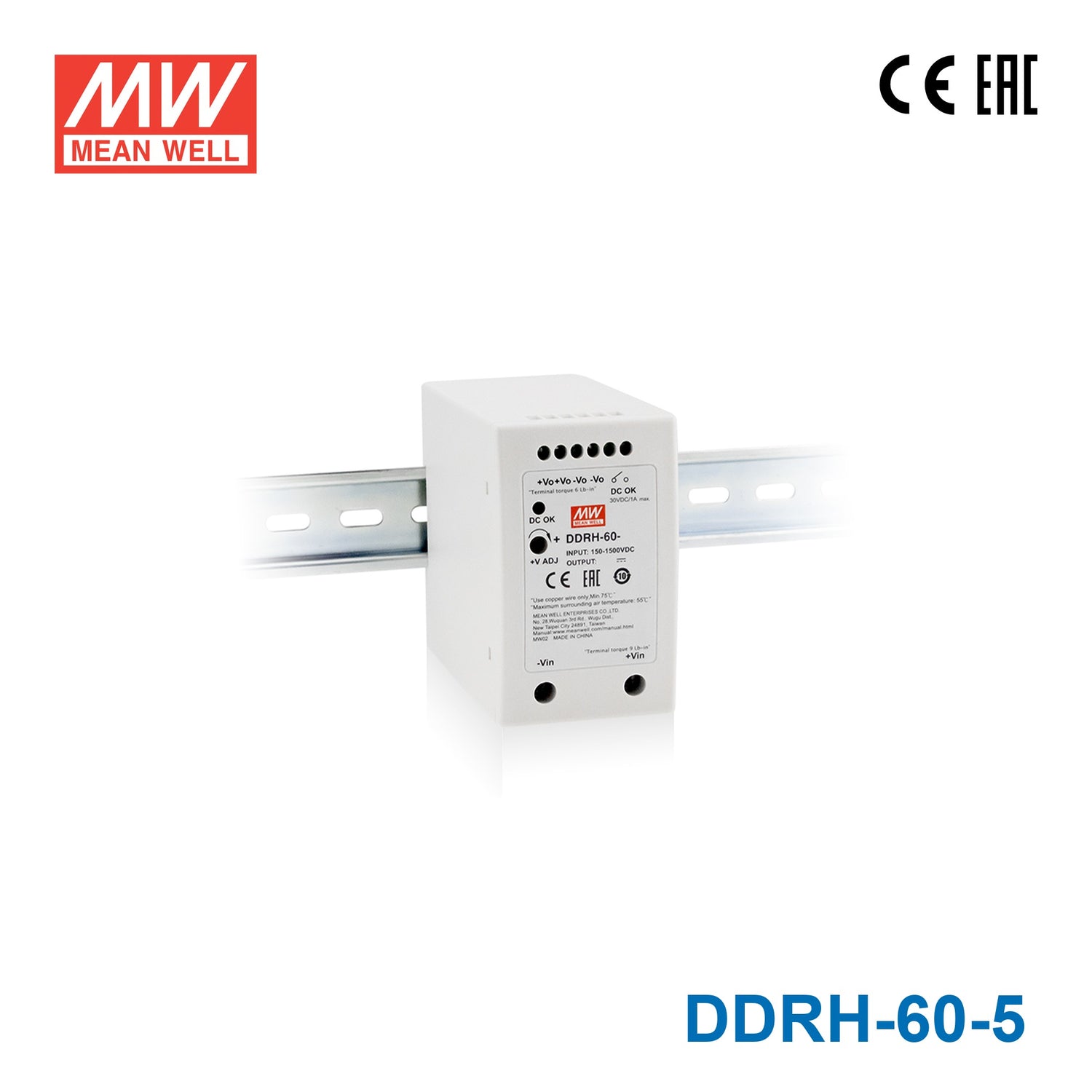

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V

Name: Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V
Brand: Mean Well
SKU: DDRH-60-5
Price: 209.99 NZD
Availability: InStock

150~1500VDC 10:1 ultra-wide input range, 57mm slim width, DC output voltage adjustable(+20%)

Please for Pricing

Notify me when it's back in stock

Description

Features:

150~1500Vdc 10:1 ultra-wide input range
57mm slim width
4KVac I/O high isolation(Reinforced isolation)
Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-30 ~ +80℃ ultra-wide operating temperature (>+55℃ derating)
Over Voltage Category II
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable(+20%)
3 years warranty

General Specification

AC input voltage range

150 1500Vdc

AC inrush current (max.)

COLD START 120A /1500Vdc | 80A/800Vdc | 30A/150Vdc

Over-voltage protection

6.6 8.4V | 16.5 21V | 30 38V | 55 60V

Protection type: Hiccup up mode, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:4KVAC O/P-DC OK:0.5KVAC

Working temperature

-30 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

57x93.5x105mm

Specifications

Brand

Mean Well
Series

DDRH Series
Power Rating

50 Watt
Output Voltage

5 Volt
Rated Current

10 Ampere
Input Voltage

150V~1500V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~80°C
Warranty

3 Year
Length

5.7 cm
Width

9.35 cm
Height

10.5 cm
Weight

0.8 kg

File Downloads

::specification::
