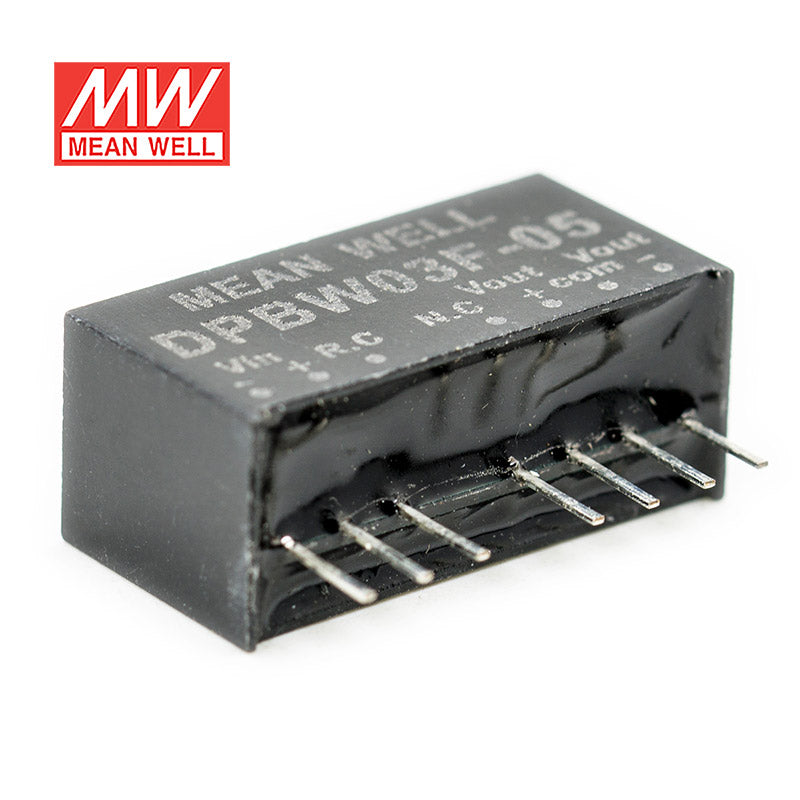

Mean Well DPBW03F-05 DC-DC Converter - 3W - 9~36V in ±5V out 300mA

SKU DPBW03F-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPBW03F-05 is the ±5V output model of this series: rated power 3W, typical efficiency 81%.

SP BW03 and DP BW03 series are 3 W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A/B with additional components
High efficiency up to 85%
Protections: Short circuit (Continuous) / Overload / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPBW03F-05Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 154mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±5V
OUTPUT CURRENT: ±0 ~ 300mA
EFFICIENCY (TYP.): 81%
CAPACITOR LOAD (MAX.)^{* For each output}: *100μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: 0.5%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin : 7.5Vdc ; 48Vin : 15.5Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin : 6Vdc ; 48Vin : 12Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A/B with external components
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A/B with external components
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPBW03F-05 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SPBW03-DPBW03-CE-dec)(EN) PDF Download

Certificate (SPBW-DPBW03-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPBW03F-05)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPBW03F-05 for a 24V industrial controller that needs a 5V logic rail?

This model is designed for constant-voltage ±5V output with 3W power and a 9-36VDC input range. That makes it suitable where the source falls within 9-36VDC and the control or logic load stays within the 3W output rating.

Is the DPBW03F-05 suitable for embedded electronics inside compact automation equipment?

Its 21.8 × 9.2 × 11.1 mm size and 4.3g weight make it a compact option for tightly packed embedded or control assemblies. The output is constant ±5V at 3W, so it fits small low-power electronics that require a regulated dual 5V rail.

Can this converter be used in low-power IT or communications subassemblies that run from variable control voltages?

It can be considered for low-power electronics when the available input stays within 9-36VDC and the load needs constant ±5V output. The 3W rating is the key sizing limit for small IT, communications, or monitoring subcircuits.

How does the DPBW03F-05 compare with the other DPBW03F models?

In the DPBW03F 3W series, the listed models are DPBW03F-05 with ±5V output and ±300mA output current, DPBW03F-12 with ±12V output and ±125mA output current, and DPBW03F-15 with ±15V output and ±100mA output current. All are constant-voltage units with 9-36VDC input, 21.8 × 9.2 × 11.1 mm dimensions, 4.3g weight, -40°C to +85°C operating temperature, EAC TP TC 020/2011 safety approval, and a 3-year warranty.

Is the DPBW03F-05 appropriate for outdoor or harsh-environment use?

The listed operating temperature range is -40°C to +85°C, which supports wide temperature conditions. However, the supplied specs do not list any IP rating, so the provided data does not confirm suitability for exposed outdoor, wet, or washdown environments.
