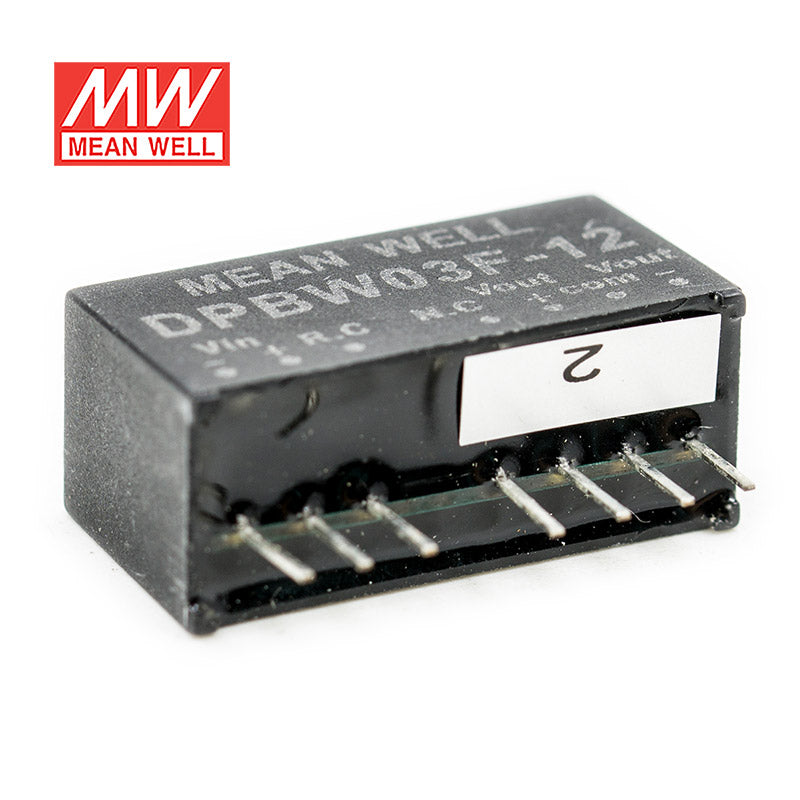

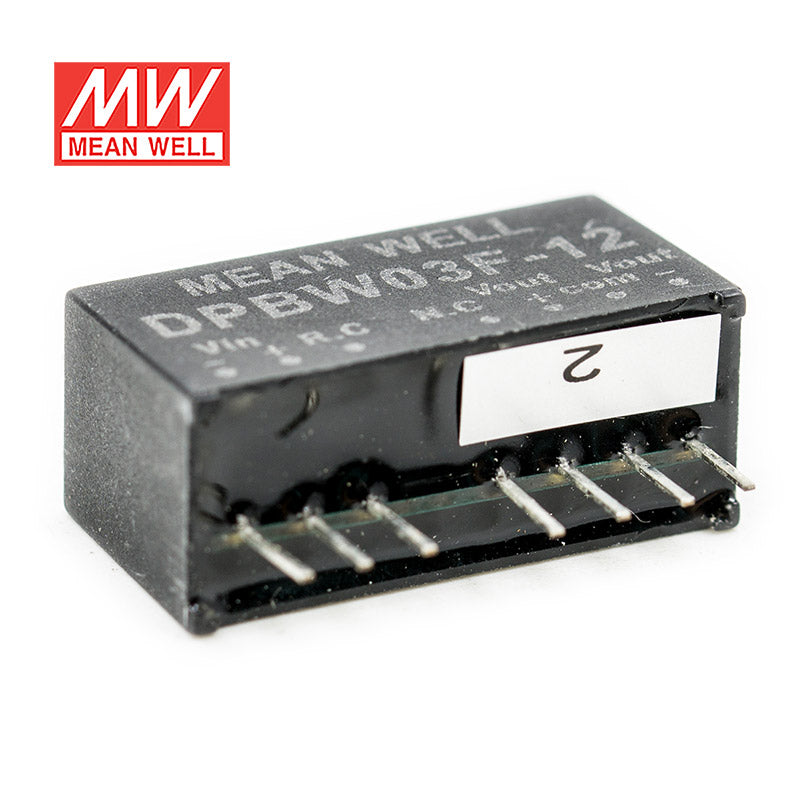

Mean Well DPBW03F-12 DC-DC Converter - 3W - 9~36V in ±12V out 125mA

SKU DPBW03F-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPBW03F-12 is the ±12V output model of this series: rated power 3W, typical efficiency 83%.

SP BW03 and DP BW03 series are 3 W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A/B with additional components
High efficiency up to 85%
Protections: Short circuit (Continuous) / Overload / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPBW03F-12Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 27mA
INPUT CURRENT FULL LOAD: 150mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±0 ~ 125mA
EFFICIENCY (TYP.): 83%
CAPACITOR LOAD (MAX.)^{* For each output}: *470μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: 0.5%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin : 7.5Vdc ; 48Vin : 15.5Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin : 6Vdc ; 48Vin : 12Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A/B with external components
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A/B with external components
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPBW03F-12 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SPBW03-DPBW03-CE-dec)(EN) PDF Download

Certificate (SPBW-DPBW03-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPBW03F-12)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPBW03F-12 for a 12V automation interface inside a 24V control cabinet?

This model provides constant-voltage ±12V output at 3W and accepts 9-36VDC input. It is a fit for low-power automation interface loads when the source is within 9-36VDC and the total load stays within 3W.

Is the DPBW03F-12 suitable for compact embedded boards that need a regulated 12V rail?

The converter is physically small at 21.8 × 9.2 × 11.1 mm and weighs 4.3g, so it suits compact embedded assemblies where space is limited. Its role is delivering a regulated ±12V output with a 3W power ceiling.

Can this 12V model be used for low-power industrial sensing or monitoring electronics?

It is appropriate for low-power electronics that require a stable ±12V output and operate from a 9-36VDC source. The important constraint is the 3W power rating, which places it in small sensing, monitoring, and interface applications rather than larger field loads.

What is the difference between the DPBW03F-12 and the other DPBW03F versions?

The DPBW03F series keeps the same 3W power, 9-36VDC input, constant-voltage operation, 21.8 × 9.2 × 11.1 mm dimensions, 4.3g weight, -40°C to +85°C operating range, and 3-year warranty across the family. The listed output variants are ±5V at ±300mA for DPBW03F-05, ±12V at ±125mA for DPBW03F-12, and ±15V at ±100mA for DPBW03F-15.

Can the DPBW03F-12 be used in unheated indoor enclosures or hot equipment areas?

The specified operating temperature range is -40°C to +85°C, so the published data supports both cold and hot operating conditions within that range. The specs do not include an IP rating, so they do not establish suitability for exposed outdoor or water-prone environments.
