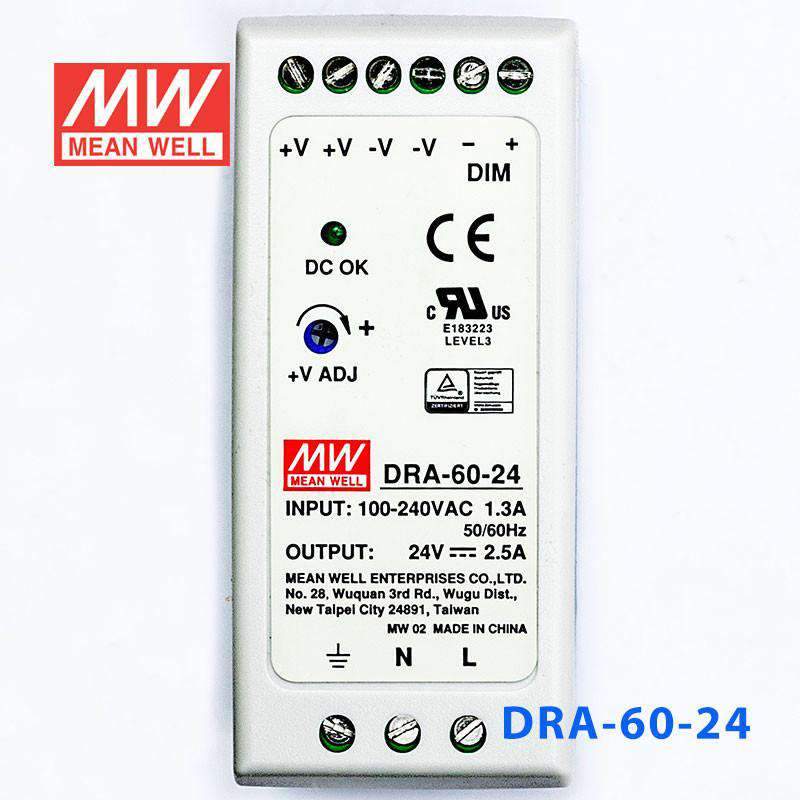

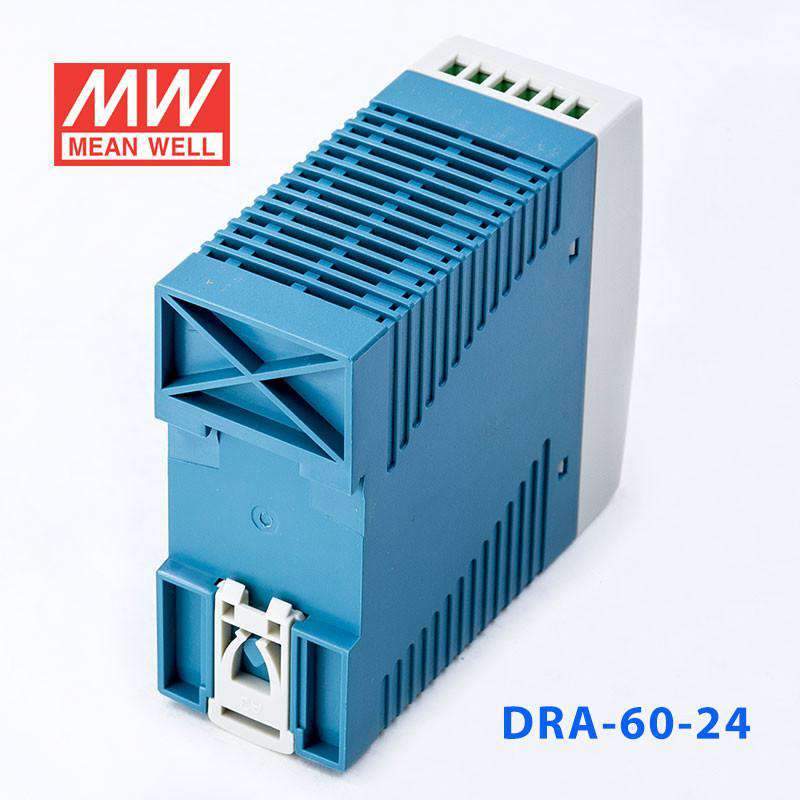

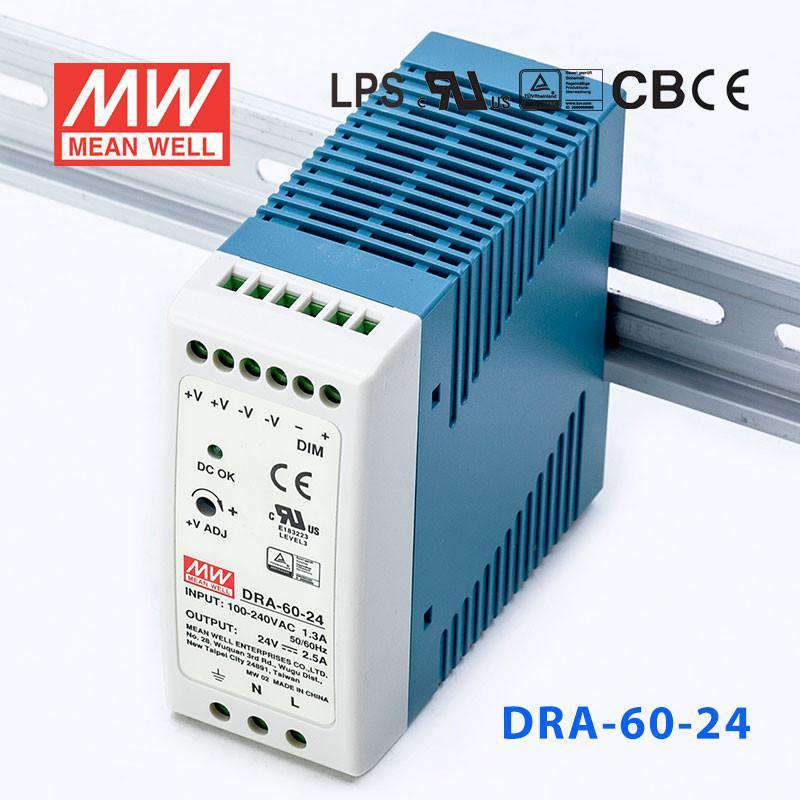

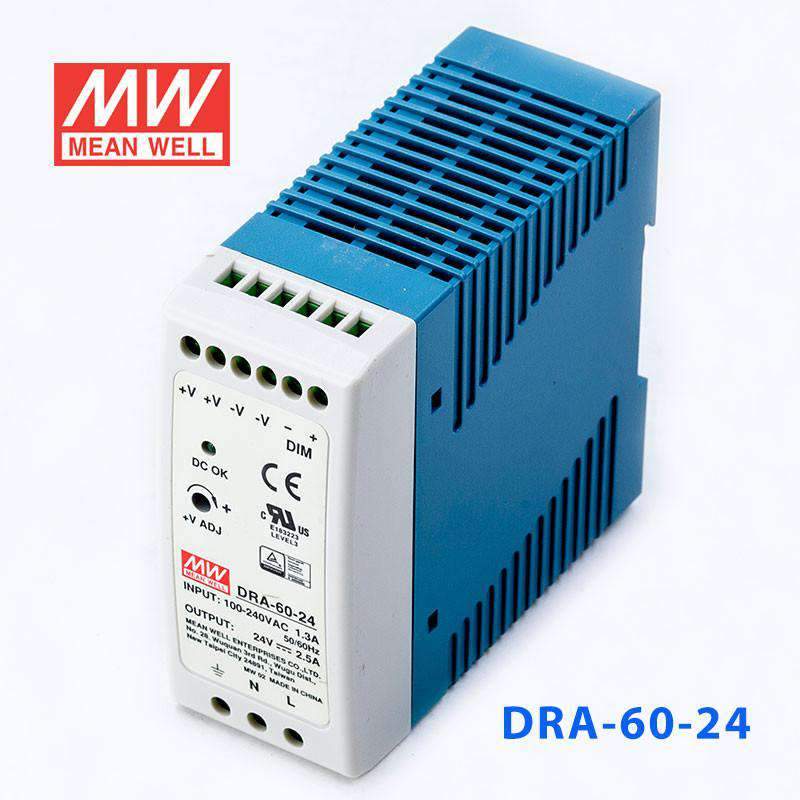

Mean Well DRA-60-24 Single Output Switching Power Supply 60W 24V 2.5A - DIN Rail

Io can be adjusted 10%~100% by 1-10VDCPWM or resistanceVo adjustablepass LPS

SKU DRA-60-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DRA-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 87%.

DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance. DRA-60 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-60 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30℃ through 70℃.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Can be installed on DIN rail TS-35/7.5 or 15
Output Voltage adjustable through internal potentiometer
Output Current adjustable through external 1~10Vdc, PWM signal or resistance
Cooling by free air convection
Pass LPS
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

DRA-60-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 3 ~ 24V
RATED CURRENT: 2.5A
CURRENT RANGE: 0 ~ 2.5A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 30V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC

PROTECTION

OVERLOAD: 95 ~ 108% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.98 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) on output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 2930.8K hrs min. Telcordia SR-332 (Bellcore) ; 436.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 40*90*100mm (W*H*D)
PACKING: 0.3Kg; 42pcs/13.6Kg/0.82CUFT

Certifications & ratings

Marked features: LPS

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

DRA-60-24 Derating Curve — Derating Curve

DRA-60-24 10K~100K Ohms resistance — 10K~100K Ohms resistance

DRA-60-24 depends on the configuration of the end systems. — depends on the configuration of the end systems.

DRA-60-24 Mechanical Specification — Mechanical Specification

DRA-60-24 Installation Instruction — Installation Instruction

Typical applications

Machine vision inspection system
Plant cultivation system

Downloads

Certificates4

UL Certificate (DRA-60)(EN) PDF Download

EMC Certificate (DRA-60)(EN) PDF Download

TUV Certificate (DRA-60)(EN) PDF Download

CB Certificate (DRA-60)(EN) PDF Download

Test reports1

Test Report (DRA-60-24)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the Mean Well DRA-60-24 for a 24V PLC or control panel?

Yes. This DIN rail power supply provides a 24V DC output at 2.5A with 60W total power, which fits many 24V PLC and control panel applications. Its DIN rail form factor and 100.0 × 90.0 × 40.0 mm size also suit space-conscious panel layouts.

Is the DRA-60-24 suitable for industrial automation cabinets?

Yes. The DRA-60-24 is a DIN rail power supply with a 90-264VAC input and a 24V, 2.5A output, which matches common industrial automation cabinet power requirements. Its operating temperature range of -30°C to +70°C (with load derating at higher ambient temperatures, per the derating curve) supports use in control cabinet environments.

Can this 24V DIN rail power supply be used in building management or control systems?

Yes. The unit supplies 24V DC at 60W and mounts on DIN rail, which is a common format for building management and control system panels. Its slim 40 mm width also saves rail space in tighter enclosures.

Is the DRA-60-24 intended for use inside an enclosure or control cabinet?

Yes. This model is designed as a DIN rail power supply, which is commonly used inside control cabinets and enclosures rather than as a standalone open-area power source. Its 100.0 × 90.0 × 40.0 mm dimensions and -30°C to +70°C operating range (derated at higher temperatures) make it appropriate for enclosed panel environments.

What is the difference between the DRA-60-24 and other DRA series models?

The DRA-60-24 is rated for 60W with a 24V output at 2.5A, adjustable from 24 to 30V. Its sister model in the DRA-60 series, the DRA-60-12, is also 60W but delivers 12V at 5A, adjustable from 12 to 15V.
