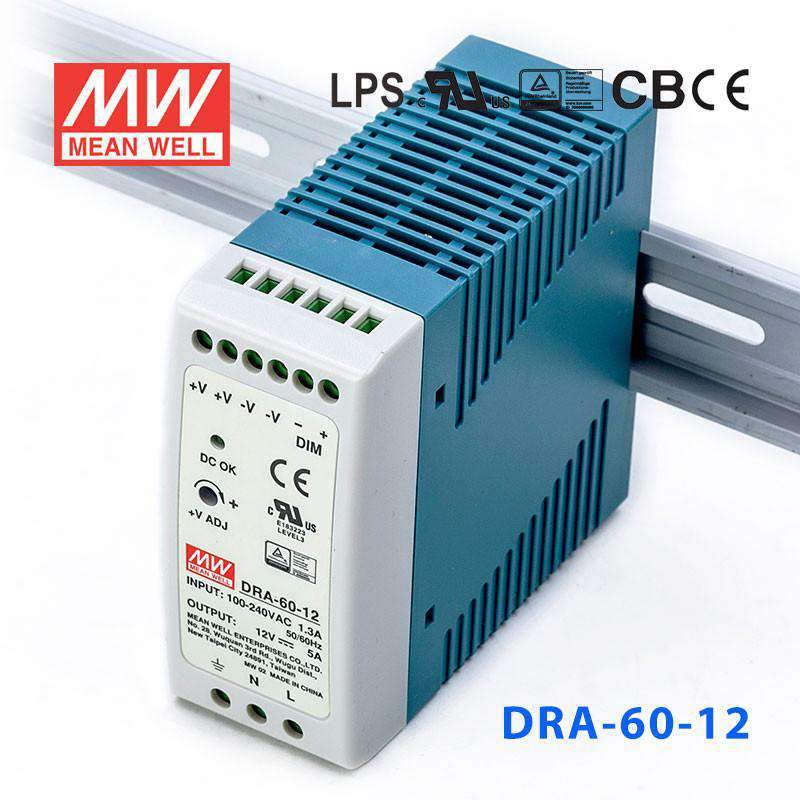

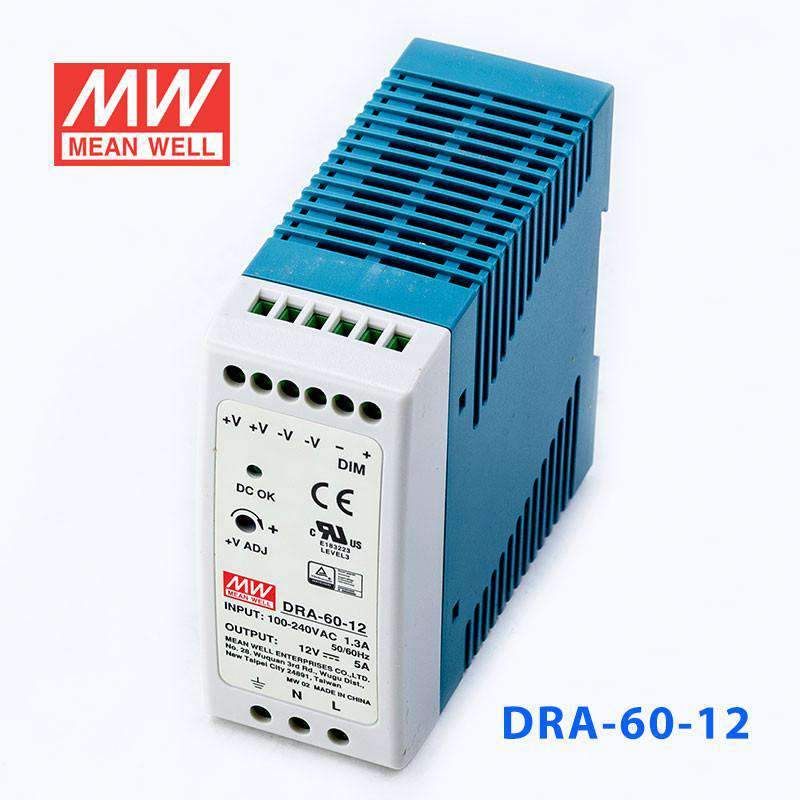

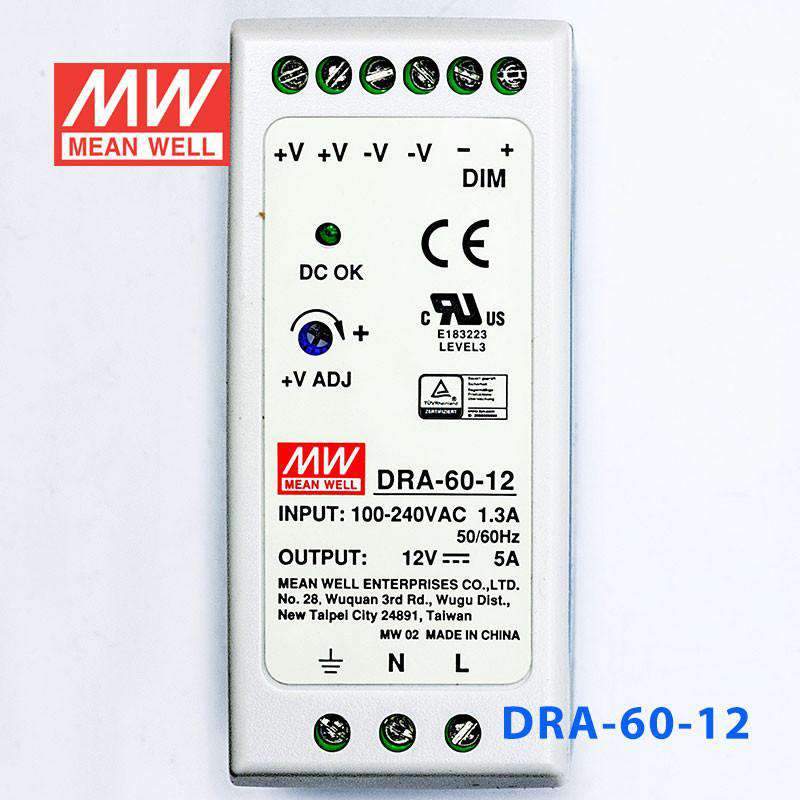

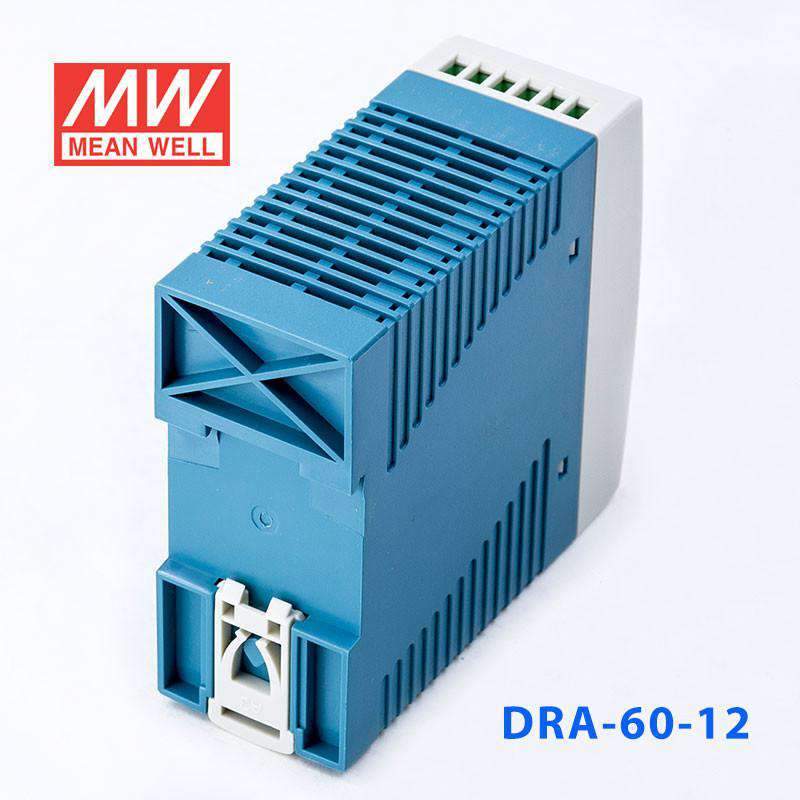

Mean Well DRA-60-12 Single Output Switching Power Supply 60W 12V - DIN Rail

Io can be adjusted 10%~100% by 1-10VDC, PWM or resistance, Vo adjustable, pass LPS

|

Description

Features

Universal AC input / Full range

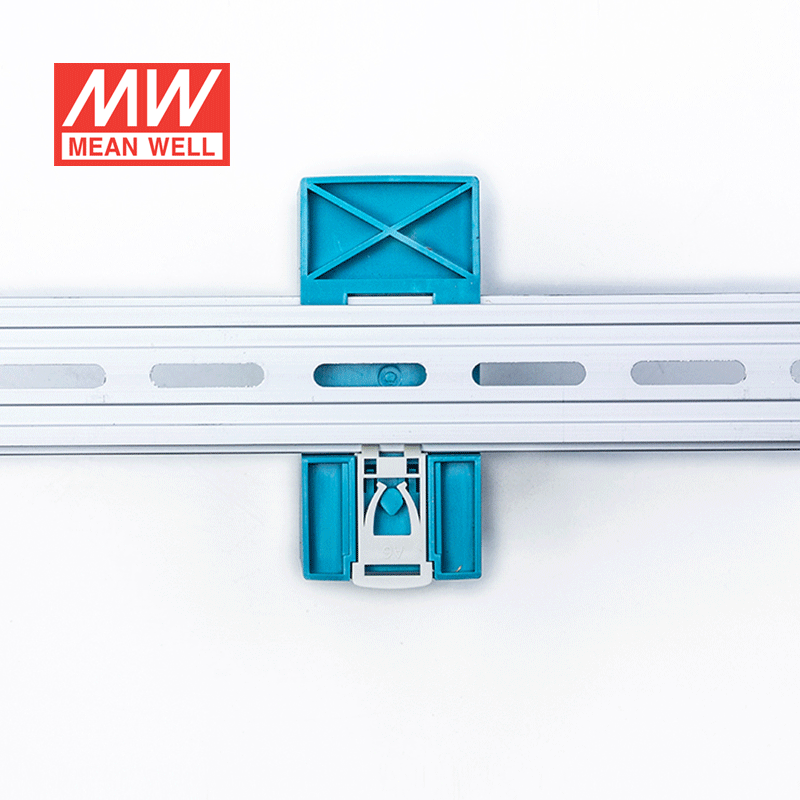

Can be installed on DIN rail TS-35/7.5 or 15
Output Voltage adjustable through internal potentiometer
Protections: Short circuit / Overload /Over voltage
Output Current adjustable through external 1~10Vdc, PWM signal or resistance
Cooling by free air convection
Pass LPS
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start 30A/115VAC 60A/230VAC
Over voltage protection Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -30~+70ºC (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 40 x 90 x 100 mm

Detailed Datasheet

Please download from the RELATED FILE section on this page

Specifications

  • Brand
    Mean Well
  • Series
    DRA Series
  • Power Rating
    60 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    10 cm
  • Width
    9 cm
  • Height
    4 cm
  • Weight
    0.3 kg

File Downloads

::specification::
