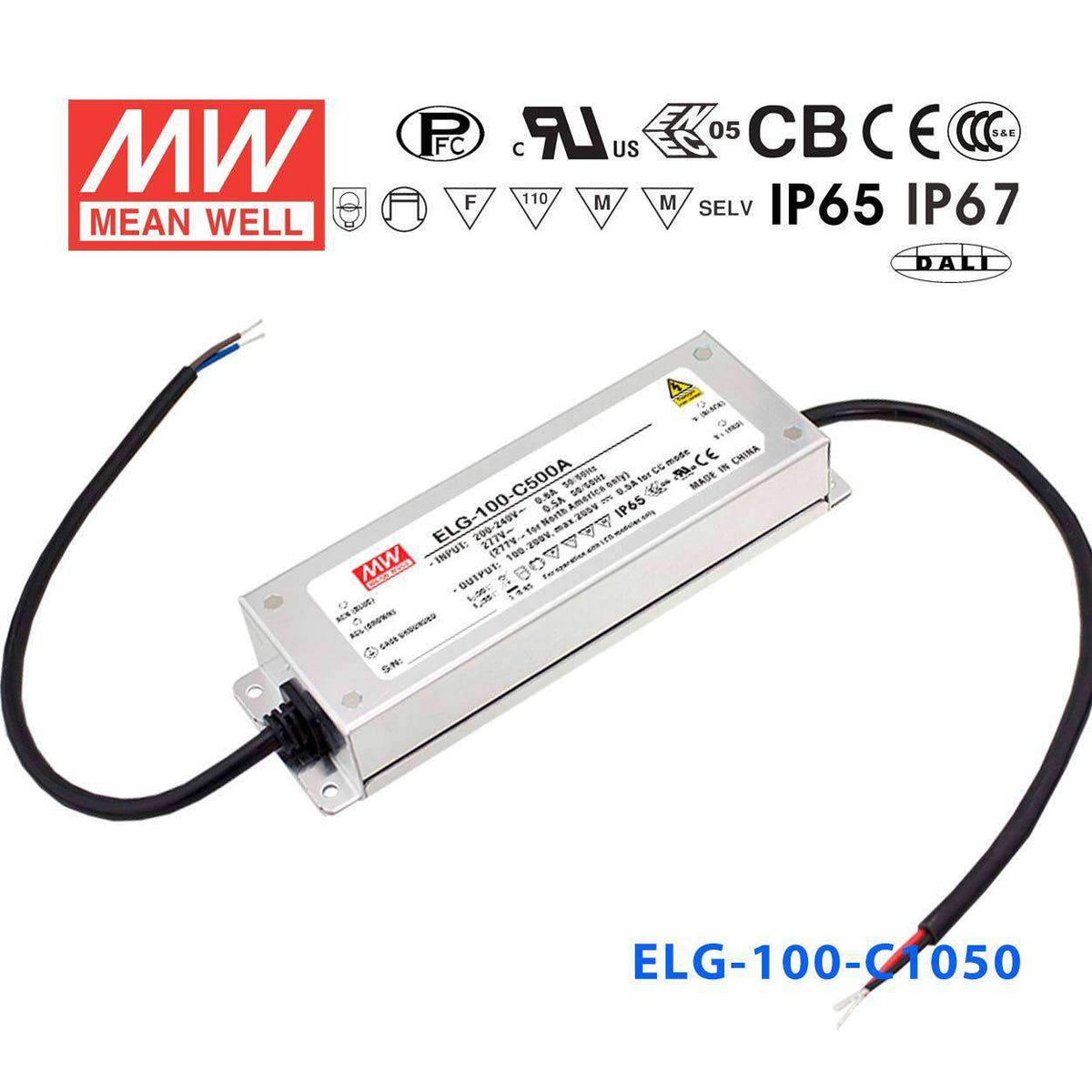

Mean Well ELG-100-C1050B 100W 1050mA Power Supply - Dimmable | Auckland Distributor

Overview

ELG-100-C1050B is the model of this series: rated current 1050mA, typical efficiency 90%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C1050BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER 200VAC ~ 305VAC: 99.75W
RATED POWER 100VAC ~ 180VAC: 70.35W
CONSTANT CURRENT REGION^Note.2: 48 ~ 95V
OPEN CIRCUIT VOLTAGE(max.): 105V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 130V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C1050B BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C1050B DIMMING OPERATION — DIMMING OPERATION

ELG-100-C1050B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C1050B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C1050B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C1050B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C1050B Dimensions (mm) — Dimensions (mm)

ELG-100-C1050B ※ B/DA-Type — ※ B/DA-Type

ELG-100-C1050B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C1050B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C1050B be used to dim LED downlights via a standard PWM dimming signal?

Yes. The 'B' variant supports 3-in-1 dimming, meaning it accepts PWM, resistance, and 0-10V dimming signals. This makes it compatible with a wide range of commercial and architectural dimming controllers.

Is the ELG-100-C1050B appropriate for outdoor LED luminaires exposed to rain?

Yes. The ELG-100-C1050B carries an IP67 waterproof rating, meaning it can withstand temporary immersion and is well suited for outdoor luminaires, wall-wash fixtures, and area lighting exposed to rain.

Can I use the ELG-100-C1050B to power a dimmable LED display panel in a commercial space?

Yes. At 99.75W and 1050mA constant current, this driver supports mid-power LED display panels. The built-in dimming interface allows brightness control through a building automation or lighting control system.

What is the compatible LED string voltage range for the ELG-100-C1050B?

The driver operates in constant current mode with a CC output voltage range of 48–95V. Series-connected LED strings with combined forward voltages within this range are compatible; the number of LEDs per string depends on each LED's individual forward voltage.

Will the ELG-100-C1050B work in a hospitality dimming scene where lamps need to fade smoothly?

Yes. The 3-in-1 dimming input of the ELG-100-C1050B follows a 0-10V, 10V PWM (100Hz–3kHz) or resistance signal, so fade timing is set by the controller, making it usable for hotel, restaurant, or lobby lighting scenes. Note the minimum dimming level is about 8%; output is not defined between 0% and 8%.

How does ELG-100-C1050B compare to the ELG-100-C1050 base model?

The ELG-100-C1050 is a fixed-output driver with no dimming interface, while the ELG-100-C1050B adds 3-in-1 dimming (PWM, resistance, 0-10V). Both are rated 99.75W / 1050mA / IP67 and share the same 48–95V CC output range.
