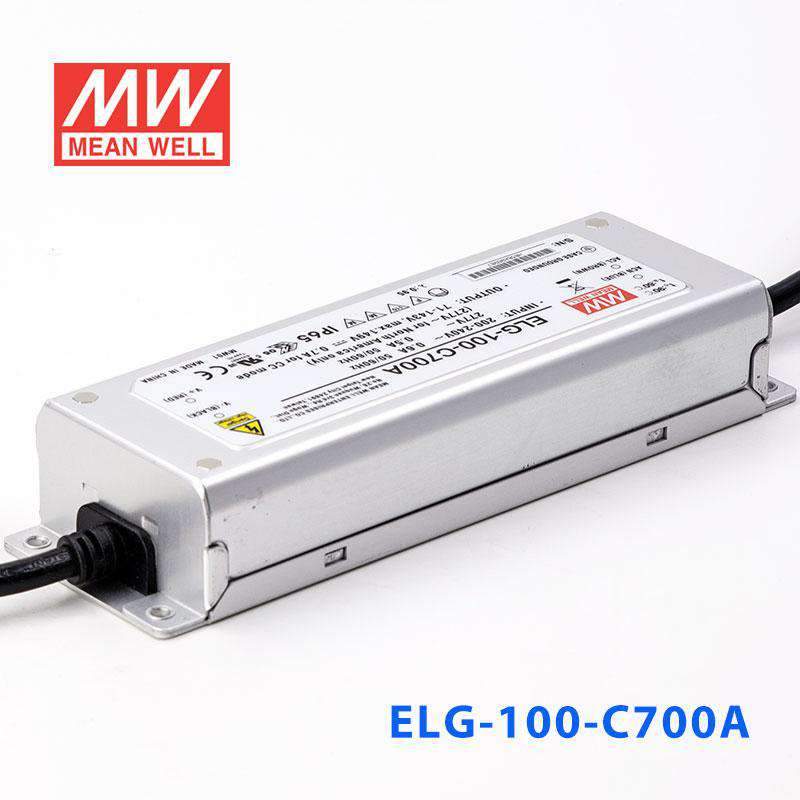

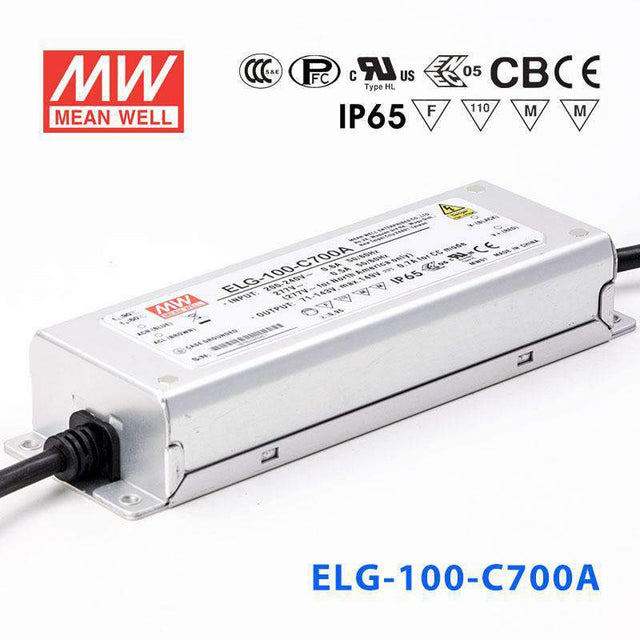

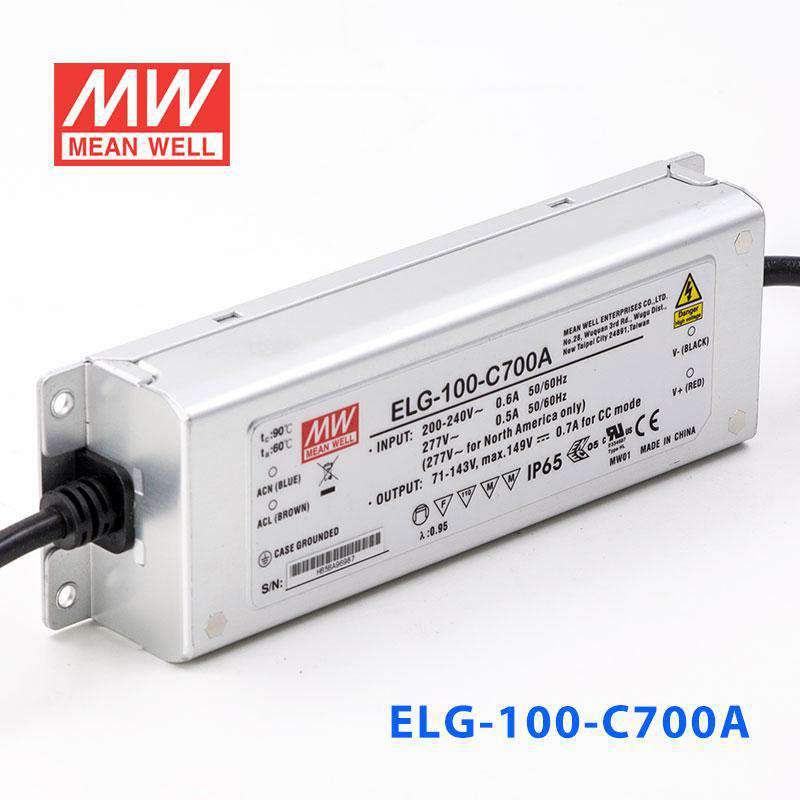

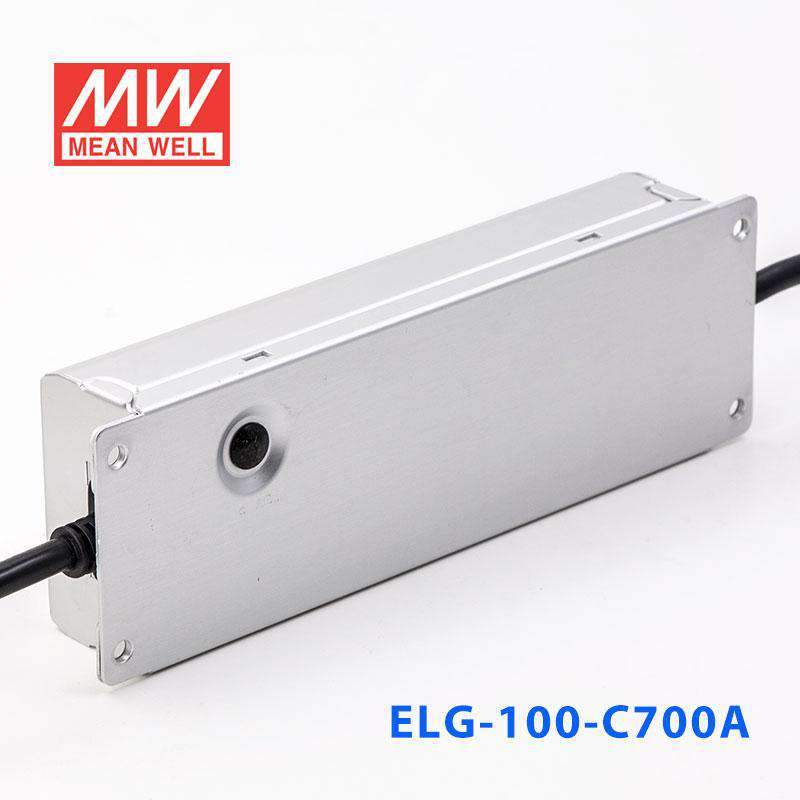

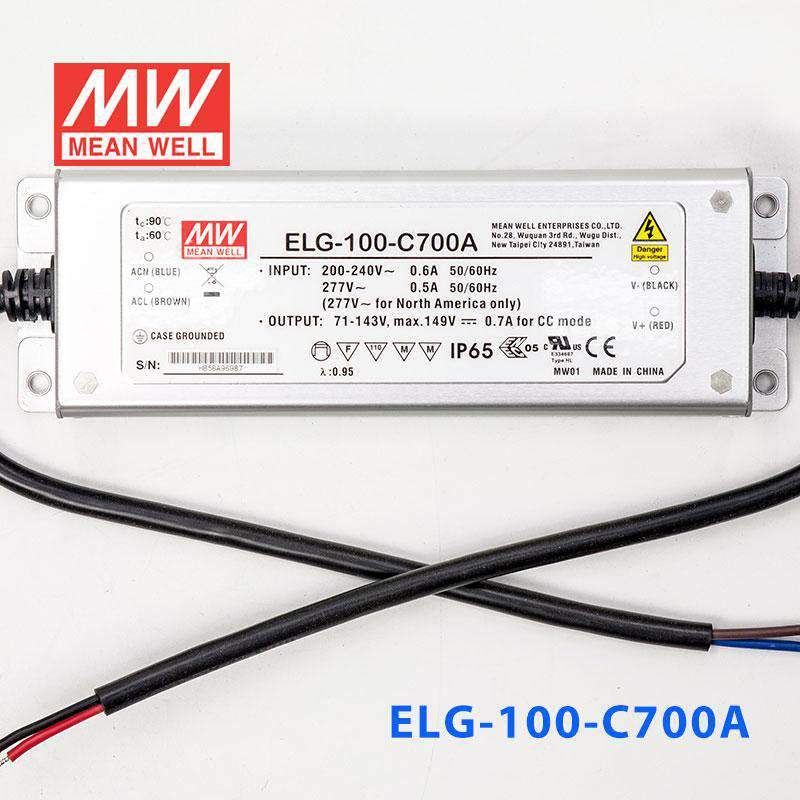

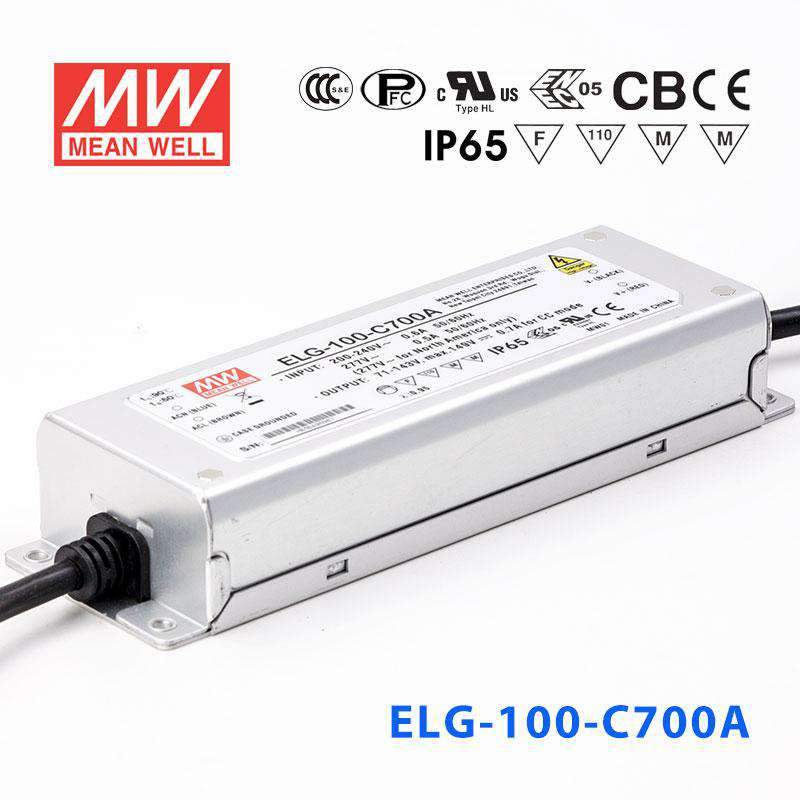

Mean Well ELG-100-C700A Power Supply | Adjustable

Overview

ELG-100-C700A is the model of this series: rated current 700mA, typical efficiency 91%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C700ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC: 100.1W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 71 ~ 143V
OPEN CIRCUIT VOLTAGE(max.): 149V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 154 ~ 174V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C700A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C700A DIMMING OPERATION — DIMMING OPERATION

ELG-100-C700A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C700A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C700A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C700A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C700A Dimensions (mm) — Dimensions (mm)

ELG-100-C700A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C700A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C700A power LED downlights where some output current adjustment is needed on-site?

Yes. The ELG-100-C700A is an adjustable variant of the C700 family, meaning the output current can be trimmed after installation to fine-tune brightness. It delivers up to 700mA constant current across a 71–143V CC output range at 100.1W, which suits multi-chip downlights and compact LED arrays.

Is the ELG-100-C700A suitable for outdoor LED signage installations?

It can be used in outdoor locations that are sheltered from direct water spray, but this model carries an IP65 rating rather than IP67, so it is water-resistant rather than waterproof against temporary immersion. For direct outdoor exposure without any enclosure, the fully waterproof IP67 ELG-100-C700 or ELG-100-C700B may be a better fit.

How does the ELG-100-C700A differ from the standard ELG-100-C700?

The ELG-100-C700A adds an output current adjustment feature, allowing the drive current to be set below the rated 700mA to reduce LED brightness or adapt to a specific LED load, whereas the ELG-100-C700 has a fixed output. The ELG-100-C700A is rated IP65 (water-resistant) compared to the IP67 (waterproof) rating of the ELG-100-C700. Electrical specs — 100.1W, 700mA, 71–143V CC range — are the same.

What LED string configurations are compatible with the ELG-100-C700A?

Any LED string whose total forward voltage falls between 71V and 143V is compatible. The driver maintains 700mA (or a reduced setting if adjusted) through that string. The number of LEDs in series depends on each individual LED's forward voltage and cannot be stated as a fixed number.

Can I use the ELG-100-C700A for a small indoor LED array in a retail display?

Yes. At 100.1W and 700mA constant current it has sufficient capacity for a compact retail LED array, and the adjustable output lets you set brightness to match the display requirements. The IP65 rating is adequate for a dry indoor environment, and the metal enclosure keeps the footprint manageable at 199 × 63 × 35.5 mm.
