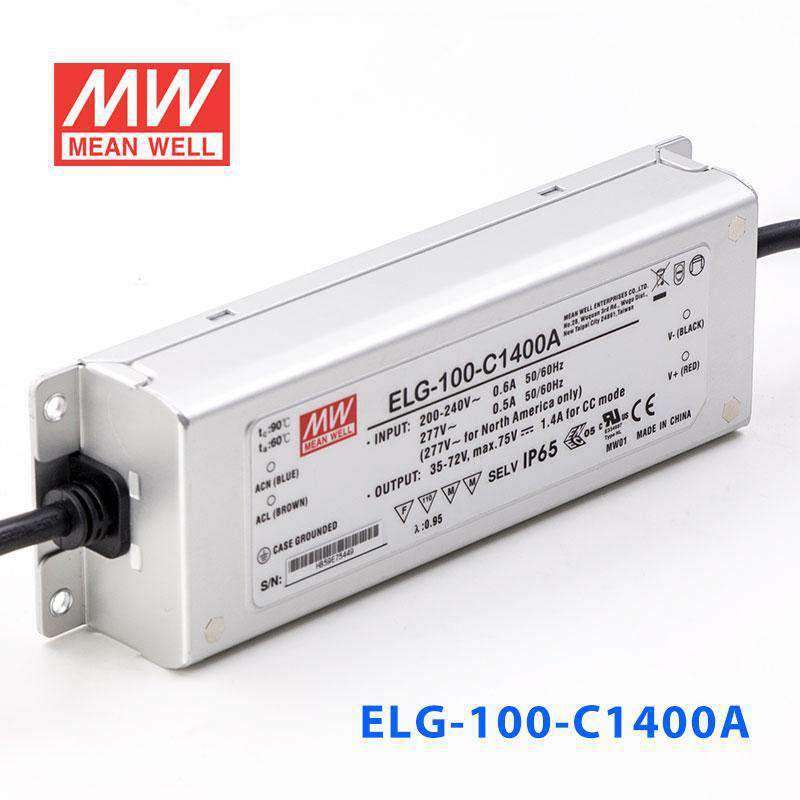

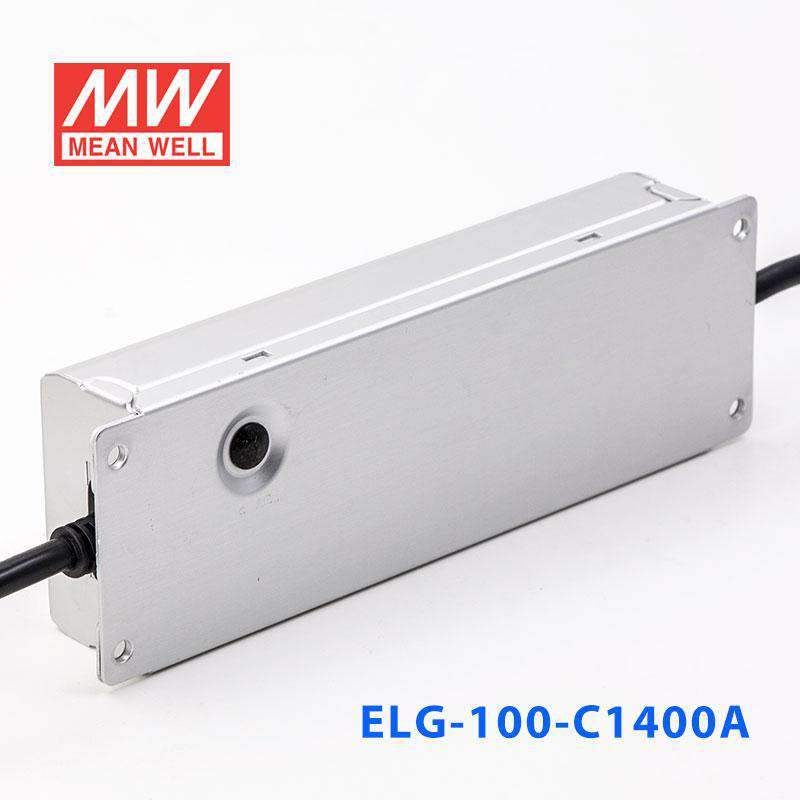

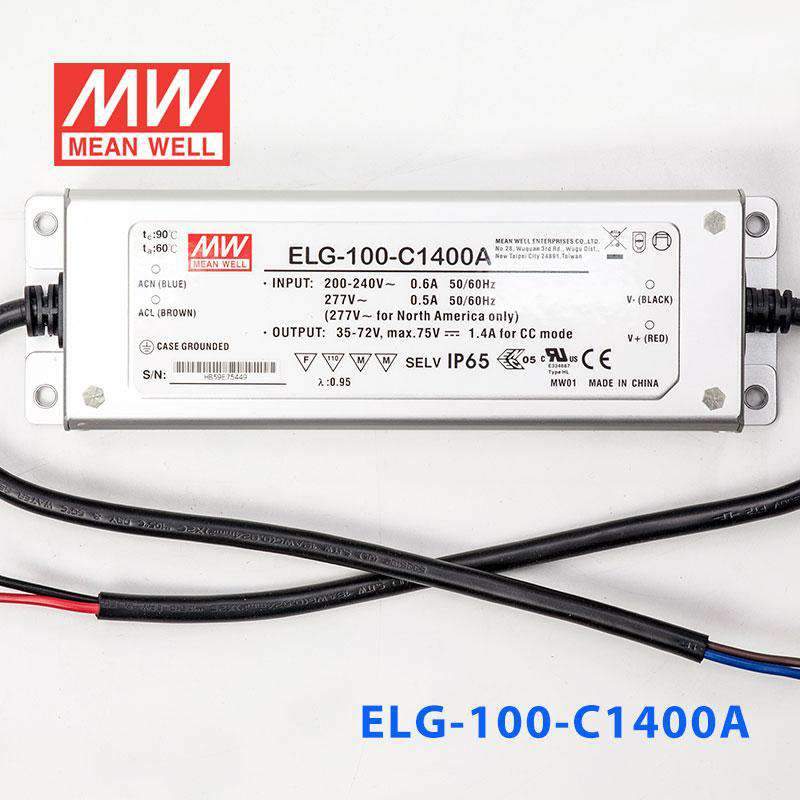

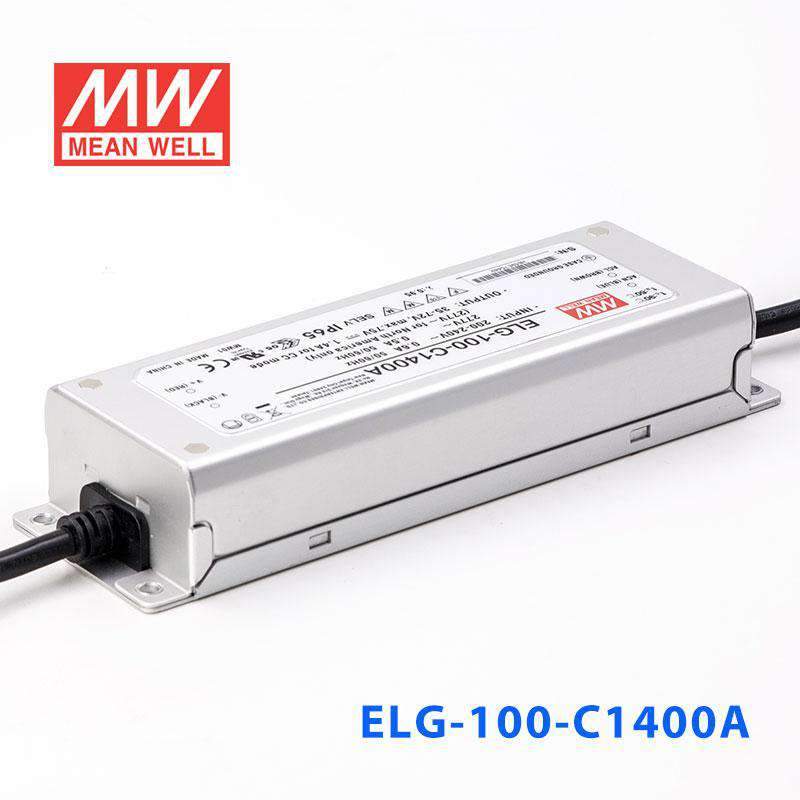

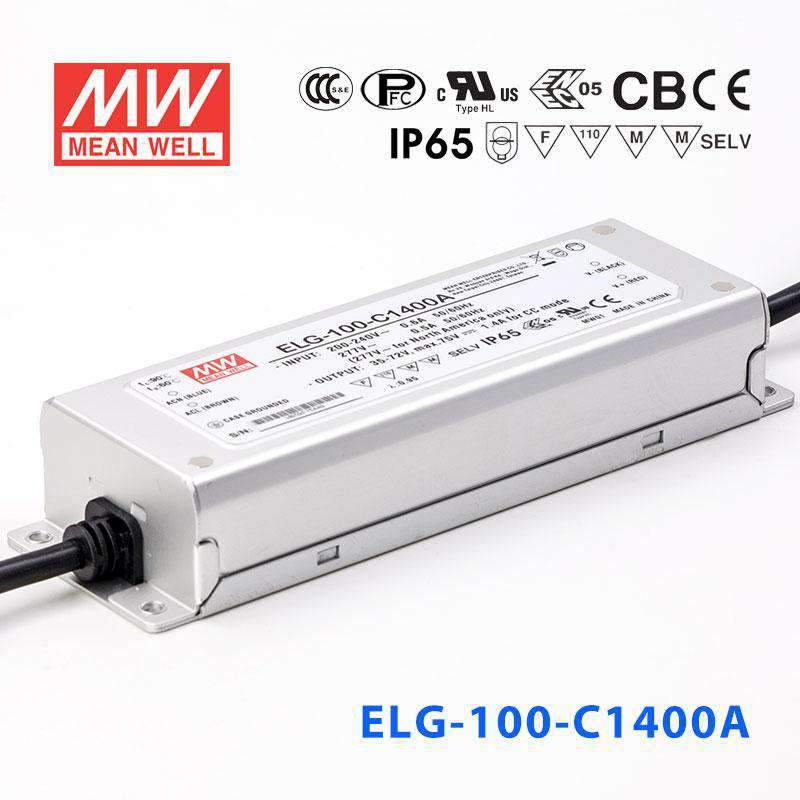

Mean Well ELG-100-C1400A Power Supply | 100W 1400mA - Adjustable | Auckland Distributor

Overview

ELG-100-C1400A is the model of this series: rated current 1400mA, typical efficiency 90%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C1400ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC: 100.8W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 35 ~ 72V
OPEN CIRCUIT VOLTAGE(max.): 75V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 79 ~ 95V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C1400A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C1400A DIMMING OPERATION — DIMMING OPERATION

ELG-100-C1400A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C1400A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C1400A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C1400A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C1400A Dimensions (mm) — Dimensions (mm)

ELG-100-C1400A ※ B/DA-Type — ※ B/DA-Type

ELG-100-C1400A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C1400A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-100-C1400A to power LED downlights in a commercial retrofit project?

Yes. The ELG-100-C1400A delivers a constant 1400mA output up to 100.8W, making it suitable for driving higher-power LED downlight arrays used in commercial retrofits. Its operating voltage range of 35–72V accommodates a variety of LED module configurations depending on the forward voltage of the LEDs selected. The IP65 water-resistant rating also allows installation in damp or humid ceiling environments.

Is the ELG-100-C1400A suitable for outdoor LED signage applications?

The ELG-100-C1400A carries an IP65 water-resistant rating, which provides protection against dust ingress and low-pressure water jets, making it appropriate for outdoor LED signage cabinets with adequate enclosures. It accepts a wide input range of 100–305VAC and has a case temperature (Tcase) rating of -40°C to +90°C, supporting a range of outdoor climates. For fully exposed or submersible outdoor installations, the IP67-rated ELG-100-C1400B may be a better fit.

Can this driver power a series string of LED modules in an architectural lighting cove?

Yes, the ELG-100-C1400A is a constant current driver that maintains a fixed 1400mA output, which is well suited for series-connected LED module strings used in cove or linear architectural lighting. The output voltage self-adjusts within the 35–72V range to match the combined forward voltage of the LED string. The number of modules that fit in series depends on the forward voltage of each individual LED module.

What adjustment capability does the 'A' suffix provide on the ELG-100-C1400A?

The 'A' suffix indicates the driver includes a built-in potentiometer that allows the output current to be trimmed between 700mA and 1400mA, giving installers the ability to fine-tune light output without replacing the driver. This is useful when matching output to LEDs with specific current tolerances or when a reduced output level is needed without an external control interface. It operates in constant current mode and does not support external dimming signals.

Can the ELG-100-C1400A be installed in wet or wash-down locations?

The ELG-100-C1400A is rated IP65, meaning it is protected against dust and low-pressure water spray from any direction. It is suitable for damp locations and covered outdoor areas, but not for direct water immersion or high-pressure wash-down environments. For those conditions, the IP67-rated variant ELG-100-C1400B provides a higher level of water ingress protection.

How does the ELG-100-C1400A differ from the ELG-100-C1400B and ELG-100-C1400AB within the same family?

All three variants share the same 100.8W output, 1400mA constant current, 35–72V operating range, and 199×63×35.5mm form factor. The ELG-100-C1400A (this unit) is adjustable via a built-in potentiometer and carries an IP65 rating. The ELG-100-C1400B is dimmable via external signal and is rated IP67. The ELG-100-C1400AB combines both adjustability and external dimming and is also rated IP65.
