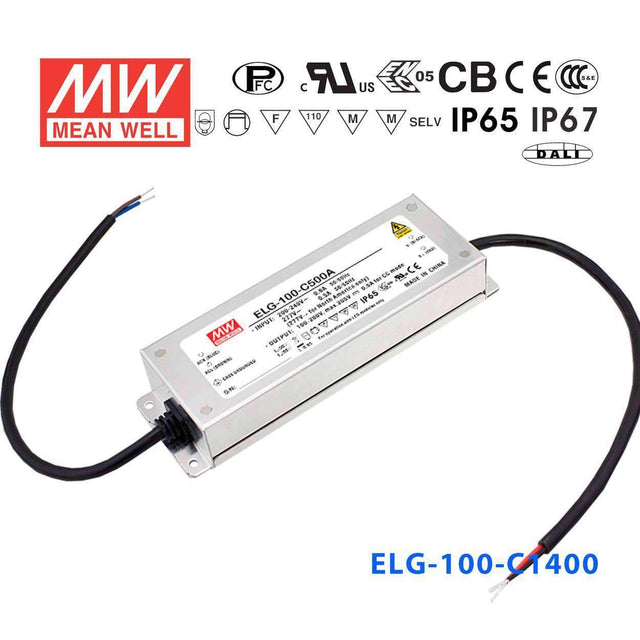

Mean Well ELG-100-C1400AB Power Supply - Adjustable and Dimmable

Overview

ELG-100-C1400AB is the model of this series: rated current 1400mA, typical efficiency 90%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C1400ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC: 100.8W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 35 ~ 72V
OPEN CIRCUIT VOLTAGE(max.): 75V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 79 ~ 95V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C1400AB BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C1400AB DIMMING OPERATION — DIMMING OPERATION

ELG-100-C1400AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C1400AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C1400AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C1400AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C1400AB Dimensions (mm) — Dimensions (mm)

ELG-100-C1400AB ※ B/DA-Type — ※ B/DA-Type

ELG-100-C1400AB ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C1400AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C1400AB drive LED modules in a dimmable retail display fixture?

Yes. The ELG-100-C1400AB supports both output current adjustment via a built-in potentiometer and external dimming through its 'B' dimming interface, making it well suited for retail display fixtures where light level control is required. It delivers a constant 1400mA at up to 100.8W with a 35–72V output range that adapts to the forward voltage of the LED string. The IP65 rating allows use in enclosed fixture bodies in conditioned retail spaces.

Is the ELG-100-C1400AB appropriate for powering LED arrays in indoor architectural installations that require dimming?

Yes, the ELG-100-C1400AB is designed for constant current LED loads and supports 0–10V, PWM or resistance-based dimming, making it a practical choice for indoor architectural lighting where dimming scenes are controlled. Its 35–72V output voltage range accommodates LED strings of varying forward voltages, and the 100.8W capacity suits medium-power architectural fixtures. Its case temperature (Tcase) rating is -40°C to +90°C.

Can I use the ELG-100-C1400AB for LED signage modules that require adjustable drive current?

Yes. The adjustable potentiometer on the ELG-100-C1400AB allows the output current to be set to match the LED signage module's rated drive current within the supported 700–1400mA range, reducing the need for ballast resistors or additional current-limiting components. Its constant current output maintains stable brightness even as LED forward voltage shifts with temperature. At 100.8W and 1400mA, it supports medium-scale signage LED arrays.

How many LEDs can the ELG-100-C1400AB drive in a single string?

The ELG-100-C1400AB operates across an output voltage range of 35–72V in constant current mode at 1400mA. The number of LEDs that can be placed in series depends on the forward voltage (Vf) of each individual LED — there is no single LED count that applies universally. Sum the Vf values of all LEDs in the series string and verify the total falls within the 35–72V operating range.

What is the difference between the ELG-100-C1400AB and the ELG-100-C1400A?

Both the ELG-100-C1400AB and ELG-100-C1400A are adjustable constant current drivers rated at 100.8W, 1400mA, with a 35–72V output range and IP65 rating. The ELG-100-C1400AB adds an external dimming input (the 'B' function) on top of the built-in potentiometer adjustment, allowing integration with dimming controllers. The ELG-100-C1400A provides potentiometer adjustment only, without external dimming capability.

Is the ELG-100-C1400AB safe to install in a partially exposed outdoor enclosure?

The ELG-100-C1400AB carries an IP65 rating, protecting it against dust ingress and water jets from any angle, which is acceptable for partially sheltered outdoor enclosures such as under eaves or inside weatherproof sign cabinets. It is not rated for direct water immersion. If full waterproofing is needed, the ELG-100-C1400B with IP67 rating would be more appropriate.
