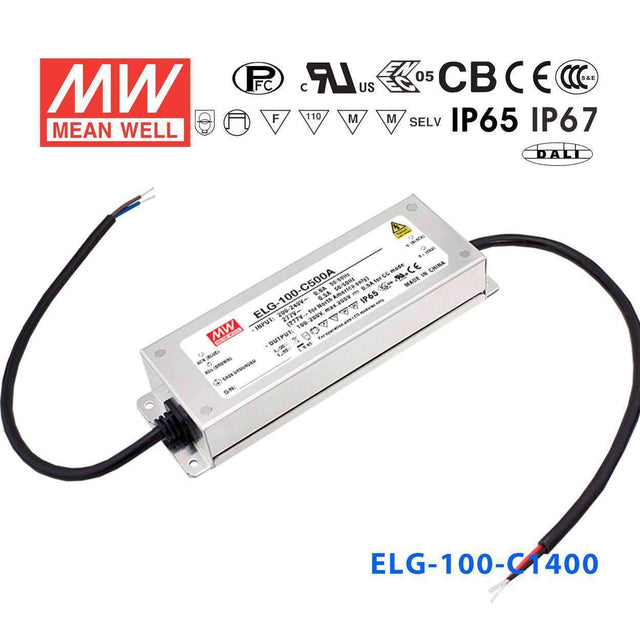

Mean Well ELG-100-C1400B 100W 1400mA Dimmable Power Supply

Overview

ELG-100-C1400B is the model of this series: rated current 1400mA, typical efficiency 90%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C1400BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC: 100.8W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 35 ~ 72V
OPEN CIRCUIT VOLTAGE(max.): 75V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 79 ~ 95V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C1400B BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C1400B DIMMING OPERATION — DIMMING OPERATION

ELG-100-C1400B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C1400B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C1400B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C1400B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C1400B Dimensions (mm) — Dimensions (mm)

ELG-100-C1400B ※ B/DA-Type — ※ B/DA-Type

ELG-100-C1400B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C1400B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C1400B be used to drive LED downlights in a building automation system with 0-10V dimming?

Yes, the ELG-100-C1400B supports external dimming control via its 'B' dimming interface, which is compatible with 0–10V, PWM, and resistance dimming signals, allowing integration with building automation lighting control systems. It delivers a constant 1400mA at up to 100.8W and operates across a 35–72V output range suited to medium-power LED downlight modules. The IP67 waterproof rating also allows flexible installation locations.

Is the ELG-100-C1400B suitable for outdoor LED signage that requires dimming control?

Yes. The ELG-100-C1400B is rated IP67, meaning it is fully protected against dust and temporary water immersion, making it a strong choice for outdoor LED signage cabinets exposed to rain or wash-down cleaning. Its external dimming input allows sign brightness to be adjusted by a controller. The driver accepts 100–305VAC input, covering both North American and international mains supplies.

Can I install the ELG-100-C1400B in an outdoor LED fixture that may be exposed to rain?

Yes. The ELG-100-C1400B has an IP67 waterproof rating, which protects it against complete dust ingress and temporary immersion in water. This makes it suitable for outdoor LED fixture installations that may be exposed to rain or moisture. Its case temperature (Tcase) rating of -40°C to +90°C also supports a broad range of outdoor climates.

How does the ELG-100-C1400B maintain consistent LED brightness as temperature changes?

As a constant current driver, the ELG-100-C1400B regulates its output to a fixed 1400mA regardless of the LED string's forward voltage, which shifts with temperature. This keeps drive current — and therefore light output — stable across its -40°C to +90°C case temperature (Tcase) range. The driver's wide 35–72V compliance range allows it to track the LED forward voltage drift without losing regulation.

What LED load voltage range is compatible with the ELG-100-C1400B?

The ELG-100-C1400B operates in constant current mode with an output voltage compliance range of 35–72V. LED strings whose combined forward voltage falls within this range can be driven at the rated 1400mA. The actual number of LEDs that fit depends on the individual LED's forward voltage; there is no single fixed count.

How does the ELG-100-C1400B differ from the ELG-100-C1400DA in dimming capability?

The ELG-100-C1400B supports PWM, 0–10V, and resistance-based dimming through its 'B' dimming interface, which is common in commercial lighting controls. The ELG-100-C1400DA instead uses the DALI (Digital Addressable Lighting Interface) protocol, which is suited to DALI-based building management systems and allows individual addressable control. Both share the same 100.8W, 1400mA output rating and IP67 waterproof enclosure.
