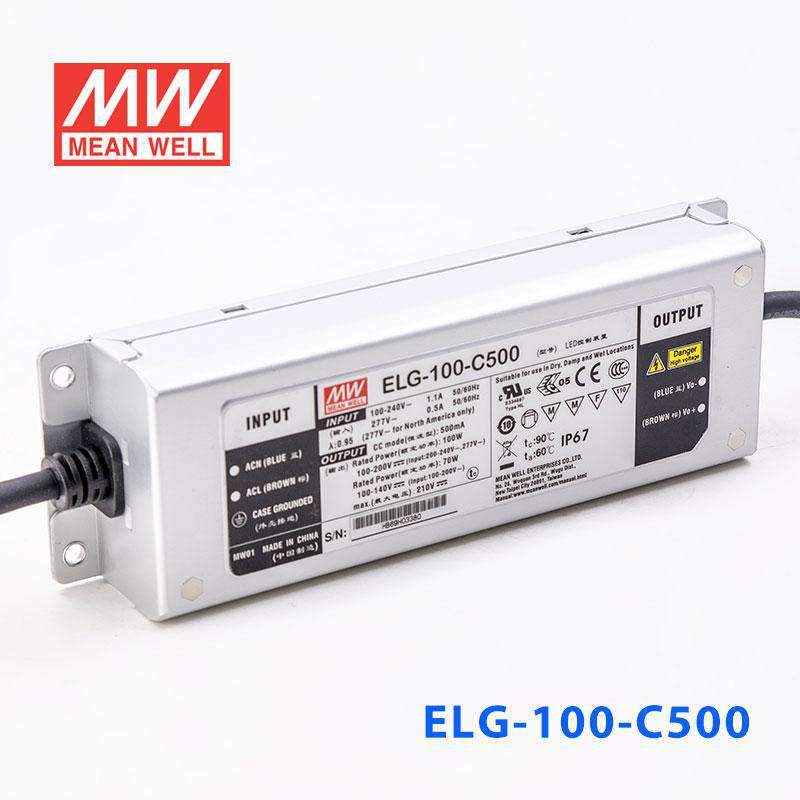

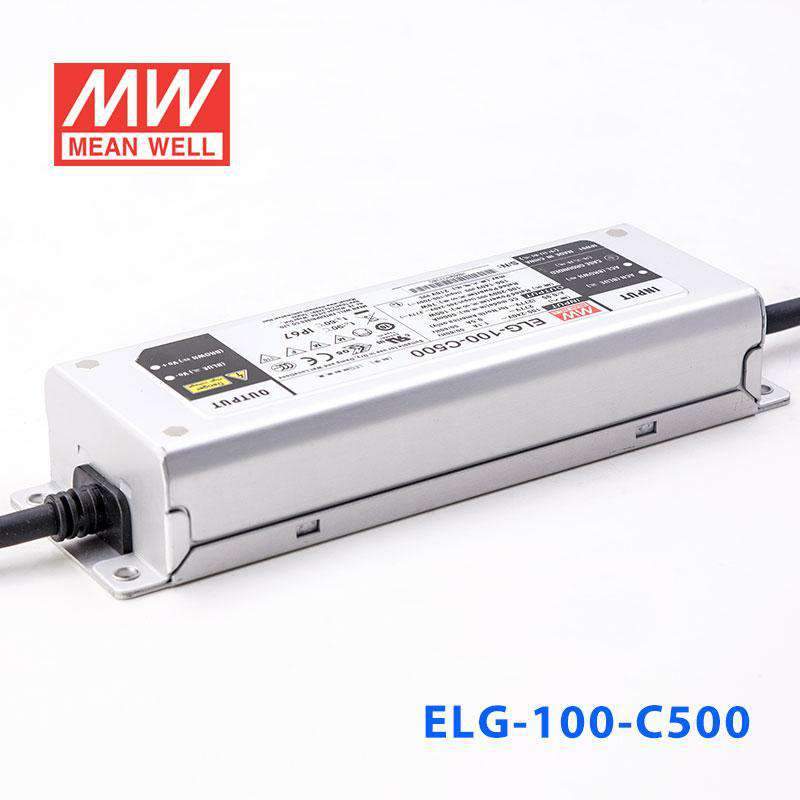

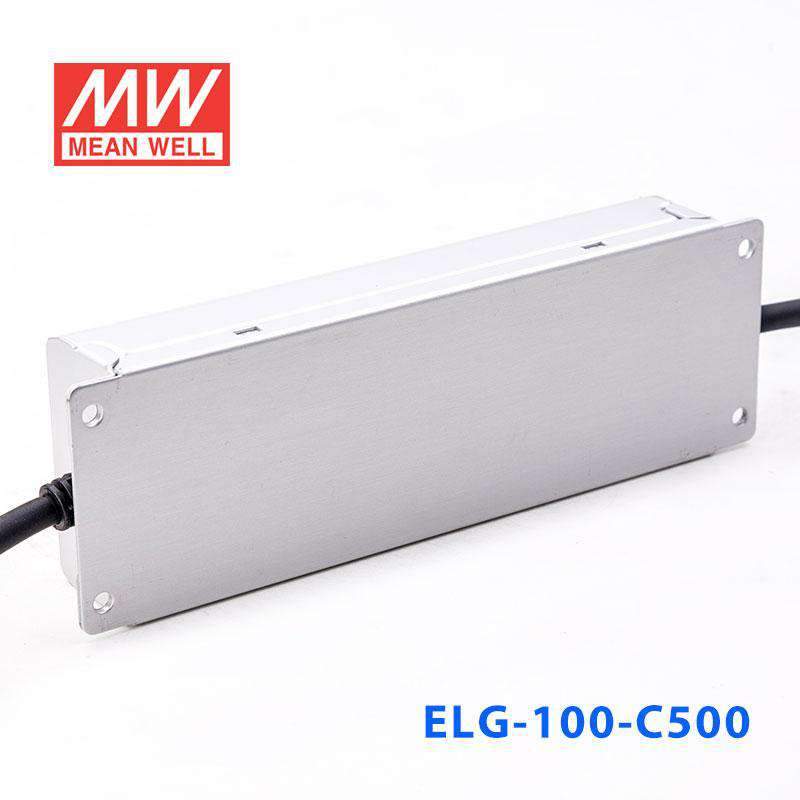

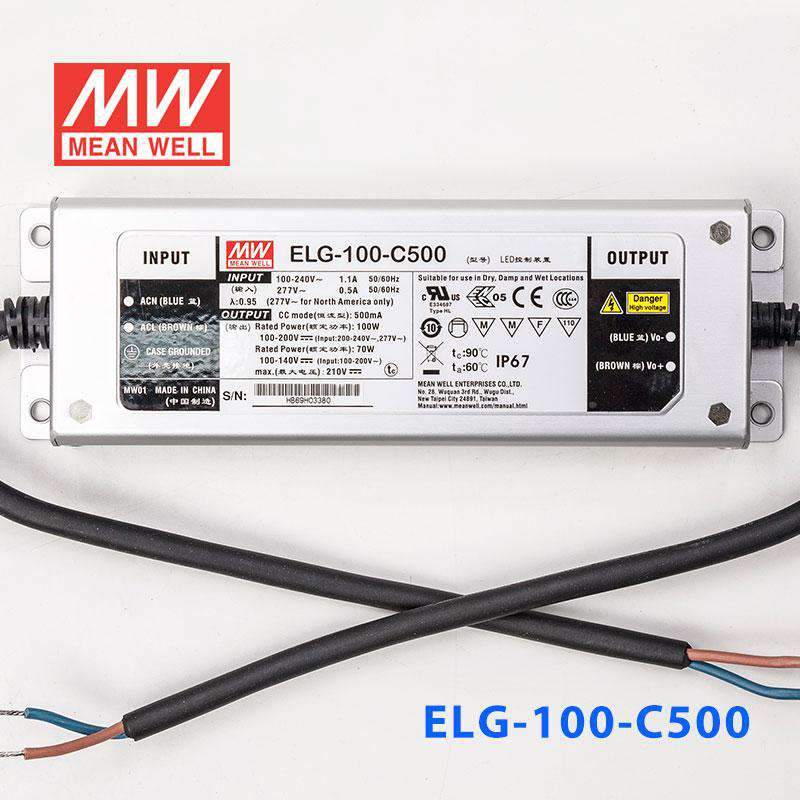

Mean Well ELG-100-C500 Power Supply 100W 500mA

contant currentmetal caseIP65/IP675 years warranty
SKU ELG-100-C500
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 15 in this family

ELG-100-C500
Available to order
|

Overview

ELG-100-C500 is the model of this series: rated current 500mA, typical efficiency 91%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

ELG-100-C500Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT
500mA
RATED POWER 200VAC ~ 305VAC
100W
RATED POWER 100VAC ~ 180VAC
70W
CONSTANT CURRENT REGIONNote.2
100 ~ 200V
OPEN CIRCUIT VOLTAGE(max.)
210V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
250 ~ 500mA
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SET UP TIMENote.4
1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGENote.3
100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
222 ~ 242V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*63*35.5 mm (L*W*H)
PACKING
0.85kg; 16pcs/14.2kg/0.72CUFT
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  7. 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C500 BLOCK DIAGRAM
BLOCK DIAGRAM
ELG-100-C500 DIMMING OPERATION
DIMMING OPERATION
ELG-100-C500 OUTPUT LOAD vs TEMPERATURE(Note.7)
OUTPUT LOAD vs TEMPERATURE(Note.7)
ELG-100-C500 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-100-C500 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-100-C500 LIFE TIME
LIFE TIME
ELG-100-C500 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
ELG-100-C500 ※ AB-Type
※ AB-Type
ELG-100-C500 Dimensions (mm)
Dimensions (mm)
ELG-100-C500 ※ B/DA-Type
※ B/DA-Type
ELG-100-C500 ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-100-C500 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED harbor lighting
  • LED bay lighting
  • LED greenhouse lighting
  • LED flood lighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can the ELG-100-C500 power a medium-voltage LED signage module array?

Yes. The ELG-100-C500 outputs a constant 500mA with a CC voltage range of 100–200V, making it compatible with mid-voltage LED module strings used in illuminated signage. Its IP67 waterproof metal case also enables mounting in outdoor or semi-outdoor sign cabinets.

Is the ELG-100-C500 suitable for use in an LED downlight fixture for retail or hospitality lighting?

Yes. Delivering 100W at a constant 500mA (70W on 100–180VAC input), this driver is appropriate for LED downlight engines designed for higher-current operation within the 100–200V string range. The wide input of 100–305VAC means it can be deployed in international projects without modification.

Can I install the ELG-100-C500 in an outdoor landscape or pathway lighting fixture?

Yes. The IP67 waterproof rating and case temperature (Tcase) rating of -40°C to +90°C allow for outdoor installation in landscape, pathway, or architectural lighting applications. The driver's 100W output supports LED arrays in larger outdoor luminaires.

What is the difference between the ELG-100-C500 and the ELG-100-C350 in terms of application fit?

The ELG-100-C500 outputs 500mA with a CC voltage range of 100–200V and 100W total power, while the ELG-100-C350 outputs 350mA at a CC voltage range of 143–286V with 100.1W. The C500 is suited to LED loads requiring higher current at lower string voltages, whereas the C350 covers higher-voltage, lower-current LED strings. Both are IP67 constant current drivers within the ELG-100 family.

How many LEDs can the ELG-100-C500 support in a series string?

The CC voltage range is 100–200V. The number of LEDs in a series string depends on each LED's individual forward voltage — the total string forward voltage must fall within 100–200V for the driver to regulate properly at 500mA. Refer to your LED's datasheet for the forward voltage value to calculate the compatible string length.
