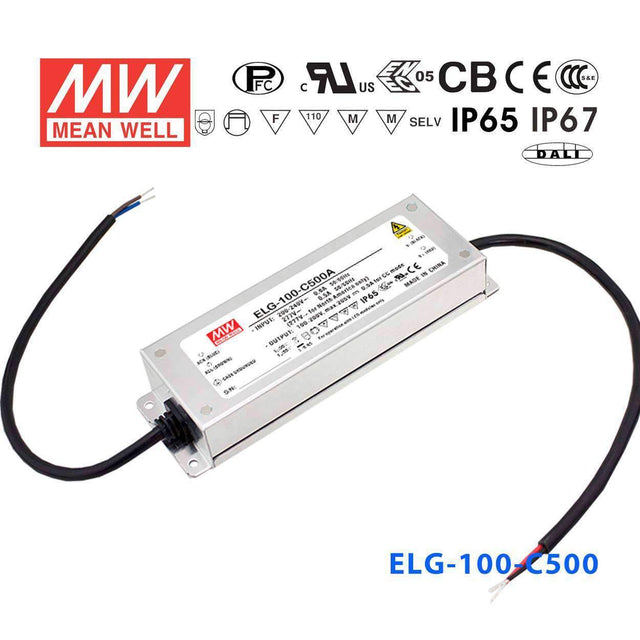

Mean Well ELG-100-C500AB 100W 500mA Power Supply - Adjustable and Dimmable

Overview

ELG-100-C500AB is the model of this series: rated current 500mA, typical efficiency 91%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C500ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER 200VAC ~ 305VAC: 100W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 100 ~ 200V
OPEN CIRCUIT VOLTAGE(max.): 210V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 250 ~ 500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 222 ~ 242V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C500AB BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C500AB DIMMING OPERATION — DIMMING OPERATION

ELG-100-C500AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C500AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C500AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C500AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C500AB Dimensions (mm) — Dimensions (mm)

ELG-100-C500AB ※ B/DA-Type — ※ B/DA-Type

ELG-100-C500AB ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C500AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C500AB be used in a dimmable LED downlight installation with a 1–10V control system?

The AB suffix means this driver supports both output current adjustment and three-in-one dimming (0–10VDC, 10V PWM, and resistance). Its analog input is specified for 0–10V rather than 1–10V, so confirm your 1–10V controller's compatibility before use in commercial and hospitality downlight systems.

Is the ELG-100-C500AB suitable for LED signage modules that require field-adjustable current levels?

Yes. The built-in potentiometer allows the output current to be trimmed between 250mA and 500mA to match the LED module's optimal drive level, while the dimming inputs enable dynamic brightness control after installation. The IP65 rating and wide input range of 100–305VAC make it appropriate for a variety of signage enclosure environments.

What is the difference between the ELG-100-C500AB and the ELG-100-C500A?

Both models offer output current adjustment via a trimmer potentiometer. The ELG-100-C500AB adds dimming capability (0–10V, PWM, resistance) that the ELG-100-C500A does not have. Both are rated IP65 and share the same 100W, 500mA, 100–200V CC specifications.

How many LEDs can I connect in series to the ELG-100-C500AB?

The CC voltage range is 100–200V. Connect LEDs in series such that the total string forward voltage falls within that range. The number of LEDs depends on each LED's forward voltage — do not assume a fixed count without checking your specific LED's datasheet.

Can the ELG-100-C500AB be installed in a partially exposed outdoor location?

The driver's IP65 rating protects against dust and water jets, making it suitable for sheltered outdoor or semi-outdoor locations such as covered walkways, outdoor corridors, and canopy fixtures. For fully exposed or submersion-risk environments, the IP67-rated ELG-100-C500B would be the more appropriate choice.
