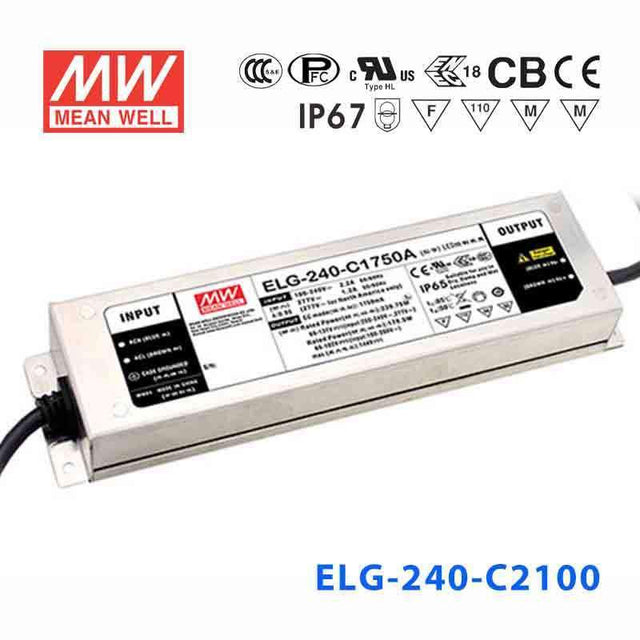

Mean Well ELG-240-C2100AB Power Supply 240W 2100mA - Adjustable and...
Log in to see priceOverview
ELG-240-C2100AB is the model of this series: rated current 2100mA, typical efficiency 93%.
ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 2100mA
- RATED POWER 200VAC ~ 305VAC
- 241.5W
- RATED POWER 100VAC ~ 180VAC
- 180.6W
- CONSTANT CURRENT REGIONNote.2
- 57 ~ 115V
- OPEN CIRCUIT VOLTAGE(max.)
- 120V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 1050 ~ 2100mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 800ms/115VAC, 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 128 ~ 156V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 244*71*37.5 mm (L*W*H)
- PACKING
- 1.22Kg; 12pcs /15.2kg / 0.72CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 11. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Certificates4
Test reports1
Catalogues1
FAQ
Can the ELG-240-C2100AB drive a large LED downlight array and be dimmed simultaneously?
Yes. The ELG-240-C2100AB is a 241.5W constant current driver that delivers 2100mA across a 57–115V output range. The 'AB' suffix indicates it supports both output current adjustment and analog dimming via 0–10V, PWM, or resistance control. This combination is practical for large LED downlight installations where both commissioning-time trim and operational dimming are needed.
What dimming methods are supported by the ELG-240-C2100AB?
The 'B' component of the 'AB' designation indicates analog dimming support, which on Mean Well ELG series drivers includes 0–10V, PWM signal, and resistance-based dimming. The 'A' component adds output adjustability for setting the nominal drive current at commissioning. These controls allow integration with standard 0–10V lighting control systems used in commercial buildings.
Is the ELG-240-C2100AB rated for damp or wet locations?
The ELG-240-C series carries an IP65 or IP67 rating, protecting against dust and water. This makes the ELG-240-C2100AB suitable for damp locations such as covered outdoor areas, car parks, and washdown environments.
How does the ELG-240-C2100AB differ from the plain ELG-240-C2100A?
Both models share 241.5W output, 2100mA constant current, and a 57–115V CC voltage range. The ELG-240-C2100A provides output current adjustability only. The ELG-240-C2100AB adds analog dimming (0–10V / PWM / resistance) on top of that adjustability, making it the better choice when dynamic dimming control is required in addition to a fixed trim.
Can I use the ELG-240-C2100AB for LED signage modules in a semi-outdoor cabinet?
Yes. With the series' IP65/IP67 protection, 100–305VAC universal input, and an operating case temperature down to -40°C, the ELG-240-C2100AB is suitable for LED signage modules housed in semi-outdoor cabinets. The constant current output at 2100mA ensures stable LED brightness regardless of minor load variations, and the adjustable function lets you fine-tune current to match the module's rated drive current.
What input voltage range does the ELG-240-C2100AB support?
The ELG-240-C2100AB accepts 100–305VAC input, covering virtually all global single-phase supply voltages including 100V (Japan), 120V (North America), 230V (Europe), and 277V (US commercial). No manual voltage switching is required.
