Mean Well ELG-240-C700B Constant Current LED Driver - Auckland, New Zealand Distributor

Overview

ELG-240-C700B is the model of this series: rated current 700mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-C700BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC: 240.1W
RATED POWER 100VAC ~ 180VAC: 179.9W
CONSTANT CURRENT REGION^Note.2: 172 ~ 343V
OPEN CIRCUIT VOLTAGE(max.): 360V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 380 ~ 435V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

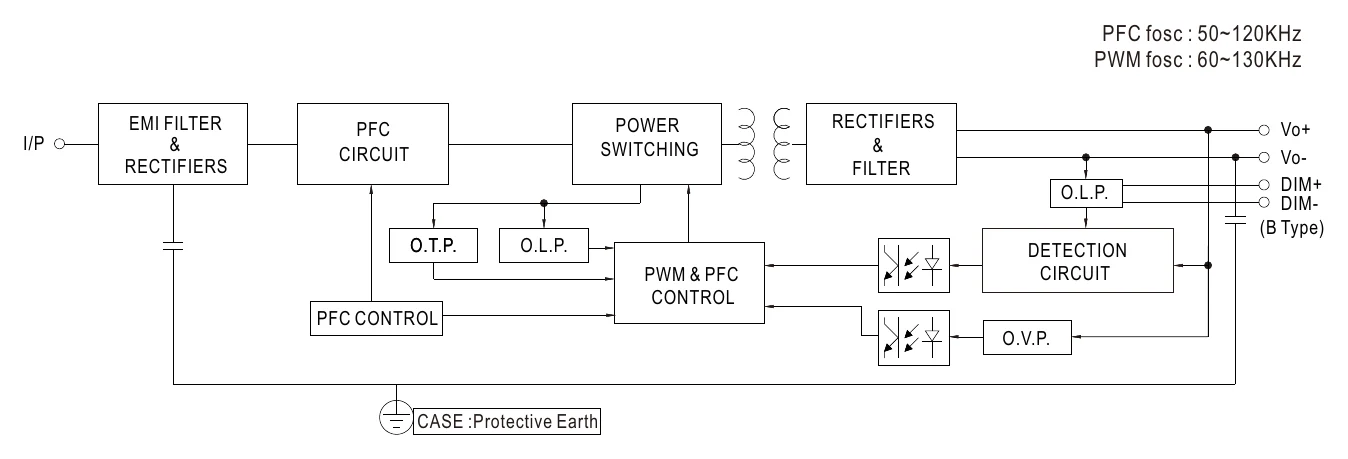

ELG-240-C700B BLOCK DIAGRAM — BLOCK DIAGRAM

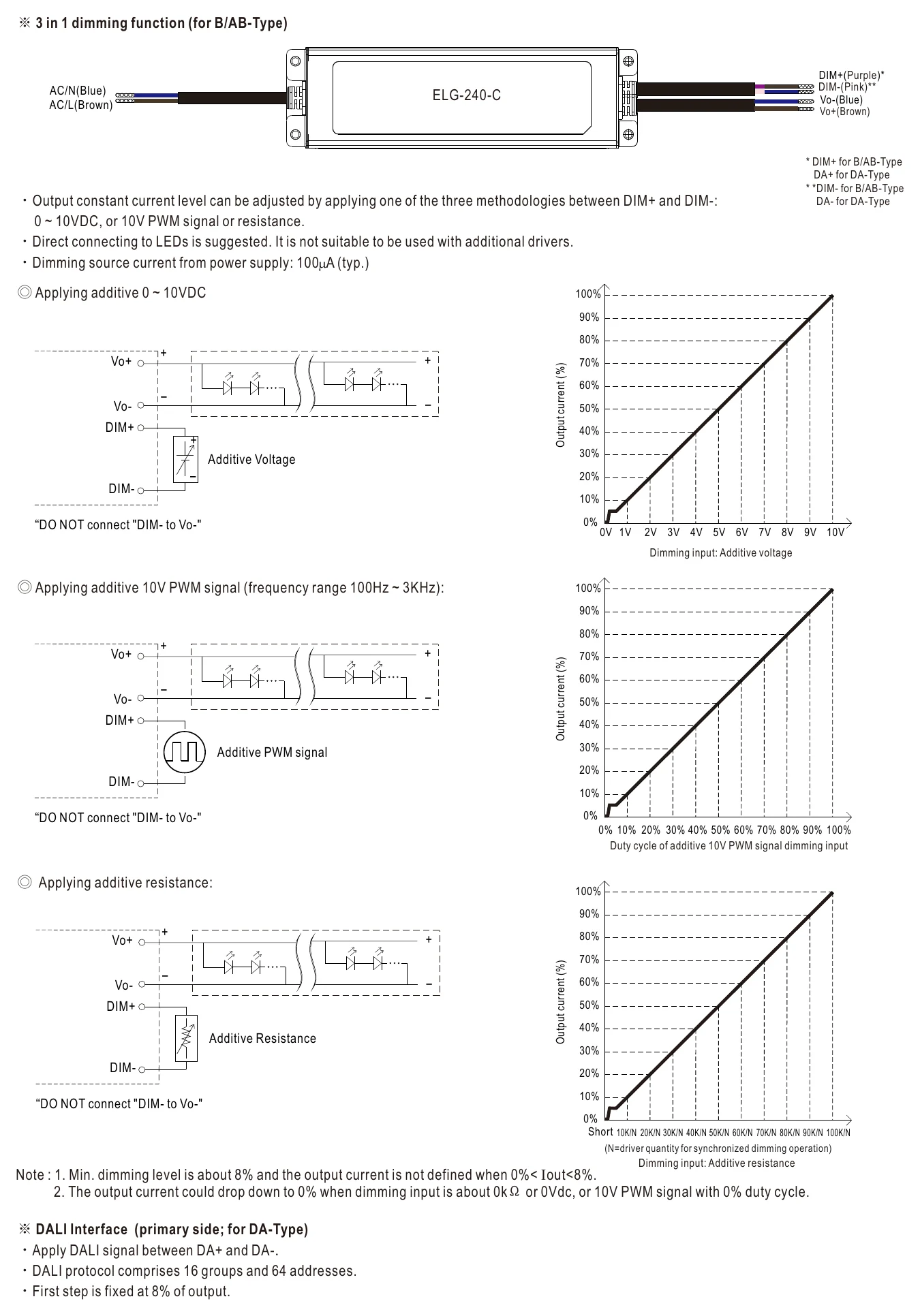

ELG-240-C700B DIMMING OPERATION — DIMMING OPERATION

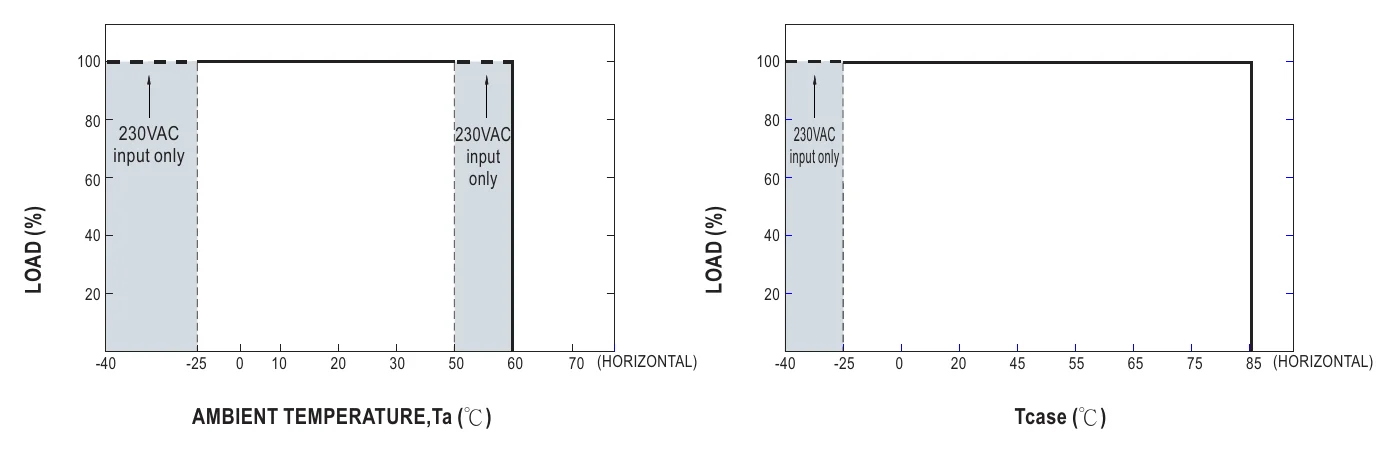

ELG-240-C700B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

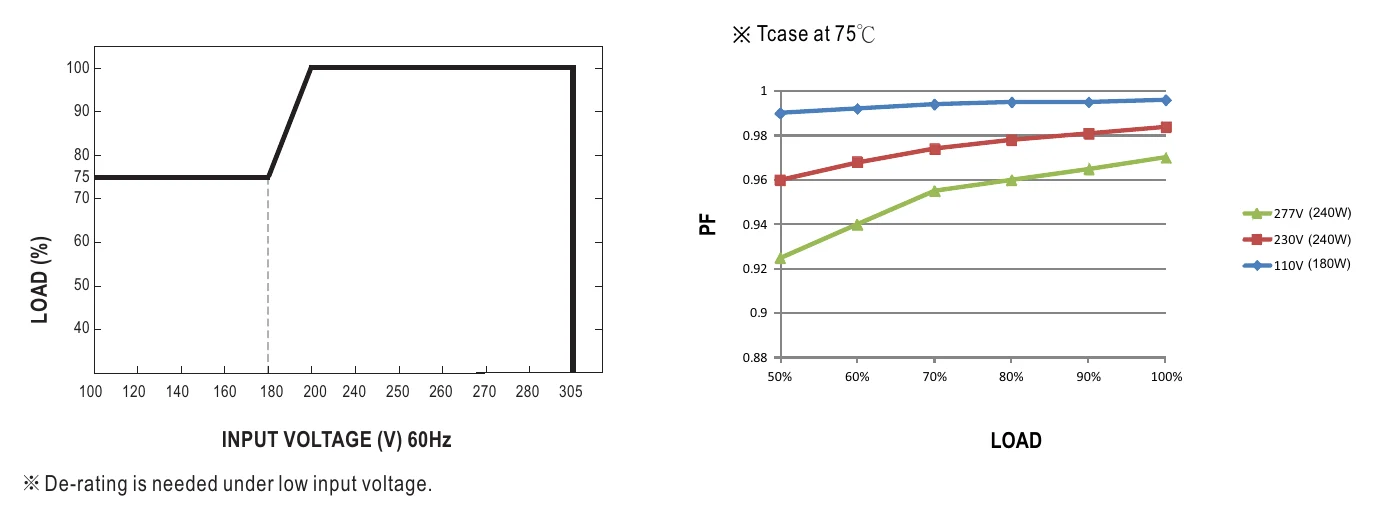

ELG-240-C700B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

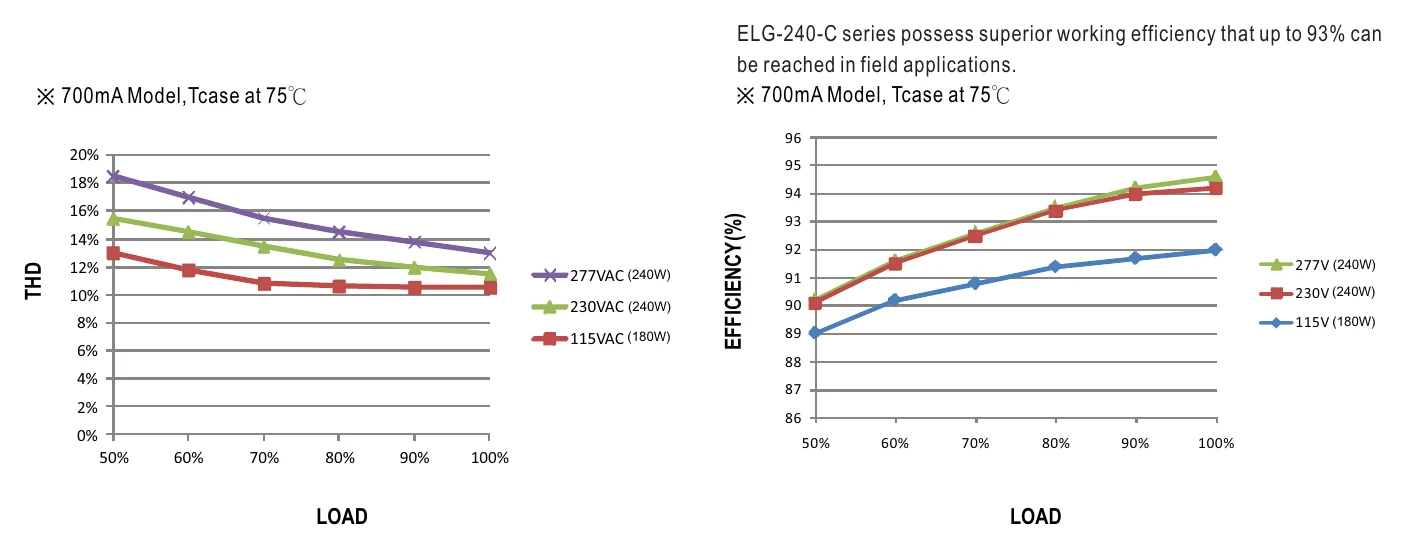

ELG-240-C700B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

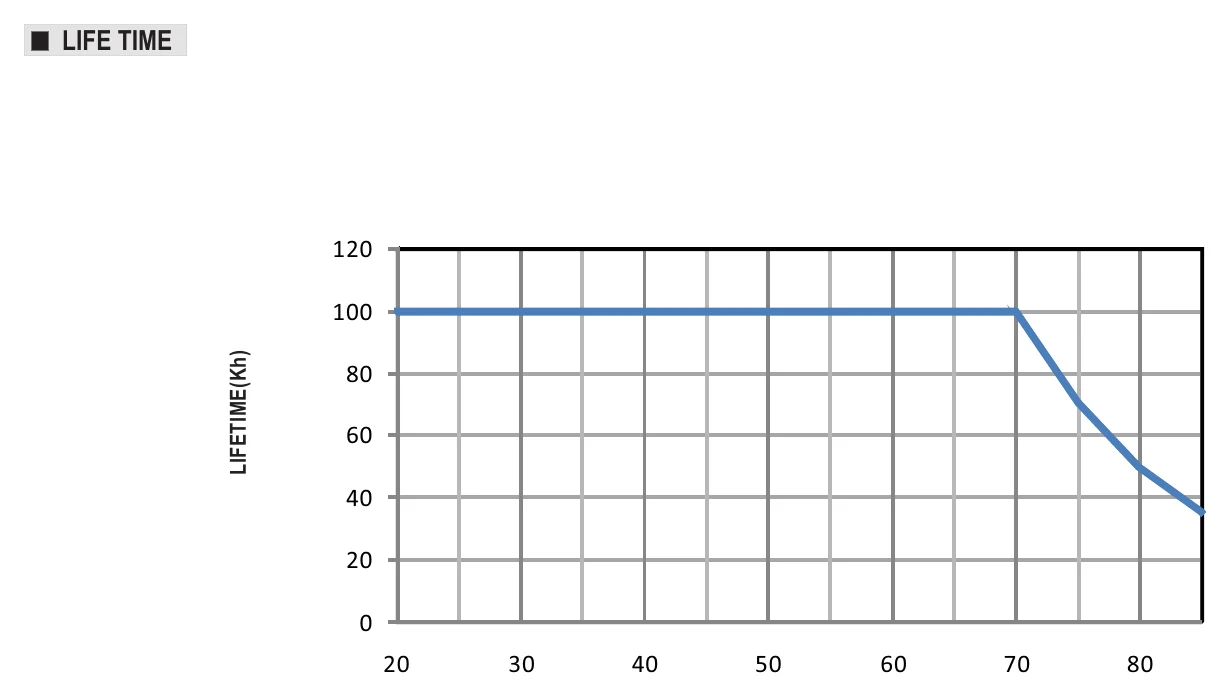

ELG-240-C700B LIFETIME(Kh) — LIFETIME(Kh)

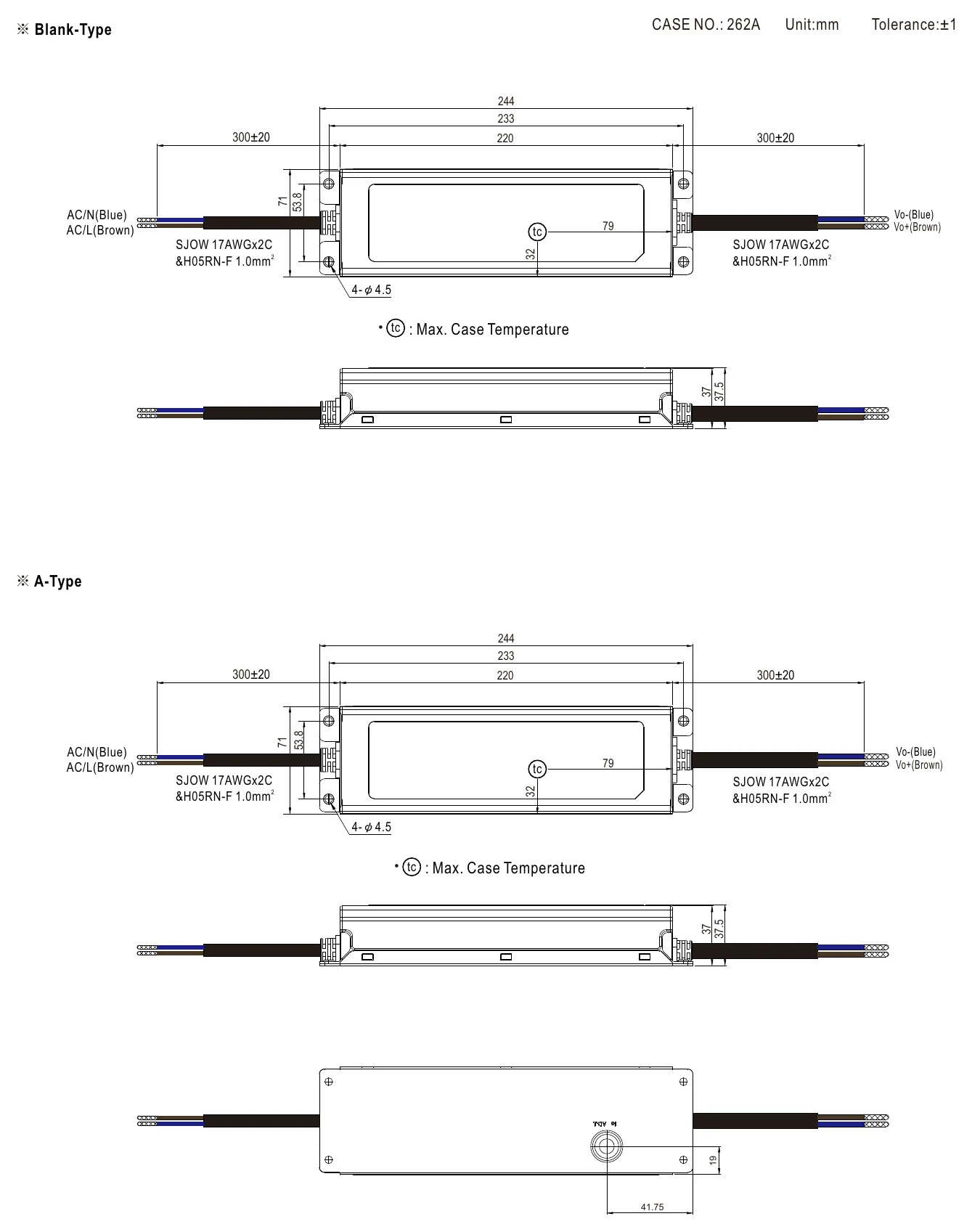

ELG-240-C700B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

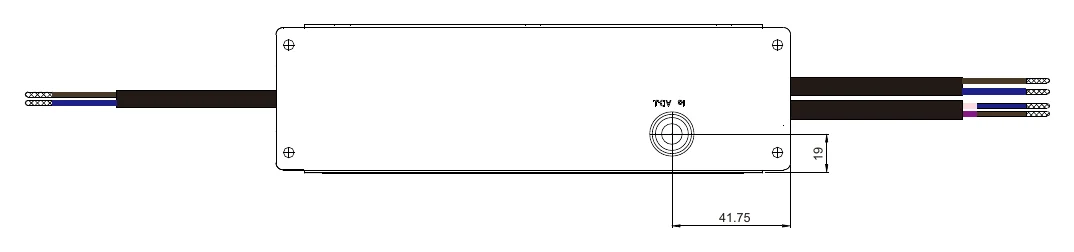

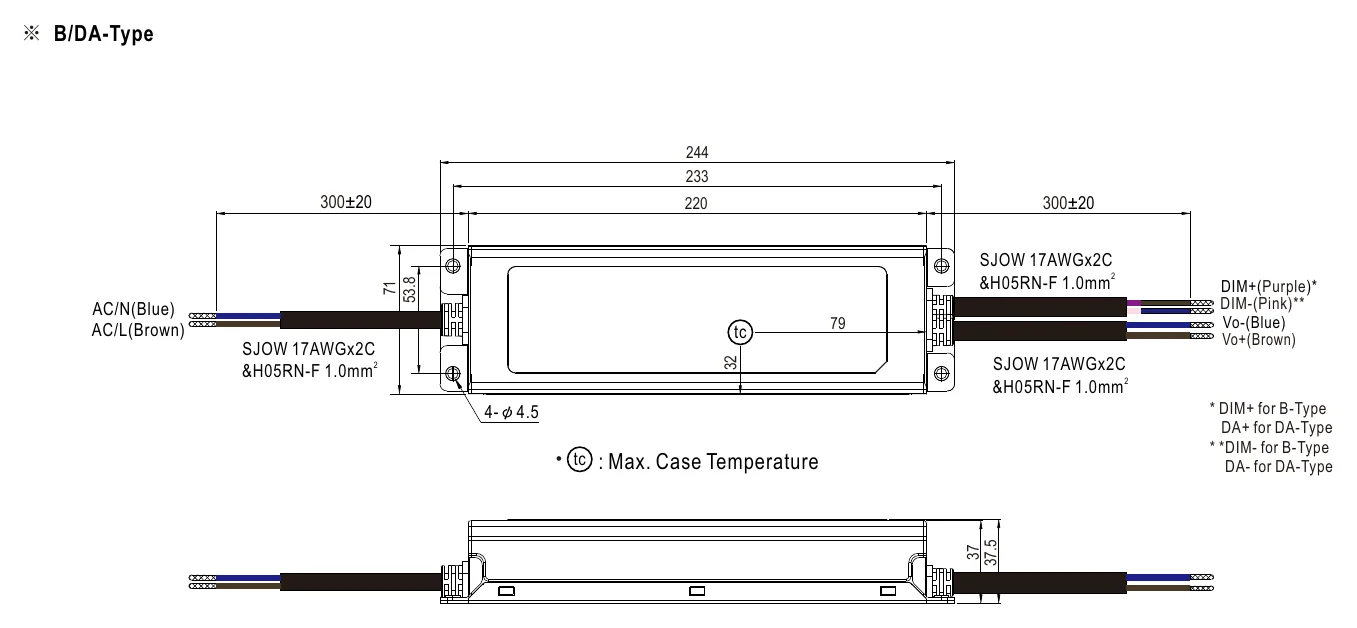

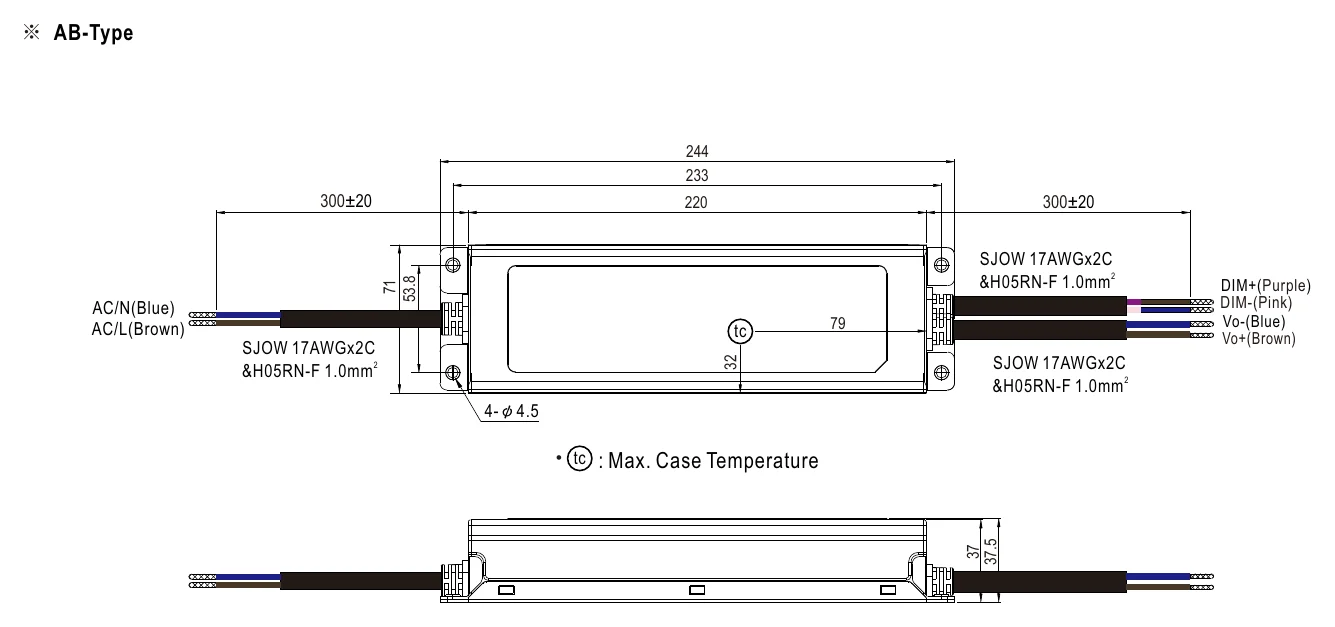

ELG-240-C700B Dimensions (mm) — Dimensions (mm)

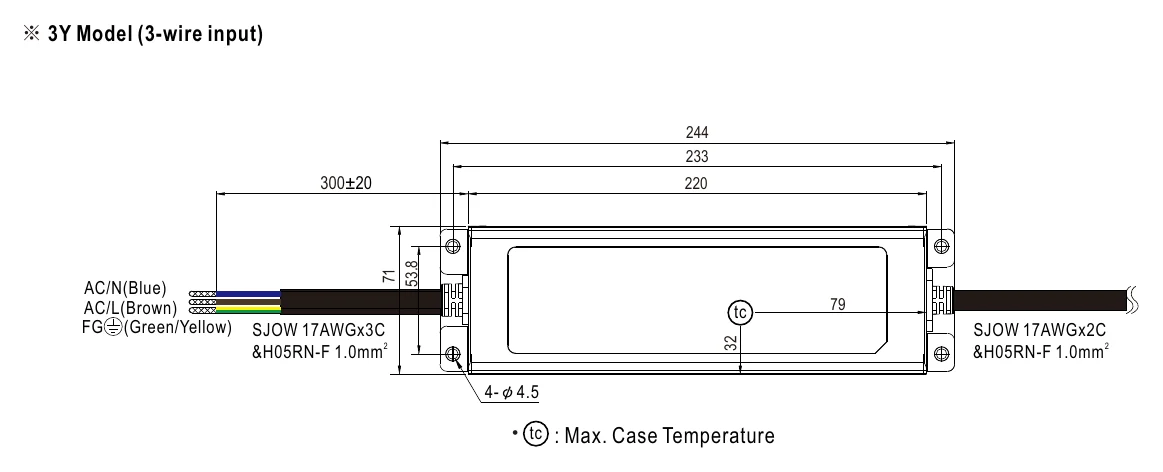

ELG-240-C700B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

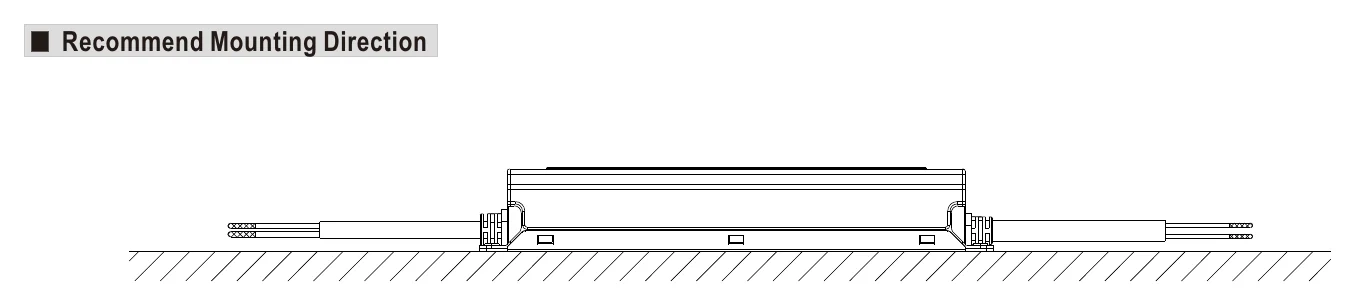

ELG-240-C700B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-240-C)(EN) PDF Download

CB Certificate (ELG-240-C)(EN) PDF Download

EMC Certificate (ELG-240-C)(EN) PDF Download

ENEC Certificate (ELG-240-C)(EN) PDF Download

Test reports1

Test Report (ELG-240-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-240-C700B to drive a large LED signage cabinet?

Yes. The ELG-240-C700B delivers 240.1W at a constant 700mA, with a CC voltage range of 172–343V, making it well suited for long LED signage strings where high voltage and consistent current are required. The series' IP65/IP67 rating also allows it to be mounted inside or adjacent to outdoor sign enclosures.

Is the ELG-240-C700B suitable for outdoor LED downlight arrays?

The ELG-240-C series carries an IP65 or IP67 rating and the driver is rated for a case temperature (Tcase) of -40°C to +85°C, so it can be installed in exposed outdoor locations. Its 240.1W output at 700mA supports high-power LED downlight arrays whose combined forward voltage falls within the 172–343V operating range.

Can this driver power a series string of high-bay LED modules?

Yes, the ELG-240-C700B runs constant current at 700mA across a compliant LED load within its 172–343V CC output range. The actual number of modules that fit in series depends on the forward voltage of each LED module — the total forward voltages must sum within that range.

Does the ELG-240-C700B support dimming, and what method does it use?

Yes. The 'B' suffix indicates 3-in-1 dimming: the output current can be adjusted by applying 0–10VDC, a 10V PWM signal or a resistance between DIM+ and DIM-. It has no potentiometer; that is the A/AB-Type feature.

What dimming variants are available in the ELG-240-C700 family?

The ELG-240-C700 series offers several options: the base C700 has no adjustment or dimming, the C700A has a built-in potentiometer for current adjustment, the C700B has 3-in-1 dimming (0–10VDC / 10V PWM / resistance), the C700AB combines both, and the C700DA supports DALI dimming. All share the same 240W/700mA rating.

Can the ELG-240-C700B be installed outdoors without additional weatherproofing?

The ELG-240-C series is rated IP65 or IP67, protecting it against dust and water. It is suitable for outdoor installation in most climates given its -40°C to +85°C case temperature (Tcase) rating; follow MEAN WELL's installation cautions for the IP waterproof function.

What input voltage range does the ELG-240-C700B accept?

The driver accepts 100–305VAC, making it compatible with both standard 120V North American supplies and 230V European or international mains. This wide input range eliminates the need for separate models per region.
