Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

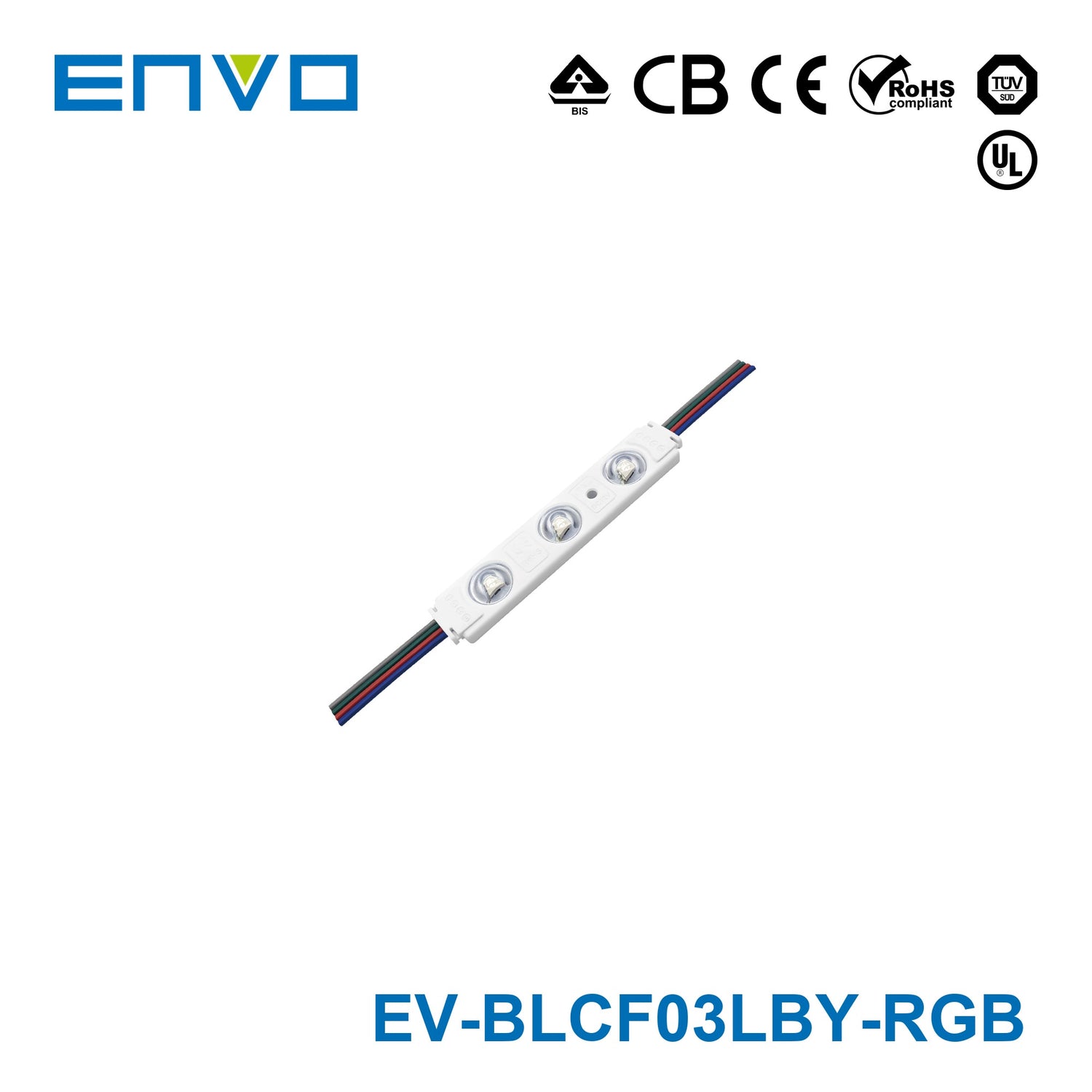

ENVO ChromaFlux LED Module Backlit - Triple LED

12V 0.65W IP65 RGB

SKU EV-BLCF03LBY-RGB

Log in to see price Trade pricing & online ordering for account holders

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO ChromaFlux Backlit Triple LED RGB module is a 12V colour-changing backlighting module engineered for dynamic illuminated signage and colour-mixed channel letters where vibrant, controllable hues are central to the design. Its three RGB LEDs produce a wide 160° beam that delivers rich, even colour mixing across the sign face, with full dimmability enabling seamless colour transitions, animated sequences, and static colour holds from a single module string. Carrying IP66 water and dust resistance for indoor and outdoor sign installations, it is certified to CB, CE, RoHS, TÜV, and UL standards, making it a reliable platform for architectural, retail, and entertainment signage applications.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.65W per module
✓ Lumen output: 33 lm
✓ Beam angle: 160°
✓ Module dimensions: 87 × 17.5 × 8.4 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.054A
✓ CRI: 75
✓ DMX / SPI dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25°C to +60°C
✓ Colour type: RGB
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGB designed for?

This module is designed for backlit signage where strong visibility and RGB color output are important. It is suited to commercial environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications.

What sign depth is this LED module best suited for?

The ENVO ChromaFlux LED Module is intended for signs with a depth of 8-20 cm. That makes it a practical fit for a range of backlit channel letters and illuminated sign cabinets that need even light coverage.

How bright is each module, and what is its beam angle?

Each module is rated at 33 lm of light output. It also uses a 160° optic lens, which helps spread light broadly and evenly across the sign face.

Is this LED module dimmable?

Yes, this model is listed as dimmable. That makes it suitable for signage projects where brightness control is needed to match ambient conditions or visual requirements.

Is this module suitable for demanding indoor or outdoor environments?

It is rated for operation from -25 °C to 60 °C, which supports use in a wide range of environmental conditions. This temperature range makes it appropriate for many commercial signage applications exposed to heat, cold, or seasonal weather changes.

What are the power and current ratings of this model?

This LED module is rated at 0.6500 W with a rated current of 0.0540 A. These specifications make it a low-power signage lighting option for projects that need efficient illumination.

How long is the expected service life, and what warranty is offered?

The module has a stated lifetime of 50,000 hours. It also carries a 5-year warranty period, which supports long-term use in professional signage applications.

What makes this RGB signage module different from a standard narrow-beam module?

This model combines RGB output with a wide 160° beam angle, helping deliver broader and more uniform illumination across backlit signage. Its triple LED design and 33 lm output per module make it better suited to applications where color and even light distribution both matter.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO ChromaFlux LED Module Backlit - Triple LED	0.96W	53 Lumen	RGB+WW Multicolour	Dimmable	View
