Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

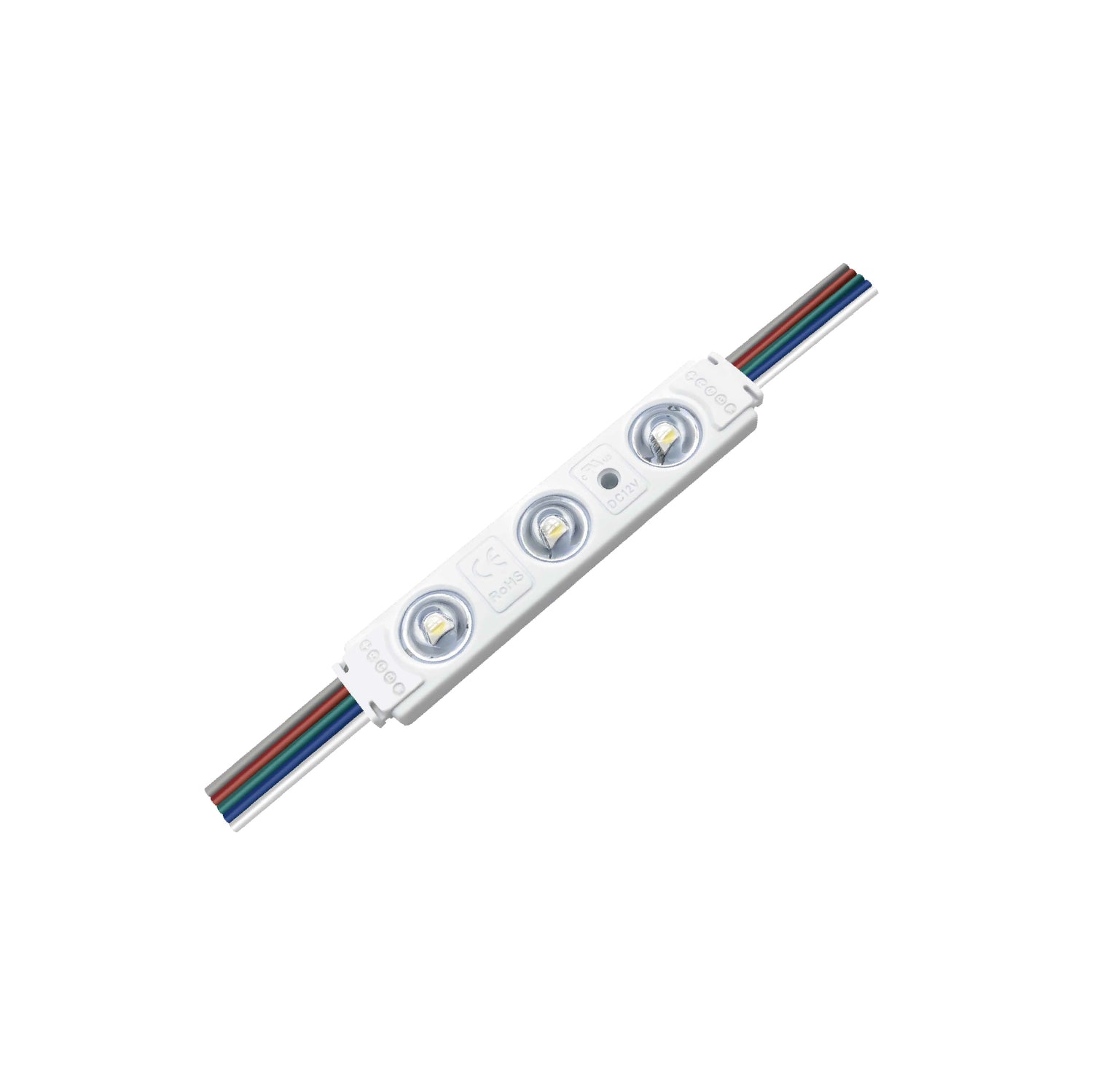

ENVO ChromaFlux LED Module Backlit - Triple LED

12V 0.96W IP65 RGBW

SKU:

EV-BLCF03LBY-RGBW

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate your signage with precision and vibrant clarity using the ChromaFlux LED Module by ENVO. Designed for versatility and high performance, this LED module is the perfect solution for enhancing visibility in a variety of settings, such as airports, metros, banks, buildings, and shopping malls.

Key Features:

Powered by High Output 5050 LED: Experience superior brightness and energy efficiency with the advanced 5050 LED technology, ensuring your signs stand out even in the most demanding environments.
Constant Voltage: Enjoy consistent and reliable lighting performance with a constant voltage design, reducing flicker and extending the lifespan of the LEDs.
Clear 160° Optic Lens: The innovative 160° optic lens provides a wide and even light distribution, ensuring every corner of your sign is beautifully illuminated.
20 Pieces Per String: Each string includes 20 LED modules, offering flexibility and ease of installation for projects of any scale.
Certified Quality: Rest assured with certifications from CE, RoHS, UL, TUV, BIS, CB, and LM-80, demonstrating our commitment to quality, safety, and environmental standards.

Application:

The ChromaFlux LED Module is expertly crafted to fit signs with a depth of 8-20 cm, making it ideal for applications in diverse settings like transportation hubs, financial institutions, commercial buildings, and retail environments. Elevate your brand's visibility and appeal with this reliable and efficient lighting solution.

Transform your signage with the brilliance and reliability of the ChromaFlux LED Module by ENVO. Whether updating existing displays or creating new installations, trust in a product that combines cutting-edge technology with unparalleled quality.

Specifications

Brand

Envo
Series

ChromaFlux
Power Rating

0.96 Watt
Rated Current

0.08 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

8.7 cm
Width

1.75 cm
Height

0.84 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGBW designed for?

This model is designed for backlit signage where wide, even illumination and RGBW color capability are needed. The product description positions it for commercial and public-facing environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications. It is intended for sign depths of 8-20 cm.

What are the key lighting specifications of this LED module?

This module uses a triple LED RGBW design with a 160° beam angle for broad light spread. Each module is rated at 0.96 W, 0.08 A, and 53 lm brightness. Its CRI is 75, and the module is dimmable.

Is this LED module a good fit for shallow or deep backlit sign cabinets?

This model is specified for signs with a depth of 8-20 cm. That makes it suitable for a range of backlit signage formats where consistent light coverage is important across the face of the sign. Buyers should match the cabinet depth to that stated range when evaluating fit.

Can this module be used in demanding indoor or outdoor environments?

It is built to operate in temperatures from -25 °C to 60 °C, which supports use in a wide range of commercial conditions. The product is also described for demanding applications such as transportation hubs, commercial buildings, and retail settings. For buyers comparing options, that operating range and certification set support commercial signage use cases.

What distinguishes this RGBW backlit module from a standard single-color signage module?

This ChromaFlux model combines triple LED RGBW output with a wide 160° optic lens, so it is aimed at signage projects that need both color flexibility and even illumination. Compared with a basic single-color module, its differentiation is the RGBW format and application focus on vibrant backlit displays. It is also sold as a 20-piece string for signage-oriented deployment.

What can buyers expect for service life and warranty on this model?

This LED module is rated for a 50,000-hour lifetime and carries a 5-year warranty. Those figures make it suitable for signage buyers looking for a long-service commercial product. The description also notes 100% production testing and multiple certifications as part of its quality positioning.

Model	Power	Brightness	CCT	Dimming
ENVO ChromaFlux LED Module Backlit - Triple LED	0.65W	33 Lumen	RGB Multicolour	Dimmable	View
