Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

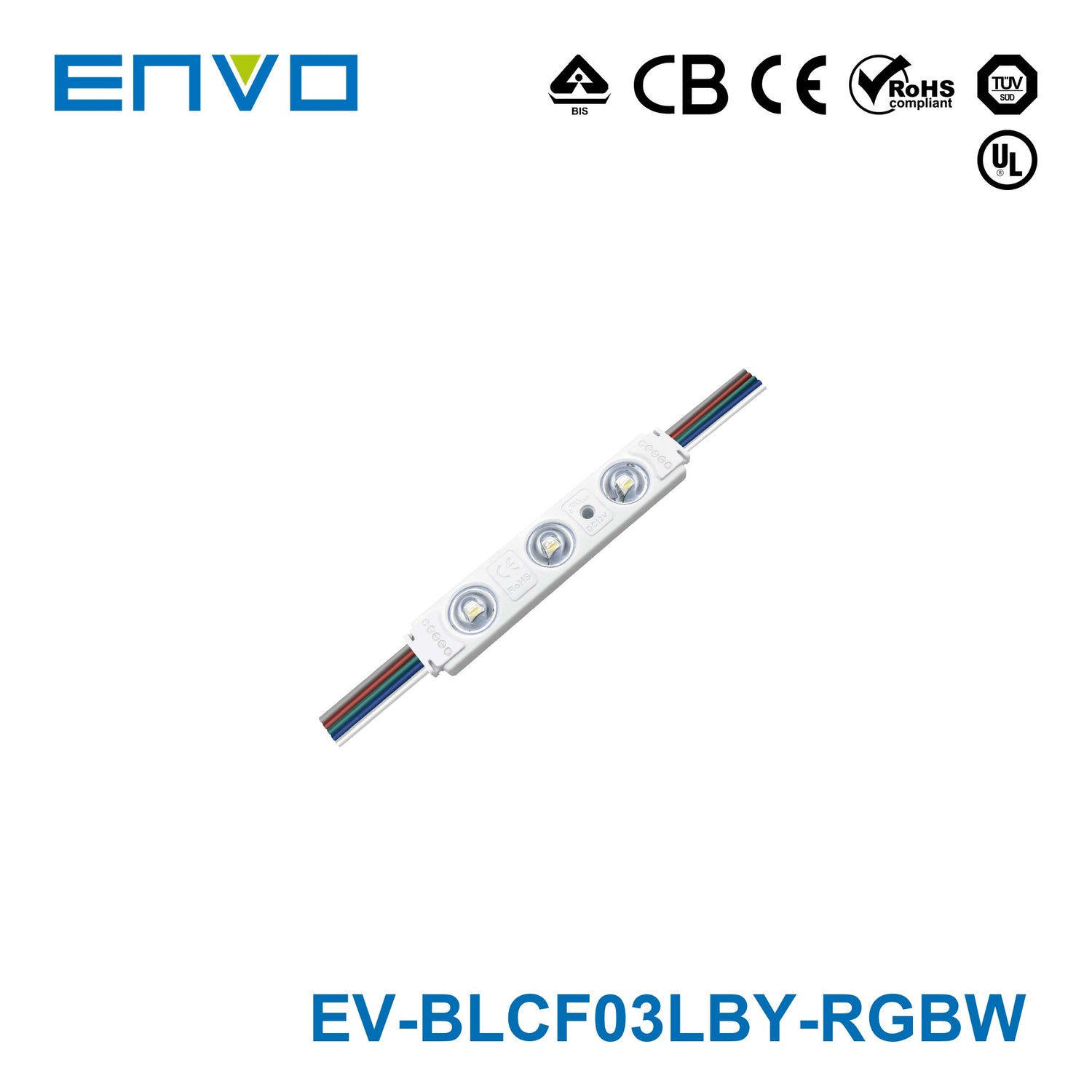

ENVO ChromaFlux LED Module Backlit - Triple LED

12V 0.96W IP65 RGBW

SKU EV-BLCF03LBY-RGBW

Log in to see price Trade pricing & online ordering for account holders

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO ChromaFlux Backlit Triple LED RGBW module is a 12V colour-changing backlighting module engineered for dynamic illuminated signage and colour-mixed channel letters where both saturated hues and clean white tones are required within the same installation. Its three RGBW LEDs produce a wide 160° beam that delivers rich, even colour mixing across the sign face, with the dedicated white element enabling accurate whites and pastel tones that pure RGB modules cannot achieve. Carrying IP66 water and dust resistance for indoor and outdoor sign installations, it is certified to CB, CE, RoHS, TÜV, and UL standards, making it suitable for architectural, retail, and display signage applications.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.96W per module
✓ Lumen output: 53 lm
✓ Beam angle: 160°
✓ Module dimensions: 87 × 17.5 × 8.4 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.08A
✓ CRI: 75
✓ DMX / SPI dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25°C to +60°C
✓ Colour type: RGBW
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGBW designed for?

This model is designed for backlit signage where wide, even illumination and RGBW color capability are needed. The product description positions it for commercial and public-facing environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications. It is intended for sign depths of 8-20 cm.

What are the key lighting specifications of this LED module?

This module uses a triple LED RGBW design with a 160° beam angle for broad light spread. Each module is rated at 0.96 W, 0.08 A, and 53 lm brightness. Its CRI is 75, and the module is dimmable.

Is this LED module a good fit for shallow or deep backlit sign cabinets?

This model is specified for signs with a depth of 8-20 cm. That makes it suitable for a range of backlit signage formats where consistent light coverage is important across the face of the sign. Buyers should match the cabinet depth to that stated range when evaluating fit.

Can this module be used in demanding indoor or outdoor environments?

It is built to operate in temperatures from -25 °C to 60 °C, which supports use in a wide range of commercial conditions. The product is also described for demanding applications such as transportation hubs, commercial buildings, and retail settings. For buyers comparing options, that operating range and certification set support commercial signage use cases.

What distinguishes this RGBW backlit module from a standard single-color signage module?

This ChromaFlux model combines triple LED RGBW output with a wide 160° optic lens, so it is aimed at signage projects that need both color flexibility and even illumination. Compared with a basic single-color module, its differentiation is the RGBW format and application focus on vibrant backlit displays. It is also sold as a 20-piece string for signage-oriented deployment.

What can buyers expect for service life and warranty on this model?

This LED module is rated for a 50,000-hour lifetime and carries a 5-year warranty. Those figures make it suitable for signage buyers looking for a long-service commercial product. The description also notes 100% production testing and multiple certifications as part of its quality positioning.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO ChromaFlux LED Module Backlit - Triple LED	0.65W	33 Lumen	RGB Multicolour	Dimmable	View
