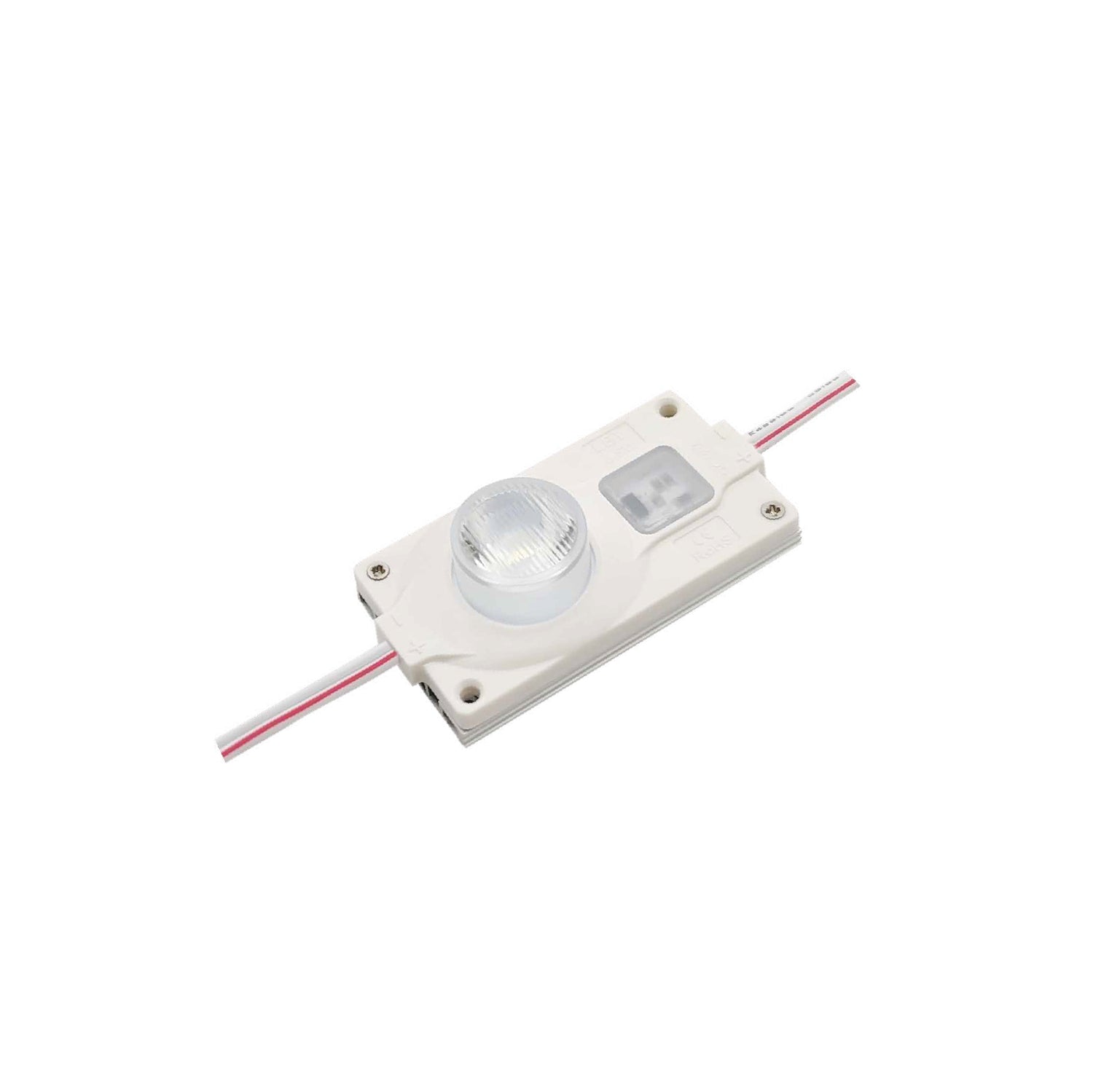

ENVO EdgeBlade LED Module Sidelit - Single LED
Log in to see priceThe ENVO EdgeBlade Sidelit Single LED module is a 12V sidelit backlighting module designed for sidelit channel letters and slim sign faces where the LED is mounted on the letter return rather than the back face to achieve a smooth, even glow across the front panel. Its narrow 5°×30° beam concentrates light precisely across the sign face, minimising spill onto the return walls and producing the crisp, even edge-lit illumination characteristic of slim-profile letter designs. Running on a standard 12V DC supply and fully dimmable, it carries IP65 water and dust resistance for indoor and light outdoor installations, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 12V DC
- ✓ Power: 3.5W per module
- ✓ Beam angle: 5°×30°
- ✓ Module dimensions: 66 × 33 × 18 mm
- ✓ Module pitch: 180 mm
- ✓ Max modules per series: 20
- ✓ Rated current: 0.29A
- ✓ CRI: 70
- ✓ Dimmable
- ✓ Ingress protection: IP65
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesEdgeBlade
-
Power Rating3.5 Watt
-
Rated Current0.29 Ampere
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length6.6 cm
-
Width3.3 cm
-
Height1.8 cm
-
Weight0.05 kg
::specification::
Frequently Asked Questions
What is the ENVO EdgeBlade LED Module Sidelit - Single LED designed for?
This module is designed for side-lit, double-sided light boxes in commercial and public environments. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even signage illumination is needed.
What light box depth is this LED module suitable for?
The ENVO EdgeBlade LED Module Sidelit - Single LED is intended for double-sided light boxes with a depth of 10-15 cm. It is designed to provide effective light coverage across displays up to 2.5 meters.
What are the key performance specs of this LED module family?
Each module uses high-output 3535 LED technology and delivers 310 lumens while consuming 3.5W. The family has a 5x30 degree beam angle, CRI 70, a rated lifetime of 50,000 hours, and a 5-year warranty.
What variant options are available in this product family?
This parent product family is offered in three color temperatures: 3000K, 4000K, and 7000K. Across those variants, the published beam angle, brightness, power rating, CRI, dimming capability, lifetime, and warranty remain the same.
Is the ENVO EdgeBlade LED Module Sidelit - Single LED dimmable?
Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light output is required, while maintaining the same core module specifications across the available color temperature options.
What certifications does this LED module family carry?
The product description states that this module family is backed by CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications. These certifications support its positioning for quality, safety, and environmental compliance in commercial signage applications.
