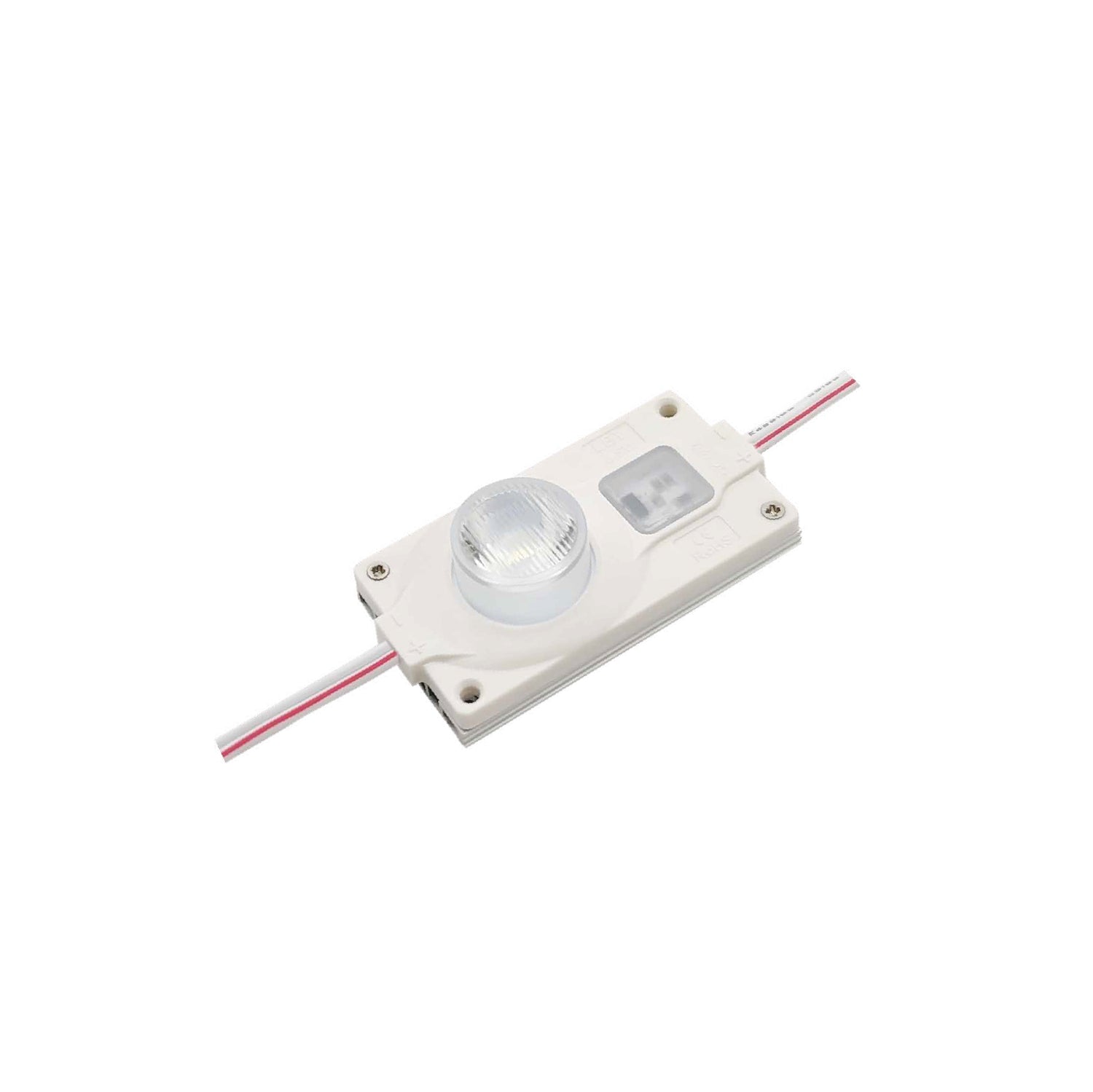

ENVO EdgeBlade LED Module Sidelit - Single LED

12V 3.5W IP65
SKU:
EV-SLEB01LBY-CW

LED Colour
|

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.


Illuminate with Precision and Versatility

The EdgeBlade LED Modules by ENVO are specifically engineered to provide optimal lighting solutions for double-sided light boxes, enhancing visibility and appeal in bustling environments like airports, metros, banks, buildings, and shopping malls. Designed with cutting-edge technology and superior performance, these modules ensure your displays are vivid and captivating.

Key Features:

  • High Output 3535 LED Technology: Power your signage with high-performance 3535 LEDs, delivering robust and efficient illumination to make your displays stand out.
  • Constant Current Design: Enjoy consistent lighting with a constant current system, ensuring stable performance and longevity of the LEDs.(Constant Voltage Input)
  • Elliptical 5x30° Optic Lens: The specialized elliptical lens provides targeted light distribution, maximizing coverage and enhancing the visual impact of your signage.
  • Efficient String Configuration: Each string contains 20 modules, allowing for flexible and efficient installation tailored to your project requirements.
  • Certified Quality and Safety: Backed by certifications from CE, RoHS, UL, TUV, BIS, CB, and LM-80, ensuring the highest standards of quality, safety, and environmental responsibility.

Application:

The EdgeBlade LED Modules are ideal for double-sided light boxes with depths of 10-15 cm, providing effective light coverage up to 2.5 meters. These modules are designed to deliver brilliant illumination in a variety of commercial and public settings.

Enhance your signage with the EdgeBlade LED Modules by ENVO—where innovation meets reliability to offer superior lighting solutions for your most demanding applications.

Specifications

  • Brand
    Envo
  • Series
    EdgeBlade
  • Power Rating
    3.5 Watt
  • Rated Current
    0.29 Ampere
  • Operating Temperature
    -25°C~60°C
  • Warranty
    5 Year
  • Length
    6.6 cm
  • Width
    3.3 cm
  • Height
    1.8 cm
  • Weight
    0.05 kg

File Downloads

::specification::
