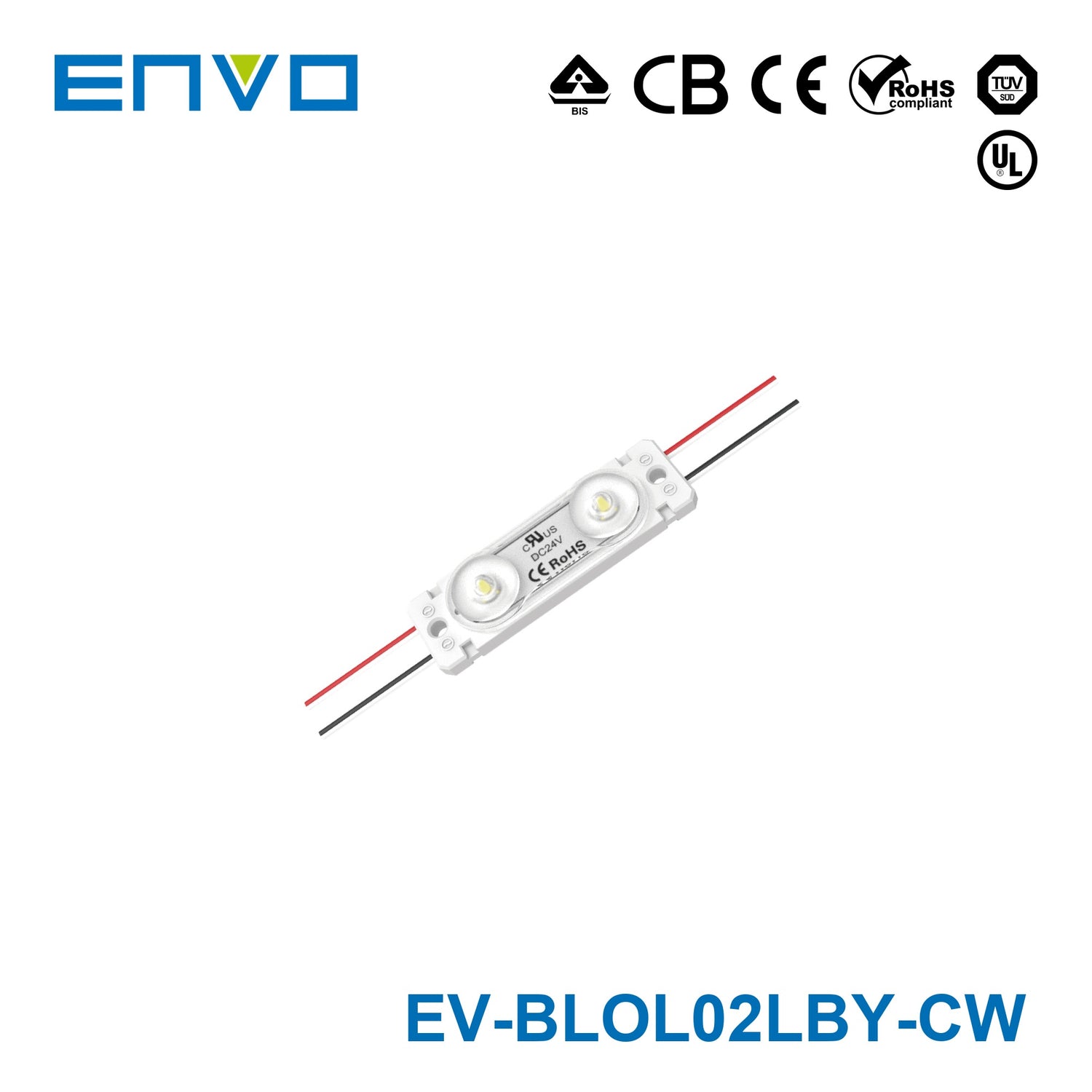

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO OptiLume LED Module Backlit - Double LED

24V0.66WIP66

SKU EV-BLOL02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-BLOL02LBY-CW

EV-BLOL02LBY-CW Double LED Backorder

EV-BLOL04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO OptiLume Backlit Double LED module is a high-output 24V backlighting module engineered for large commercial channel letters and deep backlit sign cabinets where elevated brightness and string efficiency are priorities. Its wide 170° beam angle produces even, high-intensity illumination across the full sign face from dual LEDs, allowing greater module spacing without creating dark bands or hotspots in the sign cavity. Running on a 24V DC constant voltage supply and fully dimmable, it carries IP66 water and dust resistance for indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 24V DC
✓ Power: 0.66W per module
✓ Beam angle: 170°
✓ Module dimensions: 56 × 10.6 × 10.6 mm
✓ Module pitch: 145 mm
✓ Max modules per series: 50
✓ Rated current: 0.03A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO OptiLume LED Module Backlit - Double LED designed for?

This LED module is designed for illuminated letters and backlit light boxes. It is intended for commercial and public signage environments such as airports, metros, banks, buildings, and shopping malls, especially where even light coverage is needed in 6-20 cm sign depths.

What are the main performance specs of this LED module family?

Across the family, each module uses a double-LED design with a 170 degree beam angle, CRI 80, and a power rating of 0.66 W. The listed service life is 50,000 hours, and the product is rated as dimmable with a 5 year warranty.

What is the difference between the available variants in this parent product family?

The main variant difference is color temperature. The family includes 3000K warm white, 4000K neutral white, and 6500K cool white options, and the child variants shown all list 100 lumens, 0.66 W power draw, 170 degree beam angle, CRI 80, 50,000 hour life, and dimmable operation.

What type of lighting effect does the 170 degree beam angle provide?

A 170 degree beam angle is intended to spread light broadly across the sign cavity. That wide optic helps create more even illumination in backlit letters and light boxes, which is useful for reducing visible hot spots in signage applications.

Is this LED module compatible with 24V signage systems?

Yes. The parent product data identifies this module as a 24V power input model, which aligns with 24V signage system use. It is positioned within 24V signage and backlit signage categories, making it suitable for those applications when the rest of the system is matched accordingly.

Is this LED module suitable for long-term commercial use?

It is built for commercial signage use, with a listed 50,000 hour lifetime and 5 year warranty. The product description also states that production includes 100% testing and that the module carries certifications including CE, ROHS, UL, TUV, BIS, CB, and LM-80.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO OptiLume LED Module Backlit - Quad LED	1.32W	—	—	Dimmable	View
