What is the Envo SC-36-24 designed for?

The Envo SC-36-24 is a 36W constant-voltage 24V power supply intended for indoor LED lighting and moving sign applications. It is designed for dry-location use where a compact, flicker-free dimmable driver is needed.

Is the Envo SC-36-24 dimmable?

Yes. This model supports AC phase-cut dimming and is compatible with both leading-edge and trailing-edge TRIAC dimmers. It is specifically described as offering strong compatibility and flicker-free dimming performance.

What are the main electrical specifications of the Envo SC-36-24?

This model is rated at 36W with a 24V constant-voltage output and a rated current of 1.25A. It accepts 180-240VAC input and includes active PFC, with efficiency listed up to 85%.

Where can the Envo SC-36-24 be used?

The SC-36-24 is intended for indoor installation in dry locations. Its IP20 housing is suited to protected interior environments rather than exposed outdoor or wet-area applications.

What protection and durability features does this power supply include?

The Envo SC-36-24 includes protection against short circuit, over loading, and over current. It also comes with a full plastic housing, uses free-air convection cooling, and carries a 5-year warranty.

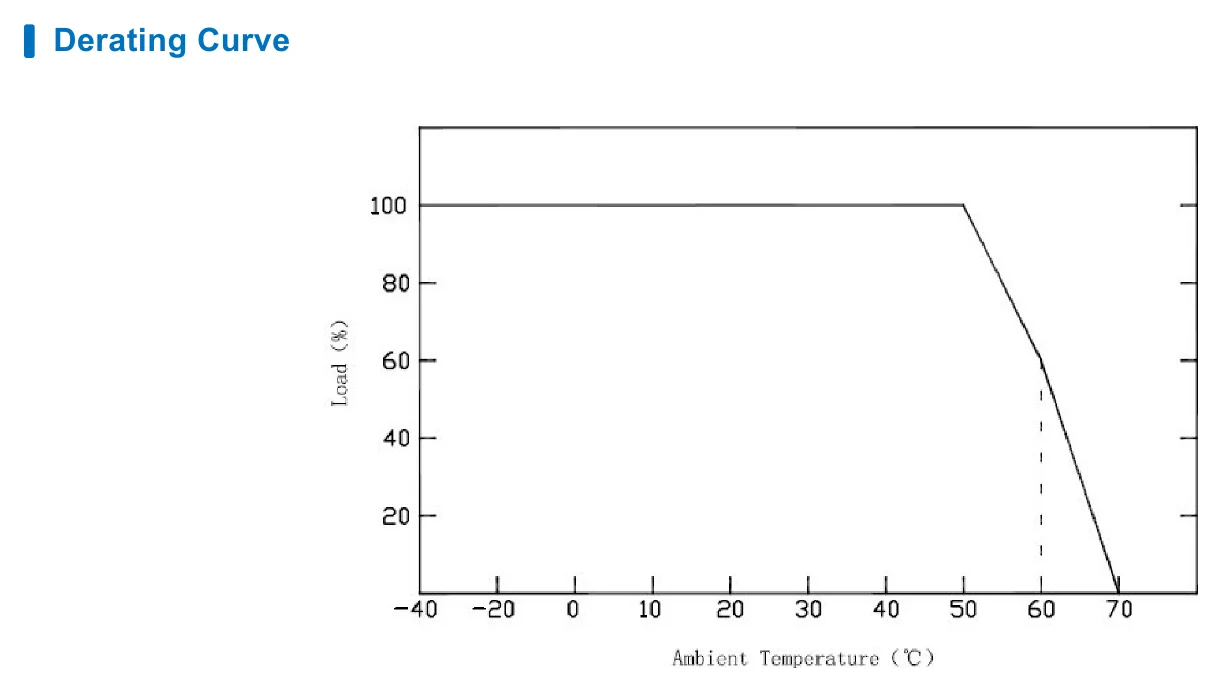

What operating temperature range does the Envo SC-36-24 support?

This model is specified for operation from -40°C to 60°C. That range makes it suitable for a broad set of indoor commercial and architectural lighting environments, provided the location remains dry.

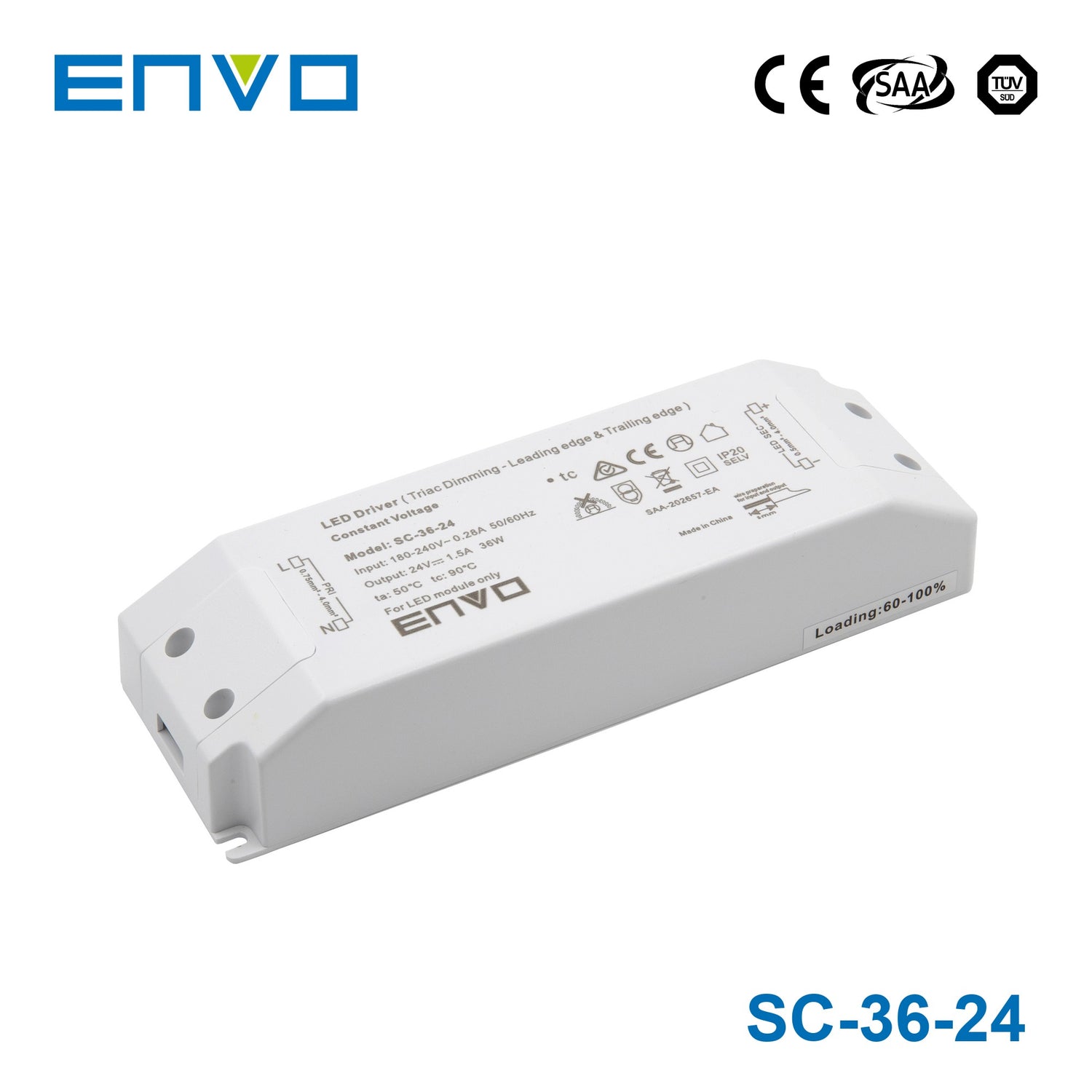

Envo SC-36-24 Power Supply 36W 24V - Triac Dimmable Driver

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

Output constant voltage
Range AC input/ :180-240VAC
Built-in active PFC function
Efficiency :up to 85%
Protections:short circuit/over loading/over current
Full protection plastic housing easy installation
IP20 design for indoor installation
Cooling by free air convection

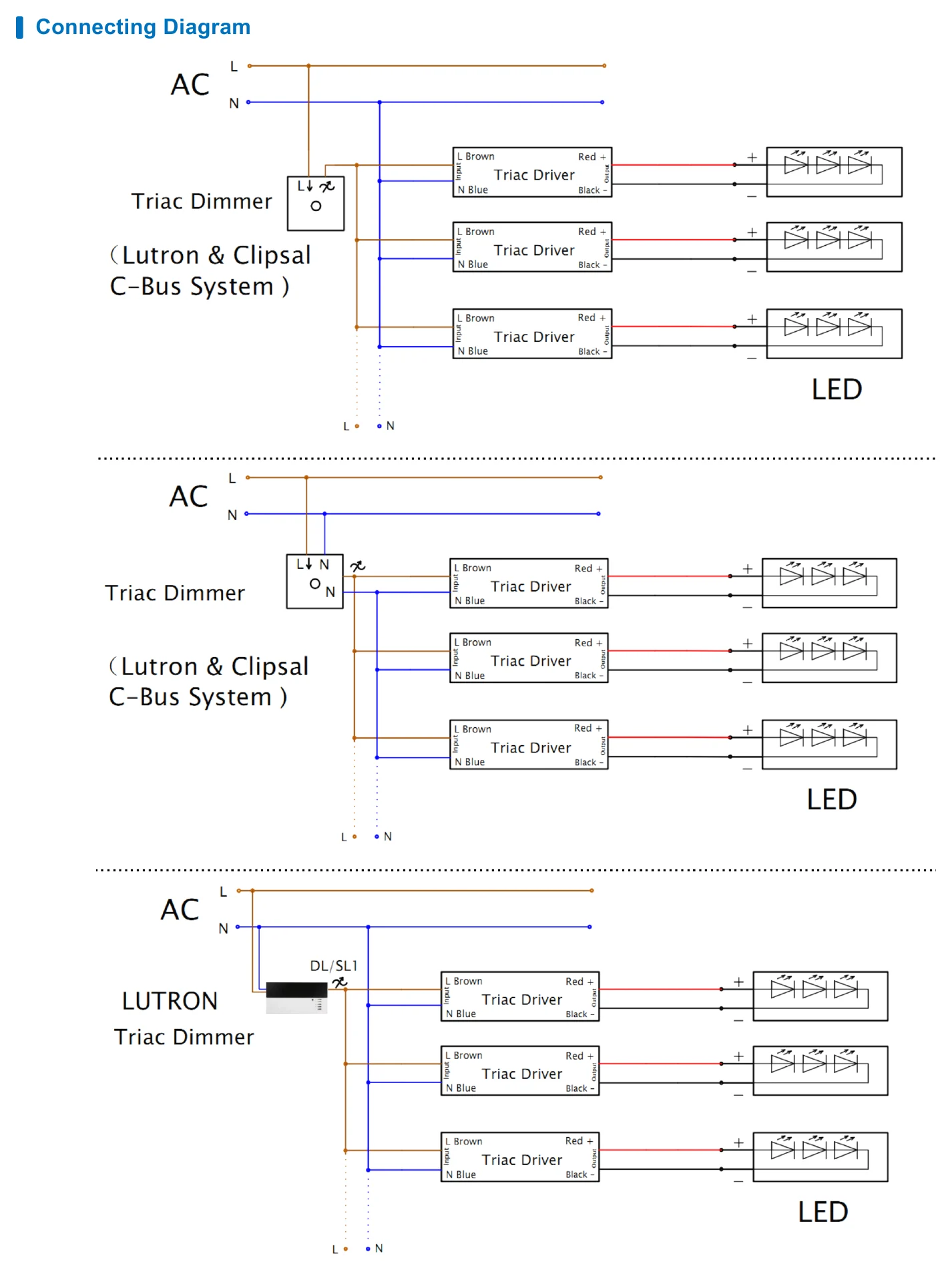

Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Suitable for dry locations

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8809456664875, "variants" :[{ "context":"default", "variant_id": 47241364701483, "sku":"SC-36-24", "inventory_qty" : 4, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Envo

Envo SC-36-24 Power Supply 36W 24V - Triac dimmable 1.25A

Output constant voltage
Range AC input/ :180-240VAC
Built-in active PFC function
Efficiency :up to 85%
Protections:short circuit/over loading/over current
Full protection plastic housing easy installation
IP20 design for indoor installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Suitable for dry locations

Model

10W 24V
20W 24V
30W 24V
36W 24V
50W 24V
60W 24V
80W 24V
100W 24V
150W 24V
200W 24V
300W 24V
45W 24V PWM
150W 24V PWM
200W 24V PWM
