Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight ZigZag Strip 12V - Arbitrary Bending

60LEDs/m7.2W/mcuttable length 50mmIP64

SKU ZZ2835-0601244SCX-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

ZZ2835-0601244SCX-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

S-type soft light strip, arbitrary bending to meet your needs for irregular spaces

Specifications

Archilight ZigZag Strip 12V - Arbitrary BendingSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness
ZZ2835-0601244SCX-CW	Cool White 6500K	600 lm
ZZ2835-0601244SCX-NW	Natural White 4000K	600 lm
ZZ2835-0601244SCX-WW	Warm White 3000K	570 lm

Specification

Rated Watt (w/m): 7.2
LED Type: 2835
LED Qty. (LEDs/m): 60
CRI: 80
Cutting Points (mm): 50
Beam Angle: 120°
Voltage: 12V
IP: IP64
Ambient Temp: -20°C to 45°C

Others

Reel size: 5000*6mm

Certifications & ratings

Certification marks: CE, RoHS

Technical drawings

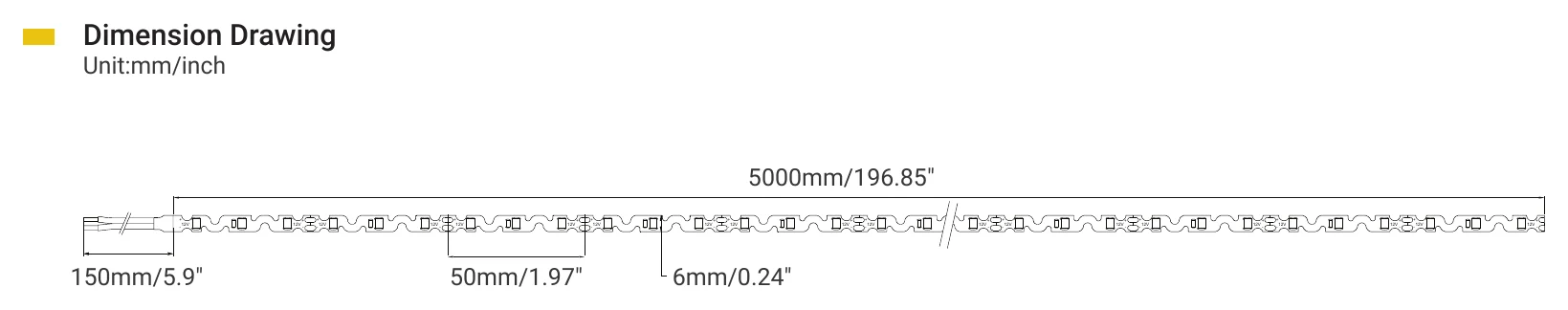

Archilight ZigZag Strip 12V - Arbitrary Bending Dimension Drawing — Dimension Drawing

Typical applications

Suitable for a wide range of applications including lightboxes, shop windows, billboards, display boards, etc.
Widely used in hotels, shopping malls, furniture, cabinets, shelf, as decoration lighting, direct lighting or indirect lighting

Downloads

Datasheet1

Archilight ZigZag Strip 12V - Arbitrary Bending datasheetZZ2835_0601244SCX_V0923.pdf PDF Download

Catalogues1

LED Strip Selection Guide PDF Download

FAQ

What is the Archilight ZigZag Strip 12V designed for?

The Archilight ZigZag Strip 12V is designed for lighting layouts that need flexible shaping around irregular spaces. Its arbitrary bending format makes it suitable for applications such as LED linear lighting, signage, and zig-zag strip projects where a standard straight strip may be harder to fit.

What color temperature options are available in this product family?

This parent product family includes 3000K warm white, 4000K neutral white, and 6500K cool white variants. The 3000K version is listed at 570 lm, while the 4000K and 6500K versions are listed at 600 lm.

Does this LED strip include a driver?

No. The product data lists the driver as not included, so the driver is separate from the strip itself. The strip is specified for 12V power input.

Is this Archilight ZigZag Strip dimmable?

Yes. The parent product and all listed child variants are marked as dimmable. Dimming compatibility should be matched with the separately selected 12V driver and control system.

What are the main physical dimensions of this strip?

The parent product is listed as 1000 mm long, 6 mm wide, and 3 mm high. Its listed weight is 0.2 kg, making it a compact low-profile strip for linear and signage lighting applications.

What is the power rating for this LED strip family?

The Archilight ZigZag Strip 12V family is listed with a 7.2 W power rating. The same 7.2 W rating appears across the provided 3000K, 4000K, and 6500K variants.

What warranty period is listed for this product?

The listed warranty period for the Archilight ZigZag Strip 12V is 5 years. The same 5-year warranty is shown across all provided child variants.
