Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

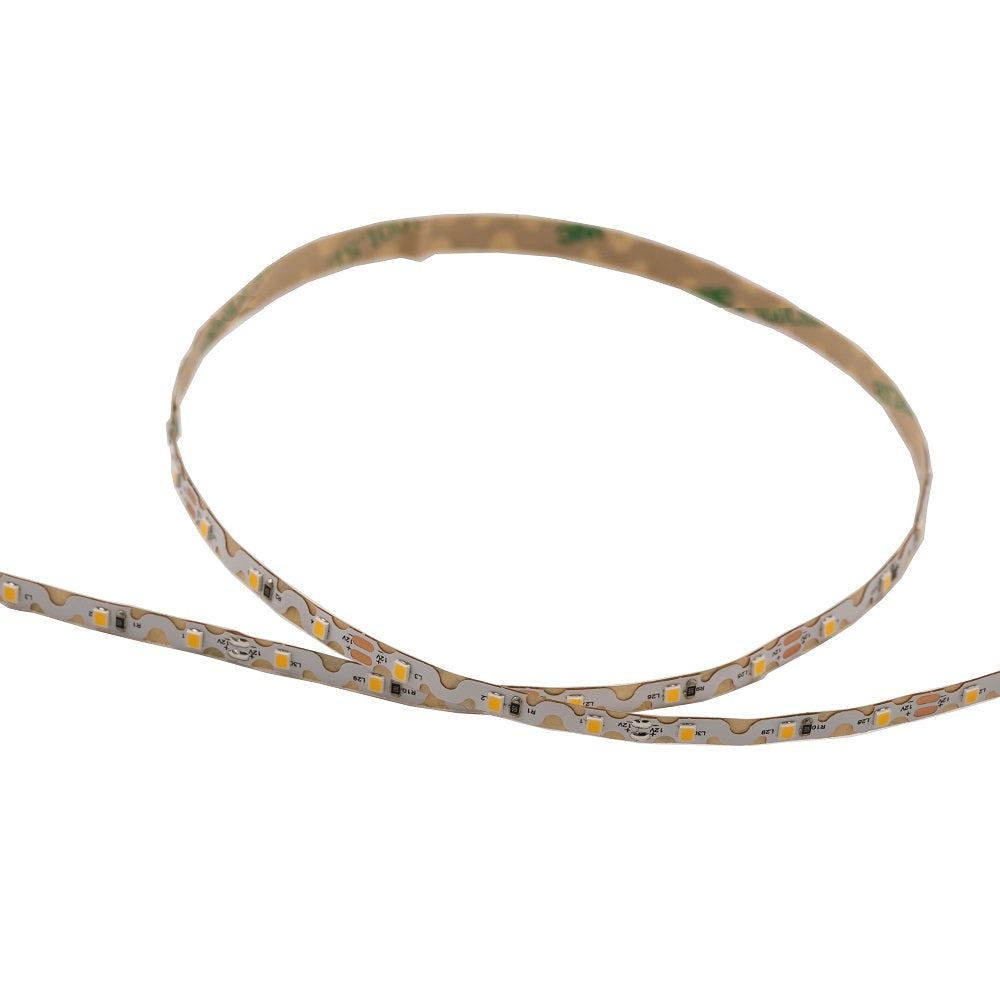

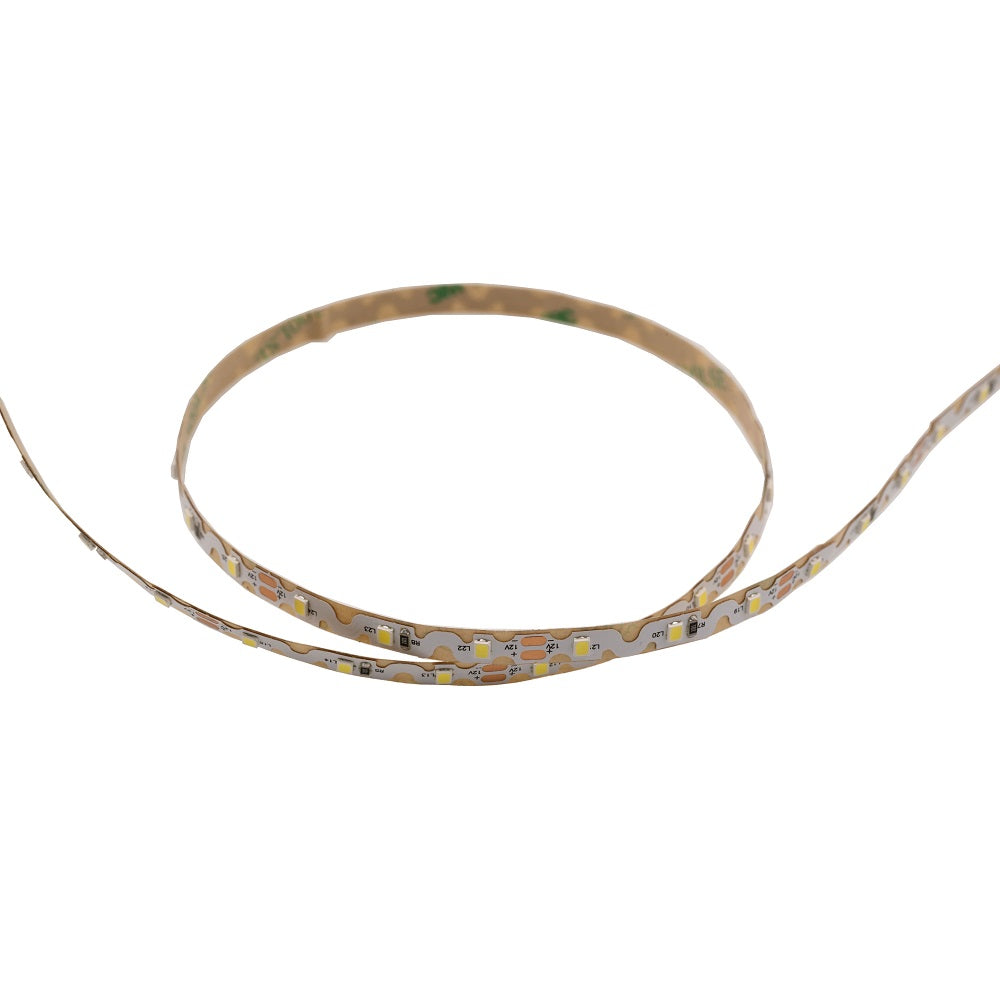

Archilight ZigZag Strip 12V - Arbitrary Bending

60LEDs/m, 7.2W/m, cuttable length 50mm, IP64

SKU:

ZZ2835-0601244SCX-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the ZZ2835-0601244SCX LED Strip Light from Archilight, a versatile lighting solution designed to meet the demands of unique and irregular spaces. Ideal for both residential and commercial applications, this LED strip light offers exceptional flexibility and performance.

Key Features:

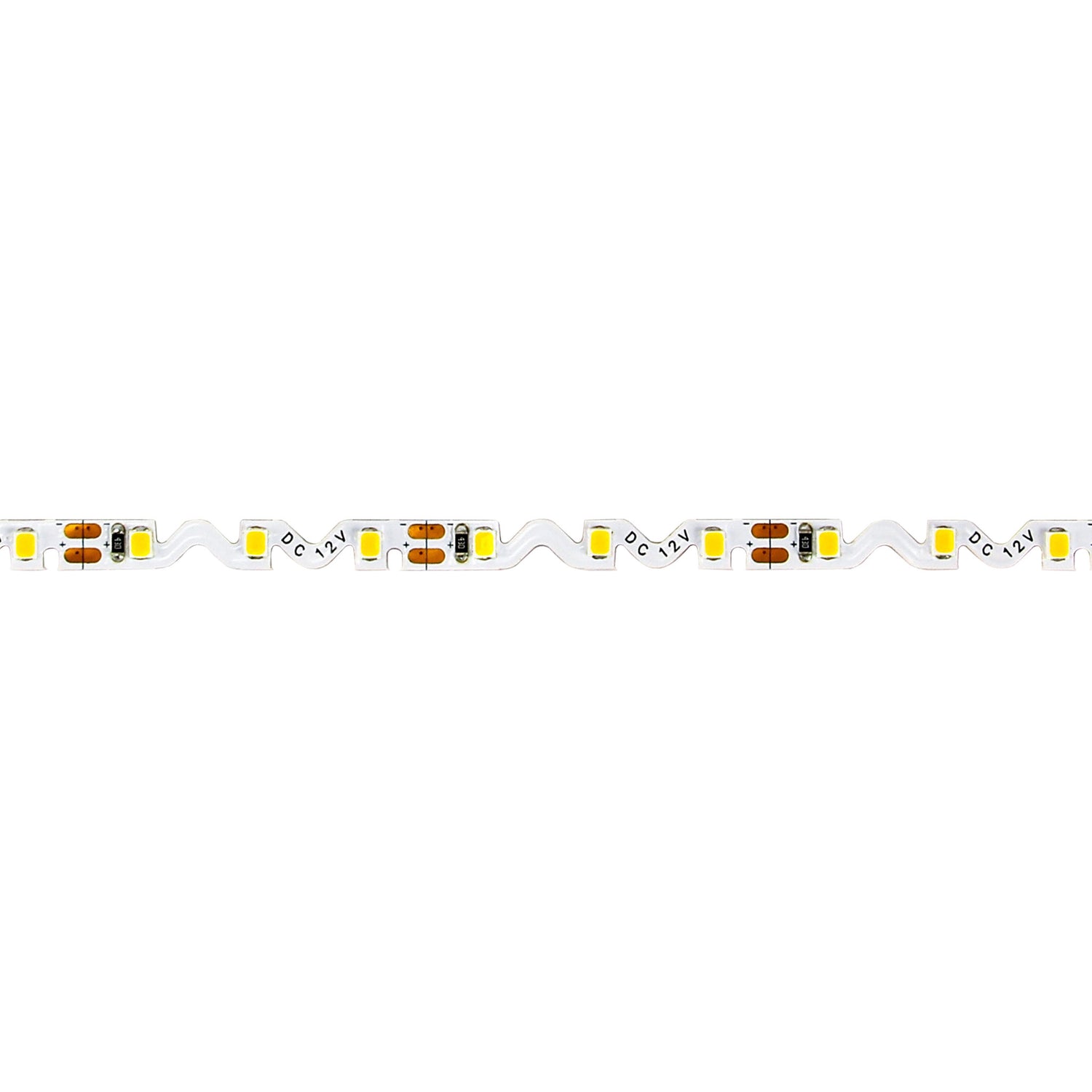

Arbitrary Bending Capability: This S-Type strip is engineered to bend in multiple directions, making it perfect for installations in irregular spaces where traditional strips may not fit. It's ideal for creative and complex lighting designs.
High-Quality Illumination: Featuring high-brightness SMD2835 LEDs, this strip delivers a luminous flux of up to 600 lumens per meter, ensuring bright and consistent light output with a CRI of 80 or higher for true-to-life color rendering.
Customizable Options: Available in multiple color temperatures ranging from 3000K to 6500K, this strip can be tailored to suit various lighting needs.
Durable and Reliable Construction: Constructed with a robust PCB available in 6mm width, this strip ensures durability and longevity. It operates on 12V, offering flexibility and efficiency.
Wide Range of Applications: Suitable for a variety of settings including lightboxes, shop windows, billboards, display boards, hotels, shopping malls, and residential environments. It is perfect for both decorative and functional lighting.

Technical Specifications:

Cutting Points: Every 50mm for 12V, allowing for precise length adjustments.
Beam Angle: 120° for broad and even light distribution.
Dimming Compatibility: Supports PWM, 0-10V, 1-10V, DALI, and DMX dimming methods.
IP Rating: IP64, suitable for indoor/outdoor environments with ambient temperatures ranging from -20°C to 45°C.

The ZZ2835-0601244SCX LED Strip Light is the perfect solution for those seeking a flexible, high-performance lighting option that adapts to challenging spaces. Whether for commercial displays or home décor, this product delivers outstanding results in any setting.

Specifications

Brand

Archilight
Series

ZigZag Series
Power Rating

7.2 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

100 cm
Width

0.6 cm
Height

0.3 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Archilight ZigZag Strip 12V designed for?

The Archilight ZigZag Strip 12V is designed for lighting layouts that need flexible shaping around irregular spaces. Its arbitrary bending format makes it suitable for applications such as LED linear lighting, signage, and zig-zag strip projects where a standard straight strip may be harder to fit.

What color temperature options are available in this product family?

This parent product family includes 3000K warm white, 4000K neutral white, and 6500K cool white variants. The 3000K version is listed at 570 lm, while the 4000K and 6500K versions are listed at 600 lm.

Does this LED strip include a driver?

No. The product data lists the driver as not included, so the driver is separate from the strip itself. The strip is specified for 12V power input.

Is this Archilight ZigZag Strip dimmable?

Yes. The parent product and all listed child variants are marked as dimmable. Dimming compatibility should be matched with the separately selected 12V driver and control system.

What are the main physical dimensions of this strip?

The parent product is listed as 1000 mm long, 6 mm wide, and 3 mm high. Its listed weight is 0.2 kg, making it a compact low-profile strip for linear and signage lighting applications.

What is the power rating for this LED strip family?

The Archilight ZigZag Strip 12V family is listed with a 7.2 W power rating. The same 7.2 W rating appears across the provided 3000K, 4000K, and 6500K variants.

What warranty period is listed for this product?

The listed warranty period for the Archilight ZigZag Strip 12V is 5 years. The same 5-year warranty is shown across all provided child variants.
