ENVO ChromaFlux LED Module Backlit - Triple LED

12V 0.65W IP65 RGB

SKU EV-BLCF03LBY-RGB

Log in to see price Trade pricing & online ordering for account holders

Available to order

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output 5050 LED.
Constant voltage.
Clear 160° optic lens.
20 pcs per string.
CE, RoHS, UL, TUV, BIS, CB and LM-80 certified.

Specifications

EV-BLCF03LBY-RGBSpecifications from the official datasheetDownload datasheet PDF

Parameters

Part Number: EV-BLCF03LBY-RGB
CCT (K): RGB
Beaming Angle (°): 160°
CRI (Ra): ≥75
Luminous Flux (lm): R6 G22 B5
Voltage (V): DC12
Power (W): 0.65
Driving Method: Constant Voltage
Dimension (mm): 87*17.5*8.4
Working Tem. (°C): -25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP65

Others

Warranty: 5 years

Certifications & ratings

Certification marks: CE, RoHS, UL, TÜV, BIS, CB, LM-80

Technical drawings

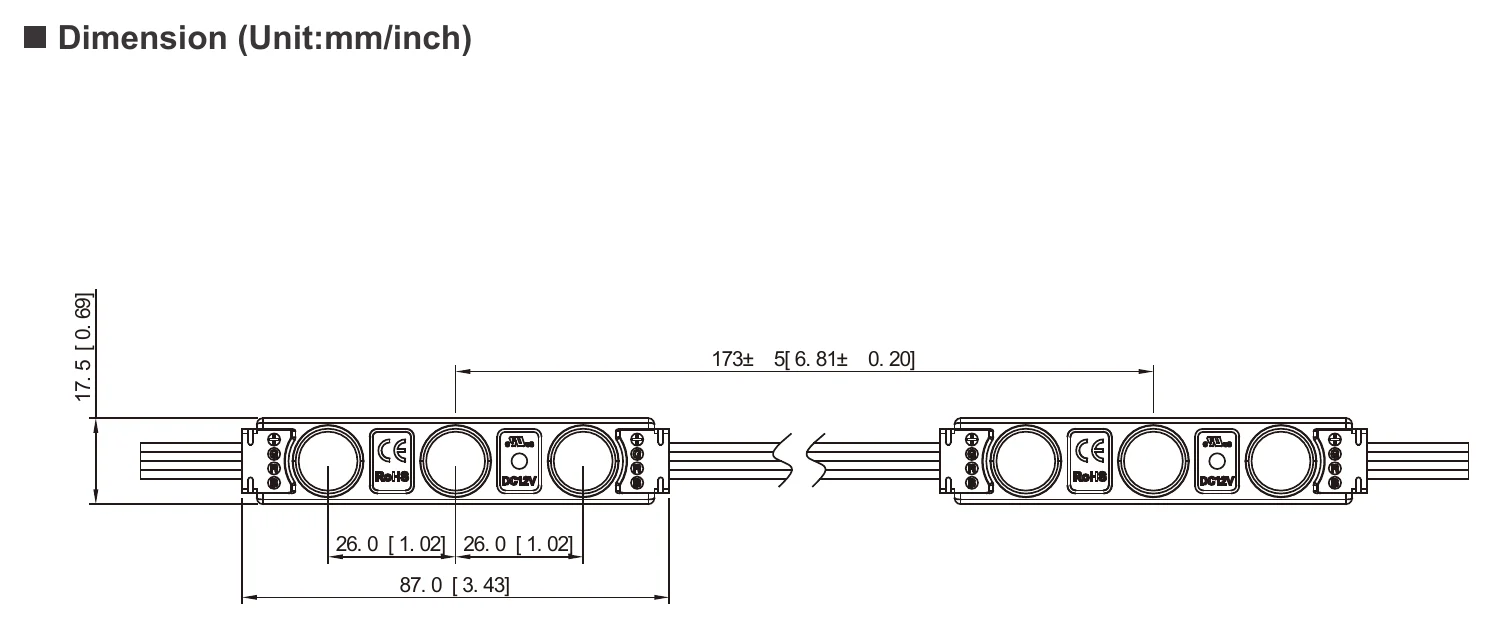

EV-BLCF03LBY-RGB Dimension (Unit:mm/inch) — Dimension (Unit:mm/inch)

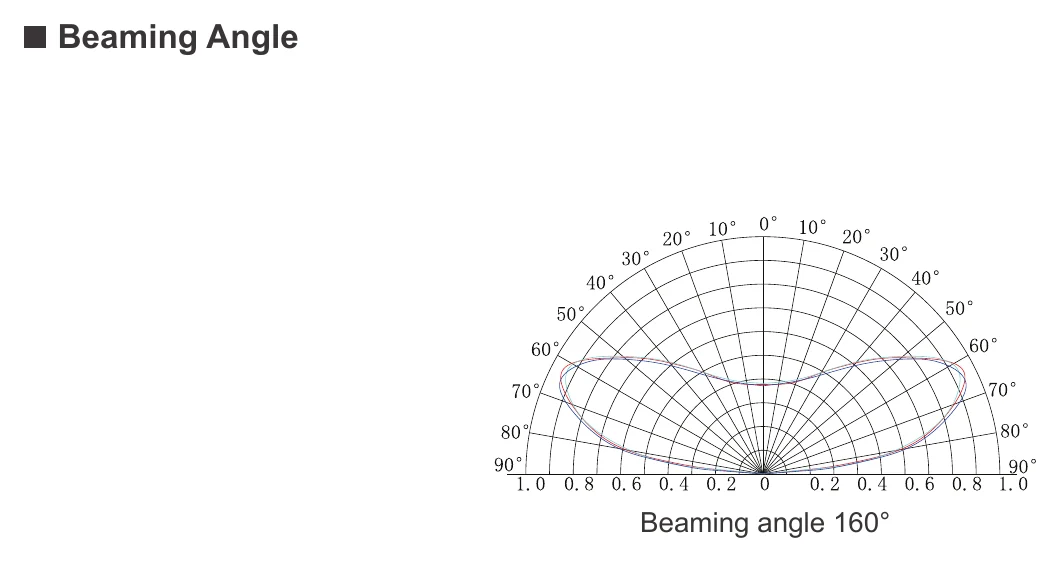

EV-BLCF03LBY-RGB Beaming Angle — Beaming Angle

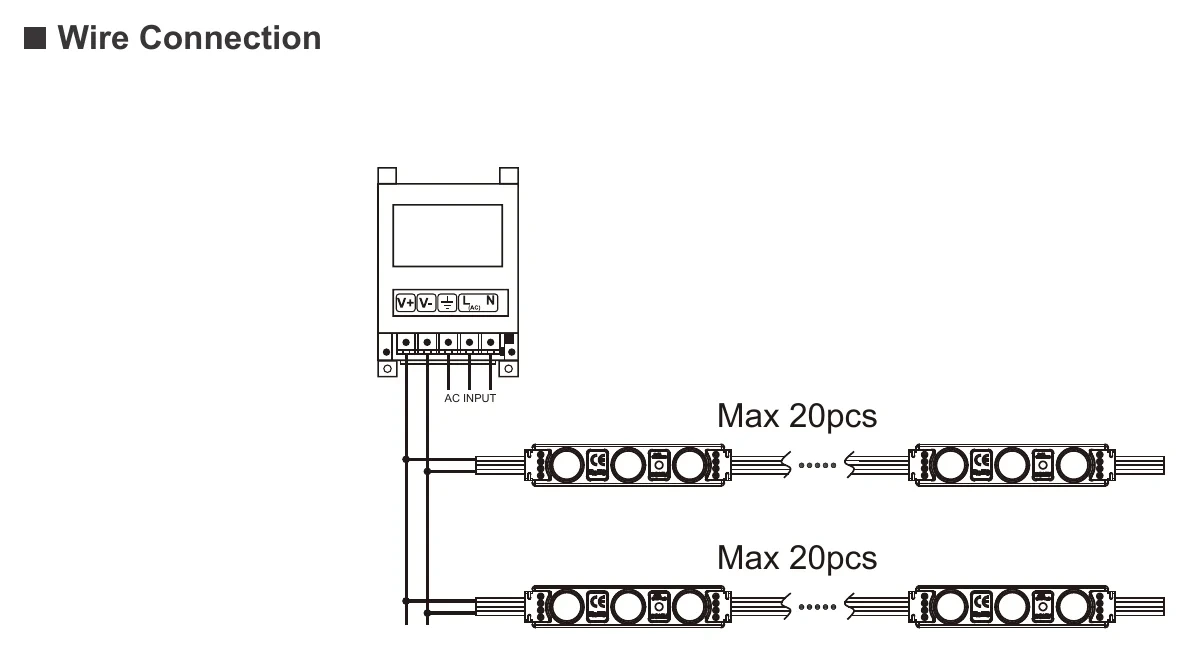

EV-BLCF03LBY-RGB Wire Connection — Wire Connection

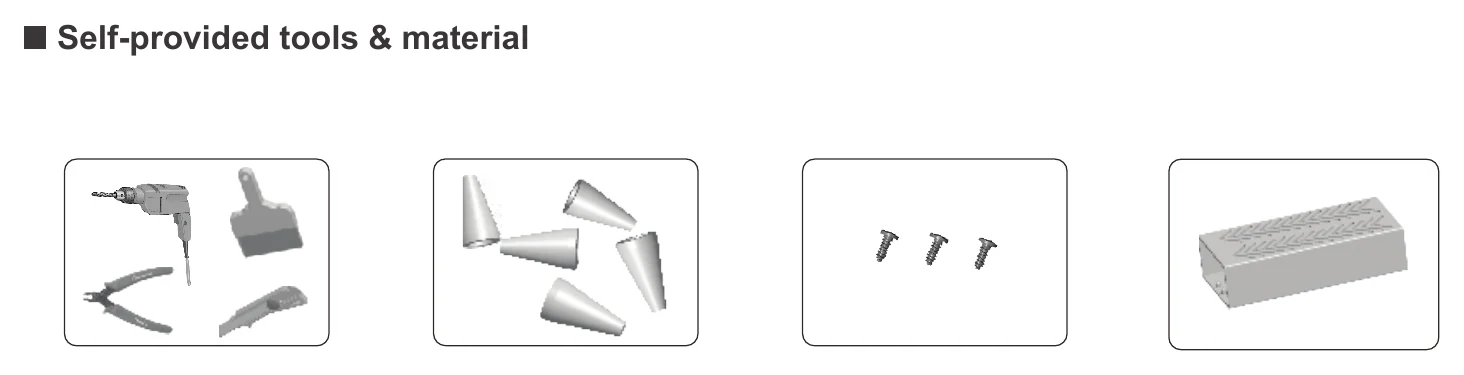

EV-BLCF03LBY-RGB Self-provided tools & material — Self-provided tools & material

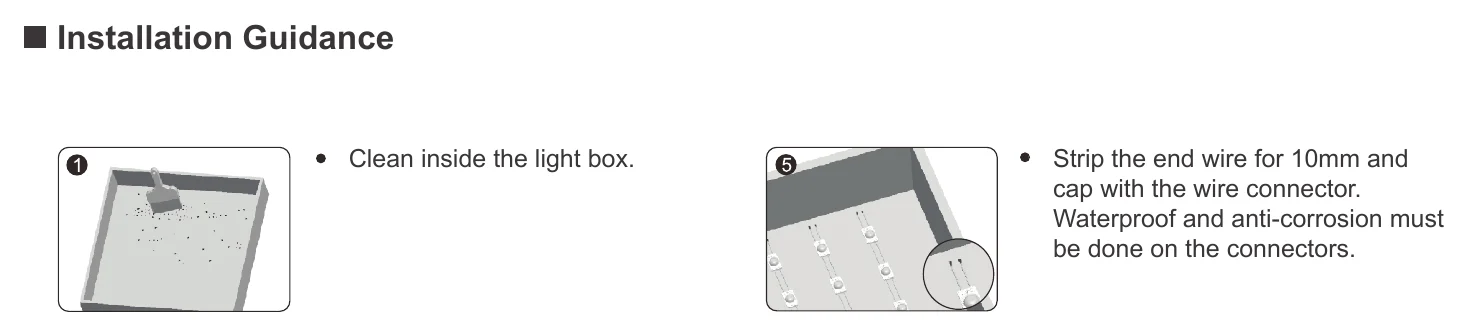

EV-BLCF03LBY-RGB Installation Guidance — Installation Guidance

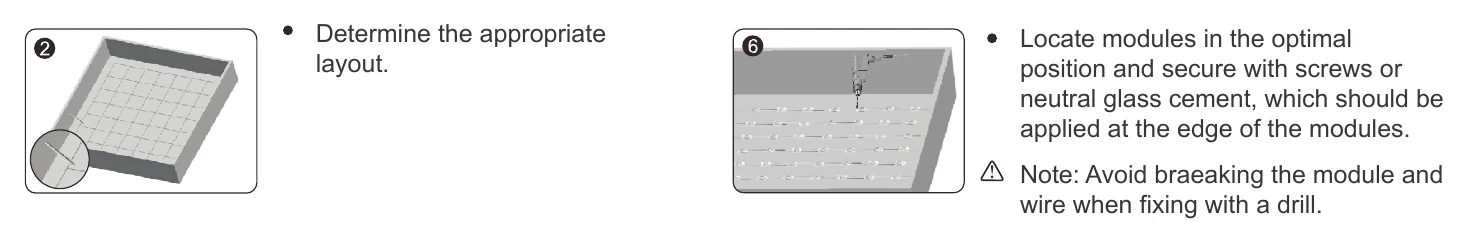

EV-BLCF03LBY-RGB Installation Guidance (2) — Installation Guidance (2)

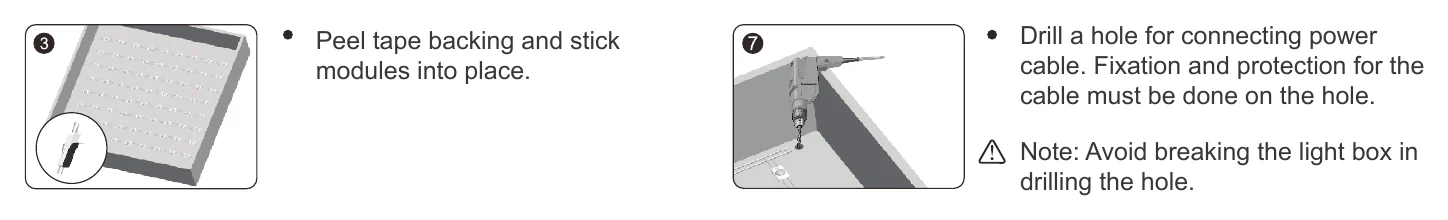

EV-BLCF03LBY-RGB Installation Guidance (3) — Installation Guidance (3)

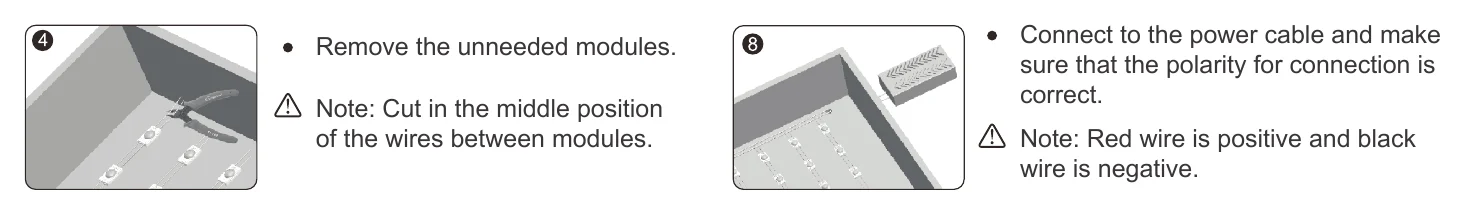

EV-BLCF03LBY-RGB Installation Guidance (4) — Installation Guidance (4)

Typical applications

Apply to 8-20 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.

Downloads

Datasheet1

EV-BLCF03LBY-RGB datasheetEV_BLCF03LBY_RGB.pdf PDF Download

FAQ

What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGB designed for?

This module is designed for backlit signage where strong visibility and RGB color output are important. It is suited to commercial environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications.

What sign depth is this LED module best suited for?

The ENVO ChromaFlux LED Module is intended for signs with a depth of 8-20 cm. That makes it a practical fit for a range of backlit channel letters and illuminated sign cabinets that need even light coverage.

How bright is each module, and what is its beam angle?

The luminous flux is specified as R6 G22 B5. It also uses a 160° optic lens, which helps spread light broadly and evenly across the sign face.

Is this LED module dimmable?

The specifications do not list dimming capabilities for this model. It operates on a constant voltage driving method.

Is this module suitable for demanding indoor or outdoor environments?

It is rated for operation from -25 °C to 60 °C, which supports use in a wide range of environmental conditions. This temperature range makes it appropriate for many commercial signage applications exposed to heat, cold, or seasonal weather changes.

What are the power and current ratings of this model?

This LED module is rated at 0.65 W with a DC12V input. These specifications make it a low-power signage lighting option for projects that need efficient illumination.

What makes this RGB signage module different from a standard narrow-beam module?

This model combines RGB output with a wide 160° beam angle, helping deliver broader and more uniform illumination across backlit signage. Its triple LED design and specified luminous flux make it better suited to applications where color and even light distribution both matter.
