ENVO EdgeBlade LED Module Sidelit - Single LED

12V3.5WIP67

SKU EV-SLEB01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-SLEB01LBY-CW

EV-SLEB01LBY-CW Single LED In stock

EV-SLEB02SS-CW Double LED In stock

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output 3535 LED.
Constant current.
Elliptical 5x30° optic lens.
20 pcs per string.
CE, RoHS, UL, TUV, BIS, CB and LM-80 certified

Specifications

ENVO EdgeBlade LED Module Sidelit - Single LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU
EV-SLEB01LBY-WW

Parameters

CCT (K): 7000K
Beaming Angle (°): 5*30°
CRI (Ra): ≥70
Luminous Flux (lm): 310
Voltage (V): DC12
Power (W): 3.5
Driving Method: Constant Current
Dimension (mm): 66*33*18
Working Tem. (°C): -25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Others

Warranty: 7 years

Certifications & ratings

Certification marks: CE, RoHS, UL, TÜV, BIS, CB, LM-80

Technical drawings

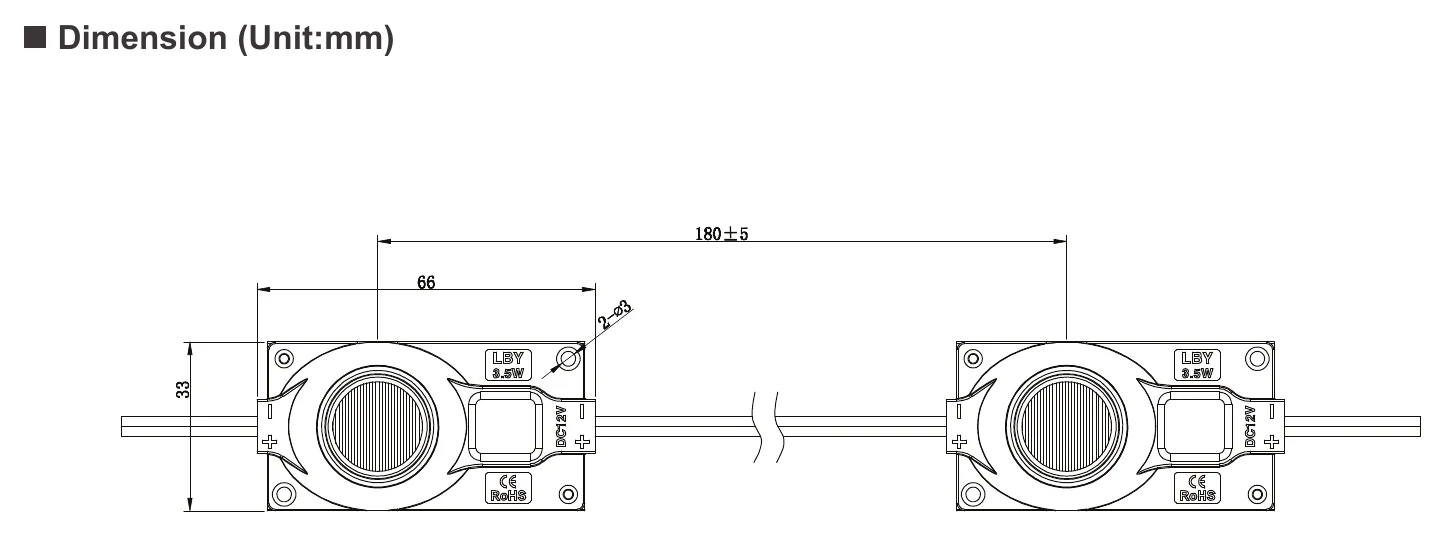

ENVO EdgeBlade LED Module Sidelit - Single LED Dimension (Unit:mm) — Dimension (Unit:mm)

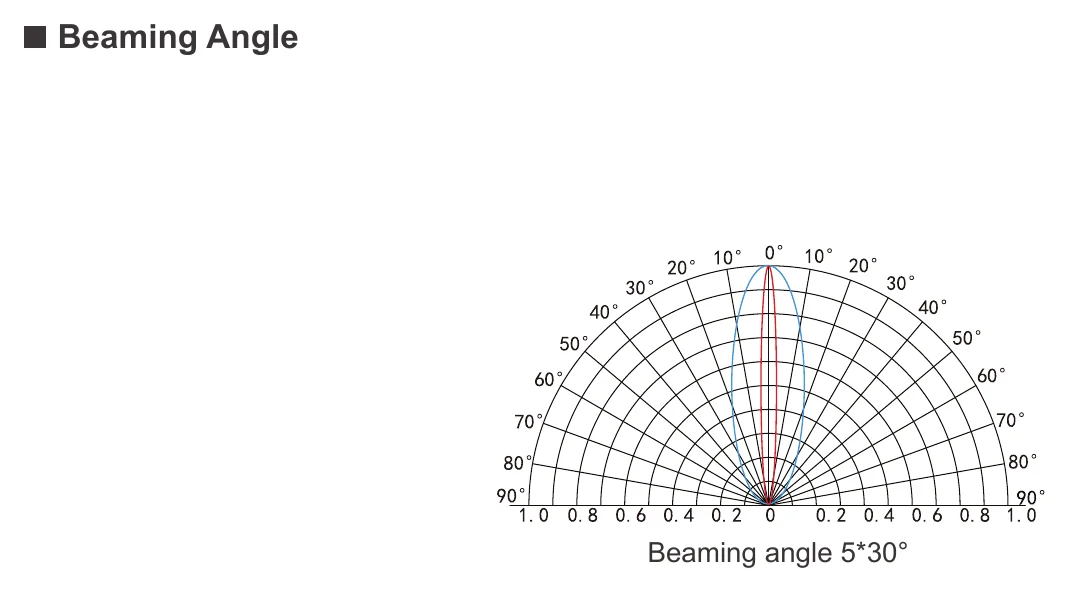

ENVO EdgeBlade LED Module Sidelit - Single LED Beaming Angle — Beaming Angle

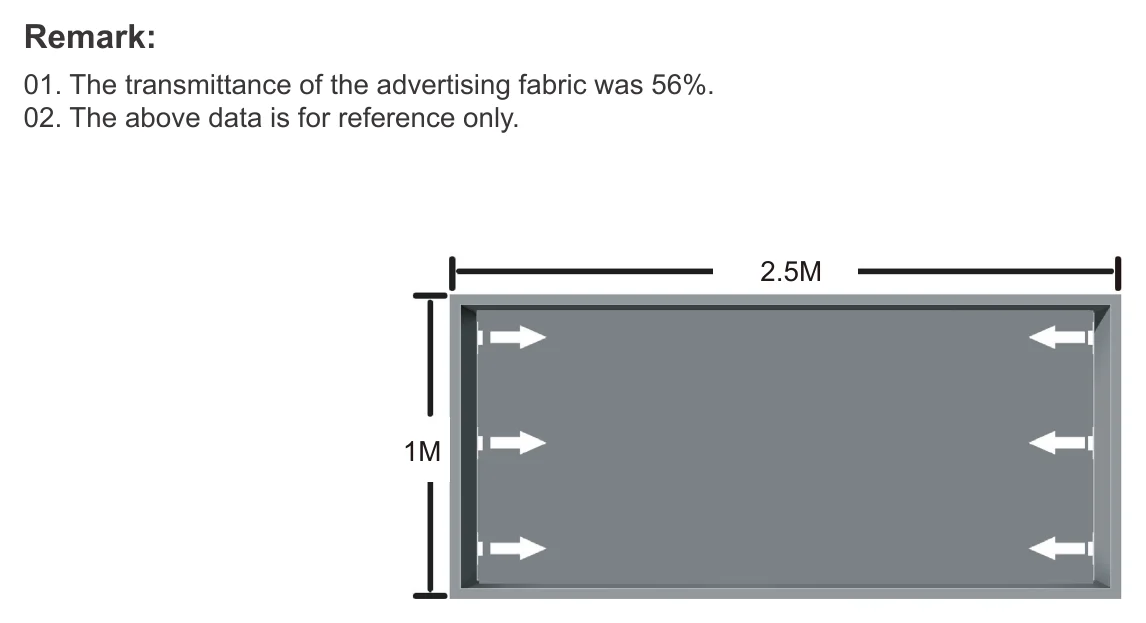

ENVO EdgeBlade LED Module Sidelit - Single LED Remark — Remark

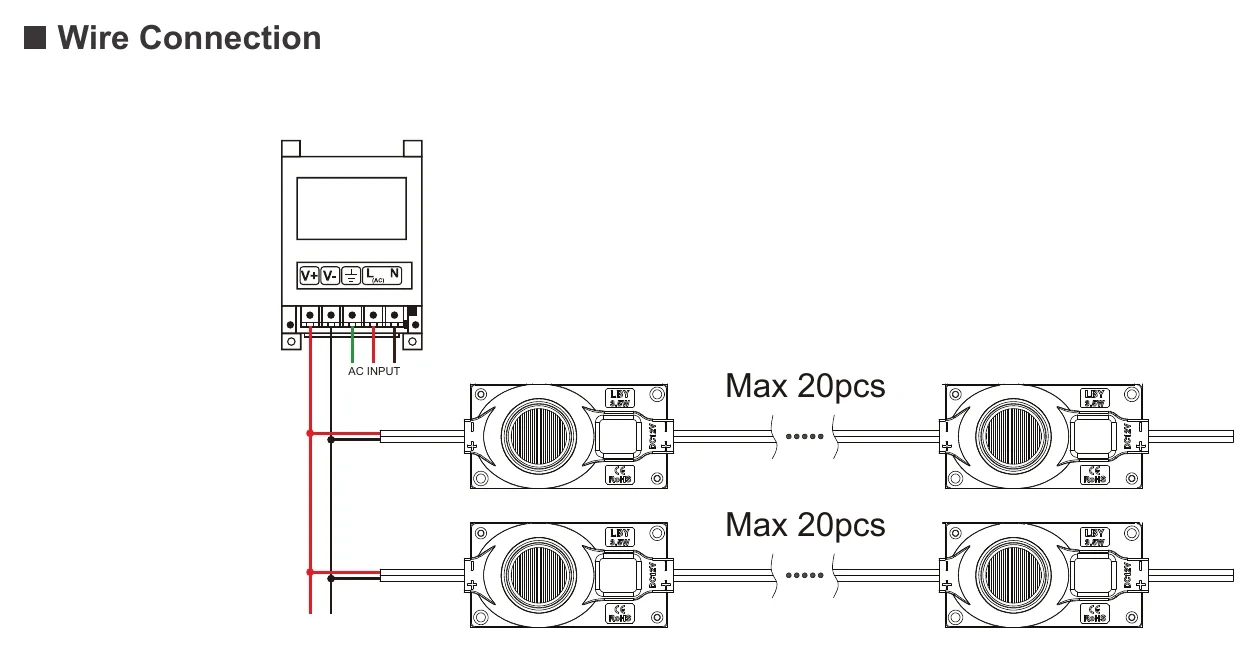

ENVO EdgeBlade LED Module Sidelit - Single LED Wire Connection — Wire Connection

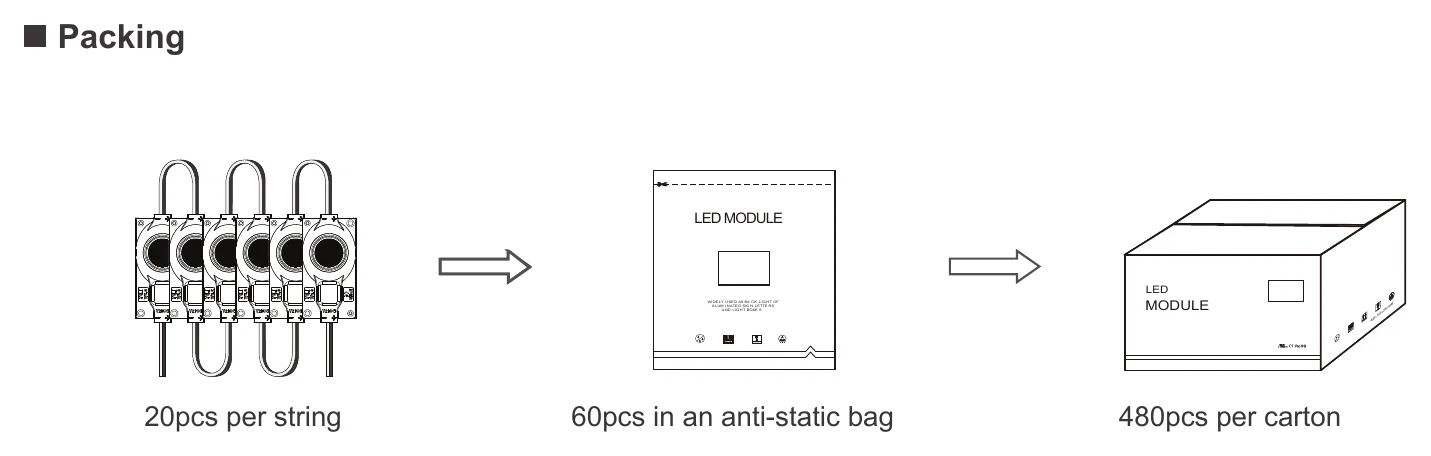

ENVO EdgeBlade LED Module Sidelit - Single LED Packing — Packing

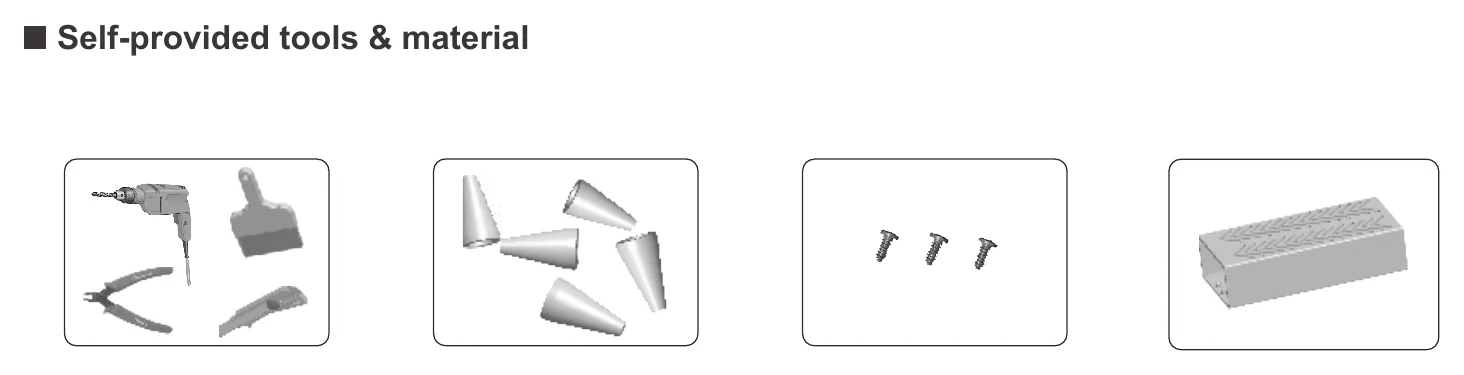

ENVO EdgeBlade LED Module Sidelit - Single LED Self-provided tools & material — Self-provided tools & material

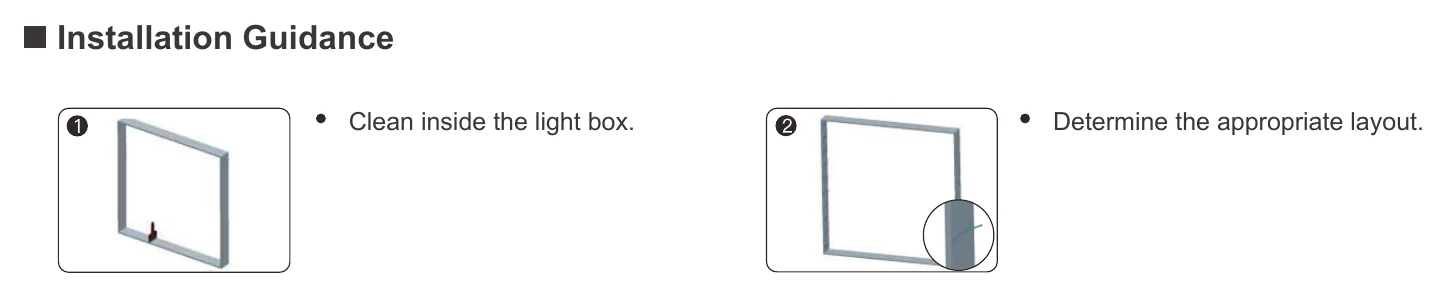

ENVO EdgeBlade LED Module Sidelit - Single LED Installation Guidance — Installation Guidance

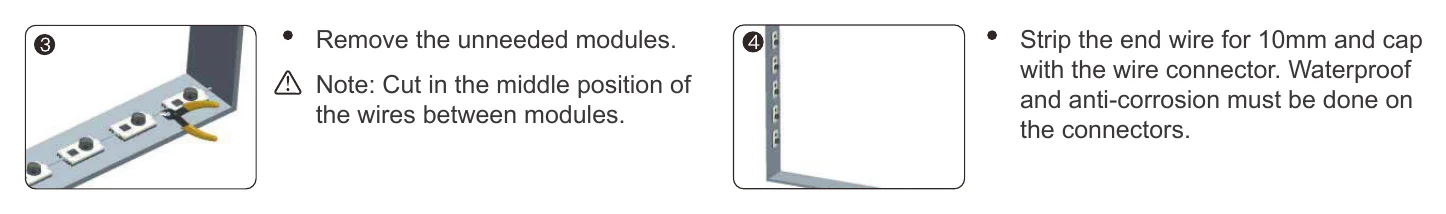

ENVO EdgeBlade LED Module Sidelit - Single LED Installation Guidance (2) — Installation Guidance (2)

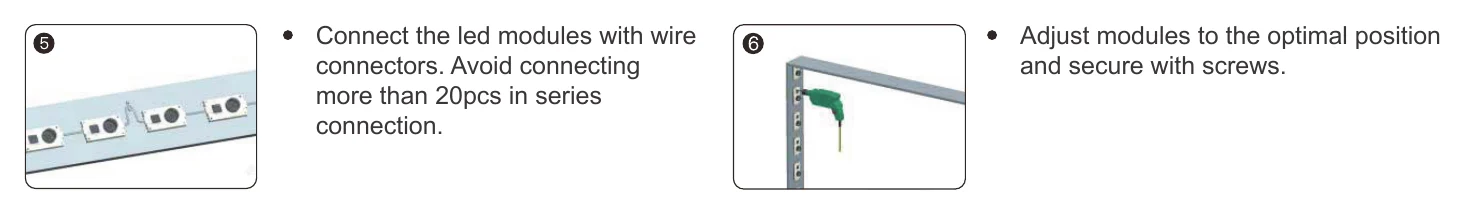

ENVO EdgeBlade LED Module Sidelit - Single LED Installation Guidance (3) — Installation Guidance (3)

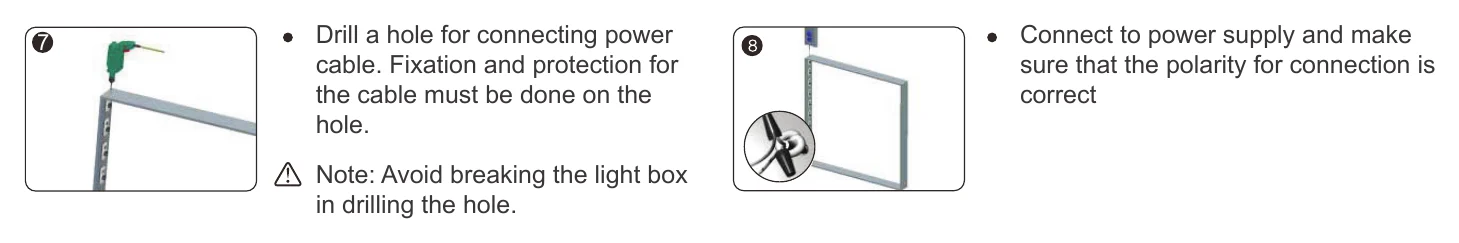

ENVO EdgeBlade LED Module Sidelit - Single LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Light coverage: up to 2.5M.
Apply to 10-15 cm depth double-sided light box at airports, metros, banks, buildings and shopping malls, etc.

Downloads

Datasheet1

ENVO EdgeBlade LED Module Sidelit - Single LED datasheetEV_SLEB01LBY.pdf PDF Download

FAQ

What is the ENVO EdgeBlade LED Module Sidelit - Single LED designed for?

This module is designed for side-lit, double-sided light boxes in commercial and public environments. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even signage illumination is needed.

What light box depth is this LED module suitable for?

The ENVO EdgeBlade LED Module Sidelit - Single LED is intended for double-sided light boxes with a depth of 10-15 cm. It is designed to provide effective light coverage across displays up to 2.5 meters.

What are the key performance specs of this LED module family?

Each module uses high-output 3535 LED technology and delivers 310 lumens while consuming 3.5W. The family has a 5x30 degree beam angle, CRI 70, a rated lifetime of 50,000 hours, and a 5-year warranty.

What variant options are available in this product family?

This parent product family is offered in three color temperatures: 3000K, 4000K, and 7000K. Across those variants, the published beam angle, brightness, power rating, CRI, dimming capability, lifetime, and warranty remain the same.

Is the ENVO EdgeBlade LED Module Sidelit - Single LED dimmable?

Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light output is required, while maintaining the same core module specifications across the available color temperature options.

What certifications does this LED module family carry?

The product description states that this module family is backed by CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications. These certifications support its positioning for quality, safety, and environmental compliance in commercial signage applications.
