1 6

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54

SKU Z-NSR0408-2454GLE-NW-10
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

Z-NSR0408-2454GLE-NW-10
LED Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Technical drawings

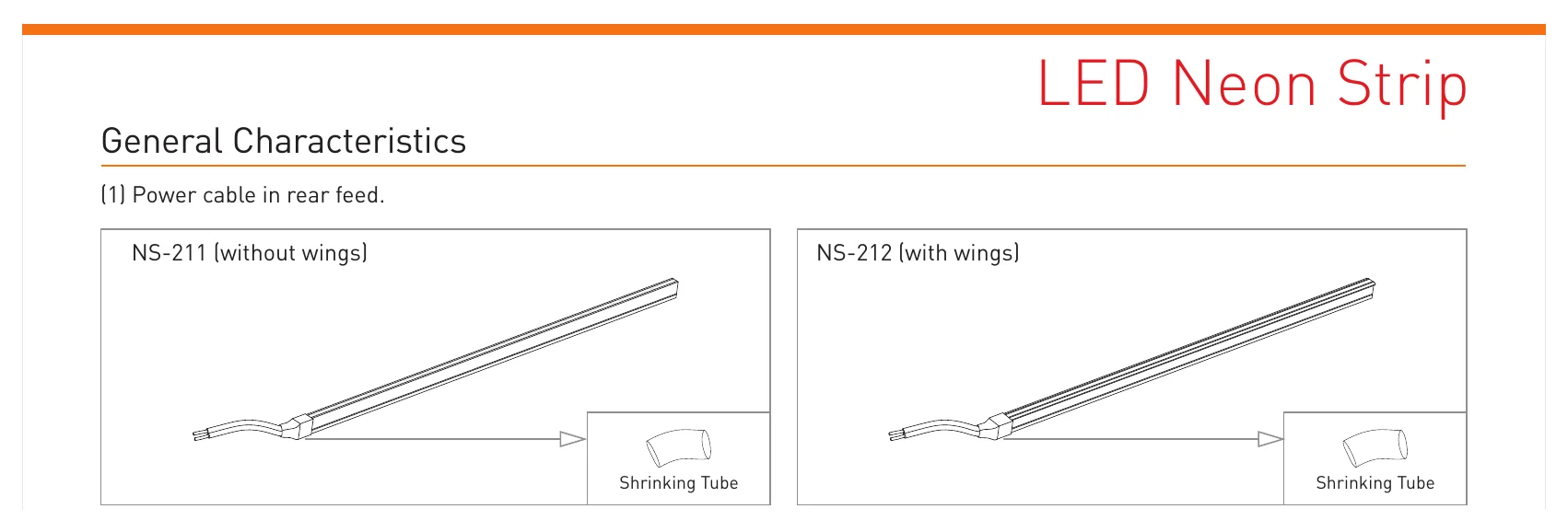

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 LED Neon Strip
LED Neon Strip

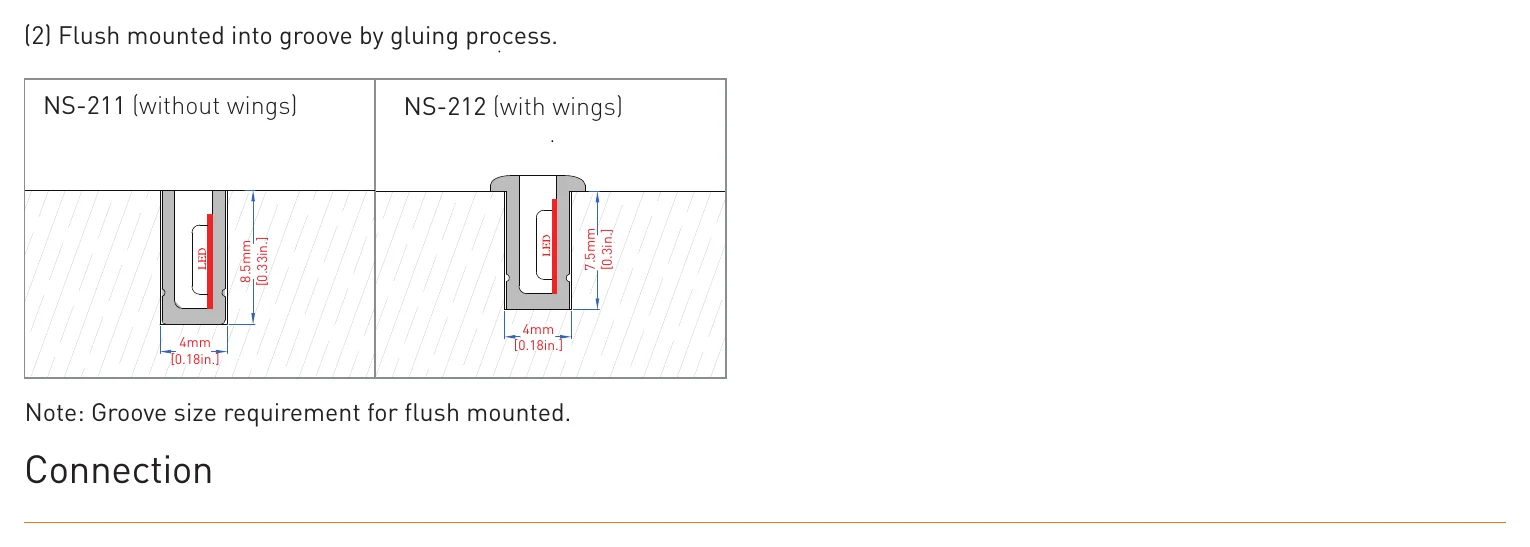

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 (2) Flush mounted into groove by gluing process.
(2) Flush mounted into groove by gluing process.

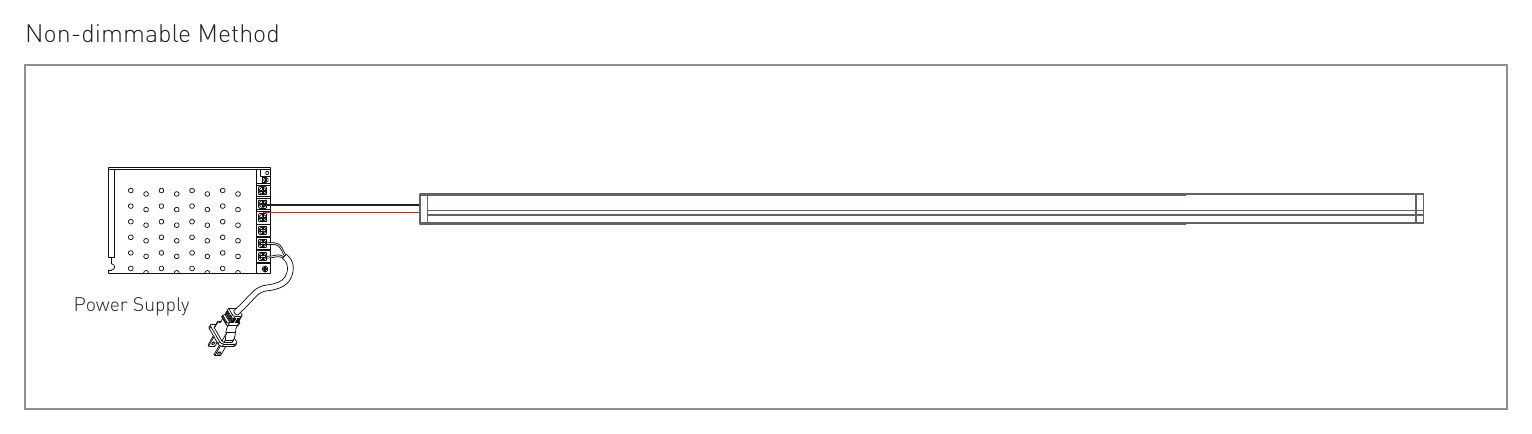

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 Non-dimmable Method
Non-dimmable Method

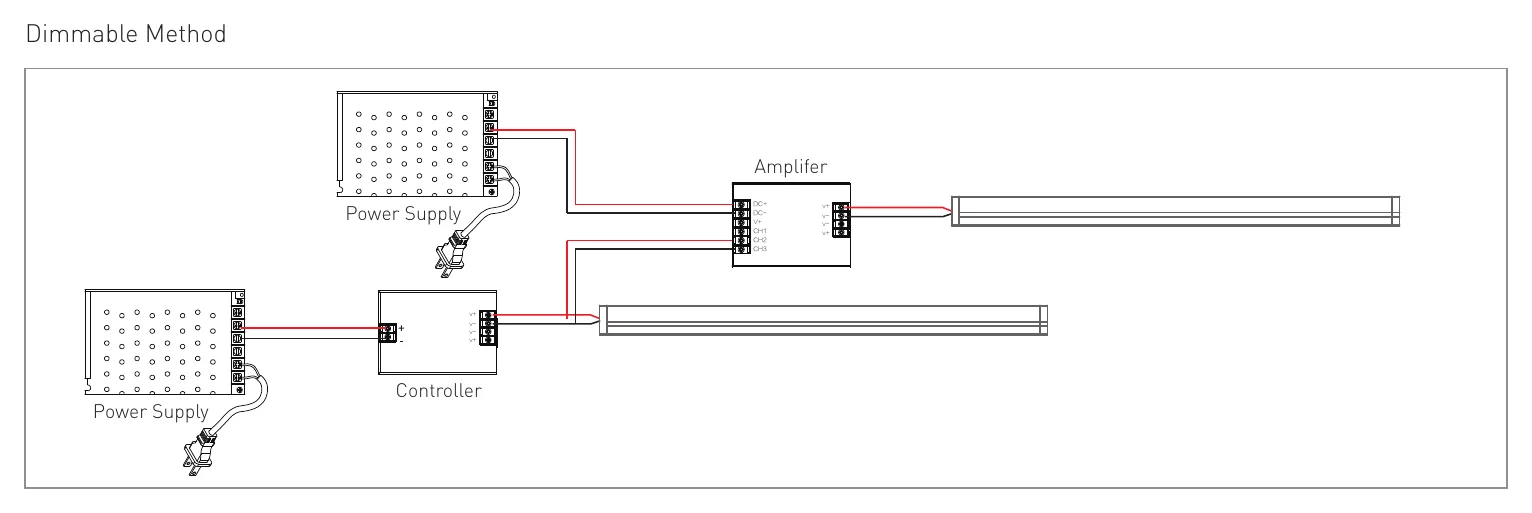

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 Dimmable Method
Dimmable Method

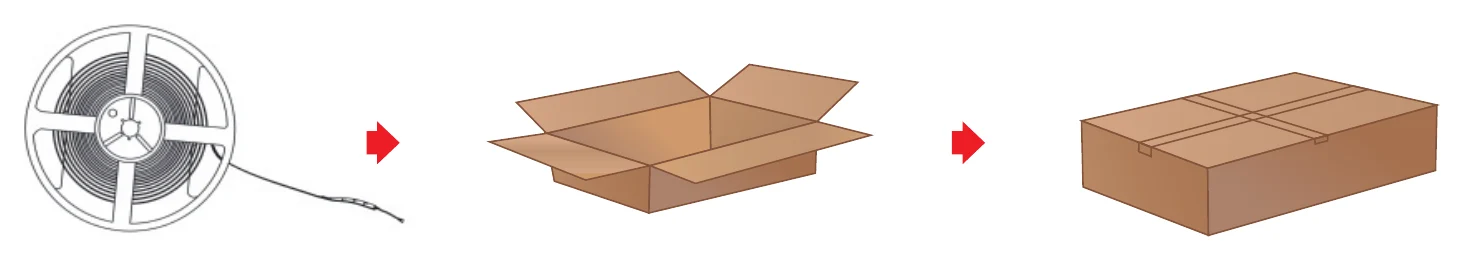

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 LED Neon Strip
LED Neon Strip

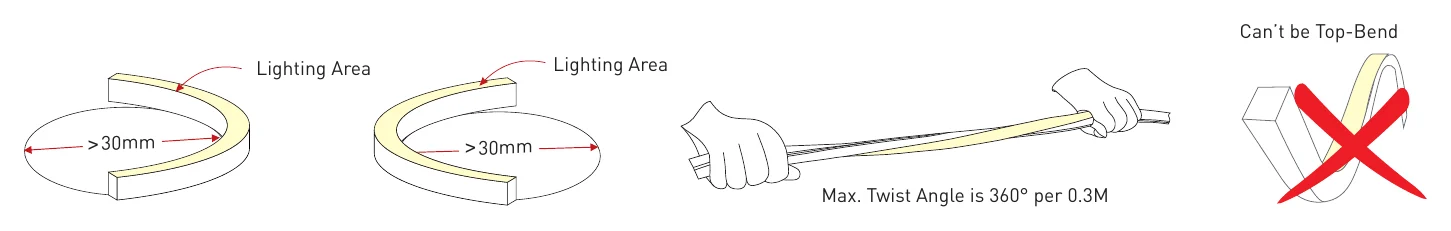

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 Max.！
Max.！

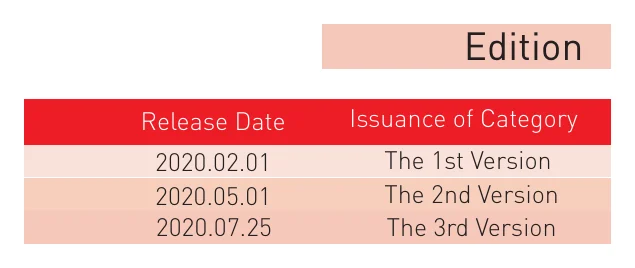

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54 Edition
Edition

Downloads

FAQ

What is the LED Neon Side Bend Slight Series Slim Recess Trim designed for?

This parent product is designed for furniture lighting applications where a slim, flexible linear light is needed. Its 4x8 mm profile supports a recessed, flush-mounted appearance in furniture grooves.

Is this LED neon strip suitable for indoor or outdoor use?

The product is rated IP54 and is described for indoor use, specifically for furniture lighting. It should be selected for protected applications where the IP54 rating and indoor-use scope match the project requirements.

What power supply does this LED neon strip require?

This model uses a 24V power input and is rated at 9 W per meter. The driver is not included, so the compatible driver must be specified separately for the full system.

Is this LED neon strip dimmable?

Dimming is optional for this product family. The provided specification notes dimming availability with a PWM signal.

What are the key dimensions of this slim recessed LED neon strip?

The parent model has an ultra-slim 4 mm width and 8 mm height. These dimensions make it suitable for compact furniture lighting details where a narrow recessed linear profile is needed.

Does this product provide a continuous dot-free light output?

Yes, the description states that it provides a uniform, dot-free, smooth luminary effect. The stated continuous run length is up to 10 meters, or 32.8 feet.

Are the child variants meaningfully different in the provided specifications?

The listed child variants share the same product name, 9 W power rating, driver-not-included status, optional dimming, and 5-year warranty in the provided data. No CCT, beam angle, CRI, brightness, finish, or lifetime values are supplied for factual comparison.

What warranty applies to this LED neon product family?

The parent product data lists a 5-year warranty period. The listed child variants also show the same 5-year warranty value.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Neon Side Bend Series Models

2 other models
ModelPowerLED DensityCuttableIP Rating
Archilight LED Neon Side-bend Glow-Wave Series — — — IP67 View
Archilight LED Neon Side-Bend Slight Series 4x8mm 9W 120LEDs/m 0mm IP54 View
View all 3 Neon Side Bend Series models
{ "id":8442935640363, "variants" :[{ "context":"default", "variant_id": 45713469014315, "sku":"Z-NSR0408-2454GLE-NW-10", "inventory_qty" : 1, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45713469178155, "sku":"Z-NSR0408-2454GLE-WW-10", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 52147599212910, "sku":"Z-NSR0408-2454GLE-CW-10", "inventory_qty" : 1, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54
Archilight

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54

Log in to see price
Super flexible bending performance with ultra-slim size, exclusive for furniture lighting application. 2. Plane profile supports flush mounted into the groove of furniture. 3. Uniform, dot-free, smooth and comfortable luminary up to 10 meters [32.8ft.] run length. 4. On field cuttable and assembly to be any length, with two ends sealed by gluing process. 5. IP54 for indoor usage exclusive for furniture lighting. 6. Dimmable available with PWM signal.

Length

  • 1000 Centimeter

LED Colour

  • Natural White 4000K
  • Warm White 3000K
  • Cool White 6500K
View product
