Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

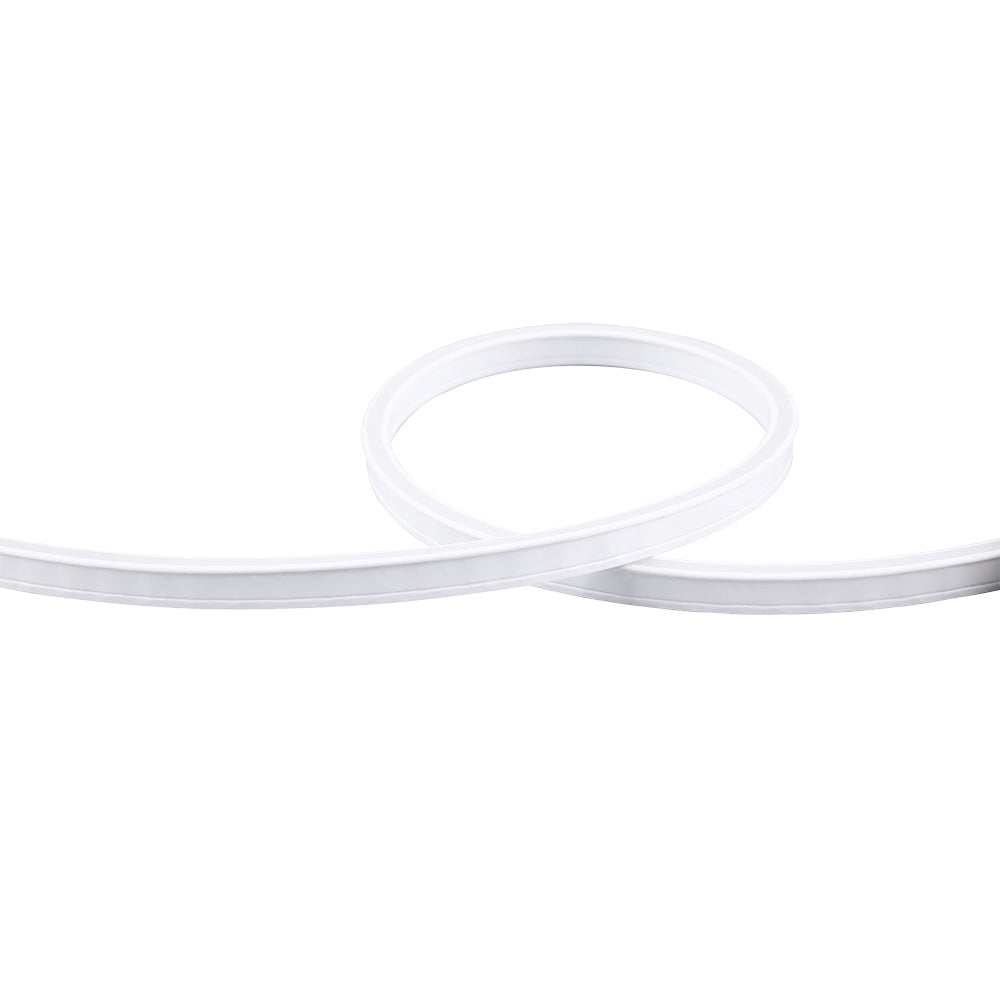

LED Neon Side Bend Slight Series Slim Recess Trim 4x8mm 9W/m 24V IP54

SKU:

Z-NSR0408-2454GLE-NW-10

Length

1000 Centimeter

LED Colour

Natural White 4000K Warm White 3000K Cool White 6500K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Super flexible bending performance with ultra-slim size, exclusive for furniture lighting application. 2. Plane profile supports flush mounted into the groove of furniture. 3. Uniform, dot-free, smooth and comfortable luminary up to 10 meters [32.8ft.] run length. 4. On field cuttable and assembly to be any length, with two ends sealed by gluing process. 5. IP54 for indoor usage exclusive for furniture lighting. 6. Dimmable available with PWM signal.

Specifications

Brand

Archilight
Series

Neon Side Bend Series
Power Rating

9 Watt
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

5 Year
Width

0.4 cm
Height

0.8 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the LED Neon Side Bend Slight Series Slim Recess Trim designed for?

This parent product is designed for furniture lighting applications where a slim, flexible linear light is needed. Its 4x8 mm profile supports a recessed, flush-mounted appearance in furniture grooves.

Is this LED neon strip suitable for indoor or outdoor use?

The product is rated IP54 and is described for indoor use, specifically for furniture lighting. It should be selected for protected applications where the IP54 rating and indoor-use scope match the project requirements.

What power supply does this LED neon strip require?

This model uses a 24V power input and is rated at 9 W per meter. The driver is not included, so the compatible driver must be specified separately for the full system.

Is this LED neon strip dimmable?

Dimming is optional for this product family. The provided specification notes dimming availability with a PWM signal.

What are the key dimensions of this slim recessed LED neon strip?

The parent model has an ultra-slim 4 mm width and 8 mm height. These dimensions make it suitable for compact furniture lighting details where a narrow recessed linear profile is needed.

Does this product provide a continuous dot-free light output?

Yes, the description states that it provides a uniform, dot-free, smooth luminary effect. The stated continuous run length is up to 10 meters, or 32.8 feet.

Are the child variants meaningfully different in the provided specifications?

The listed child variants share the same product name, 9 W power rating, driver-not-included status, optional dimming, and 5-year warranty in the provided data. No CCT, beam angle, CRI, brightness, finish, or lifetime values are supplied for factual comparison.

What warranty applies to this LED neon product family?

The parent product data lists a 5-year warranty period. The listed child variants also show the same 5-year warranty value.

Model	Power	LED Density	Cuttable	IP Rating
Archilight LED Neon Side-bend Glow-Wave Series	—	—	—	IP67	View
