Vimar

Vimar Arke Frame 2 CentralM + Screws

Arke 2 Module Center
SKU VM-19612
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19612 is Vimar ARKÉ 19612, frame 2centralM +screws.

2-central-module mounting frame, with screws, for 3-module mounting frame and 60 mm fixing centres or 56x56 mm mounting box, for horizontal or vertical installation

Features

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules
  • Thanks to the central slots, the support can be fixed onto the wall level

Specifications

VM-19612Specifications from the official datasheet

Technical data

Product type
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

Packaging

EAN
8007352433502
Packed size (cm)
11.8 × 7.3 × 2.1
Packed weight
23.2 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), IMQ (Italy)

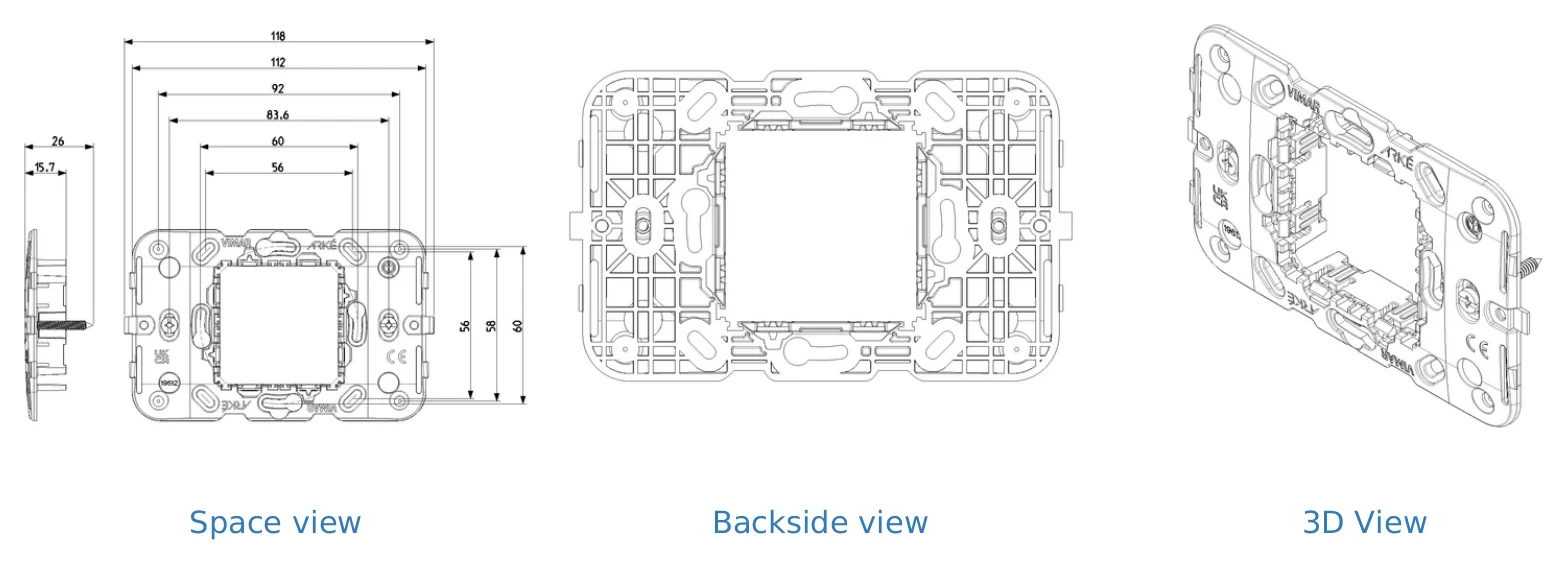

Technical drawings

VM-19612 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Frame 2 CentralM + Screws used for?

The Vimar Arke Frame 2 CentralM + Screws is a frame for Vimar Arké switch and socket configurations. It is suited to projects that need a contemporary, coordinated finish for light switches or socket points.

Is this frame part of the Vimar Arké range?

Yes. This product is listed under the Vimar Arké switch frame family and is intended for use within Arké-style switch and socket layouts.

What colour is this Vimar Arke frame?

This model has a blue finish colour. The colour detail helps buyers match it with the required design scheme or existing Arké components.

Is this frame suitable for hotels or residential interiors?

Yes. The Arké range is described as suitable for residential spaces and hotels, especially where style details and a modern aesthetic matter.

What warranty period does this product have?

The listed warranty period for SKU VM-19612 is 3 years. This applies to the Vimar Arke Frame 2 CentralM + Screws model shown on this product page.

How much does the Vimar Arke Frame 2 CentralM + Screws weigh?

The listed product weight is 0.0232 kg. This lightweight specification can help with procurement, shipping estimates, and project documentation.
