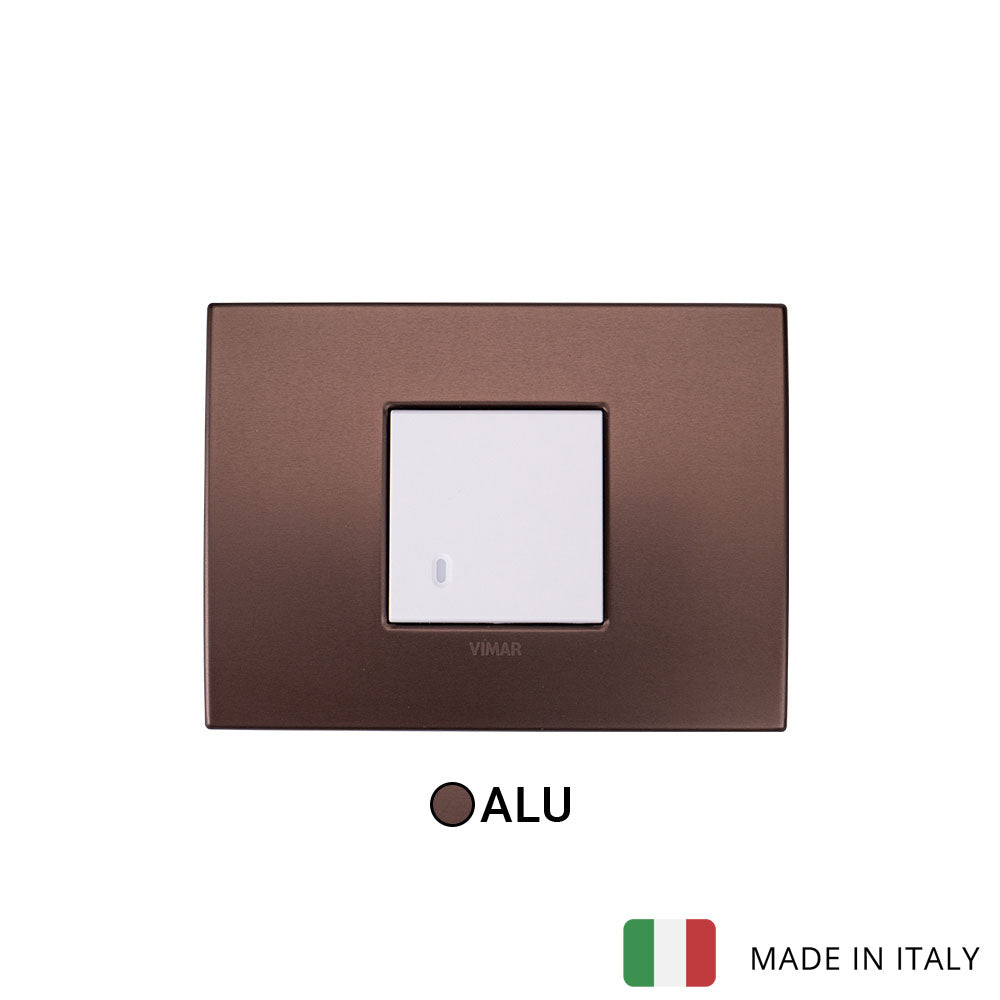

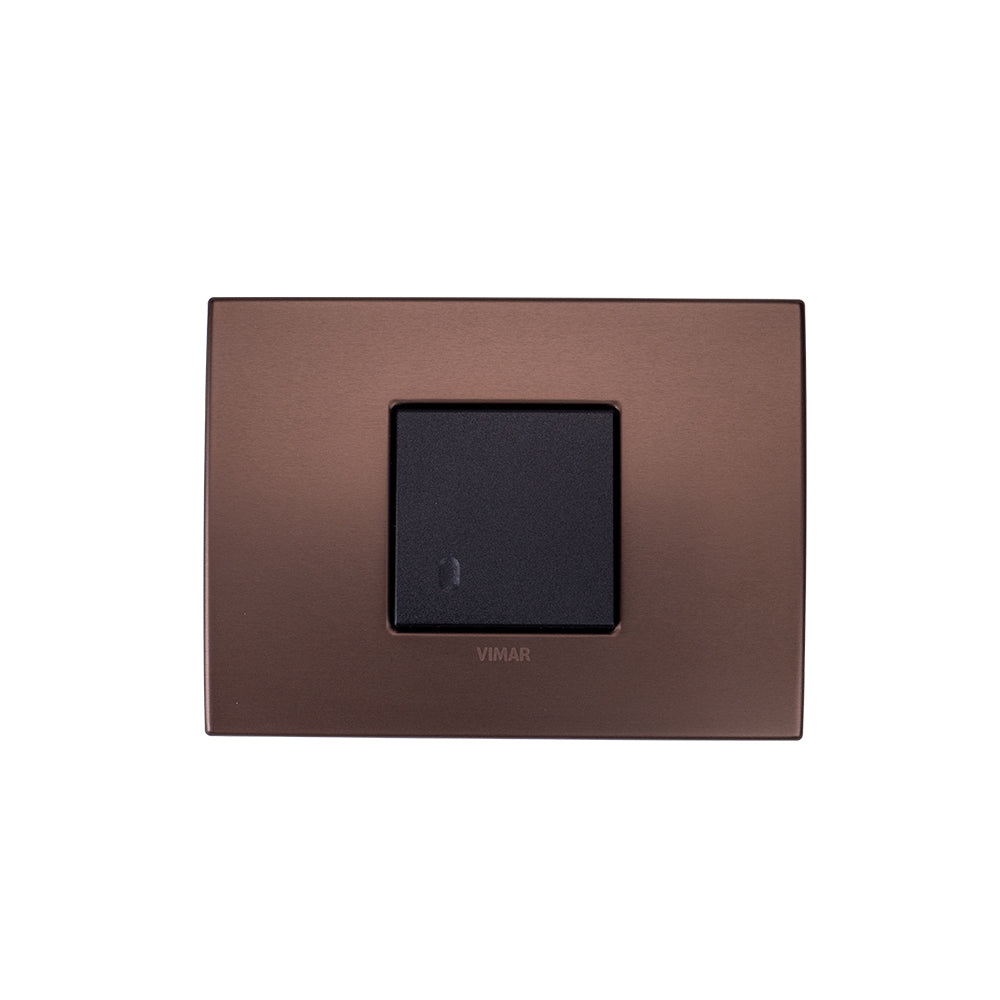

Vimar Arke Metal 1 Gang Switch - Dark Bronze - 16A

SKU Z-VM21GG-ATDB

Log in to see price Trade pricing & online ordering for account holders

Configure — 2 variants

Z-VM21GG-ATDB

Module Colour

2 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

This kit is assembled from Vimar parts: 1 × classic plate 2centrM alu dark bronze (VM-19652.17); 1 × frame 2centralM +screws (VM-19612); 1 × 1P 16AX 1-Way Switch 2M (VM-19001.2.B). Each part's specifications follow, with a link to its own page.

Specifications

Vimar Arke Metal 1 Gang Switch - Dark Bronze - 16ASpecifications from the official datasheet

Variants

SKU	Module Colour
Z-VM21GG-ATDB	Grey
Z-VM21GW-ATDB	White

Kit contents

Cover plate × 1: VM-19652.17 · classic plate 2centrM alu dark bronze
Frame × 1: VM-19612 · frame 2centralM +screws
Installation switch × 1: VM-19001.2.B · 1P 16AX 1-Way Switch 2M White

Cover plate (VM-19652.17)

Product type: Cover frame for domestic switching devices
Number of units: 2
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 2
Number of device inserts vertical: 1
Number of modules horizontal (module system): 2
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Metal
Material quality: Aluminium
Halogen free: Yes
Surface protection: Anodised
Surface finishing: Matt
Colour: Bronze
RAL-number (similar): 8008
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 122 mm
Height: 90 mm
Depth: 8.6 mm
Built-in width: 122 mm
Built-in height: 90 mm
Certifications: CE marking (EU)

Frame (VM-19612)

Product type: Holder for modular domestic switching devices
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 2
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Technical drawings

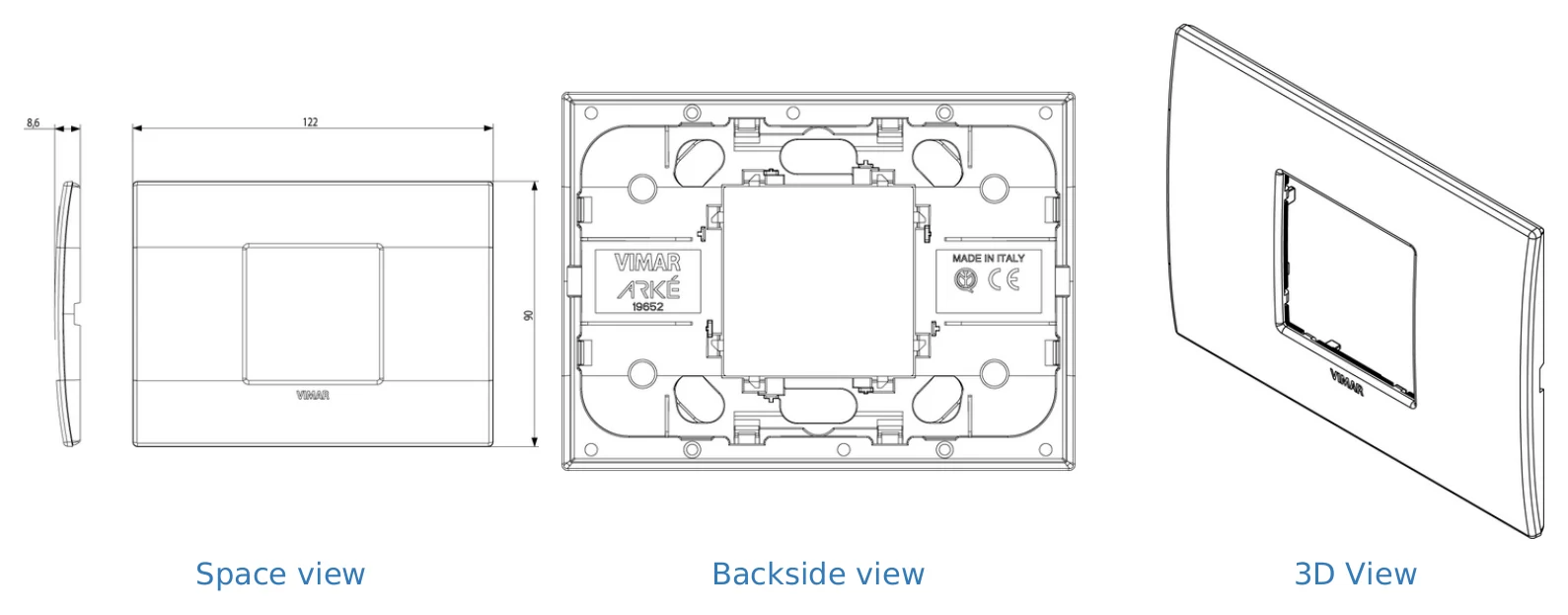

Vimar Arke Metal 1 Gang Switch - Dark Bronze - 16A Cover plate VM-19652.17: drawing — Cover plate VM-19652.17: drawing

Vimar Arke Metal 1 Gang Switch - Dark Bronze - 16A Frame VM-19612: drawing — Frame VM-19612: drawing
