Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Flush Mounting Box 4M Light Blue

4 ModuleBlueø00mm * 50mm

SKU VM-V71304

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71304 is Vimar V71304, flush mounting box 4M light blue.

4-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

Features

Plenty of space of internal wiring
Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
Knockouts designed for the insertion of pipes with various cross-sections
Rack for fixing the dividing screen (patented)
Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Specifications

VM-V71304Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Flush-mounted
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 59 mm
Width: 121 mm
Depth: 0 - 49.8 mm
Inner depth: 50 mm
For number of device inserts: 4
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 14
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352079403
Packed size (cm): 13.1 × 6.9 × 5
Packed weight: 38.2 g
Pieces per box: 6

Certifications

Certifications: CE marking (EU), Product Environm. Profile, IMQ (Italy)

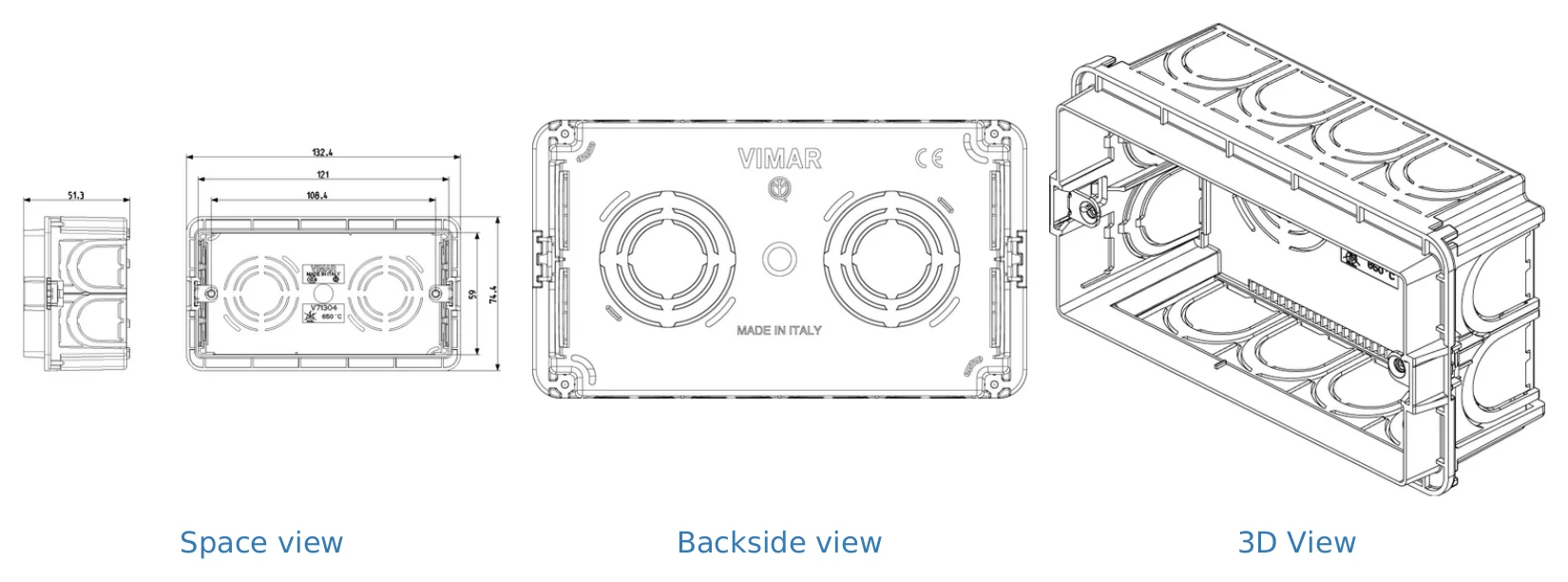

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71304 used for?

The Vimar VM-V71304 is a flush mounting box for masonry walls. It is intended to house compatible Vimar light switch and socket modules in a flush wall installation.

Which Vimar ranges is this flush mounting box associated with?

This product is listed with Vimar Plana, Arké, Eikon Evo, Eikon Exé, Eikon Tactil, Eikon Vintage, and Eikon Chrome flushbox and module categories. Buyers should match it with the correct support, plate, and accessories from the same Vimar system.

How many modules does the VM-V71304 support?

The product data describes this model as a 3-module flush mounting box. The product name also references 4M, so buyers should verify the module count against the manufacturer part data before ordering for a specific project.

What temperature range is this flush mounting box rated for?

The VM-V71304 is specified for temperatures from -20 °C to 50 °C. This makes it suitable for many standard indoor wall applications within that operating range.

What is the material safety rating listed for this box?

The product description lists a Glow Wire rating of 650 °C. This is a stated specification for the flush mounting box and may be relevant for projects with material safety requirements.

What is the weight and warranty period for the VM-V71304?

The listed weight is 0.0382 kg. The warranty period provided for this model is 3 years.
