Vimar Flush Mounting Box 2M Light Blue

2 ModuleBlueø60mm * 50mm

SKU VM-V71001

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

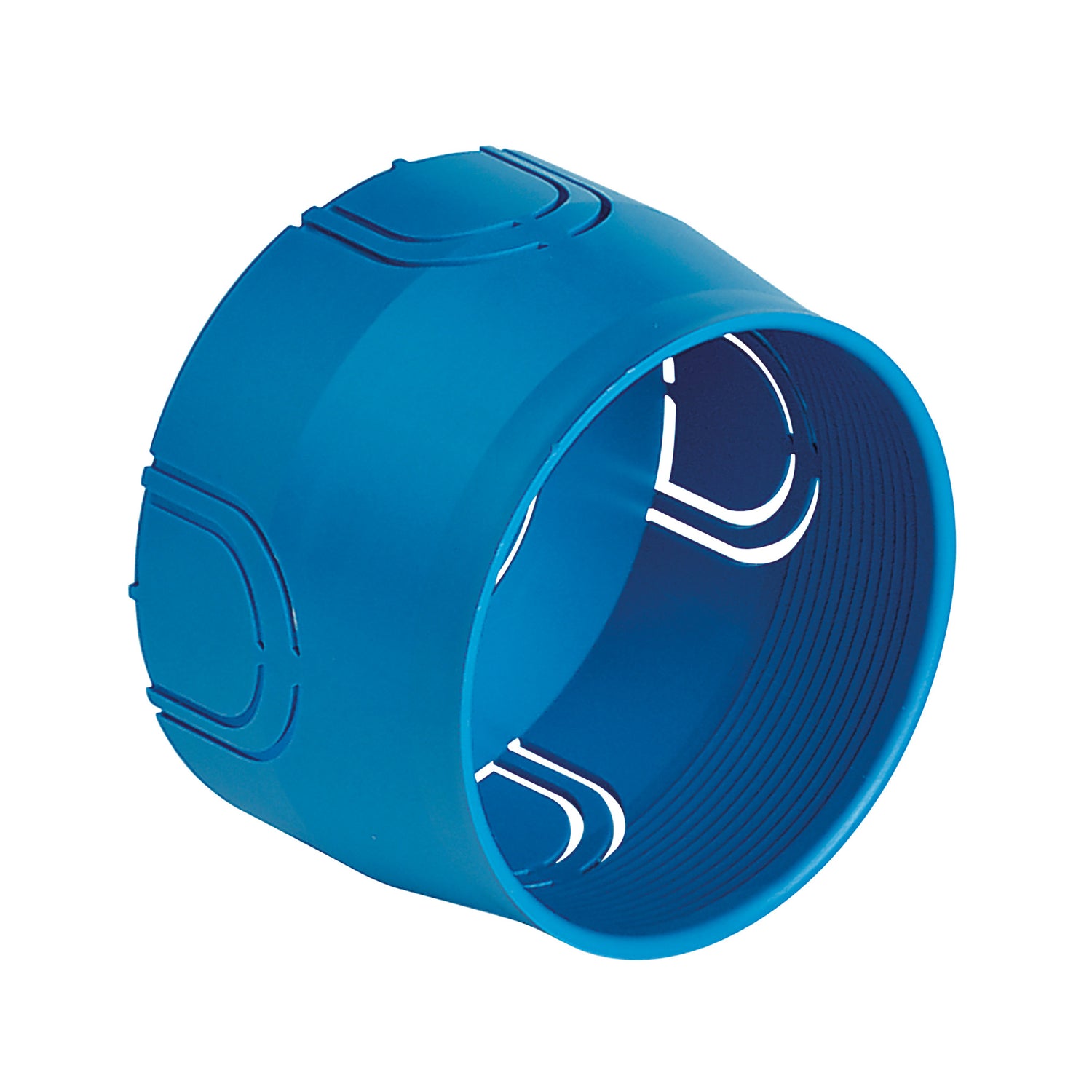

VM-V71001 is Vimar V71001, flush mounting box ø 60mm light blue.

ø 60 mm flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

Features

Plenty of space of internal wiring
Knockouts designed for the insertion of pipes with various cross-sections
Accessories available: anti-mortar covers and decorative covers

Specifications

VM-V71001Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Flush-mounted
Shape: Round
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Diameter: 60 mm
Length: 60 mm
Width: 60 mm
Depth: 0 - 50 mm
Inner depth: 50 mm
For number of device inserts: 2
Mounting switching equipment: Spread
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 5
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352079281
Packed size (cm): 6 × 6 × 5
Packed weight: 15 g
Pieces per box: 10

Certifications

Certifications: CE marking (EU), IMQ (Italy)

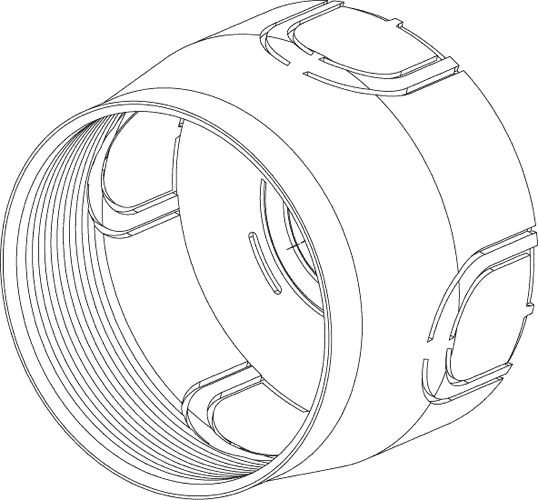

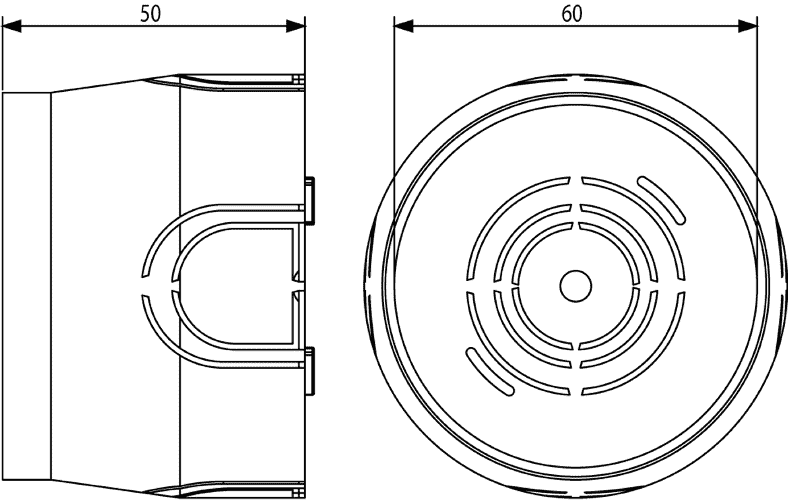

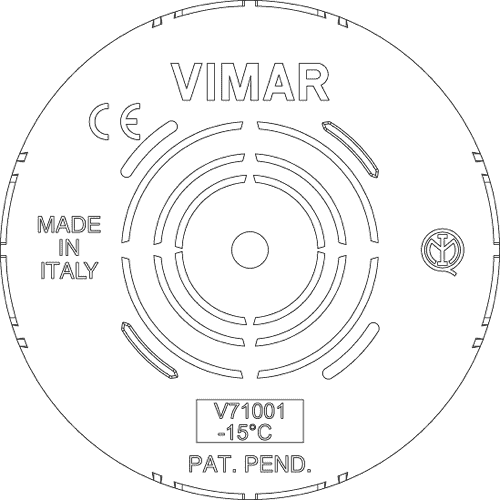

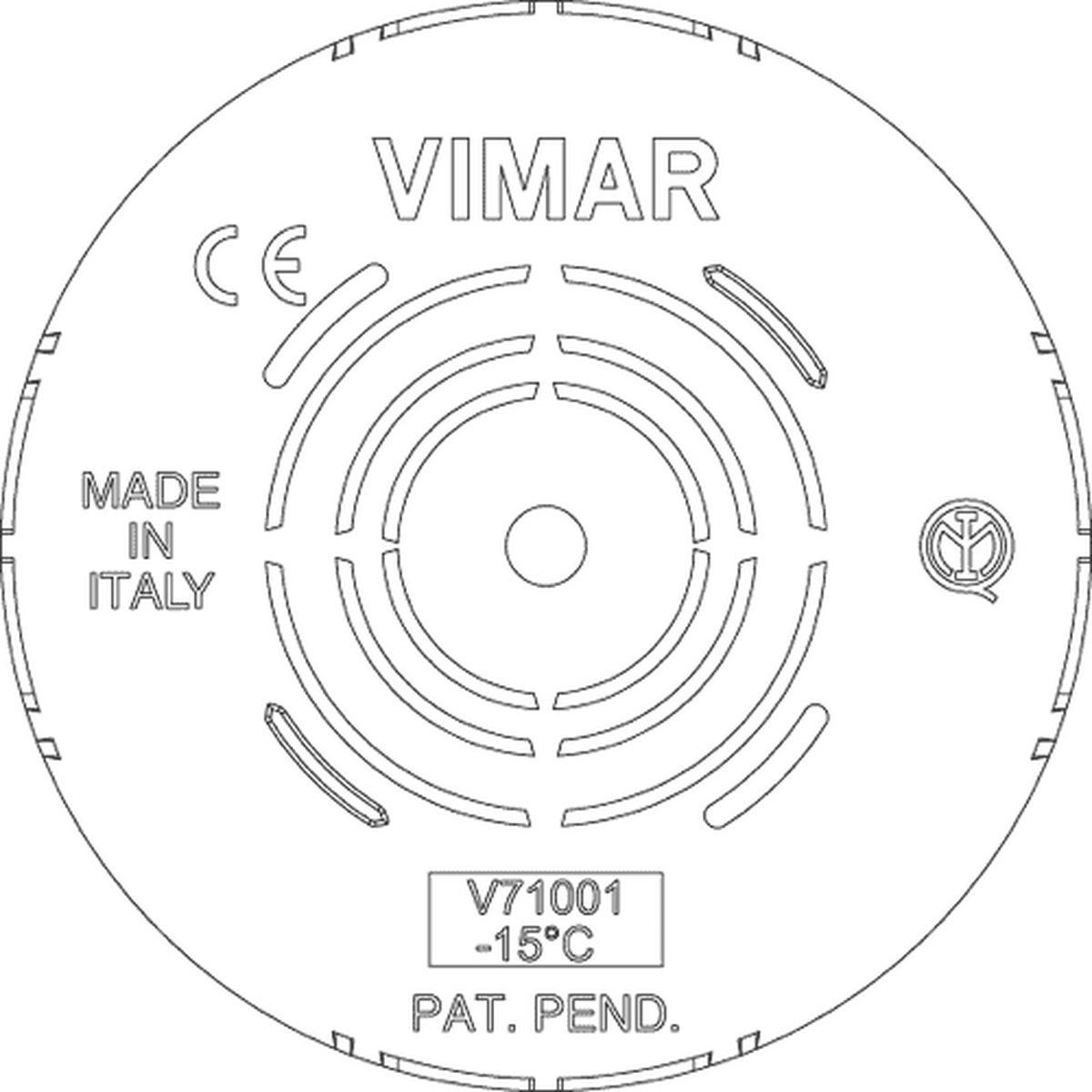

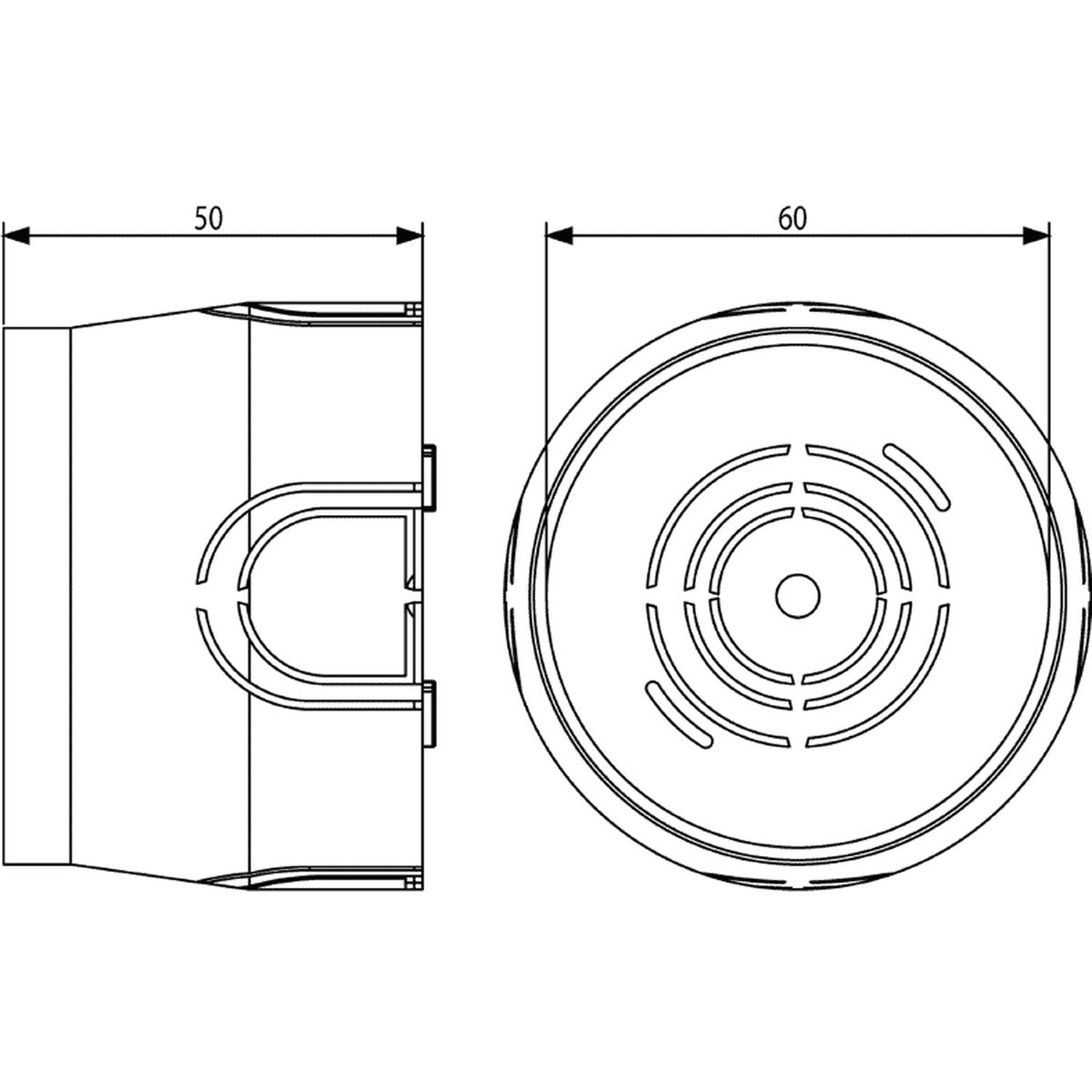

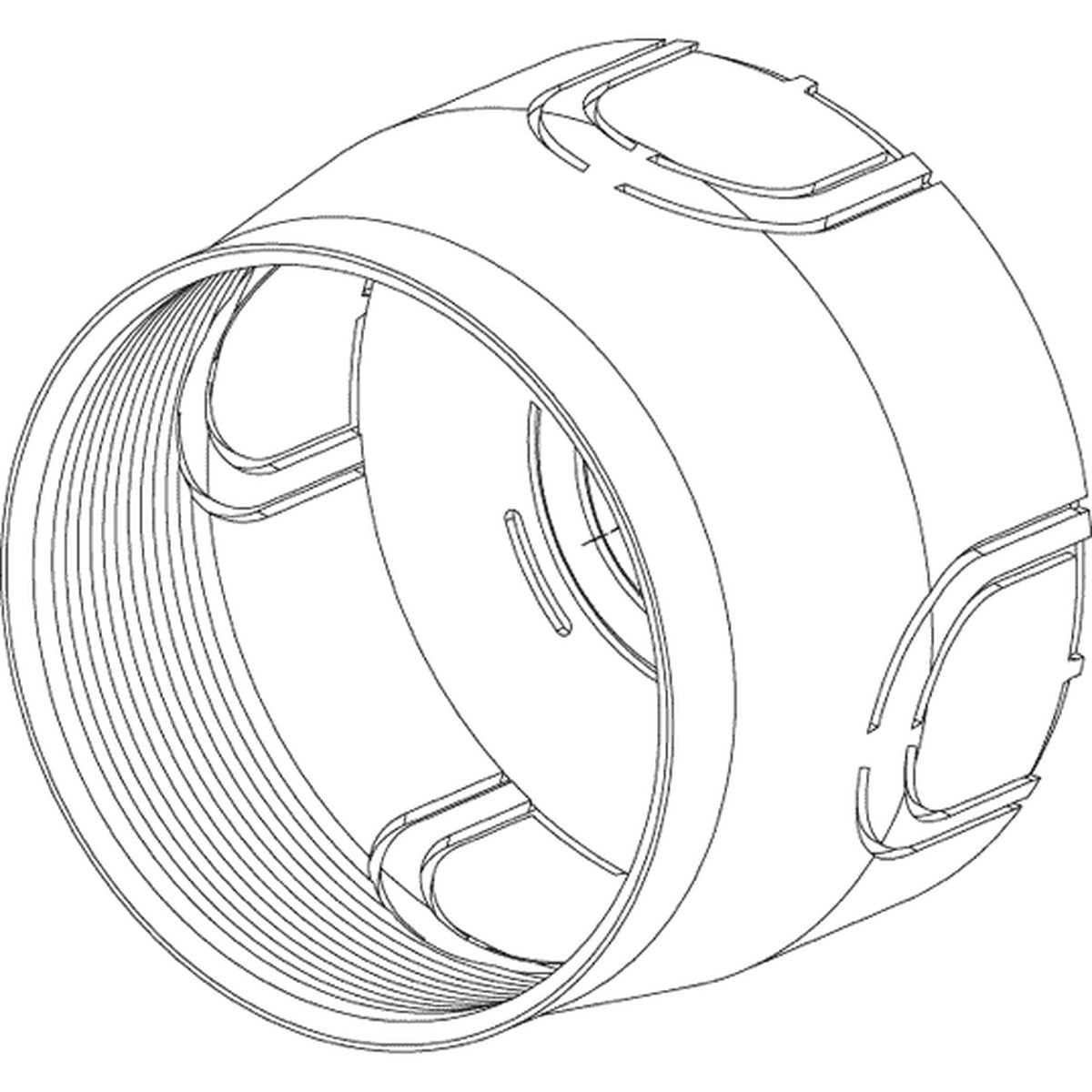

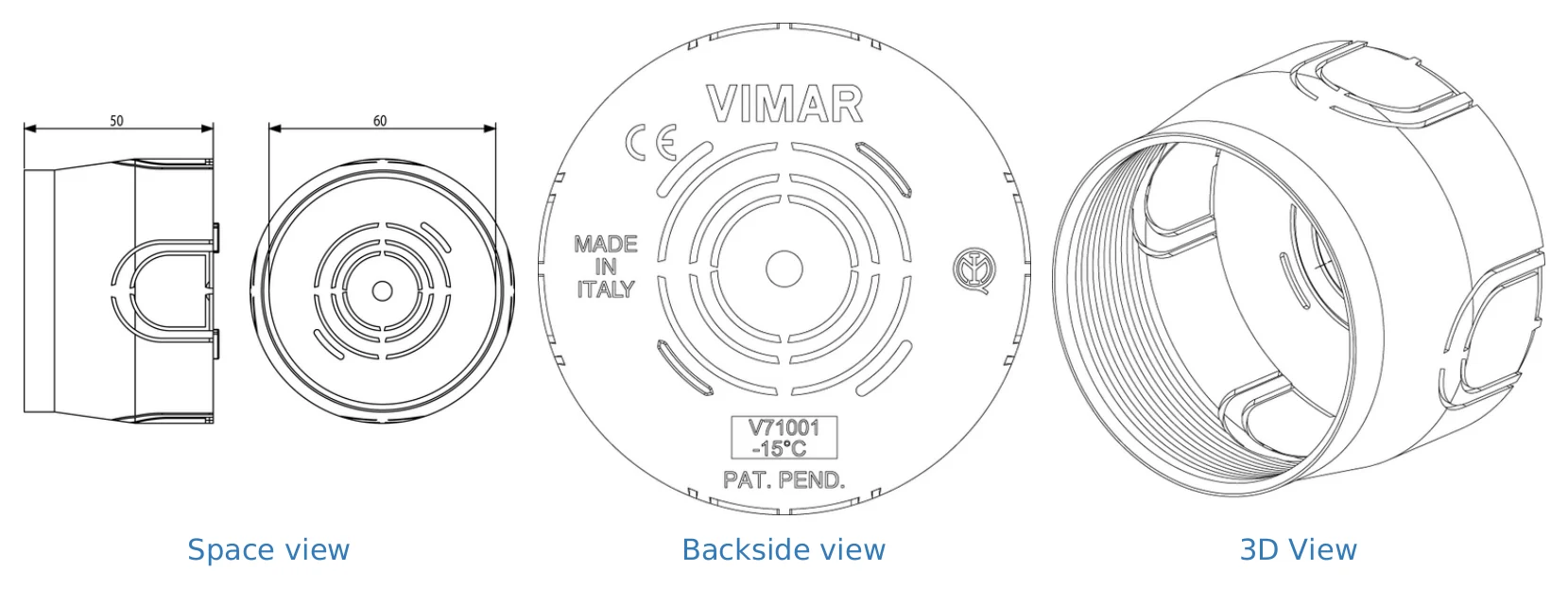

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71001 used for?

The Vimar VM-V71001 is a 2-module flush mounting box for masonry walls. It is intended for use with compatible Vimar light switch and socket module ranges where a 60 mm flush box is required.

Which Vimar ranges is this flush mounting box associated with?

This model appears in categories for Vimar Plana, Arké, Eikon Evo, Eikon Exé, Eikon Tactil, Eikon Vintage, and Eikon Chrome module families. Buyers should match it with the required 2M support, cover plate, and product range for their project.

What size is the Vimar VM-V71001 flush mounting box?

The product description specifies a 60 mm diameter flush mounting box. It is a 2M light blue box designed for masonry wall applications.

What temperature range is this Vimar flush box rated for?

The listed operating temperature range is -20 °C to 50 °C. This makes the VM-V71001 suitable for environments that stay within those specified limits.

What material safety rating is listed for this model?

The description lists a Glow Wire rating of 650 °C for the VM-V71001. This is a product-specific safety-related specification provided for this flush mounting box.

How much does the Vimar VM-V71001 weigh?

The listed weight for this model is 0.0152 kg. Its low weight can be useful for B2B purchasing teams estimating quantities and shipment weights.

What accessories are available for this flush mounting box?

The product description notes a wide range of accessories, including anti-mortar covers and coupling joints for creating multiple series of boxes. Accessory selection should be based on the matching Vimar system and project requirements.
