Vimar VM-14601 Frame 1M with Claws Green
Log in to see priceOverview
VM-14601 is Vimar PLANA 14601, frame 1M +claws.
1-module mounting frame, with claws, for ø 60 mm mounting boxes
Features
- The transparency helps the installation and the wiring of devices
- The honeycomb structure gives structural strength
- The slots in the corners enable fixing to the panel
- The hooking teeth encourage fixing in series for the installation of multiple modules
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 1
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- No
- Suitable for mounting in round junction box 60 mm
- Yes
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352123045
- Packed size (cm)
- 7.4 × 7.4 × 1.5
- Packed weight
- 26.87 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

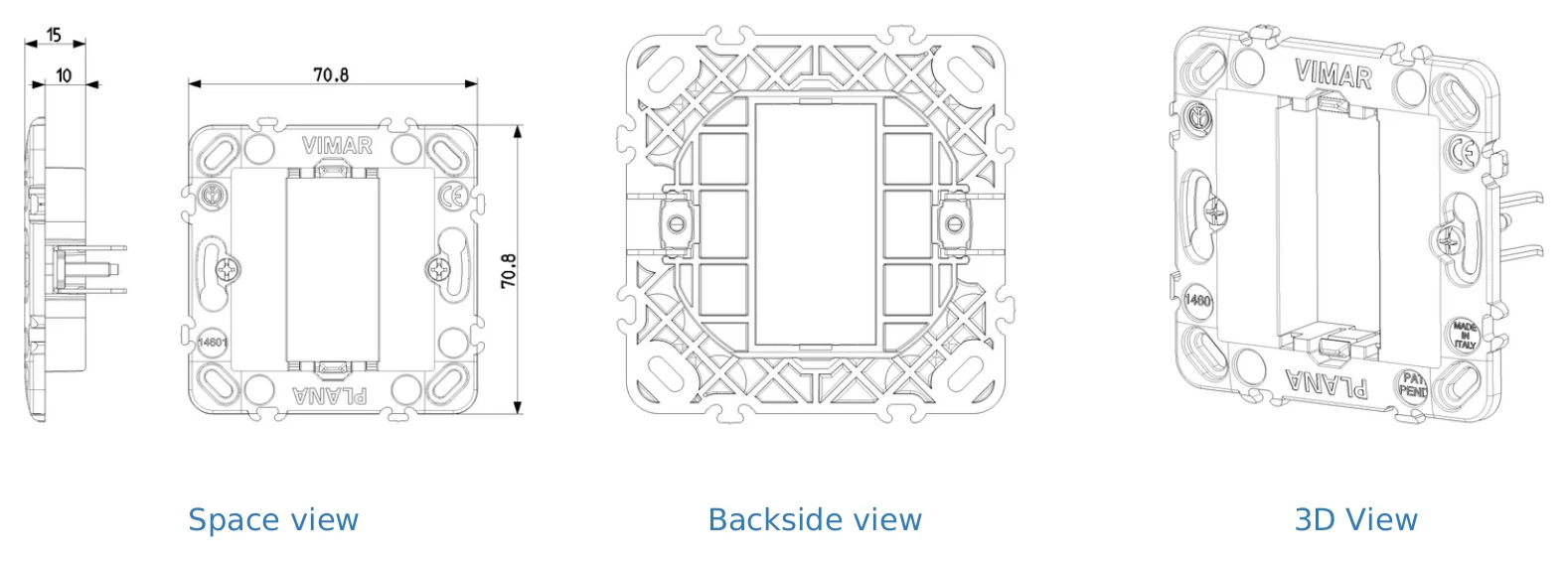

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14601 used for?
The Vimar VM-14601 is a 1-module mounting frame designed for switch-related applications. It is intended for use where a frame with claws is needed for a 60 mm mounting box.
Is the Vimar VM-14601 compatible with 60 mm mounting boxes?
Yes. The product description states that this frame is made for ø 60 mm mounting boxes. That makes it suitable for projects requiring that specific box diameter.
Does the Vimar VM-14601 include claws?
Yes, this model includes claws. The description specifically identifies it as a 1-module mounting frame with claws.
How many modules does the Vimar VM-14601 frame support?
This is a 1-module frame. It is intended for applications where a single module format is required rather than a multi-module frame.
What color is the Vimar VM-14601 frame?
The finish colour for this model is green. This can help buyers match it to product selection, project coding, or series-specific requirements.
What is the warranty period for the Vimar VM-14601?
The listed warranty period for the Vimar VM-14601 is 3 years. This provides defined coverage information for procurement and replacement planning.
